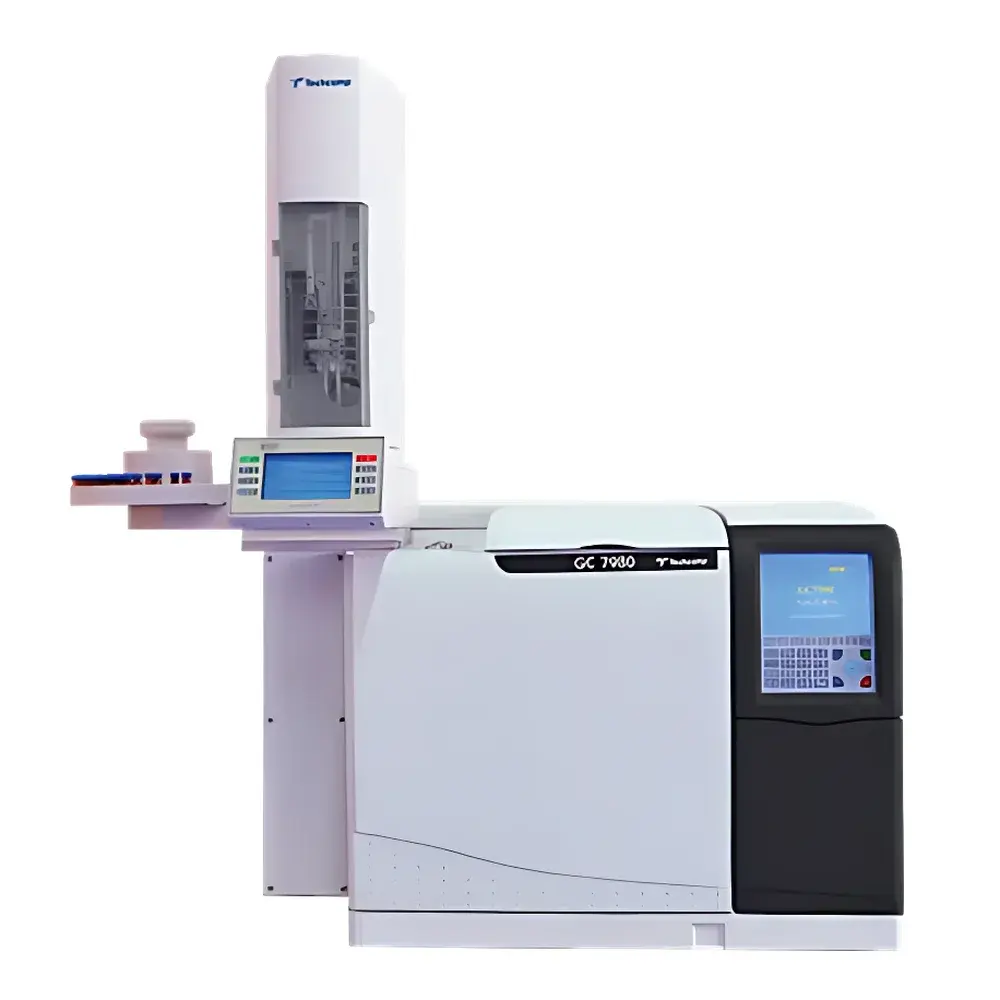

Techcomp GC7980 Gas Chromatograph

Overview

The Techcomp GC7980 Gas Chromatograph is a high-performance, general-purpose laboratory gas chromatograph engineered for precision, reproducibility, and method flexibility in routine and regulated analytical environments. Built upon Techcomp’s accumulated expertise in chromatographic system design and application development over more than a decade, the GC7980 implements full Electronic Pressure Control (EPC) architecture across up to 18 independent gas channels—enabling precise, stable, and programmable regulation of carrier gas, make-up gas, and detector gases. Its modular oven design features 10 independently controlled temperature zones, ensuring optimal thermal management for complex multi-detector configurations and extended column temperature gradients. The system supports standard packed-column and capillary split/splitless injection techniques, with injector temperatures rated to 420 °C and rapid oven cooling (350 °C → 50 °C in ≤5 minutes), significantly reducing cycle times for high-throughput laboratories.

Key Features

• Full EPC-driven gas control with real-time pressure and flow monitoring—no mechanical flow meters or manual regulators required
• 10-zone independent oven and accessory temperature control, each with ±0.1 °C stability and programmable ramp/hold profiles
• Support for up to three physically installed injectors (e.g., one packed-column + two capillary inlets) with individual EPC settings per inlet
• Simultaneous acquisition of up to three detector signals via dedicated digital and analog outputs; fourth detector signal integration supported via external interface protocol
• Onboard method storage (9 methods) with password-protected access and audit-ready parameter logging
• Universal power supply (100–240 V AC, 50/60 Hz) compliant with IEC 61000-4 electromagnetic compatibility standards
• Four isolated external event inputs for synchronized triggering of autosamplers, valves, or auxiliary hardware

Sample Compatibility & Compliance

The GC7980 accommodates a broad range of volatile and semi-volatile analytes—from low-boiling hydrocarbons and residual solvents to pesticides, food additives, and dissolved gases in insulating oils. Its robust thermal and pressure control architecture meets performance criteria referenced in ASTM D3612 (transformer oil DGA), USP (residual solvents), EPA Method 8260 (VOCs), and ISO 17025-accredited laboratory requirements. While the instrument itself does not carry CE or UL certification out-of-the-box, its electrical design conforms to IEC 61010-1 safety standards for laboratory equipment. When operated with validated methods and calibrated reference standards, the GC7980 supports data integrity frameworks aligned with FDA 21 CFR Part 11 (with appropriate software configuration), GLP, and GMP documentation workflows.

Software & Data Management

The GC7980 operates under Techcomp’s fully integrated, PC-based chromatography data system (CDS), offering bidirectional instrument control and real-time signal visualization. The software provides complete method building—including multi-segment temperature programming, EPC parameter scheduling, and event-triggered valve switching—with automatic baseline correction, peak integration using tangent skim or valley-to-valley algorithms, and customizable reporting templates. All method parameters, acquisition logs, and raw signal files are timestamped and stored with user ID attribution. Audit trail functionality records all method edits, sequence changes, and calibration events—supporting traceability in regulated environments. Export options include CSV, PDF, and AIA/ANDI-compliant formats for interoperability with LIMS and enterprise analytics platforms.

Applications

• Residual solvent analysis in pharmaceuticals and polymers per ICH Q3C guidelines
• VOC profiling in indoor air, drinking water, and packaging materials (EPA 502.2, 624, 8260)
• Pesticide residue screening in fruits, vegetables, and cereals (AOAC 2007.01, EN 15662)
• Gas composition analysis in natural gas, refinery streams, and syngas (ASTM D1945, D1946)
• Oxidized compound quantification in gasoline (ASTM D4815, D5599)
• Dissolved gas analysis (DGA) in transformer oils per ASTM D3612 and IEC 60567
• Flavor and fragrance profiling in food and beverage matrices

FAQ

Does the GC7980 support compliance with FDA 21 CFR Part 11?
Yes—when deployed with the validated version of Techcomp CDS and configured with electronic signatures, audit trails, and role-based access controls, the system satisfies core technical requirements for electronic records and signatures in regulated pharmaceutical and clinical labs.

Can the GC7980 be upgraded to support mass spectrometric detection?
The GC7980 provides a standard GC-MS interface port and compatible transfer line voltage/current specifications; however, direct MS coupling requires third-party MS vendor validation and may necessitate additional vacuum interface components not supplied by Techcomp.

What column dimensions and phases are compatible with the GC7980?
The system supports standard fused-silica capillary columns (0.1–0.53 mm ID, up to 60 m length) and stainless-steel or glass packed columns (up to ¼-inch OD). All common stationary phases—including polydimethylsiloxane, cyanopropylphenyl, and polyethylene glycol—are fully compatible with its temperature and pressure operating envelope.

Is remote monitoring and control possible?
Yes—the CDS software supports secure remote desktop access via IT-managed VPN infrastructure, and basic status queries (oven temp, pressure, run status) can be retrieved via TCP/IP API endpoints for integration into facility-wide monitoring dashboards.
