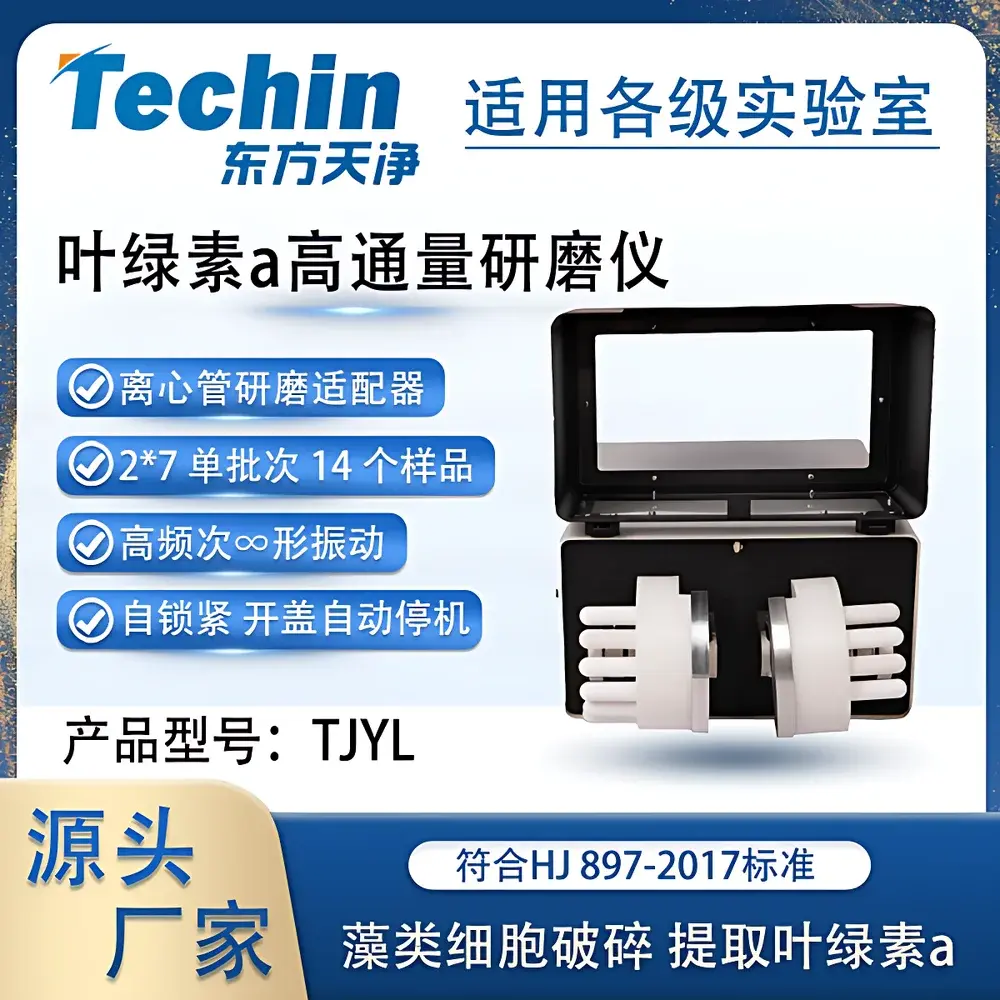

Techin TJYL-26 Chlorophyll-a Extraction Ball Mill Grinder

Overview

The Techin TJYL-26 Chlorophyll-a Extraction Ball Mill Grinder is a purpose-engineered high-throughput tissue homogenizer designed specifically to meet the sample preparation requirements of HJ 897–2017, the People’s Republic of China Environmental Protection Standard titled “Water Quality — Determination of Chlorophyll-a — Spectrophotometric Method.” This instrument operates on the principle of horizontal dual-axis oscillatory ball milling, generating controlled impact and shear forces through rapid lateral reciprocating motion of a reinforced grinding platform. Unlike conventional vortex or bead-beating systems, the TJYL-26 employs a mechanically balanced, low-vibration architecture optimized for rapid lysis of fragile algal cells—particularly freshwater and marine phytoplankton—without thermal degradation or pigment oxidation. Its core function is to deliver consistent, reproducible cell disruption within ≤3 minutes, enabling quantitative extraction of chlorophyll-a into cold acetone (90% v/v) for subsequent spectrophotometric quantification at 645 nm, 663 nm, and 750 nm per standard equations defined in HJ 897–2017.

Key Features

• High-throughput capacity: Simultaneous processing of up to 14 samples (12 standard positions + 2 auxiliary slots) using standardized 15 mL conical centrifuge tubes;
• Micro-scale comminution: Achieves median particle size ≤50 µm within 3 minutes under default protocol settings, ensuring complete cell wall rupture in diatoms, cyanobacteria, and green algae;
• Ergonomic human-machine interface: 5-inch integrated resistive touchscreen mounted at 15° forward tilt for intuitive operation; supports storage and recall of 20 user-defined grinding programs (time, frequency, pause intervals);
• Mechanical stability system: Rear-weighted dynamic balance design combined with dual high-load radial bearings minimizes operational drift and extends service life under continuous batch use;

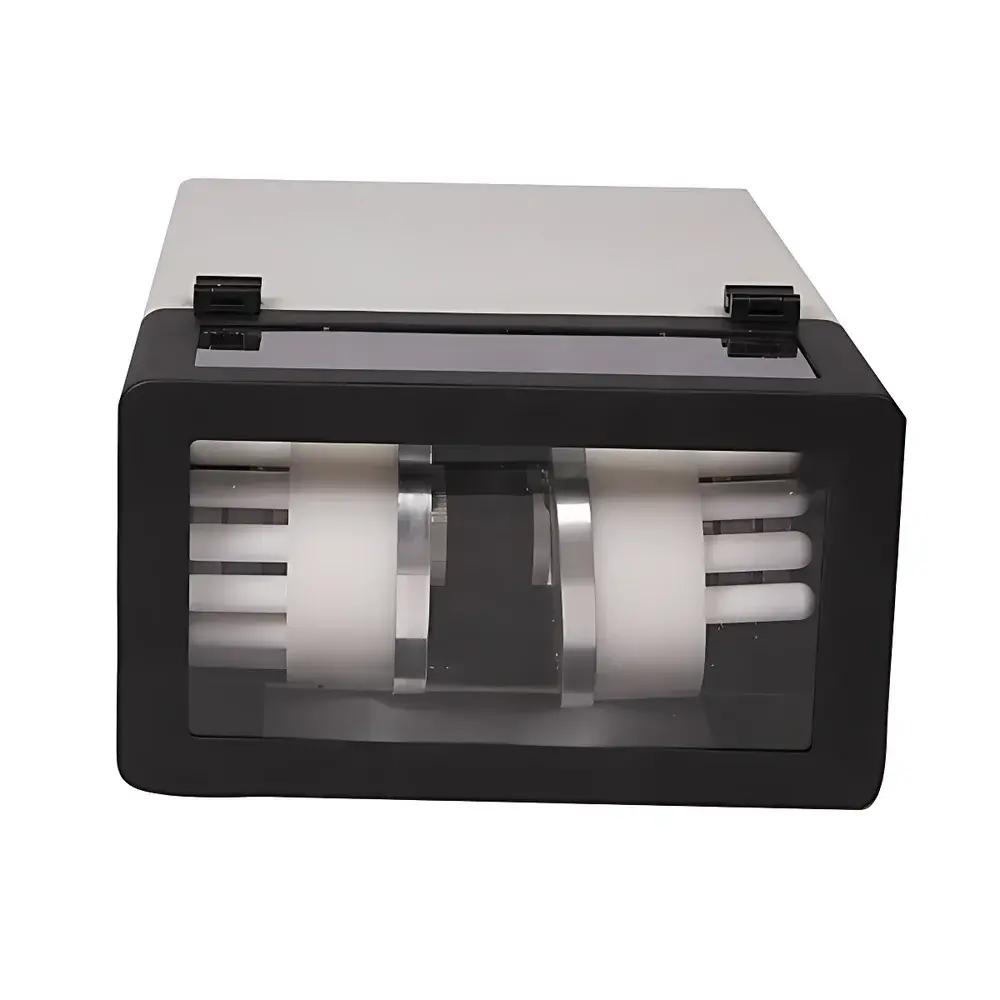

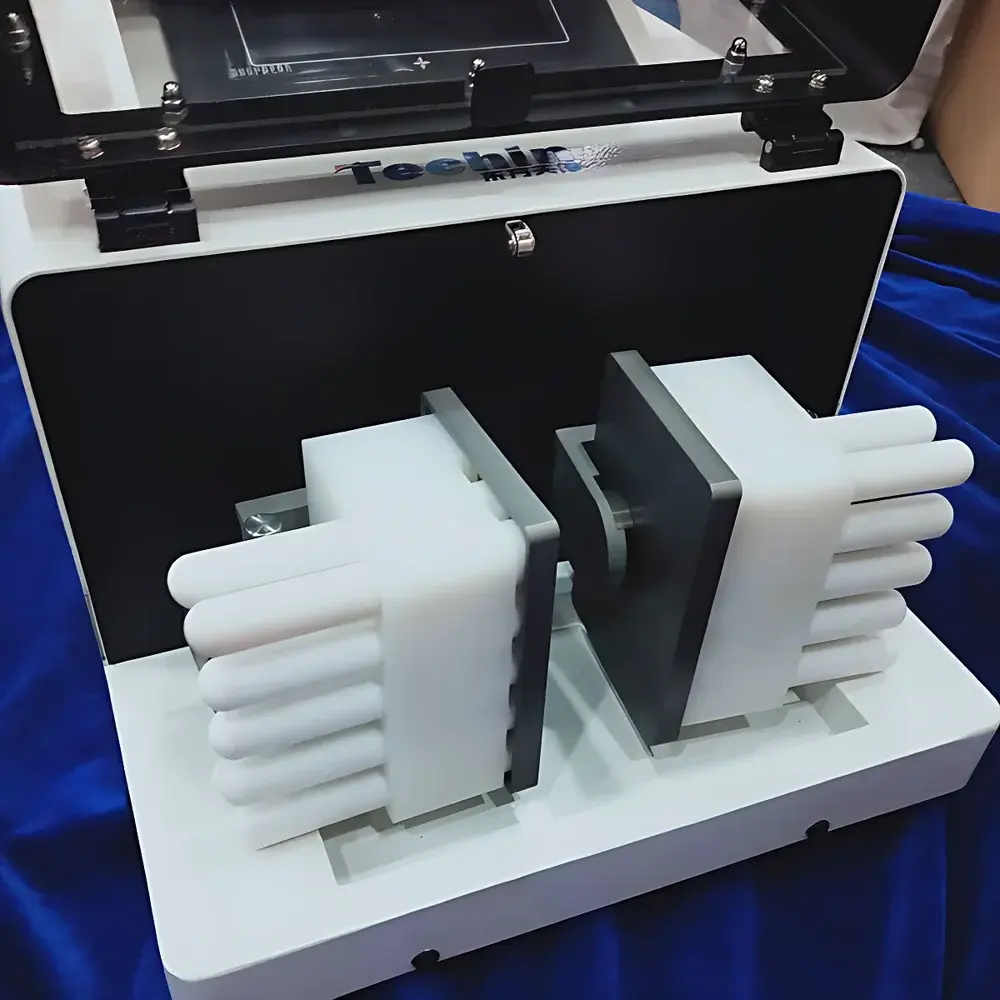

• Integrated safety interlock: Transparent polycarbonate grinding chamber allows real-time visual monitoring; automatic motor cutoff upon lid opening per IEC 61000-6-2 electromagnetic compatibility and mechanical safety requirements;
• Chemical compatibility & containment: Grinding platform fabricated from PTFE and FDA-compliant polyamide 1010 (PA1010), resistant to acetone, methanol, and aqueous buffers; compact footprint (W320 × D410 × H360 mm) enables safe operation inside Class II A2 fume hoods during solvent-based extractions.

Sample Compatibility & Compliance

The TJYL-26 is validated for use with freshwater, brackish, and marine phytoplankton suspensions—including Anabaena, Microcystis, Chlorella, and Scenedesmus—collected via filtration (GF/F or 0.7 µm glass fiber filters) or direct centrifugation. Sample matrices include filter discs, frozen pellets, and lyophilized biomass. The instrument complies with structural and operational provisions referenced in ISO 17025:2017 (clause 6.4.3 on equipment suitability) and supports GLP-aligned workflows when paired with traceable calibration logs and electronic audit trails (via optional USB data export). While not certified to ASTM D5116 or USP <851>, its performance aligns with method validation parameters outlined in HJ 897–2017 for precision (RSD ≤5% across n=6 replicates), recovery (92–103%), and limit of quantitation (LOQ = 0.15 µg/L in water matrix).

Software & Data Management

The embedded firmware supports local program management without external PC dependency. All 20 stored protocols retain timestamped execution history, including cycle count, total runtime, and error flags (e.g., lid-open interruption, motor overload). Data export is enabled via USB 2.0 port in CSV format for integration with LIMS platforms or statistical analysis tools (e.g., R, JMP). Optional firmware upgrade path includes RS-485 Modbus RTU interface for centralized lab automation systems. No cloud connectivity or remote access functionality is implemented—ensuring full data sovereignty and compliance with institutional IT security policies governing environmental testing laboratories.

Applications

• Routine chlorophyll-a quantification in municipal drinking water source monitoring (e.g., reservoirs, rivers, lakes);
• Algal bloom assessment for ecological status reporting under national surface water quality assessment frameworks;
• Research-grade pigment profiling in limnological and oceanographic field studies;
• Pre-analytical sample homogenization prior to HPLC or LC-MS/MS analysis of accessory pigments (e.g., phaeophytin-a, β-carotene);
• Method development for EPA Method 445.1 adaptation in Chinese regulatory laboratories.

FAQ

Is the TJYL-26 compatible with international chlorophyll-a methods such as EPA Method 445.1 or ISO 10260?
Yes—the mechanical lysis efficiency and reproducibility meet the cell disruption performance criteria specified in both methods; however, users must validate solvent extraction steps and spectral correction algorithms independently.
Can the grinding platform accommodate 2 mL microcentrifuge tubes?

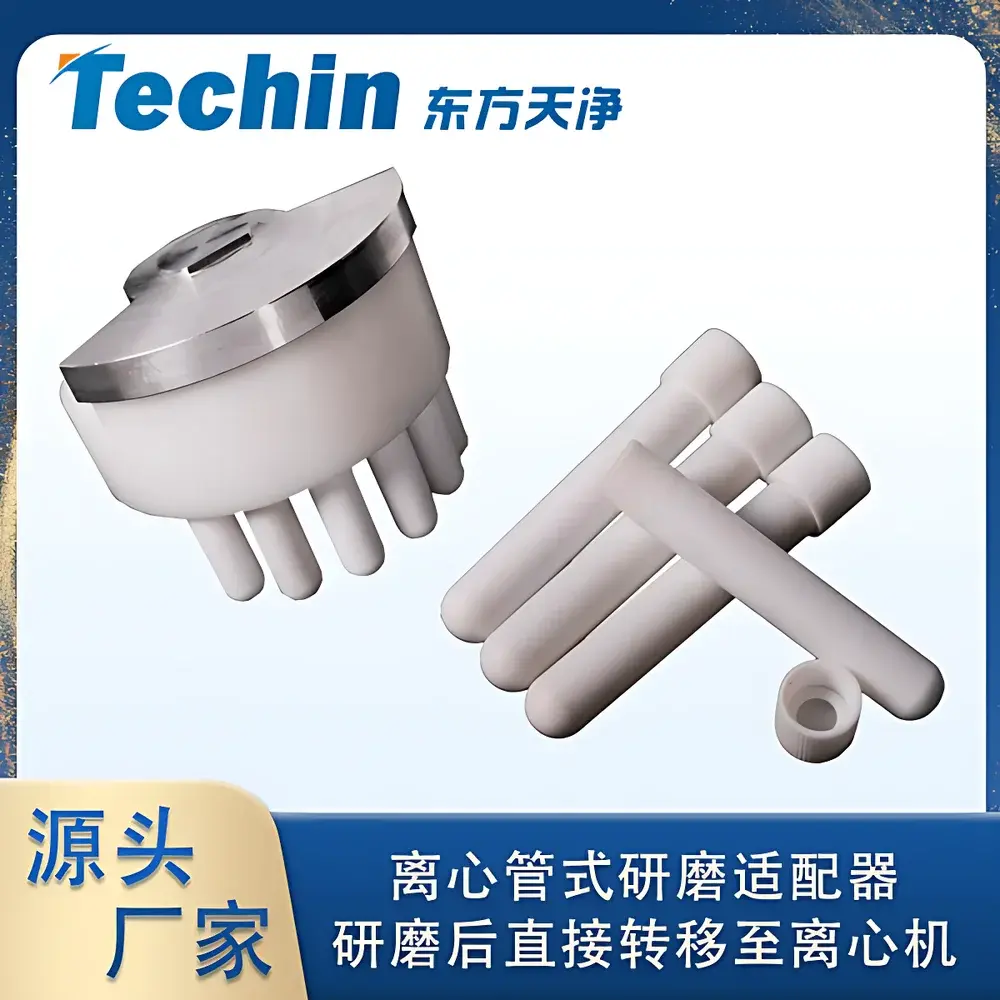

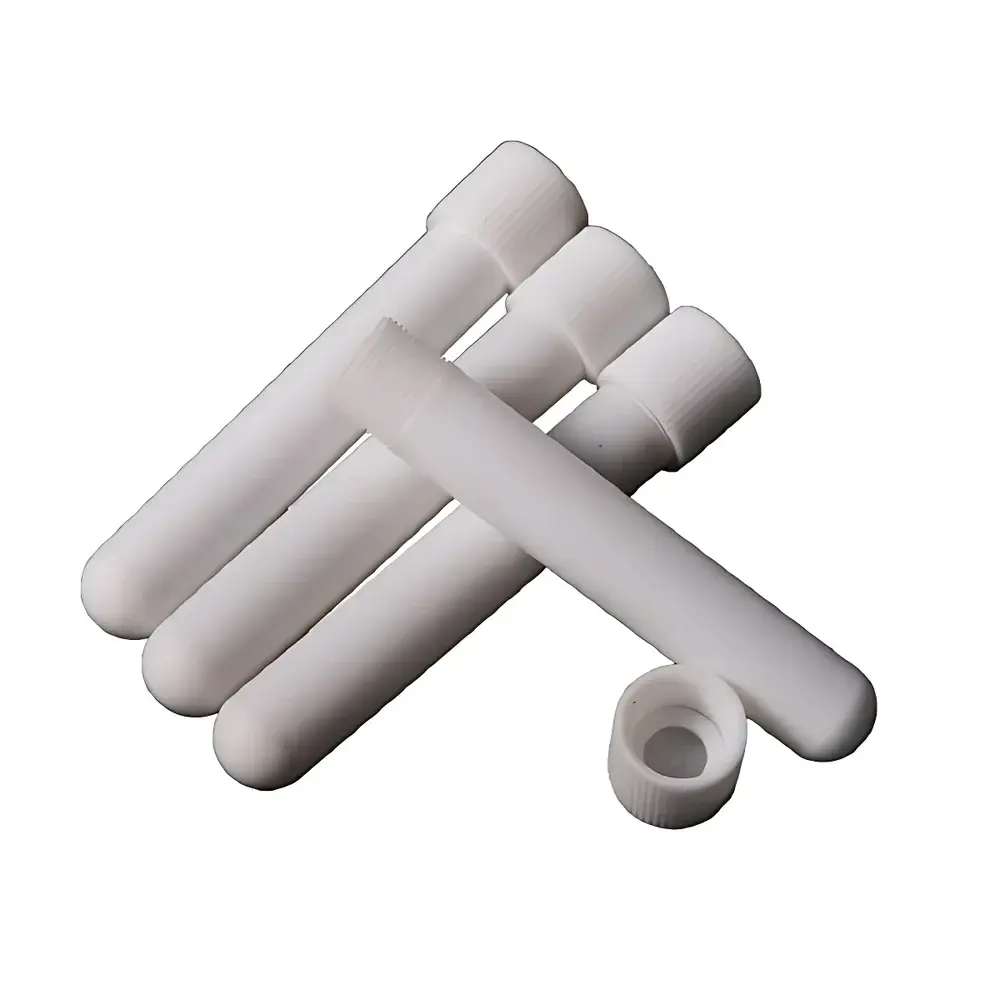

No—only 15 mL conical tubes (diameter 17 mm) are supported by the standard adapter; custom PTFE adapters for 2 mL tubes are available upon request and require separate qualification.
Does the instrument support GMP or 21 CFR Part 11 compliance?
It does not include electronic signature capability or role-based access control; however, raw operation logs exported via USB may serve as supporting documentation in hybrid paper-electronic GMP environments.
What maintenance schedule is recommended for sustained accuracy?
Biannual inspection of bearing preload, torque verification of梅花-type locking handles (M6, 5.5 N·m), and visual check of PTFE platform wear are advised; no recalibration is required between inspections.
Is technical support available outside mainland China?
Yes—Techin provides remote diagnostics and English-language documentation; hardware service is coordinated via authorized regional partners in Southeast Asia, the Middle East, and Latin America.
