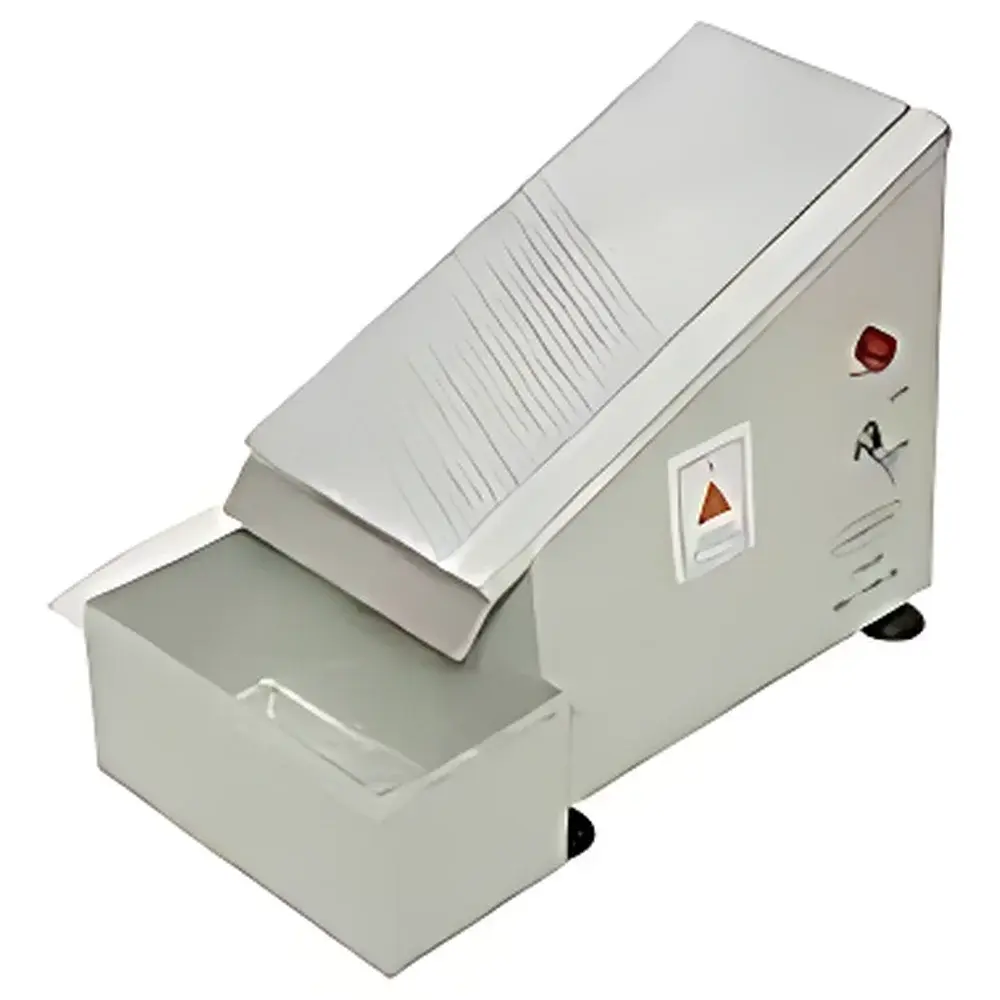

Ted Pella 28154-230 Block Wax Trimmer
| Brand | Ted Pella |
|---|---|
| Origin | USA |
| Model | 28154-230 |
| Operating Temperature Range | Low ~27°C (81°F), High ~32°C (90°F) |
| Dimensions (W×D×H, including tray) | 15.2 × 28.5 × 20.3 cm |
| Heating Surface | Grooved, magnetically secured heated platform with removable wax collection tray |
| Disposable Liners | Included (plastic, pre-sterilized, single-use) |
| Compatibility | All standard biopsy and mega-sized tissue cassettes (e.g., Sakura, Leica, Thermo Fisher formats) |
Overview
The Ted Pella 28154-230 Block Wax Trimmer is a purpose-engineered thermal trimming device designed for precise, controlled removal of excess paraffin from histological tissue blocks prior to microtomy. It operates on the principle of localized, uniform surface heating—melting only the outermost wax layer while preserving structural integrity of the embedded specimen. Unlike mechanical trimming tools that risk chatter, compression, or section distortion, this instrument employs a temperature-regulated, grooved aluminum heating plate to induce controlled wax flow along defined channels. The resulting molten wax is directed by gravity and surface geometry into a magnetically coupled, removable collection tray—ensuring operator safety, workflow continuity, and minimal cross-contamination between specimens. Its compact footprint and dual-temperature control make it suitable for routine use in histopathology laboratories, core facilities, and academic research settings where reproducible block preparation is critical to downstream sectioning quality.
Key Features
- Two-stage thermostatic control (Low: ~27°C; High: ~32°C) enables fine-tuned wax viscosity management—optimized for both soft paraffin formulations and harder embedding media without overheating or carbonization.
- Grooved heating surface engineered to guide molten wax into designated runoff channels, minimizing lateral spread and maximizing directional collection efficiency.
- Magnetically secured, removable collection tray ensures stable positioning during operation and rapid, tool-free detachment for cleaning or liner replacement.
- Pre-sterilized disposable plastic liners included—compatible with standard tray dimensions—facilitate compliant waste handling per OSHA and CLIA biosafety guidelines.
- Compact benchtop design (15.2 × 28.5 × 20.3 cm) integrates seamlessly into space-constrained histology workstations without requiring external ventilation or exhaust ducting.
- Universal cassette compatibility supports all major OEM formats—including Sakura Tissue-Tek®, Leica Biosystems Histoblock®, and Thermo Fisher Shandon™—eliminating need for adapter kits or manual repositioning.
Sample Compatibility & Compliance
The 28154-230 is validated for use with formalin-fixed, paraffin-embedded (FFPE) tissue blocks across human, veterinary, and preclinical research applications. It accommodates standard biopsy cassettes (e.g., 30 × 25 mm) as well as larger “mega” formats (up to 50 × 40 mm) without modification. The device meets IEC 61010-1:2010 safety requirements for laboratory electrical equipment and complies with UL 61010-1 certification standards. While not classified as a medical device under FDA 21 CFR Part 820, its design supports GLP-compliant histology workflows when used in conjunction with documented SOPs, temperature loggers, and traceable maintenance records. No hazardous materials are generated during normal operation; wax runoff remains non-volatile and non-aerosolized under specified temperature settings.
Software & Data Management
This is a standalone, analog-operated instrument with no embedded firmware, touchscreen interface, or digital data output. Temperature selection is performed manually via dual-position toggle switch; no calibration software, firmware updates, or audit trail functionality is provided. As such, it requires no IT validation under FDA 21 CFR Part 11 or ISO/IEC 17025. Laboratories implementing electronic quality management systems (eQMS) may record operational parameters (e.g., temperature setting, date/time, operator ID) manually in paper-based or LIMS-integrated logbooks. Routine verification of surface temperature uniformity (±1.5°C across active area) is recommended using NIST-traceable contact thermometers at least weekly per CAP accreditation guidelines.
Applications
- Precision trimming of paraffin blocks prior to cryostat or rotary microtome sectioning to expose tissue margins and ensure optimal knife clearance.
- Removal of embedding artifacts—such as air bubbles, folds, or excess wax overhang—without disturbing tissue architecture or inducing thermal damage.
- Preparation of blocks for immunohistochemistry (IHC) and in situ hybridization (ISH), where clean, artifact-free surfaces improve antigen retrieval consistency.
- Quality assurance in high-throughput diagnostic labs performing >500 blocks/day, where repeatable trimming reduces section thickness variability and recuts.
- Training environments for histotechnicians, offering tactile feedback and visual confirmation of wax melt behavior under controlled thermal conditions.
FAQ
Does the unit require external cooling or ventilation?
No—operating temperatures remain below 35°C and generate negligible ambient heat load. No fume hood or forced-air exhaust is required.
Can the heating plate be cleaned with xylene or ethanol?
Yes—aluminum surface is chemically resistant to common histology solvents. Wipe with lint-free cloth after cooling to room temperature.
Are replacement liners available separately?
Yes—Ted Pella part number 28154-231 (pack of 100) is stocked globally through authorized distributors.
Is the magnetic tray retention strong enough for angled trimming?
Yes—the neodymium magnet array maintains secure engagement up to 15° tilt; however, horizontal orientation is recommended for optimal wax channeling.
What is the expected service life of the heating element?
Rated for >10,000 hours continuous operation under nominal load; typical institutional usage exceeds 5 years with biannual visual inspection of surface finish and thermal response.
