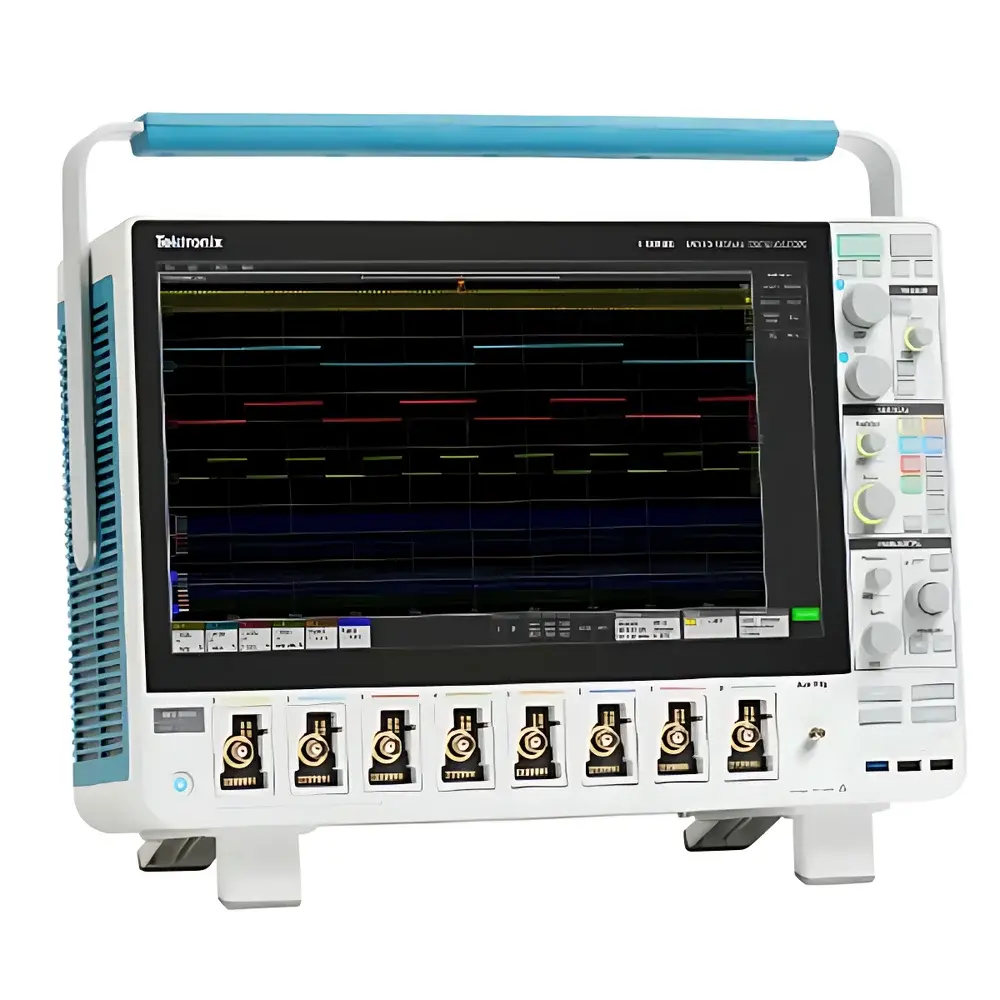

Tektronix 5 Series MSO Mixed Signal Oscilloscope

Overview

The Tektronix 5 Series MSO is a high-performance mixed-signal oscilloscope engineered for precision signal acquisition, deep insight into complex embedded systems, and scalable validation across R&D, validation, and manufacturing test environments. Built on a rearchitected hardware platform, it employs real-time sampling with a 12-bit analog-to-digital converter (ADC), enhanced by proprietary digital signal processing to deliver up to 16-bit effective vertical resolution—enabling accurate characterization of low-amplitude signals superimposed on large DC offsets or switching transients. Its core architecture supports bandwidths from 350 MHz to 2 GHz, sampling at 6.25 GS/s per channel, and record lengths up to 125 million points—providing the temporal depth required for intermittent fault capture and long-duration protocol analysis. Unlike legacy instruments constrained by fixed channel counts and rigid UI paradigms, the 5 Series introduces FlexChannel™ technology: each physical input can be configured as either one high-fidelity analog channel or eight synchronized digital logic channels—eliminating trade-offs between analog fidelity and digital visibility.

Key Features

• 15.6-inch full-HD capacitive touchscreen with multi-touch gesture support (pinch-to-zoom, swipe, drag)—designed for intuitive waveform navigation without reliance on nested menus.
• FlexChannel architecture: 4, 6, or 8 physical inputs scalable to 32, 48, or 64 digital channels using optional TLP058 logic probes—enabling simultaneous analog timing correlation and parallel bus-level debugging.
• 16-bit vertical resolution mode achieved via hardware-based 12-bit ADC combined with real-time DSP filtering—critical for power integrity analysis, sensor interface validation, and low-noise amplifier characterization.
• Integrated 1-channel arbitrary waveform/function generator (optional): delivers up to 50 MHz sine/square/ramp/arbitrary waveforms with 250 MS/s update rate and 14-bit resolution—supporting stimulus-response testing without external equipment.
• Windows 10 IoT Enterprise option: enables native execution of third-party analysis tools (e.g., MATLAB, Python-based scripts, custom LabVIEW applications) directly on the instrument—reducing data export latency and improving workflow continuity.

Sample Compatibility & Compliance

The 5 Series MSO is compatible with Tektronix’s full ecosystem of passive, active, differential, current, and optical probes—including TPP, TAP, TCPA, and P7500 series—ensuring signal fidelity across voltage domains from mV to kV and bandwidths up to 25 GHz (with external sampling heads). It meets IEC 61000-4-2 (ESD), -4-3 (radiated immunity), and -4-4 (electrical fast transient) standards for EMC compliance. For regulated industries, the optional Windows OS configuration supports audit-trail-enabled software deployment and can be configured to meet FDA 21 CFR Part 11 requirements when used with validated firmware versions and secure user authentication protocols. All serial decode packages are verified against industry-standard protocol specifications (e.g., USB-IF compliance test plans, IEEE 802.3 for Ethernet decoding) and support pass/fail automated test sequencing per ISO/IEC 17025 traceability frameworks.

Software & Data Management

The instrument runs Tektronix’s proprietary UltraVision III operating system, featuring persistent waveform database indexing, time-correlated multi-domain views (analog, digital, bus, and RF), and customizable dashboard layouts. Waveform and measurement data export supports CSV, MATLAB (.mat), HDF5, and industry-standard .wfm formats—with metadata embedding (timestamp, probe calibration ID, user annotations). Remote control is implemented via LXI-compliant SCPI over IPv4/IPv6, with optional API wrappers for Python, .NET, and MATLAB. Automated report generation integrates with TekScope PC software, enabling PDF/HTML output with embedded screenshots, measurement statistics, and comparative overlays—all traceable to instrument serial number and firmware revision.

Applications

• Power electronics design: ripple/noise analysis, MOSFET gate drive timing, inrush current profiling, and magnetic component loss estimation using integrated power analysis math functions.
• Automotive ECUs: CAN FD, LIN, and SENT bus conformance testing; clock jitter evaluation on microcontroller peripherals; and EMI pre-compliance screening via FFT-based spectral view.
• High-speed digital design: DDR4/DDR5 eye diagram construction, PCIe Gen4/Gen5 link training validation, and USB 3.x protocol layer decoding with error injection capability.
• IoT sensor node development: ultra-low-power wake-up event capture, capacitive touch controller timing verification, and battery discharge profiling with simultaneous voltage/current monitoring.
• Academic and advanced research: time-resolved photodetector response characterization, quantum device control pulse fidelity assessment, and real-time feedback loop latency measurement in FPGA-accelerated systems.

FAQ

What FlexChannel configurations are supported on the MSO54, MSO56, and MSO58 models?
The MSO54 provides four FlexChannel inputs (up to 32 digital channels); the MSO56 offers six inputs (up to 48 digital channels); and the MSO58 features eight inputs (up to 64 digital channels). Each FlexChannel accepts either one analog probe or one TLP058 logic probe.
Is the 16-bit vertical resolution available across the full bandwidth range?
Yes—16-bit enhanced resolution mode is enabled across all bandwidth options (350 MHz to 2 GHz) and is maintained at all sample rates up to 6.25 GS/s, subject to signal-to-noise constraints inherent to the analog front-end design.
Can the built-in function generator operate simultaneously with full-bandwidth acquisition?
Yes—the optional 1-channel AWG operates independently of acquisition resources and does not reduce real-time sampling rate, memory depth, or channel count during concurrent use.
Does the Windows OS option support third-party antivirus or remote desktop software?
The Windows 10 IoT Enterprise image is locked down by default; only signed, validated applications approved through Tektronix’s software certification process may be installed to maintain instrument stability and regulatory compliance.
How is firmware updated, and are previous versions archived for validation purposes?
Firmware updates are delivered via encrypted .pkg files with SHA-256 checksums; version history, release notes, and qualification test reports are publicly accessible through Tektronix’s Support Portal for GxP and ISO 13485 audit readiness.
