TESTech TTech-UL9540A-4 Cell-Level Thermal Runaway Test System
| Brand | TESTech |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | TTech-UL9540A-4 |
| Price Range | USD 1,400 – 2,800 (FOB) |
Overview

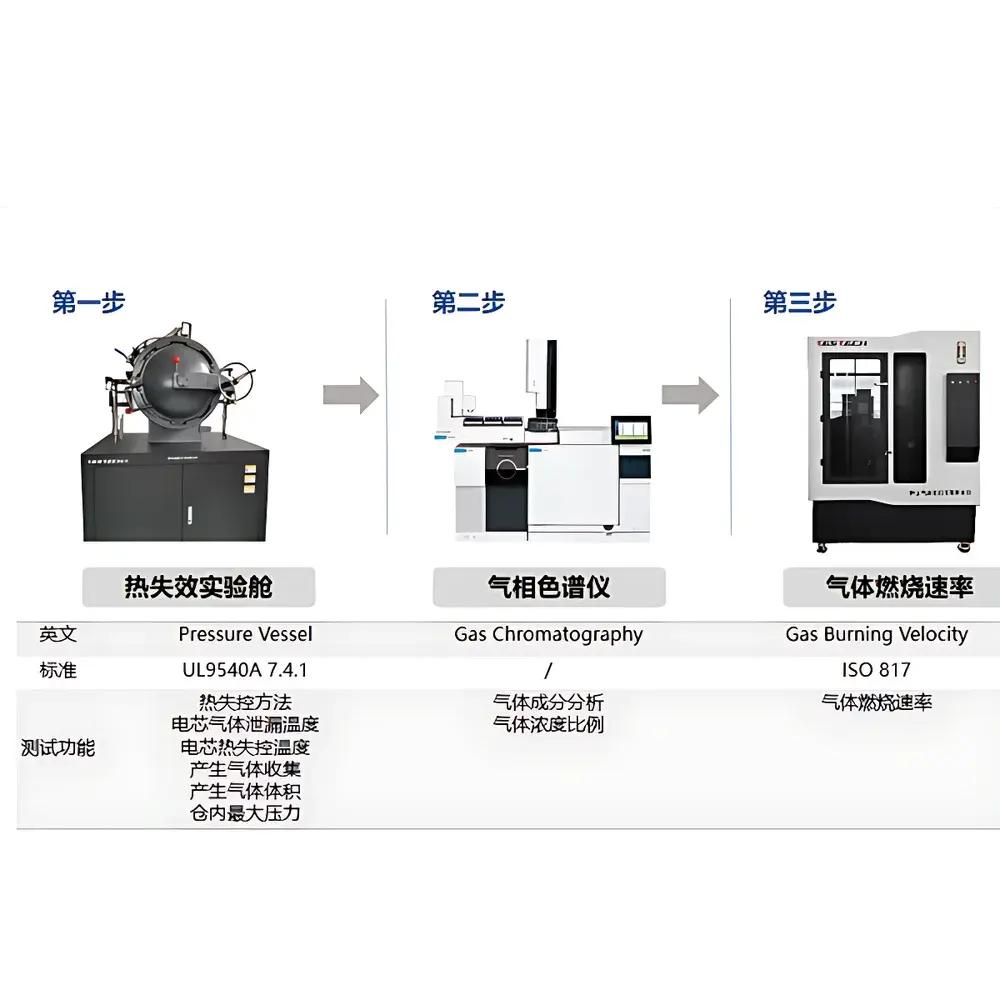

The TESTech TTech-UL9540A-4 Cell-Level Thermal Runaway Test System is an engineered platform designed to replicate and quantitatively characterize thermal runaway propagation in lithium-ion battery cells under controlled, instrumented conditions. Aligned with the test methodology specified in UL 9540A Annex A (Evaluation of Thermal Runaway Fire Propagation in Battery Energy Storage Systems), this system enables standardized assessment of single-cell-level failure dynamics—including exothermic escalation, gas generation kinetics, pressure buildup, and surface thermal evolution. The system operates as a sealed, instrumented calorimetric chamber equipped with high-fidelity thermocouple arrays, piezoresistive pressure transducers, voltage monitoring circuitry, and integrated gas sampling ports compliant with ISO 16000-6 and ASTM D3270 protocols. It supports both external heating (e.g., oven-triggered) and internal electrical abuse (e.g., overcharge, external short-circuit) initiation modes, ensuring traceable correlation between stimulus input and multi-parameter output response.
Key Features
- UL 9540A Annex A–compliant test architecture for cell-level thermal runaway evaluation
- Sealed stainless-steel test chamber (rated to 20 bar burst pressure) with dual quartz viewport windows for optical access and thermal imaging integration
- Synchronized acquisition of ≥8-channel surface temperature (K-type thermocouples, ±0.5 °C accuracy), chamber pressure (0–10 bar, ±0.1% FS), cell voltage (±0.5 mV resolution), and time-stamped event triggers
- Dedicated gas sampling manifold with heated stainless-steel lines (maintained at 120 °C), Tedlar® gas bags, and GC-ready sample ports for downstream flammability analysis (LEL, MOC, Pmax, dP/dt)
- Integrated safety interlocks including pressure-relief rupture disc, automatic nitrogen purge on overpressure detection, and emergency power cutoff
- Modular design supporting optional add-ons: infrared thermal camera synchronization interface, real-time FTIR gas speciation module, and vent gas filtration trap (for HF/HCl capture)
Sample Compatibility & Compliance
The TTech-UL9540A-4 accommodates cylindrical (18650, 21700, 26650), prismatic (up to 200 × 150 × 20 mm), and pouch-type lithium-ion cells without mechanical modification. All instrumentation and data logging workflows are structured to support GLP-compliant documentation per ISO/IEC 17025 requirements. Pressure and temperature sensors are NIST-traceable and calibrated annually; voltage measurement circuits meet IEC 61000-4-30 Class S accuracy specifications. The system’s test report template includes mandatory fields for UL 9540A reporting—such as time-to-vent, peak pressure rise rate (dP/dt)max, total gas volume (normalized to STP), and gas composition summary—ensuring direct compatibility with third-party certification laboratories and OEM safety validation protocols.
Software & Data Management
Acquisition and analysis are managed via TESTech’s proprietary RUNAWAY-ANALYZER v3.2 software suite, running on Windows 10 IoT Enterprise. The software provides synchronized multi-channel waveform visualization, automated event annotation (e.g., “thermal runaway onset”, “vent event”, “flame ignition”), and export in CSV, HDF5, and ASTM E2912-compliant XML formats. Audit trails record all user actions, parameter changes, and calibration events in accordance with FDA 21 CFR Part 11 requirements—including electronic signatures, role-based access control, and immutable log archiving. Raw data files include embedded metadata headers specifying sensor IDs, calibration dates, environmental chamber ambient conditions, and operator credentials—enabling full traceability during regulatory review or internal QA audits.
Applications
- Quantitative comparison of thermal runaway severity across cathode chemistries (NMC, LFP, NCA, LCO) and electrolyte formulations
- Validation of cell-level safety enhancements: ceramic-coated separators, flame-retardant additives, venting structure optimization
- Input data generation for CFD-based battery pack thermal propagation modeling (e.g., ANSYS Fluent, STAR-CCM+)
- Supporting UN 38.3 T.5 (thermal stability) and IEC 62619 safety compliance testing programs
- Root-cause analysis of field failures through controlled recreation of reported abuse conditions (e.g., localized overheating, micro-short scenarios)
FAQ
Does the system comply with UL 9540A Section 8.2 for cell-level testing?
Yes—the TTech-UL9540A-4 implements all mandatory instrumentation, chamber geometry constraints, and data sampling requirements defined in UL 9540A Annex A for single-cell evaluation.
Can the system be integrated with external thermal cameras or gas analyzers?
Yes—hardware trigger I/O ports and API-accessible SDK support synchronization with FLIR Axxx-series IR cameras and Agilent 7890B/8890 GC systems.
Is nitrogen purging capability included as standard?
Yes—integrated programmable N₂ purge sequence (pre-test, post-vent, and post-analysis) is factory-configured and fully controllable via software.
What calibration documentation is provided with shipment?
Each unit ships with a full calibration certificate covering pressure transducer, thermocouple inputs, and voltage channels—traceable to NIST standards with uncertainty budgets per ISO/IEC 17025.
Is remote operation supported for hazardous testing environments?
Yes—Ethernet-based remote control, live telemetry streaming, and emergency stop via web dashboard are enabled by default; optional fiber-optic isolation kits available for Class I Div 1 environments.
