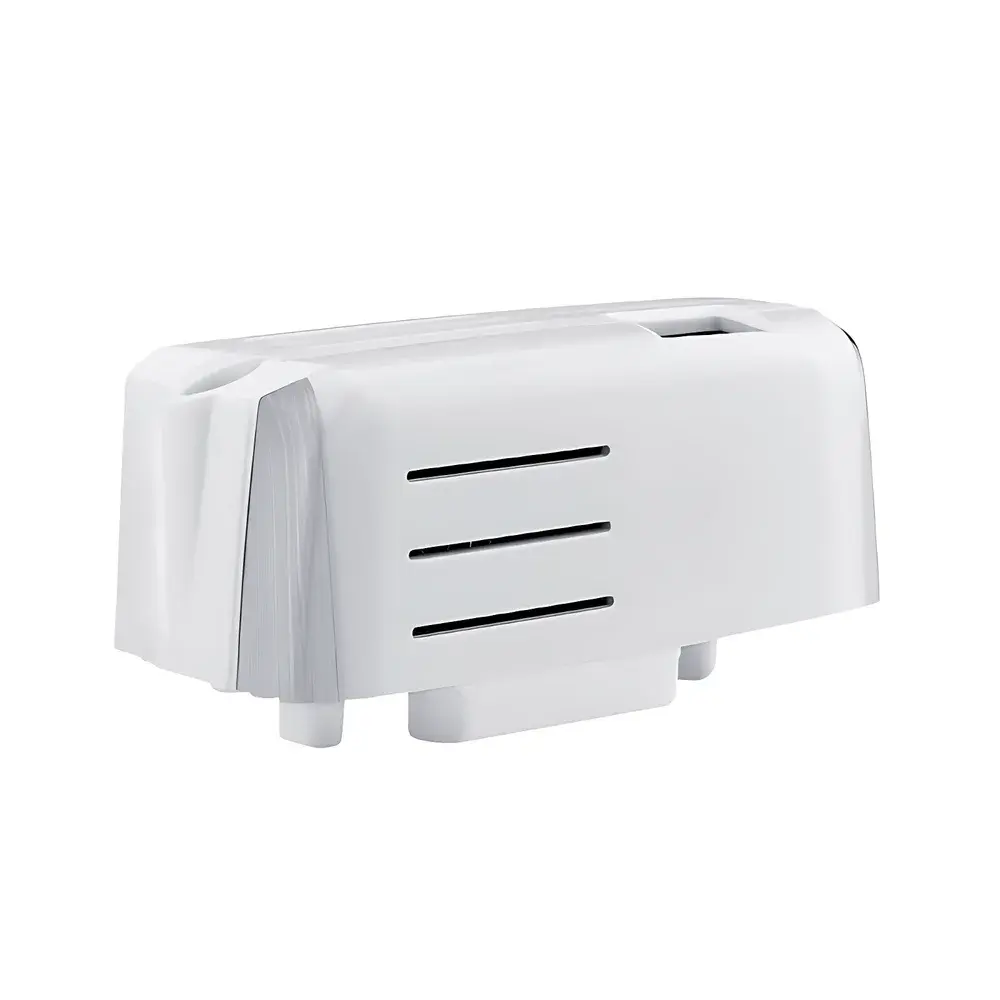

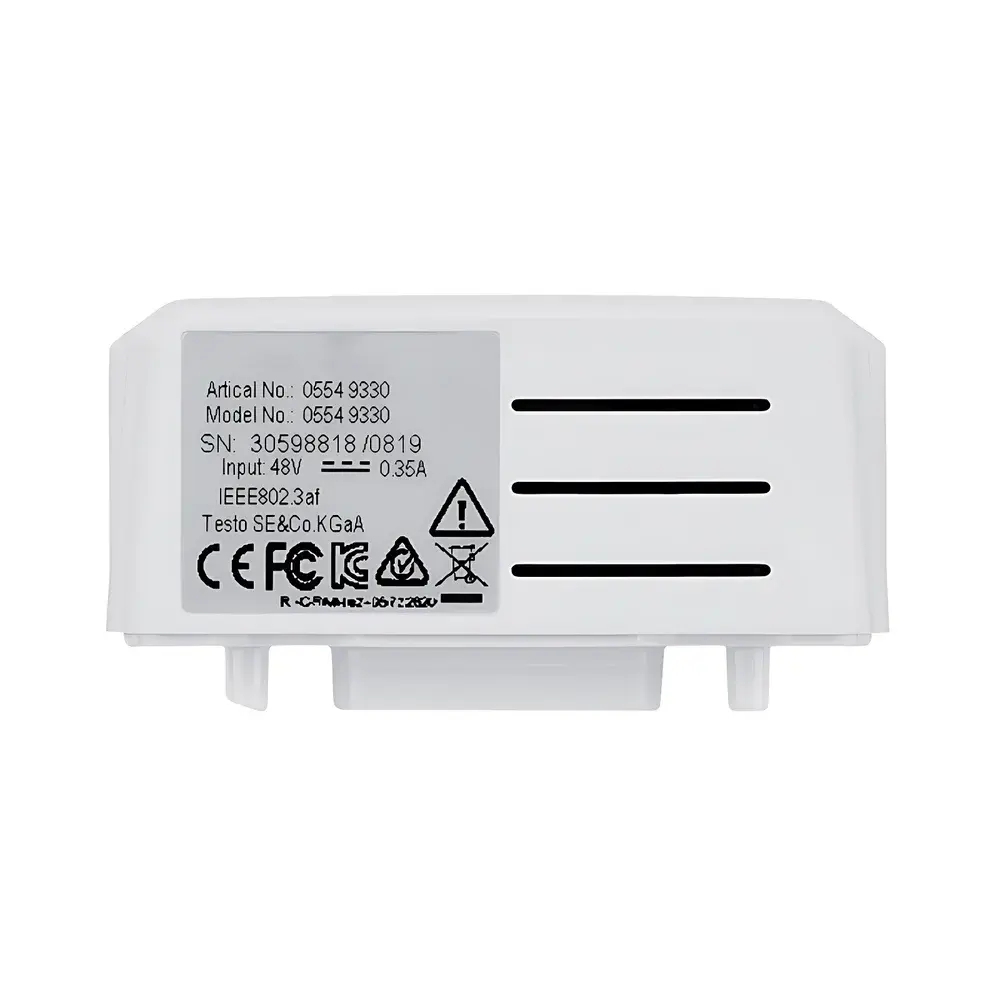

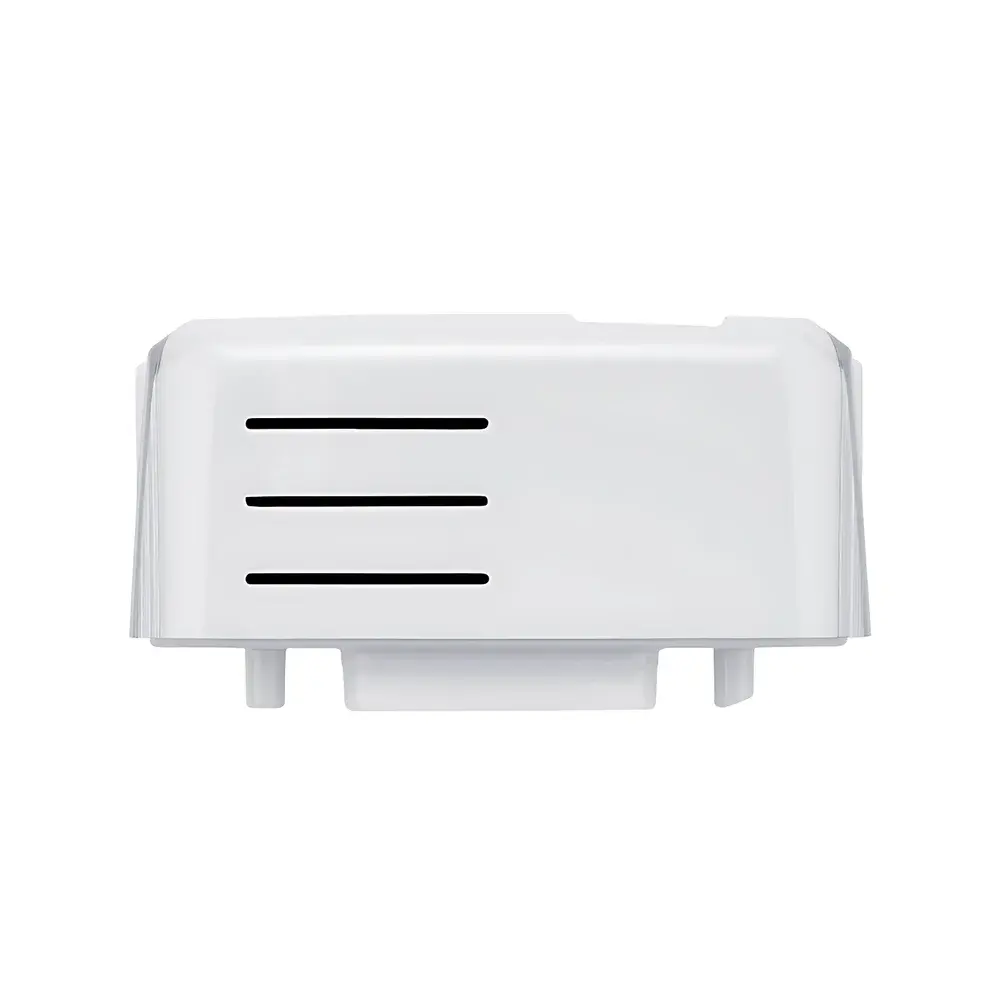

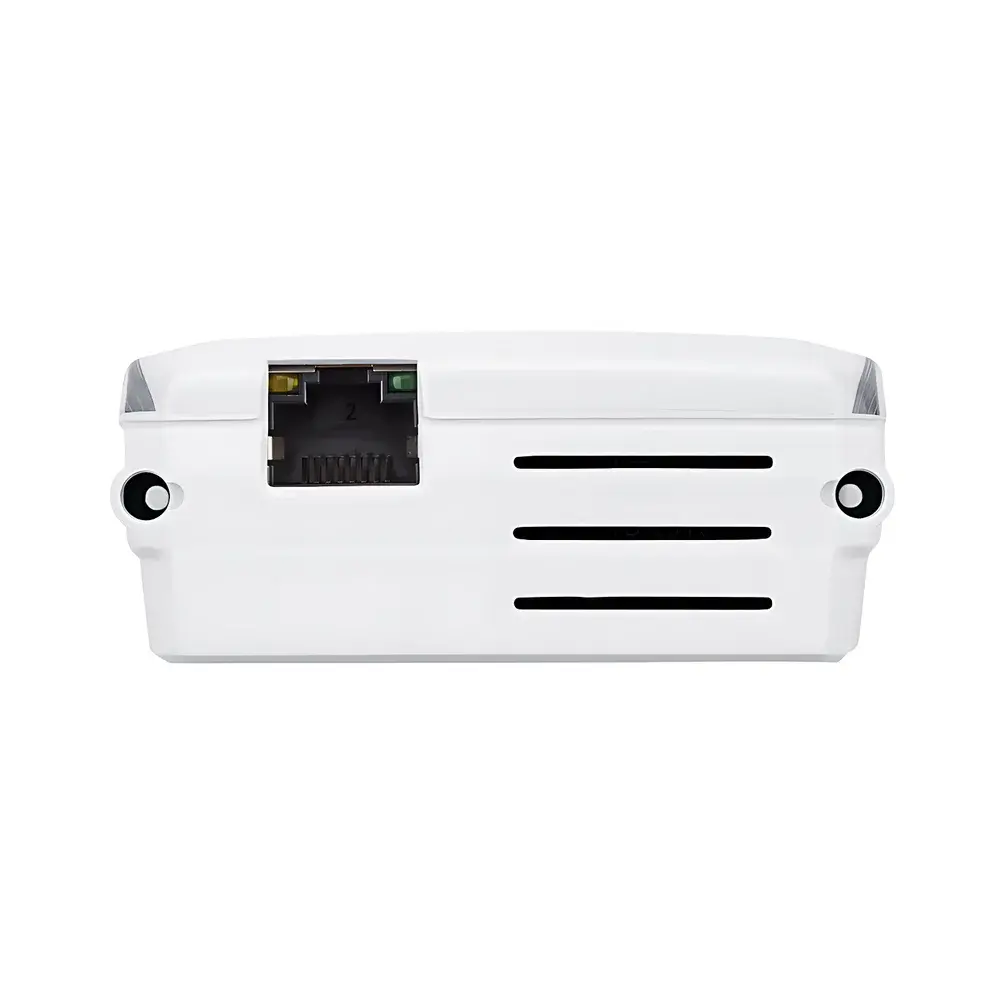

testo 0554 9330 LAN/PoE Communication Module for testo 150 Data Logger System

Overview

The testo 0554 9330 LAN/PoE Communication Module is an industrial-grade network interface designed exclusively for integration into the testo 150 modular data logger system. Engineered to support continuous, secure, and deterministic data transmission in regulated environments, this module implements IEEE 802.3af Power over Ethernet (PoE) Class 0 compliance—enabling both data communication and power delivery over a single CAT5e or higher Ethernet cable. It serves as the primary wired backbone for distributed sensor node deployment within the testo Saveris Pharma ecosystem, facilitating centralized acquisition of temperature, humidity, differential pressure, CO₂, and other validated environmental parameters from multiple testo 150 measurement modules. Its architecture adheres to deterministic latency requirements essential for GxP-compliant facilities, ensuring time-synchronized sampling across all connected channels without reliance on external power infrastructure.

Key Features

• Single-cable deployment via standard Ethernet cabling with integrated PoE (802.3af), eliminating separate power supplies and reducing installation complexity
• Firmware-upgradable embedded controller supporting TLS 1.2 encrypted HTTP(S) and MQTT v3.1.1 protocols for secure cloud or on-premise server communication
• Support for redundant network topologies including daisy-chain and star configurations—fully compatible with managed switches featuring IGMP snooping and VLAN segmentation
• Integrated watchdog timer and automatic failover to pre-configured backup IP address or DNS resolution path upon primary gateway loss
• IP65-rated housing with galvanically isolated Ethernet port for electromagnetic compatibility in electrically noisy pharmaceutical cleanrooms and cold chain storage areas
• Designed for seamless interoperability with testo UltraRange radio extension modules—enabling hybrid wired/wireless mesh deployments where Ethernet access is physically constrained

Sample Compatibility & Compliance

The testo 0554 9330 module interfaces exclusively with testo 150 series data loggers (including 150-T1, 150-H1, 150-P1, and multi-sensor variants) through the proprietary testo SmartBus™ physical layer. It supports simultaneous connection of up to 16 testo 150 modules per network segment when deployed with appropriate switch QoS settings. The module conforms to IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emission) standards for industrial environments. Within the testo Saveris Pharma framework, it contributes to full audit trail compliance per FDA 21 CFR Part 11 (electronic records/signatures), EU Annex 11, and ISO/IEC 17025:2017 clause 7.7. All firmware updates are digitally signed and verified during boot; configuration changes generate immutable event logs with timestamp, user ID, and hash-verified parameter values.

Software & Data Management

Data transmitted via the 0554 9330 module is ingested natively into testo Saveris Cloud or testo Saveris 2 on-premise server software. The module enables real-time streaming at user-defined intervals (1s–24h), with local buffering (up to 16 MB) during temporary network outages. All measurements are time-stamped using NTP-synchronized clocks traceable to UTC via configurable stratum-1 servers. Saveris software provides ALARM escalation workflows—including SMS, email, and SNMP trap generation—triggered by limit violations, communication timeouts, or sensor fault conditions. Audit trails include full change history of calibration certificates, alarm thresholds, and user permissions, all exportable in PDF/A-1b or CSV format with digital signature verification. Role-based access control (RBAC) enforces separation of duties between operators, QA reviewers, and system administrators.

Applications

This module is deployed in environments requiring long-term, uninterrupted environmental validation and monitoring: pharmaceutical manufacturing suites (cleanrooms ISO 5–8), stability chambers (ICH Q1/Q5), cold chain logistics hubs (2–8 °C, -20 °C, -70 °C), vaccine storage facilities, hospital pharmacy refrigerators, and biorepository freezers. Its PoE capability simplifies retrofit installations in existing buildings where conduit access is limited, while its deterministic Ethernet behavior ensures predictable bandwidth allocation for concurrent multi-parameter logging. In combination with testo’s validated temperature probes (e.g., Class A Pt100 per DIN EN 60751), the system supports IQ/OQ/PQ documentation packages aligned with ASTM E2874, ISO 14644-3, and USP .

FAQ

Does the 0554 9330 module require external power when used with PoE?
No—it draws power directly from the Ethernet switch port compliant with IEEE 802.3af (Class 0, up to 15.4 W). No additional AC adapter or DC supply is needed.
Can it be used outside the testo Saveris Pharma ecosystem?
It operates only with testo 150 loggers and requires testo Saveris software for configuration and data interpretation; third-party SCADA integration is not supported.
Is firmware update performed remotely or locally?
Updates are delivered via Saveris server and pushed automatically to all registered modules; manual update via USB is not supported for security reasons.
What is the maximum recommended cable length between switch and module?
Standard Ethernet distance limits apply: 100 m for CAT5e/CAT6; use fiber media converters for longer runs.
Does it support IPv6?
Yes—dual-stack IPv4/IPv6 operation is enabled by default and configurable via Saveris web interface.
