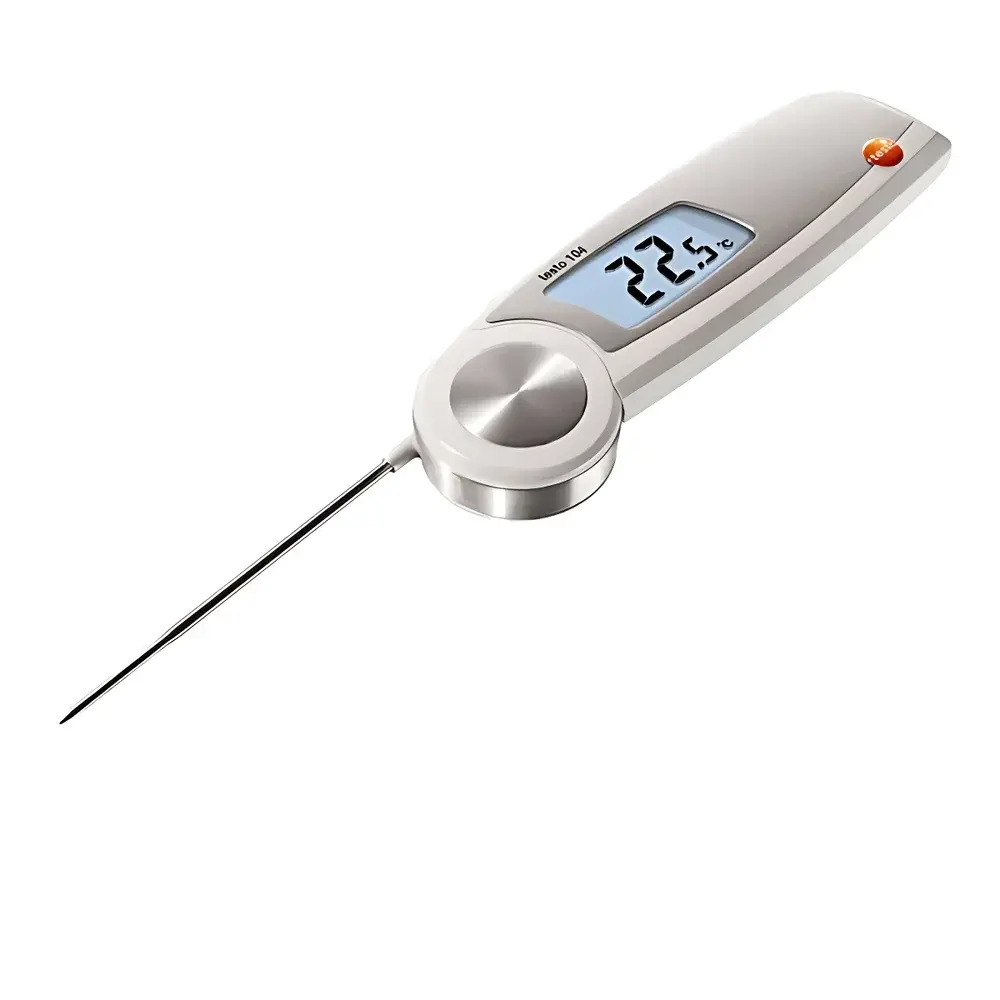

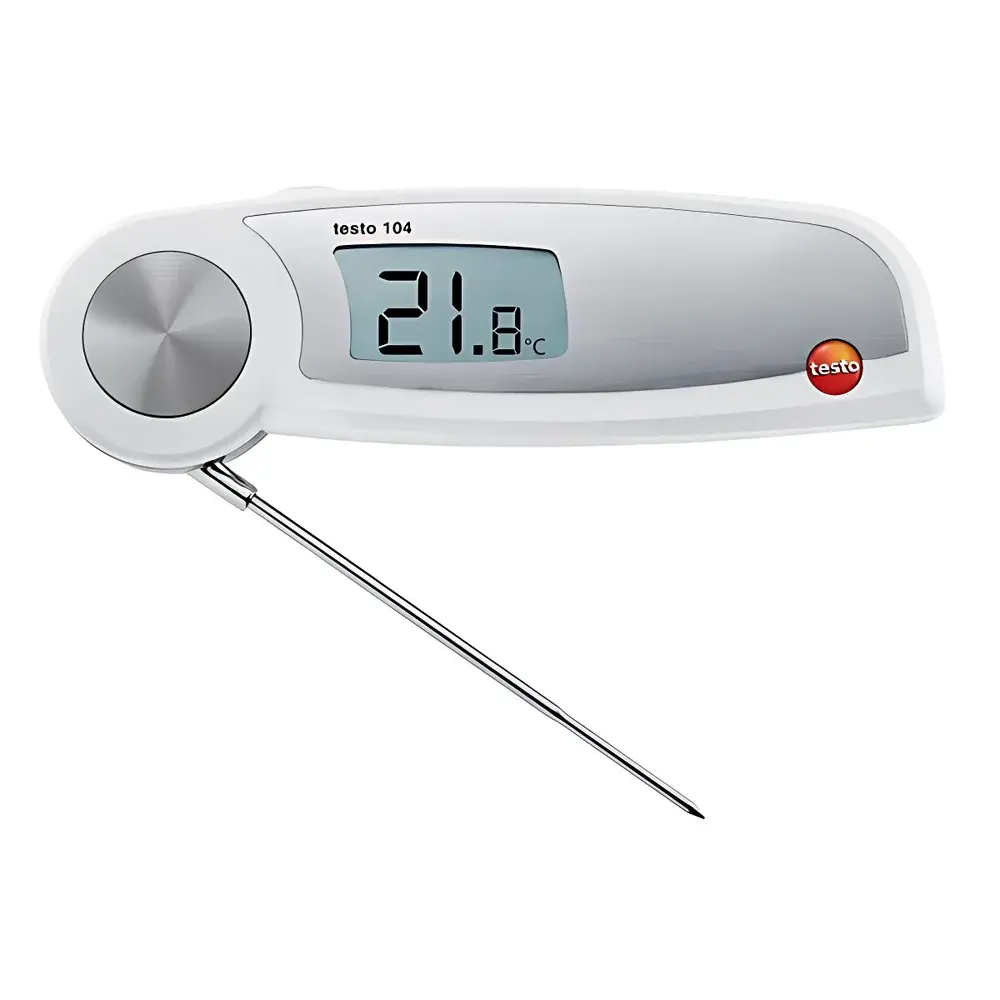

testo 0563 0104 Foldable Waterproof Food Thermometer

Overview

The testo 0563 0104 Foldable Waterproof Food Thermometer is a purpose-engineered handheld instrument designed for rapid, reliable, and hygienic core temperature measurement in food production, cold chain logistics, catering, and retail environments. Utilizing a high-stability NTC thermistor sensor embedded in a slender, stainless-steel-sheathed probe, the device delivers traceable temperature readings across a wide operational range—from deep freeze (-50 °C) to high-heat processing (+250 °C). Its foldable probe mechanism enables safe, compact storage while maintaining mechanical integrity during repeated insertion into dense or viscous food matrices. The instrument operates on fundamental thermistor resistance–temperature correlation principles, calibrated against reference standards traceable to national metrology institutes. Designed for real-world food safety workflows, it meets the physical and functional requirements of HACCP critical control point monitoring and supports compliance-driven documentation practices.

Key Features

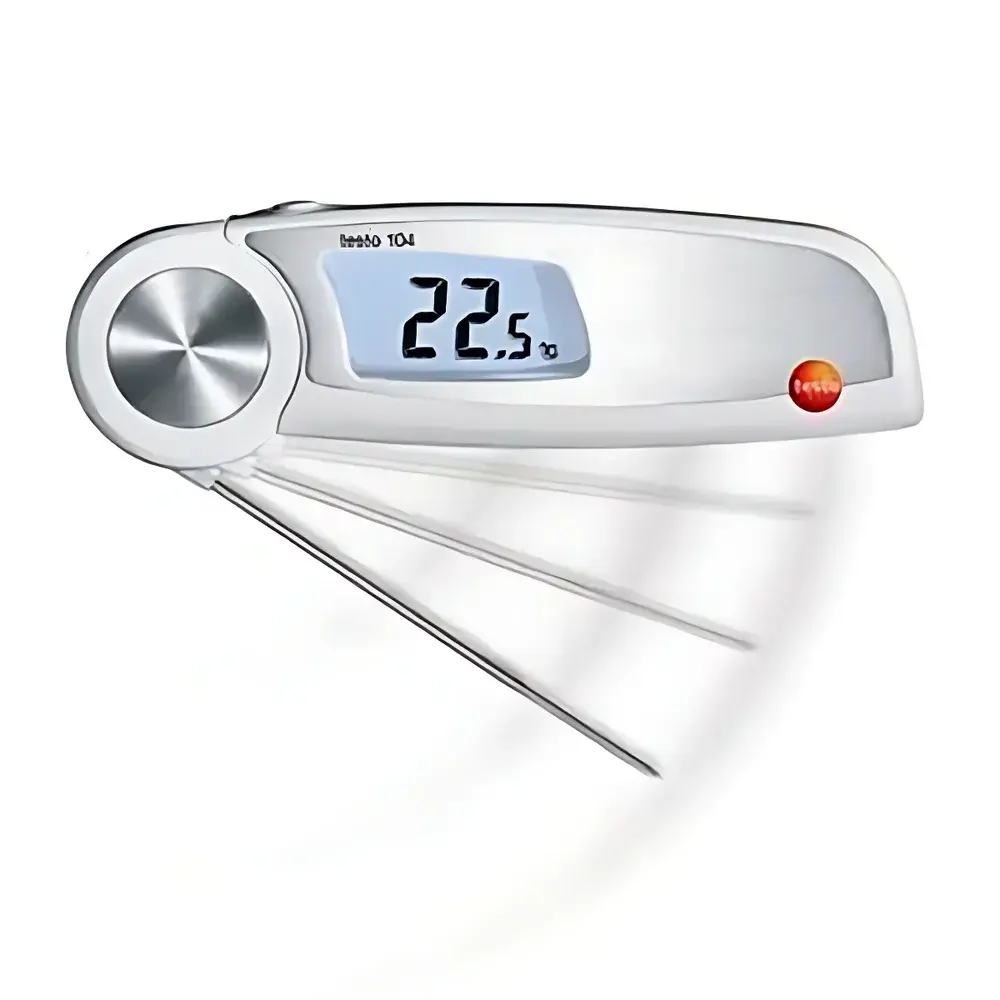

• Foldable stainless-steel probe (3 mm diameter, 102 mm sheath length) with minimal insertion profile—enables unobtrusive center-temperature measurement in delicate or densely packed food items without structural damage.
• IP65-rated enclosure: fully protected against dust ingress and low-pressure water jets; certified for submersion-compatible cleaning—essential for frequent sanitization in regulated food handling zones.
• Ergonomic ABS/ABS-PC+10% glass fiber housing with textured rubberized grip—ensures secure handling under wet, greasy, or cold conditions.
• Auto-Hold and manual Hold functions: automatically locks final stable reading upon thermal equilibrium detection (t₉₉ ≤ 10 s in flowing liquid); user may override to capture transient min/max values.
• Backlit single-line LCD display with 0.1 °C resolution and intuitive symbol-based status indicators (e.g., battery level, probe position, measurement mode).
• Integrated auto-calibration recognition logic ensures consistent response behavior across temperature segments, validated per EN 13485-defined verification protocols.

Sample Compatibility & Compliance

The testo 0563 0104 is optimized for direct-contact measurement in heterogeneous food media—including liquids (soups, sauces), semi-solids (doughs, cheeses), and solid matrices (meat cuts, baked goods). Its fine-tip probe (2.3 mm head diameter) minimizes tissue disruption and avoids false surface readings. The instrument conforms to European food safety regulatory frameworks: it satisfies essential requirements of the Electromagnetic Compatibility Directive 2004/108/EC and aligns with EN 13485 for medical device quality management systems—widely adopted as a benchmark for food safety instrumentation validation. While not a medical device per se, its design philosophy reflects GLP-aligned traceability: each unit ships with a factory calibration report referencing ISO/IEC 17025-accredited procedures. It supports HACCP Principle 4 (establishing critical limits) by delivering repeatable, operator-independent measurements under defined environmental conditions (-20 to +60 °C operating range).

Software & Data Management

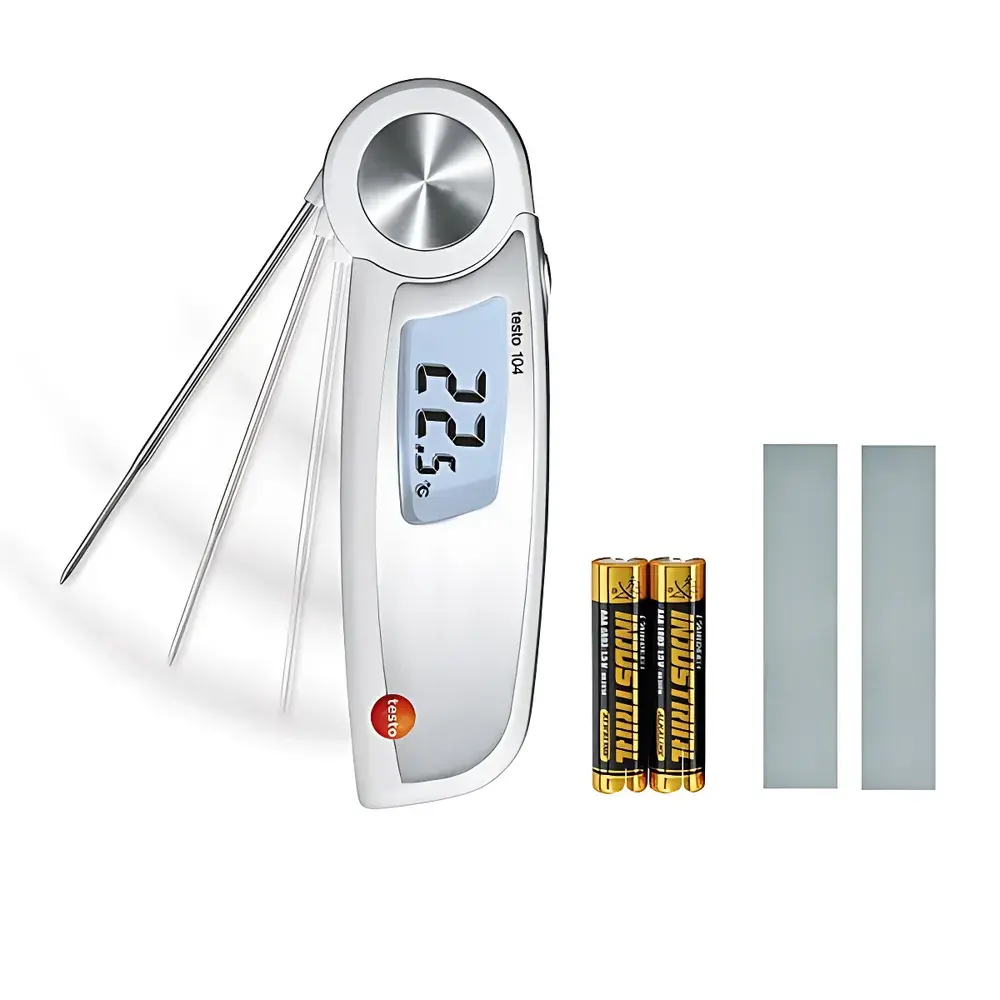

The testo 0563 0104 operates as a standalone field instrument with no onboard data logging or wireless interface. However, its measurement output is fully compatible with external documentation systems used in GMP- and FDA-regulated facilities. The Hold function enables manual transcription into electronic batch records or paper-based log sheets compliant with 21 CFR Part 11 when paired with appropriate procedural controls (e.g., dual-operator verification, timestamped entries). Optional accessories—including color-coded adhesive labels included in the standard kit—facilitate equipment assignment tracking and reduce cross-contamination risk across workstations. For enterprises deploying digital quality management systems (QMS), the thermometer’s consistent accuracy and tactile feedback support integration into SOPs requiring documented evidence of temperature verification at CCPs.

Applications

• Verification of cooking, cooling, and holding temperatures in commercial kitchens and central production units per FDA Food Code guidelines.
• Monitoring time–temperature profiles during refrigerated/frozen transport and warehouse storage to validate cold chain integrity.
• Batch release testing of ready-to-eat (RTE) products prior to distribution.
• Sanitation validation: measuring surface temperatures of steam lines, dishwashers, and scald tanks to confirm pathogen lethality thresholds.
• Audit-ready temperature checks during third-party BRCGS, IFS, or SQF assessments—leveraging its IP65 rating and HACCP alignment as objective evidence of measurement reliability.

FAQ

Is the testo 0563 0104 suitable for continuous immersion in water?
No—it is rated IP65, meaning it withstands low-pressure water jets and is safe for rinsing under running water, but not for prolonged submersion.
Does this thermometer require periodic recalibration?
Yes. While factory-calibrated, routine verification against traceable reference standards (e.g., ice bath at 0.0 °C or stirred liquid baths) is required per internal QA protocols and ISO 9001/ISO 22000 clauses.
Can the probe be replaced if damaged?
The probe is integrated and non-user-replaceable; units with compromised probe integrity must be returned to an authorized testo service center for evaluation.
What battery type does it use, and how is battery life affected by backlight usage?
It uses two AAA alkaline cells with 100-hour typical runtime at +25 °C without backlight activation; enabling backlight reduces effective service life by approximately 30–40%.
Is the device compliant with FDA 21 CFR Part 11 for electronic records?
As a non-data-logging instrument, it does not generate electronic records directly; however, its measurement outputs are admissible in Part 11-compliant workflows when captured via validated secondary systems with audit trail controls.
