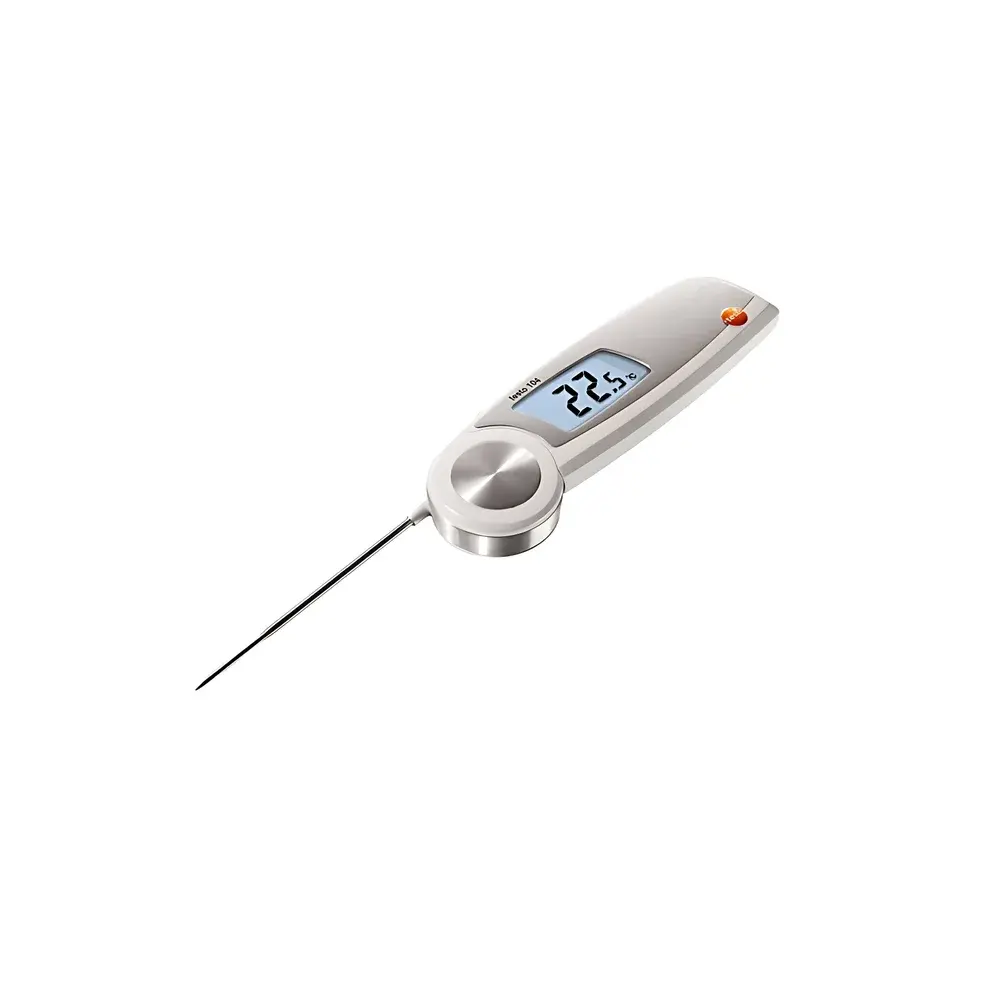

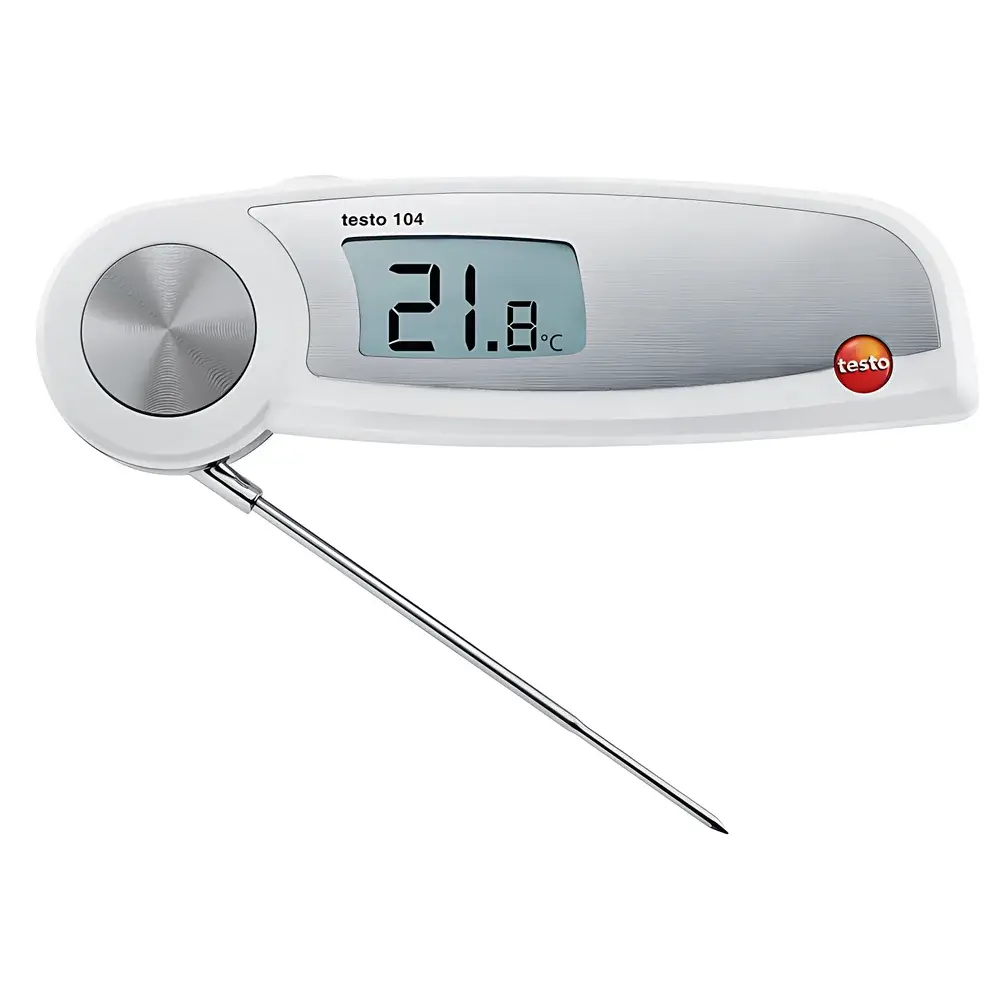

testo 104 Foldable Waterproof Food Thermometer

Overview

The testo 104 Foldable Waterproof Food Thermometer is a purpose-engineered handheld temperature measurement instrument designed specifically for hygienic and regulatory-compliant temperature monitoring in food production, processing, storage, distribution, and retail environments. Utilizing a high-stability NTC thermistor sensor embedded in a slender, corrosion-resistant stainless-steel probe sheath, the device delivers rapid, repeatable, and traceable measurements of core temperatures in liquids, semi-solids, viscous pastes, and solid food matrices. Its operational principle relies on direct thermal conduction from the sample to the sensing element, with signal conditioning optimized for minimal thermal lag and high linearity across its full range of −50 °C to +250 °C. The instrument’s mechanical architecture—featuring a rigid ABS/ABS-PC+10% glass fiber housing, rubberized ergonomic grip, and precisely engineered foldable probe mechanism—ensures durability under repeated sanitation cycles and rigorous daily use in industrial kitchens, cold chain logistics, and HACCP-critical control points.

Key Features

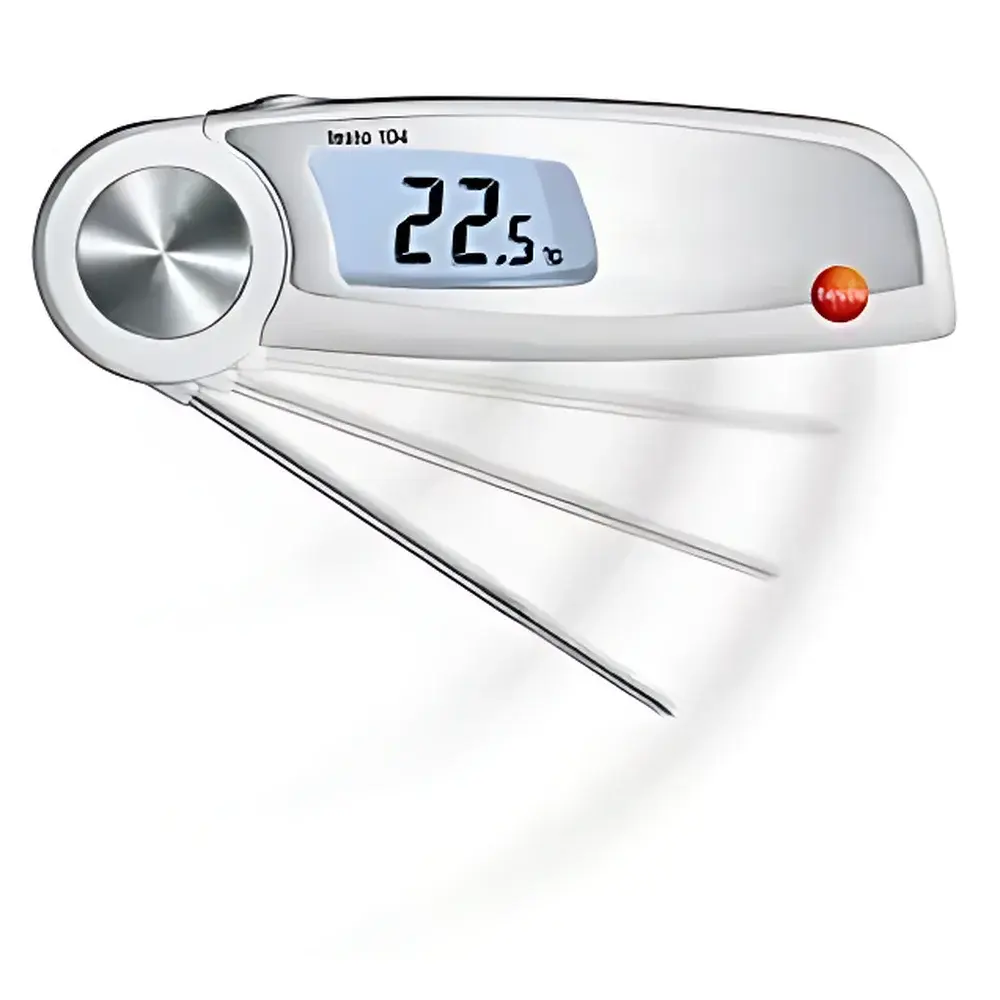

• Foldable stainless-steel probe (102 mm sheath length, 3 mm shaft diameter, 2.3 mm tip diameter) enabling non-invasive, low-resistance insertion into dense or delicate food products—even at a 30° deployment angle for confined-space access
• IP65-rated enclosure certified for dust-tightness and protection against low-pressure water jets; fully submersible for post-measurement cleaning under running water or in sanitizing baths
• Auto-Hold function automatically freezes the stabilized reading upon thermal equilibrium detection (t₉₉ ≤ 10 s in moving liquid), eliminating operator timing error
• Min/Max tracking and manual Hold modes support trend analysis and documentation of thermal excursions during cooking, chilling, or holding processes
• Backlit single-line LCD display ensures legibility in low-light environments such as refrigerated warehouses or dimly lit preparation areas

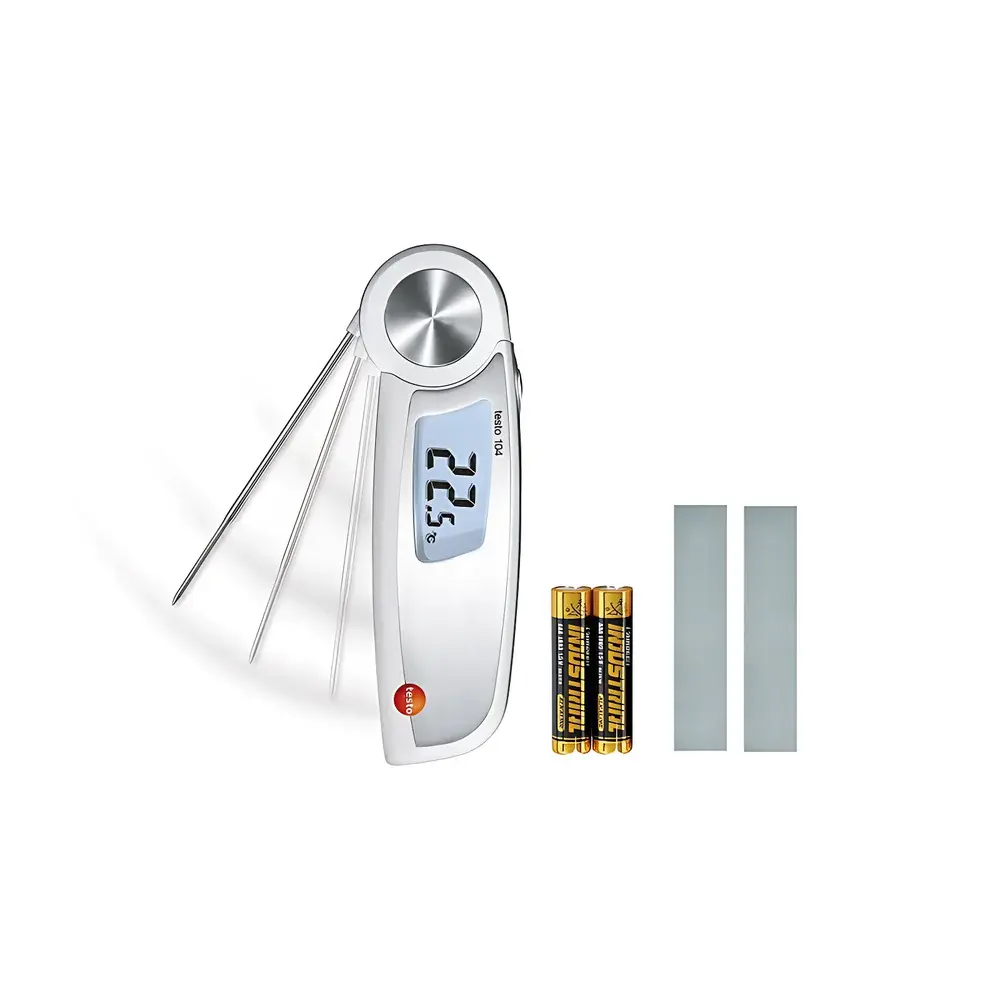

• Integrated battery compartment with two AAA cells provides up to 100 hours of continuous operation at +25 °C (without backlight activation), minimizing downtime in shift-based operations
• Color-coded adhesive labels included for role- or zone-specific instrument assignment—supporting segregation of duties, audit trail integrity, and cross-contamination prevention per GMP and ISO 22000 requirements

Sample Compatibility & Compliance

The testo 104 is validated for direct contact measurement across a broad spectrum of food matrices: chilled/frozen meats and seafood, dairy products (cheese, yogurt, cream), baked goods, cooked ready meals, sauces, soups, and ambient-stable dry goods. Its probe geometry and thermal response characteristics comply with EN 13485:2016 for medical device quality management systems—adapted here to ensure metrological reliability in food safety applications. While not a medical device, its design incorporates traceability features aligned with HACCP prerequisite programs (e.g., CCP verification, calibration record retention) and supports compliance with FDA Food Code §3-201.11, EC Regulation (EC) No 852/2004 on food hygiene, and ISO 22000:2018 clause 8.5.2 (monitoring and measuring resources). The instrument meets electromagnetic compatibility requirements per EU Directive 2004/108/EC and carries CE marking for conformity with applicable health and safety standards.

Software & Data Management

The testo 104 operates as a standalone field instrument without proprietary software dependencies. All measurement data are captured and displayed in real time on the integrated LCD; no onboard memory or Bluetooth/Wi-Fi connectivity is provided, ensuring zero risk of firmware vulnerability or unauthorized data transmission—critical in regulated food manufacturing facilities where IT security policies restrict wireless peripherals. For quality documentation, users may manually transcribe readings into paper-based HACCP logs or electronic batch records compliant with 21 CFR Part 11 (when paired with validated LIMS or MES platforms). Calibration certificates and factory test reports are supplied with each unit, supporting initial qualification and periodic verification against traceable reference standards (e.g., PRTs calibrated to NIST or DAkkS accredited labs). The device’s stable NTC sensor exhibits low drift over time, reducing recalibration frequency while maintaining measurement uncertainty within stated tolerances throughout its service life.

Applications

• Verification of critical control point (CCP) temperatures during thermal processing (e.g., pasteurization hold times, cook-chill validation)
• Monitoring cold chain integrity during transport and warehouse receipt inspection (frozen ≤ −18 °C, chilled 0–4 °C, ambient-stable ≤ 25 °C)
• Core temperature checks of vacuum-packed or portion-controlled items prior to packaging or labeling
• Validation of blast chiller performance and temperature uniformity mapping across product loads
• Sanitation verification—measuring surface temperatures of equipment after steam or hot-water cleaning cycles
• Training and internal auditing of frontline staff in temperature-critical handling procedures

FAQ

Is the testo 104 suitable for measuring the temperature of frozen foods?
Yes—the instrument maintains accuracy down to −50 °C and features a fine-tip probe capable of penetrating frozen surfaces without fracturing ice crystals or compromising structural integrity of the sample.

Can the probe be fully submerged for cleaning after each use?
Yes—its IP65 rating confirms protection against water ingress when rinsed under low-pressure tap water or immersed up to 1 meter for short durations, making it ideal for frequent sanitation in food-grade environments.

Does the testo 104 require annual recalibration?
While not mandated by regulation, best practice recommends verification against a traceable reference thermometer before each shift or daily use in high-risk applications; formal recalibration is advised every 6–12 months depending on usage intensity and internal QA protocols.

What is the expected service life of the NTC sensor under routine food industry conditions?
With proper handling and avoidance of mechanical shock or chemical exposure beyond recommended limits (e.g., strong oxidizers, concentrated acids), the sensor demonstrates long-term stability with typical drift <0.1 °C/year—validated through accelerated aging tests per IEC 60751.

How does the auto-hold function determine thermal equilibrium?
The instrument continuously monitors rate-of-change in sensor output; auto-hold triggers when the absolute derivative falls below 0.05 °C/s for ≥2 seconds—ensuring robust detection even in slowly equilibrating viscous samples.
