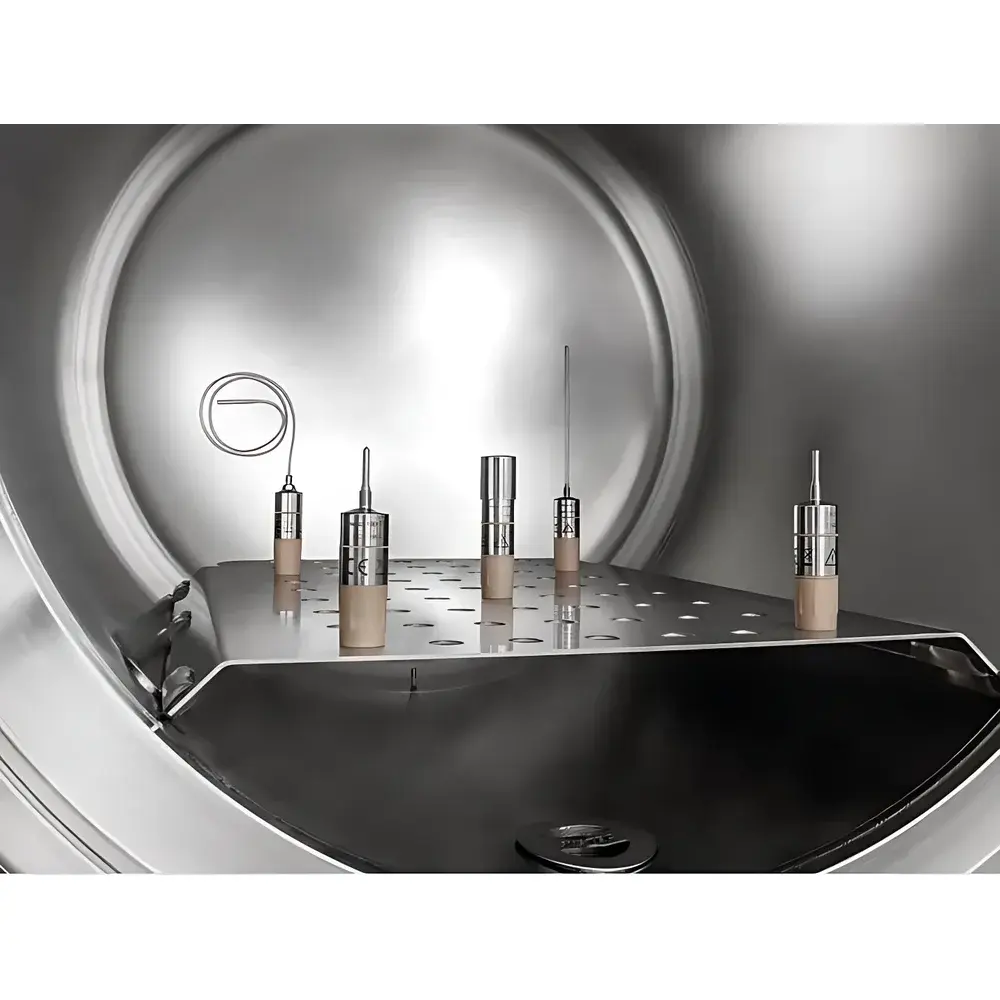

testo 191 HACCP Temperature Validation Data Logger System

Overview

The testo 191 HACCP Temperature Validation Data Logger System is an engineered solution for regulated thermal process validation in food safety, pharmaceutical, and biotechnology manufacturing environments. Built upon the principles of thermocouple-based high-precision temperature measurement and time-synchronized data acquisition, the system enables full compliance with Hazard Analysis and Critical Control Point (HACCP) frameworks and international validation standards—including EN 12830 (cold chain monitoring), EN 13485 (medical device quality management), and FDA 21 CFR Part 11 requirements when configured with audit-trail-enabled software. The testo 191 functions as a central validation node capable of simultaneously logging up to eight independent thermocouple channels (Type K, T, J, or N), supporting real-time monitoring, post-process analysis, and formal documentation required for regulatory audits. Its architecture integrates hardware robustness—IP54-rated enclosure, wide operating temperature range (−20 °C to +60 °C), and long-term stability—with deterministic sampling intervals (1 s to 24 h) and traceable calibration pathways aligned with ISO/IEC 17025-accredited reference laboratories.

Key Features

• Multi-channel thermocouple input (8 channels, configurable per probe type) with cold-junction compensation and automatic linearization.
• High-capacity internal memory (2 million readings) with circular buffer logic to prevent data loss during extended validation cycles.
• Dual-mode connectivity: USB-C for direct download and configuration; Bluetooth 5.0 for wireless real-time status monitoring and remote setup via mobile app (testo Smart Probes).
• Programmable alarm thresholds with visual/audible alerts and event-triggered logging for critical deviations (e.g., sterilization hold time breach).
• Integrated timestamping with NTP synchronization support (via optional Wi-Fi module) ensuring metrological integrity across distributed validation campaigns.
• Robust mechanical design: aluminum housing, IP54 ingress protection, and shock-resistant construction suitable for industrial cleanroom and production floor deployment.

Sample Compatibility & Compliance

The testo 191 is not a sample-analysis instrument but a process-validation platform designed for use with calibrated thermocouple probes inserted into product loads, autoclave chambers, freeze-dryer shelves, or pasteurization tanks. It supports all standard thermocouple types used in thermal validation (K, T, J, N) and interfaces seamlessly with testo’s portfolio of Class 1 and Class 2 validation probes—including needle-type, surface-mount, and immersion sensors—each supplied with individual calibration certificates traceable to national standards. Regulatory alignment includes documented conformity with EN 12830 (temperature monitoring equipment for refrigerated transport), EN 13485 (QMS requirements for medical devices), and ISO 13408-2 (sterility assurance for aseptic processing). When paired with testo’s validated software suite (testo ALMEMO® Cloud or testo Comsoft 7), the system satisfies electronic record and signature requirements under FDA 21 CFR Part 11, including user access control, audit trail generation, and electronic signature workflows compliant with GLP/GMP practices.

Software & Data Management

Data acquisition, visualization, and reporting are managed through testo Comsoft 7 Professional—a Windows-based application qualified for GxP environments. The software provides automated calculation of critical thermal parameters: F₀ (sterilization lethality), P₀ (pasteurization units), D-value derivation, z-value estimation, and hold-time verification against defined acceptance criteria. All calculations follow standardized algorithms referenced in USP , ISO 11137, and EU Annex 1. Raw data export is available in CSV, PDF, and XML formats, with embedded metadata (probe IDs, calibration dates, operator credentials, environmental conditions). For cloud-based collaboration, testo ALMEMO® Cloud offers secure, role-based access, automated backup, and real-time dashboards accessible from web browsers or iOS/Android devices—enabling cross-site validation coordination without local IT infrastructure dependency.

Applications

• Autoclave and steam sterilization cycle validation (including empty-chamber mapping and loaded-cycle qualification per ISO 17665).
• Pasteurization process verification in dairy, beverage, and ready-to-eat food production lines.
• Freeze-drying (lyophilization) chamber and shelf temperature profiling across primary and secondary drying phases.
• Cold chain validation for warehouse storage, refrigerated transport, and pharmacy logistics (per WHO Technical Report Series No. 961).
• Environmental monitoring in cleanrooms (ISO 14644-3) and stability chambers (ICH Q5C).
• Thermal mapping of ovens, tunnels, and retorts used in food and pharmaceutical manufacturing.

FAQ

Does the testo 191 meet FDA 21 CFR Part 11 requirements?
Yes—when used with testo Comsoft 7 Professional in validated mode and configured with user authentication, electronic signatures, and full audit trail activation.
Can the testo 191 log humidity data?
No—the testo 191 is a dedicated temperature validation logger; for combined temperature/humidity validation, consider the testo 175-H1 or testo 176-H2 series.
Is calibration certificate included with purchase?
A factory calibration certificate (traceable to DKD/DAkkS-accredited labs) is provided; on-site or accredited recalibration services are available through testo’s global service network.
How many thermocouples can be connected simultaneously?
Up to eight thermocouple probes may be connected and logged synchronously, with independent channel configuration for type, offset, and linearization.
What is the battery life under typical validation conditions?
With standard AA alkaline batteries and 10-second sampling interval, operational runtime exceeds 30 days; lithium AA batteries extend this to over 90 days.
