testo 405-V1 Compact Hot-Wire Anemometer (Model 0560 4053)

Overview

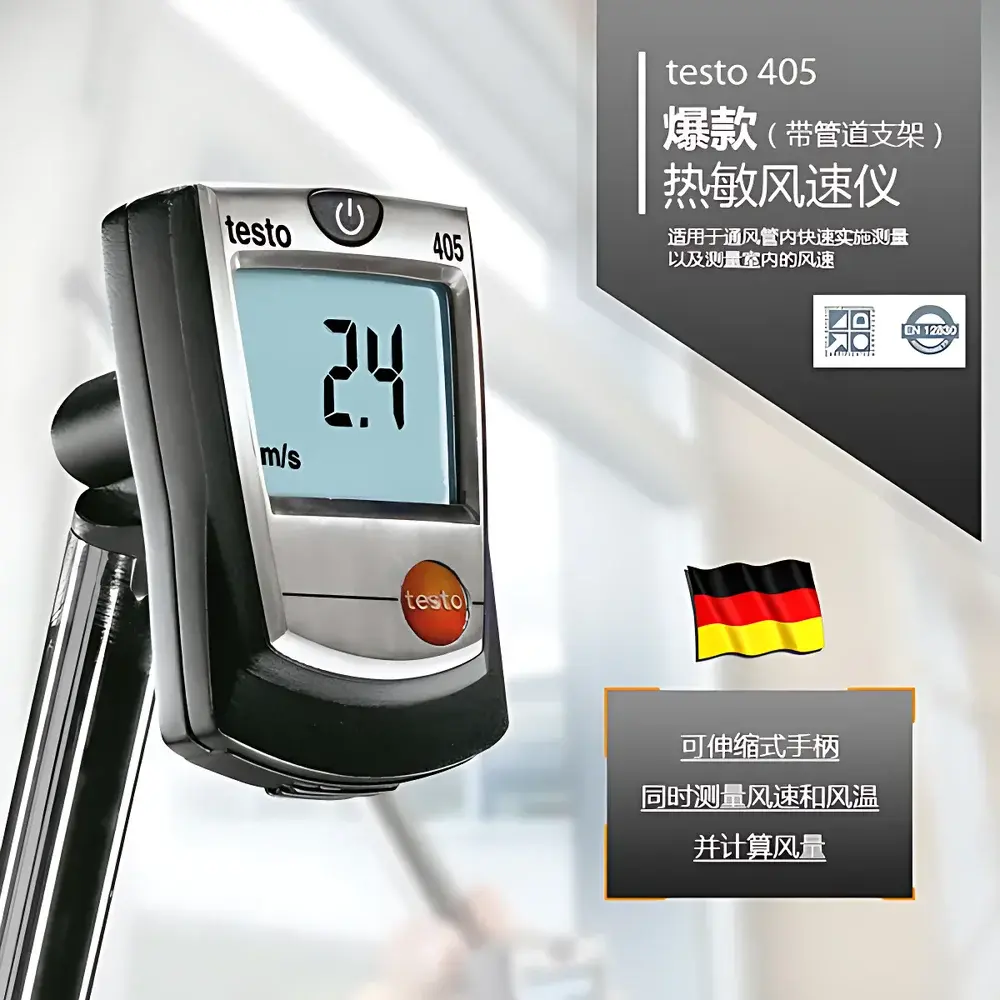

The testo 405-V1 Compact Hot-Wire Anemometer (Model 0560 4053) is a precision-engineered handheld instrument designed for rapid, reliable measurement of air velocity, volumetric flow rate, and ambient air temperature in HVAC, building commissioning, and indoor environmental quality (IEQ) applications. Utilizing constant-temperature hot-wire anemometry, the device detects convective heat loss from a fine platinum wire heated above ambient temperature — a principle offering high sensitivity to low-velocity airflow (down to 0.1 m/s) and fast dynamic response (<100 ms). Its compact probe head and telescopic handle (extendable up to 300 mm) enable non-intrusive access into ductwork, grilles, diffusers, and confined spaces without requiring system shutdown or permanent installation. The integrated temperature sensor conforms to IEC 60751 Class B tolerances, ensuring traceable thermal measurements across the full operating range (–20 to +50 °C).

Key Features

• Hot-wire sensing technology optimized for low-flow accuracy — especially critical for ASHRAE 62.1-compliant ventilation verification and ISO 16813-based indoor air quality assessments

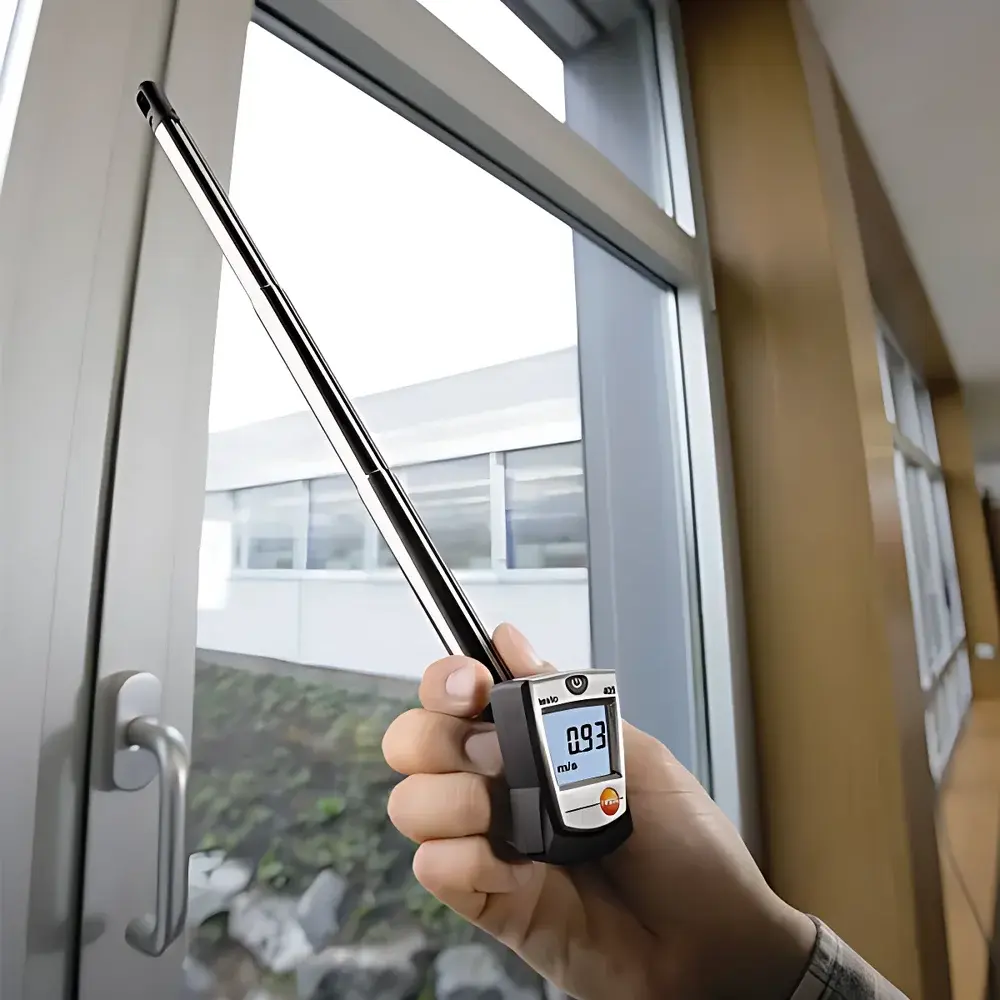

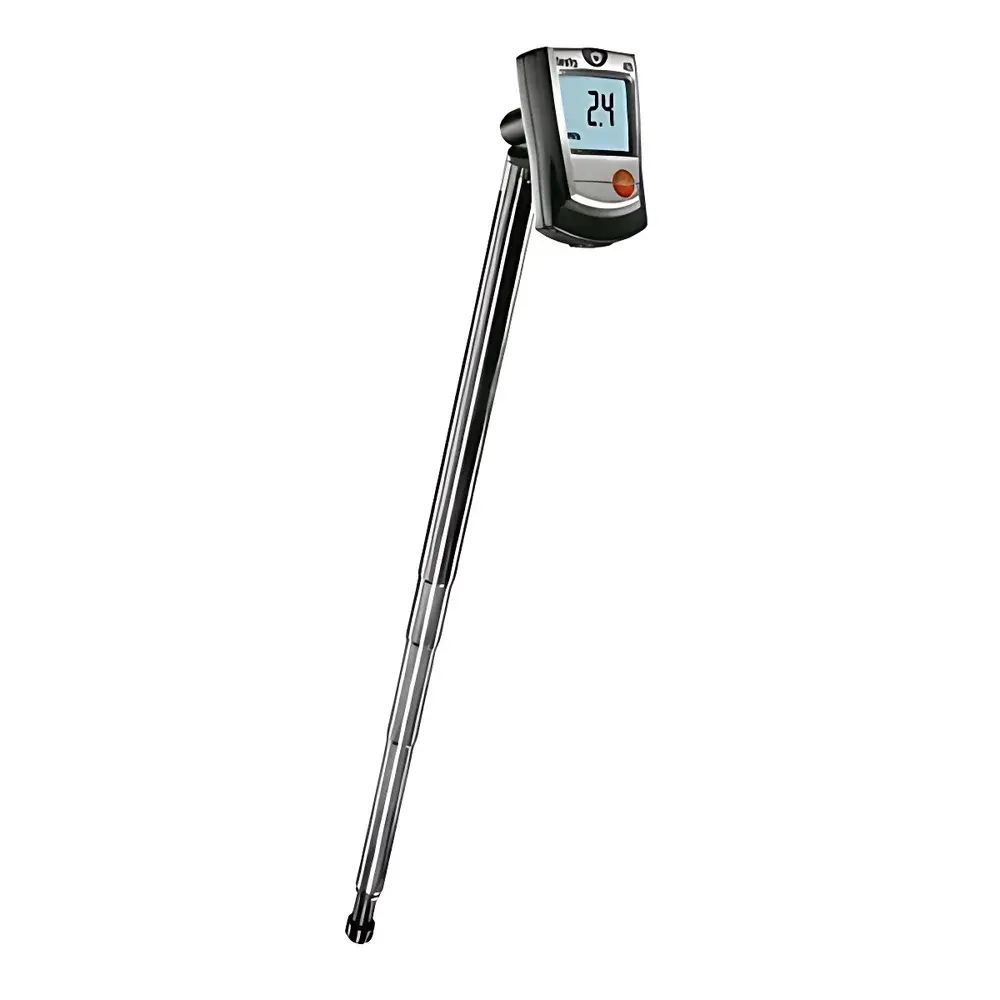

• Telescopic probe handle (0–300 mm extension) with ergonomic grip and lock mechanism for stable positioning inside ducts and behind registers
• Rotating backlit LCD display (180° pivot) with dual-parameter readout — simultaneous real-time display of velocity (m/s), volumetric flow (m³/h), and temperature (°C)
• Integrated rotating protective cap that automatically shields the fragile hot-wire sensor when not in active measurement mode — mitigating mechanical damage during transport or storage
• Onboard calculation of volumetric flow using user-defined duct cross-sectional area (manual input or via optional testo Smart Probes app integration)
• Built-in rechargeable battery (AA-type, included) supporting >10 hours of continuous operation under typical field conditions

Sample Compatibility & Compliance

The testo 405-V1 is calibrated for use with clean, dry air under standard atmospheric conditions (101.3 kPa, 20 °C). It is not intended for corrosive, explosive, or particulate-laden airstreams without appropriate filtration or probe protection accessories. The instrument complies with EN 61000-6-2 (immunity) and EN 61000-6-3 (emission) for electromagnetic compatibility. Its measurement methodology aligns with ISO 7726 (Ergonomics of the thermal environment — Instruments for measuring physical quantities) and supports documentation requirements for ISO 9001, ISO 14001, and ISO 50001 energy management audits. While not certified for intrinsic safety, it meets general-purpose industrial use requirements per CE marking directives.

Software & Data Management

Data logging is performed internally with timestamped records (up to 10,000 values), accessible via USB-C interface and testo Smart Software (Windows/macOS compatible). Export formats include CSV and PDF reports with customizable headers, metadata fields (operator ID, location tag, duct ID), and automatic unit conversion. The software supports statistical analysis (min/max/avg/std dev), trend visualization, and export-ready compliance reporting aligned with ASHRAE Guideline 1 and EU Directive 2018/844 on energy performance of buildings. Audit trail functionality satisfies GLP-aligned documentation needs for third-party verification and facility certification processes.

Applications

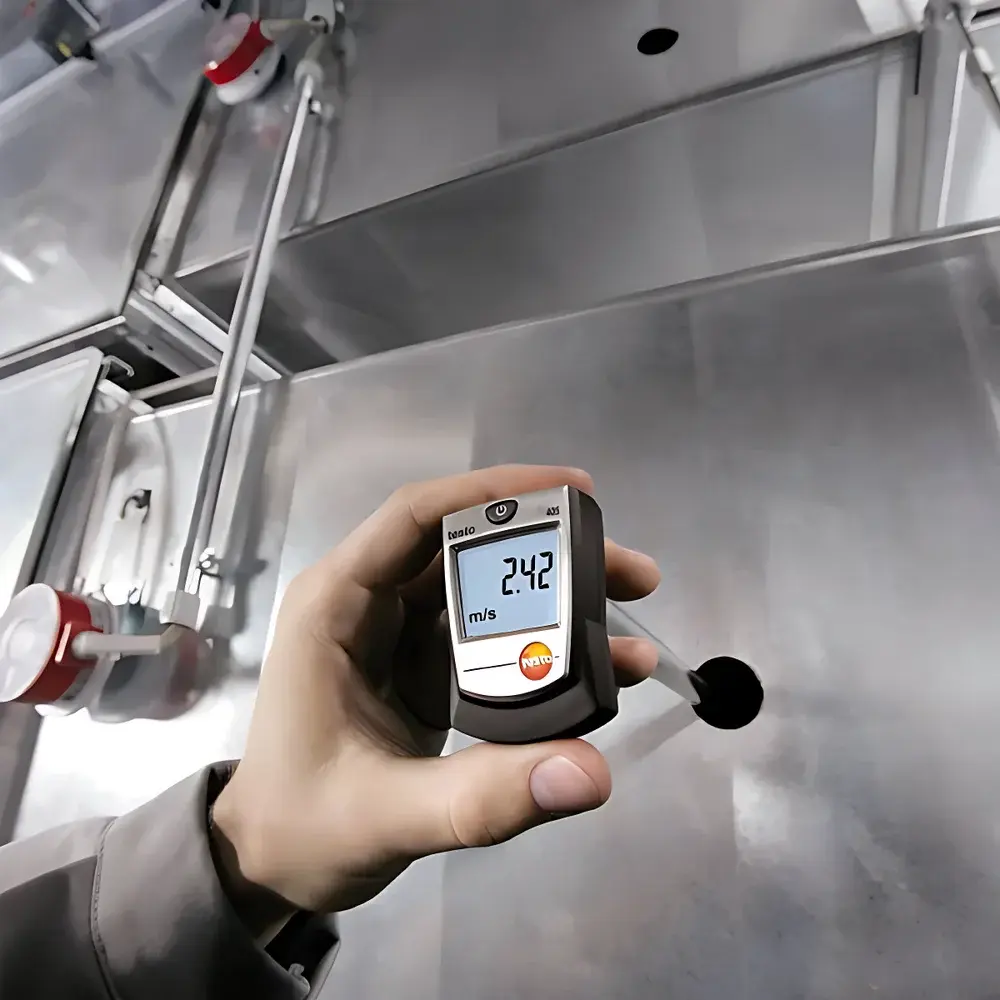

• Verification of supply/exhaust airflow rates in rectangular and round ducts per SMACNA and ACCA Manual D protocols
• Routine balancing of VAV boxes and terminal units in commercial HVAC systems
• Measurement of face velocity at fume hoods, biosafety cabinets, and laminar flow workstations (in accordance with ANSI/ASHRAE 110 and NSF/ANSI 49)
• Indoor air velocity mapping for thermal comfort evaluation (ISO 7730, ASHRAE Standard 55)
• Commissioning and retro-commissioning of HVAC systems under LEED EQ Credit 1 and BREEAM HEA 02
• Validation of air curtain performance and door infiltration rates in cold storage facilities

FAQ

Is the testo 405-V1 suitable for measuring airflow in exhaust ducts containing grease or moisture?
No — the hot-wire sensor is susceptible to contamination and drift when exposed to oil vapors, condensate, or high particulate loads. Use only in clean, dry airstreams unless paired with a certified inline filter assembly.
Can volumetric flow be calculated automatically for non-rectangular duct geometries?
Yes — users may input custom cross-sectional area (e.g., for oval or irregular ducts) directly into the device or via the testo Smart Software; no geometric assumptions are enforced by default.
Does the instrument support calibration traceability to national standards?
Yes — each unit ships with a factory calibration certificate traceable to PTB (Physikalisch-Technische Bundesanstalt) via DAkkS-accredited laboratories; optional ISO/IEC 17025 calibration services are available.
What is the recommended recalibration interval under routine field use?
testo recommends annual recalibration for applications requiring documented metrological integrity; more frequent checks are advised after mechanical shock or exposure to extreme thermal cycling.
Is the rotating display compatible with gloved operation in industrial environments?
Yes — tactile button layout and high-contrast backlighting allow intuitive navigation while wearing standard HVAC technician gloves (EN 388 Level 2 minimum).
