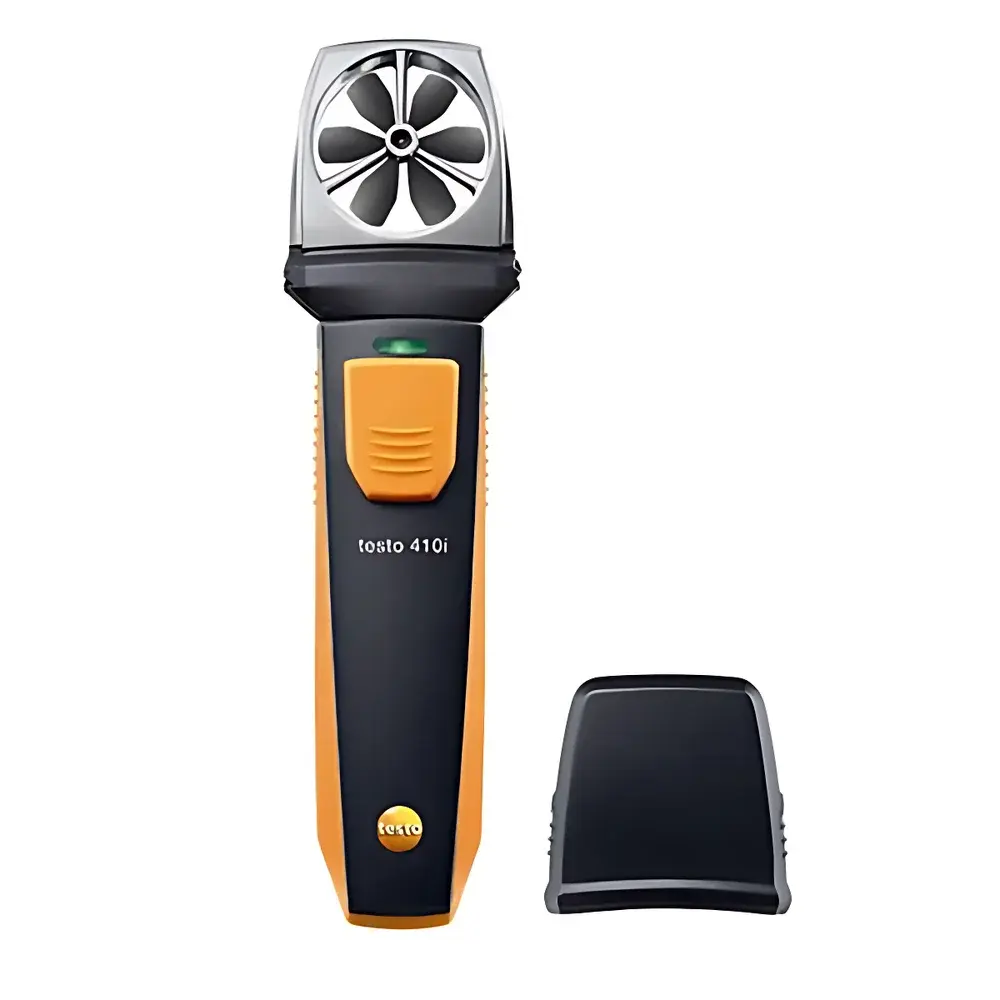

testo 410i Smart Wireless Mini Vane Anemometer

Overview

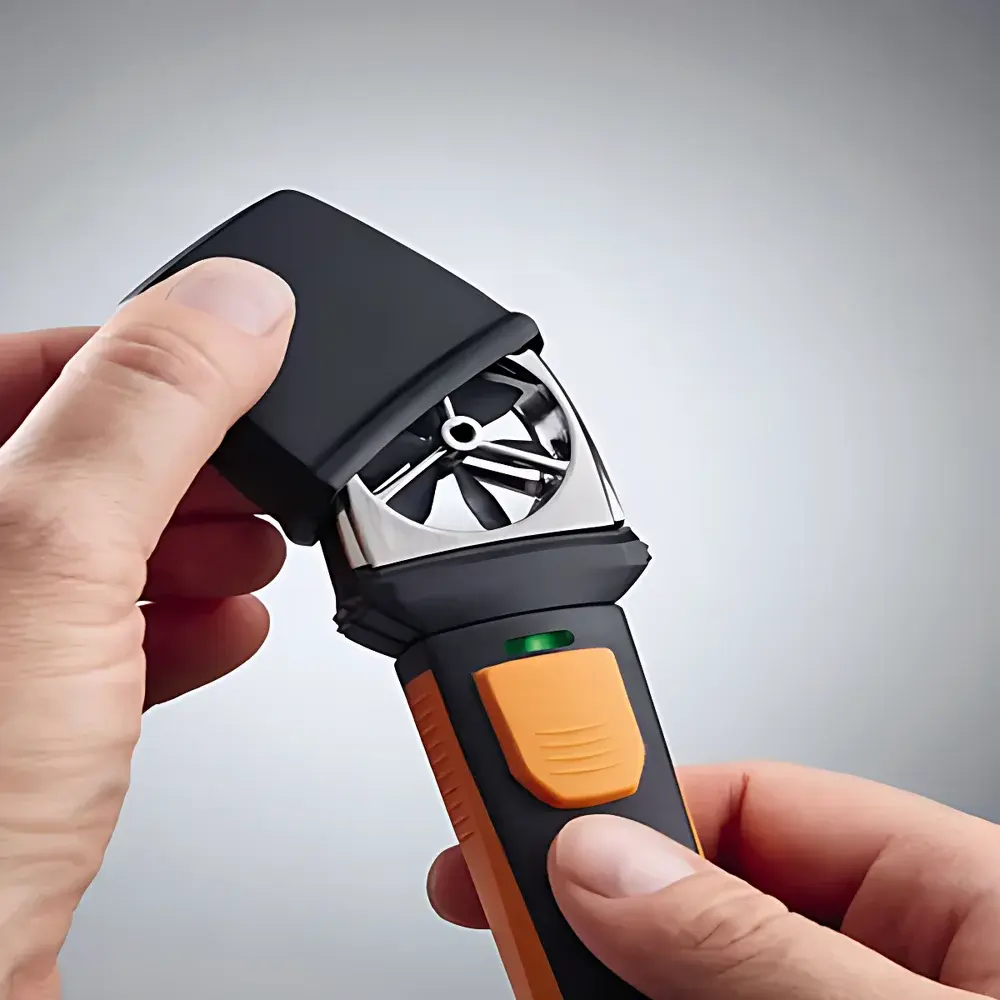

The testo 410i Smart Wireless Mini Vane Anemometer (Model 0560 1410) is a compact, Bluetooth-enabled handheld instrument engineered for precise and traceable air velocity, volumetric flow, and temperature measurements in HVAC commissioning, maintenance, and indoor air quality (IAQ) assessments. Based on calibrated vane anemometry—where airflow induces rotation of a precision-balanced 30 mm impeller—the device converts angular velocity into linear airspeed using factory-traceable algorithms compliant with ISO 16813 and EN 12599 standards for ventilation system testing. Its miniaturized form factor (154 × 43 × 21 mm), lightweight construction (117.8 g), and wireless architecture eliminate cable constraints during multi-point duct or grille surveys. Designed for field engineers and HVAC technicians, the 410i delivers metrologically sound data without requiring fixed mounting or external power sources, supporting both spot checks and time-weighted averaging across variable airflow conditions.

Key Features

• Wireless real-time data transmission via Bluetooth 4.0 to iOS (11.0+) and Android (6.0+) devices running the official testo Smart App
• Vane-based air velocity measurement across a validated range of 0.4–30 m/s, with enhanced accuracy of ±(0.2 m/s + 2 % of reading) within the primary operational band (0.4–20 m/s)
• Integrated NTC temperature sensor (−20 to +60 °C) with ±0.5 °C accuracy and 0.1 °C resolution, enabling simultaneous thermal profiling alongside airflow analysis
• Intuitive volumetric flow calculation directly within the app—users define outlet geometry (rectangular, circular, or irregular) and dimensions to auto-compute m³/h or CFM
• Multi-point averaging and programmable timed measurement modes (e.g., 1–60 min intervals) for statistically robust mean velocity determination at diffusers, grilles, or terminal units
• Rugged high-strength plastic housing rated for operation between −20 °C and +50 °C ambient, with IP54-rated protection against dust and water splashes during on-site use
• Long-duration battery operation: up to 130 hours on three rechargeable AAA cells, minimizing downtime during extended commissioning cycles

Sample Compatibility & Compliance

The testo 410i is optimized for non-intrusive, in-situ measurement of turbulent and transitional airflow regimes typical in low- to medium-velocity HVAC applications—including supply/exhaust grilles, VAV boxes, ceiling diffusers, and duct terminations. It does not require pitot-static correction or turbulence compensation algorithms, as its vane design inherently responds to bulk flow direction and magnitude. All factory calibrations are performed per DIN EN ISO/IEC 17025-accredited procedures, with individual calibration certificates included. The device supports GLP-compliant workflows through timestamped, user-annotated measurement logs and export-ready reports (PDF/Excel). While not FDA 21 CFR Part 11-certified out-of-the-box, audit trails generated via the testo Smart App meet baseline requirements for ISO 9001 and ISO 14001 documentation frameworks.

Software & Data Management

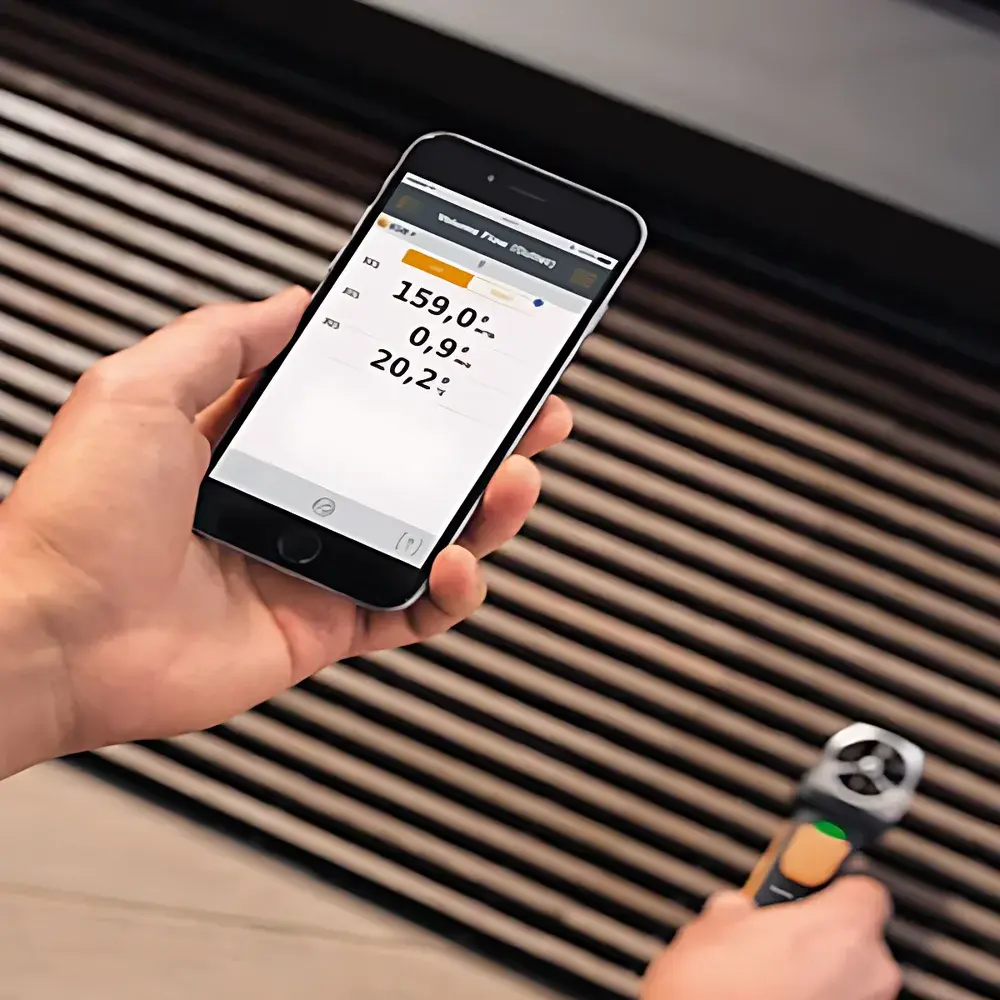

The testo Smart App serves as the central interface for configuration, visualization, and reporting. Users configure outlet geometry (width/height/diameter), select unit systems (SI or Imperial), and define averaging parameters—all without physical access to the instrument. Real-time graphs display velocity and temperature trends; statistical summaries include min/max/mean/stdev. Measurements can be geotagged, annotated with photos, and exported with full metadata (date/time, device ID, calibration status, environmental conditions). Reports comply with common HVAC commissioning templates and integrate seamlessly into CMMS platforms via email or cloud sync. Firmware updates are delivered over-the-air, ensuring continued alignment with evolving industry protocols and regulatory expectations.

Applications

• Commissioning and balancing of HVAC systems per ASHRAE Guideline 1 and TAB (Testing, Adjusting, and Balancing) standards
• Verification of air change rates in cleanrooms, laboratories, and healthcare facilities (ISO 14644, HTM 03-01)
• Energy audits and retrocommissioning projects assessing fan system efficiency and duct leakage
• Indoor air quality investigations including thermal comfort evaluation (EN 15251, ASHRAE 55)
• Educational use in building science and mechanical engineering curricula for hands-on fluid dynamics labs
• Preventive maintenance of air handling units and rooftop units by trending airflow degradation over time

FAQ

Does the testo 410i require annual recalibration?
Yes—while the device ships with a valid factory calibration certificate, periodic recalibration (recommended annually or per ISO/IEC 17025 guidelines) ensures ongoing traceability to national standards.
Can the 410i measure airflow in round ducts?
Yes—by selecting “circular” geometry in the app and entering the duct diameter, the instrument computes volumetric flow using the measured mean velocity and cross-sectional area.
Is the impeller replaceable in the field?
No—the 30 mm vane assembly is sealed and non-user-serviceable; replacement requires return-to-factory service to maintain metrological integrity.
What happens if Bluetooth connection drops during measurement?
Measurements continue locally on-device memory; data synchronizes automatically upon reconnection, preserving continuity and timestamps.
Does the device support custom report templates?
The testo Smart App provides standardized report formats; custom branding or layout modifications require integration with testo’s enterprise API or third-party reporting tools via CSV export.
