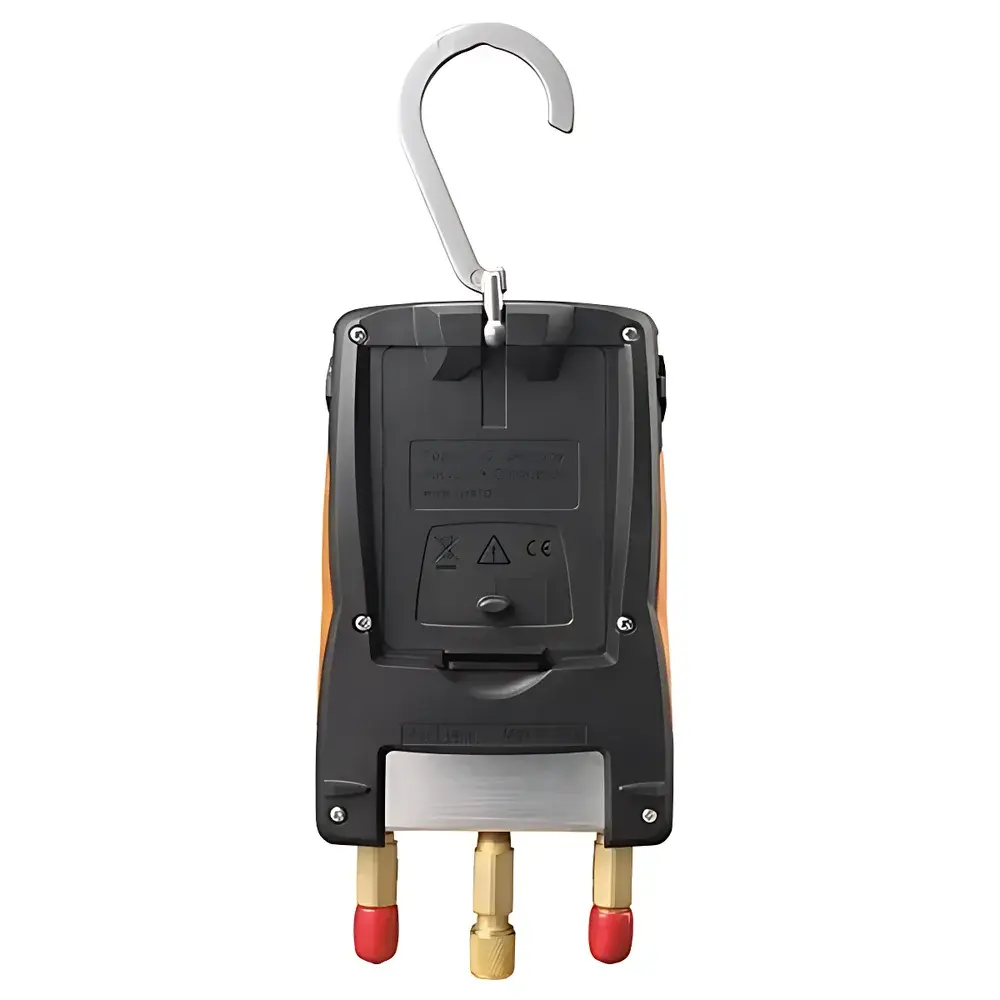

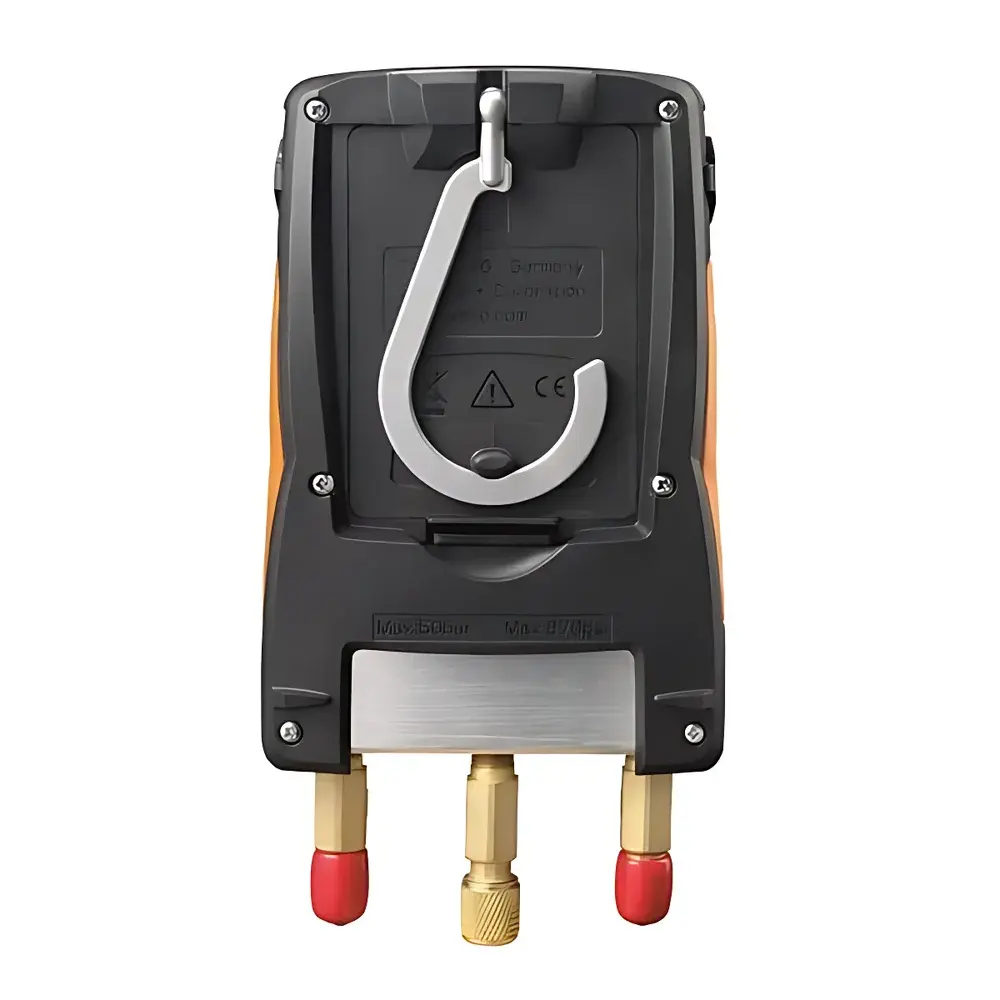

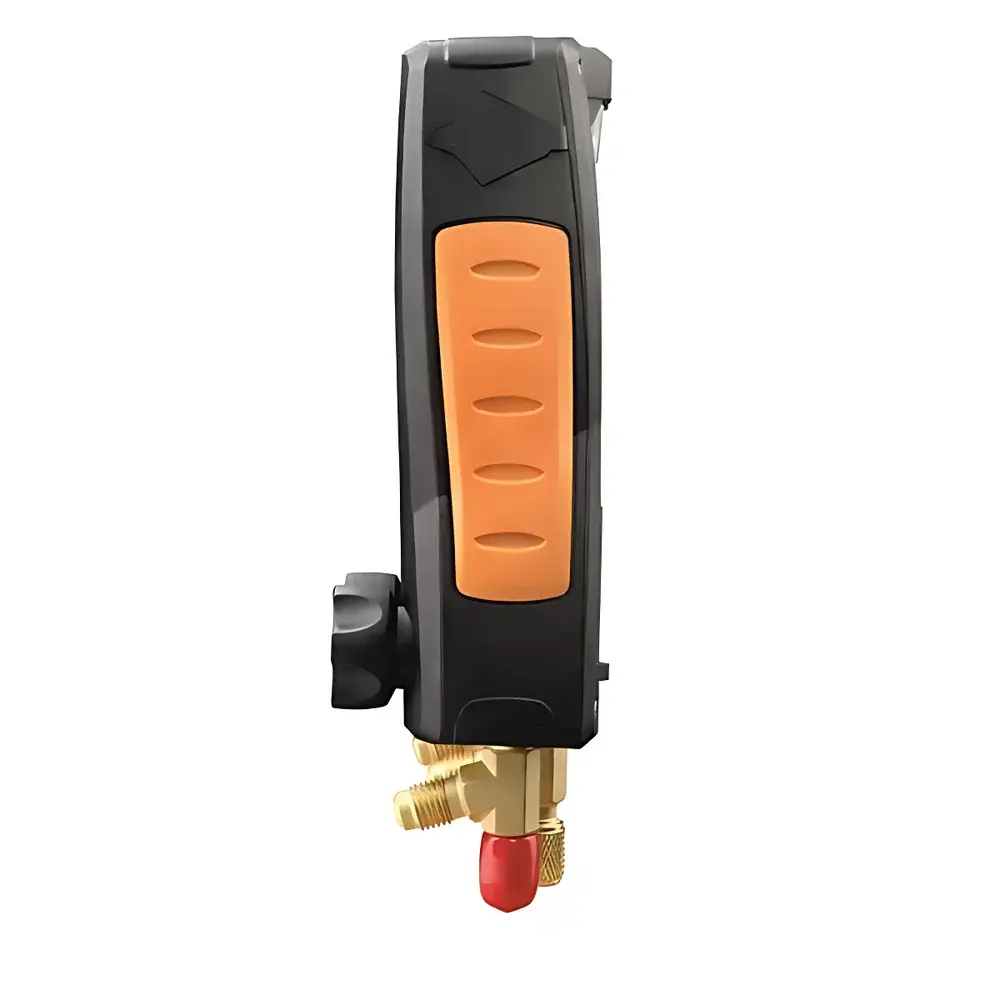

testo 549 Basic Digital Refrigerant Manifold Gauge Set (Model 0560 0550)

Overview

The testo 549 Basic Digital Refrigerant Manifold Gauge Set (Model 0560 0550) is an engineered field instrument designed for HVAC/R technicians performing commissioning, troubleshooting, and preventive maintenance on refrigeration systems and heat pumps. It operates on the principle of simultaneous high-accuracy pressure and temperature measurement—using two temperature-compensated piezoresistive pressure sensors and dual NTC temperature inputs—to derive thermodynamic state variables in real time. Unlike analog manifold gauges, which require manual interpretation of pressure-temperature relationships, the testo 549 automates calculation of saturation temperatures (evaporation and condensation), superheat, subcooling, and temperature-compensated leak test delta-pressure values—all referenced against its internal database of 60 widely used refrigerants (including R134a, R410A, R404A, R32, R290, and low-GWP alternatives). Its architecture integrates sensor fusion logic compliant with ASHRAE Standard 116 and ISO 8573-1 Annex C for refrigerant system diagnostics, ensuring traceable, repeatable measurements under variable ambient conditions.

Key Features

• Two integrated, temperature-compensated pressure sensors (–1 to +60 bar range; ±0.5 % full-scale accuracy) eliminate thermal drift errors common in mechanical gauges
• Dual NTC temperature input ports support simultaneous connection of clamp-on surface probes (e.g., testo 0600 9763) for real-time superheat and subcooling computation
• Preloaded database of 60 refrigerants—including legacy, zeotropic blends, and next-generation low-GWP fluids—with automatic saturation property lookup
• Temperature-compensated leak testing mode: records initial system pressure, compensates for ambient temperature-induced pressure variation using real-time sensor data, and calculates net pressure loss over time
• Auto heat pump mode enables seamless reversal of high/low-side pressure assignments without physically swapping hoses—reducing setup time and cross-contamination risk
• Rugged metal frame housing with IP42-rated enclosure protects against dust ingress and incidental water splashes during field use
• Backlit LCD display (200 × 109 × 63 mm footprint) ensures legibility in low-light environments such as equipment rooms or crawl spaces
• Built-in calibration certificate traceable to national standards (DIN EN ISO/IEC 17025) supports GLP-compliant documentation requirements

Sample Compatibility & Compliance

The testo 549 is validated for use with all refrigerants listed in its onboard library, covering ASHRAE 34 safety classifications A1 through A3 and select B2L compounds. It meets the mechanical and electrical safety requirements of EN 61010-1:2019 for handheld measurement instruments used in industrial environments. Its pressure sensor design complies with EN 837-1 for analog and digital pressure gauges, while its temperature measurement chain adheres to IEC 60751 Class B tolerances for NTC thermistors. The device supports audit-ready workflows under ISO 9001-certified service organizations and aligns with EPA Section 608 and EU F-Gas Regulation (EU) No 517/2014 reporting protocols for refrigerant handling and leak verification.

Software & Data Management

While the testo 549 operates as a standalone field instrument, its measurement logs—including timestamps, refrigerant ID, pressure/temperature pairs, and calculated superheat/subcooling values—can be exported via optional IR interface (testo 0554 8712) to testo Smart Probes software or third-party CMMS platforms. All stored data retain full metrological traceability, including sensor serial numbers, calibration dates, and uncertainty budgets per ISO/IEC 17025. The firmware supports secure user-defined parameter locking and password-protected configuration changes—enabling compliance with FDA 21 CFR Part 11 requirements when integrated into regulated pharmaceutical or food processing cold chain validation processes.

Applications

• Startup commissioning of split-system air conditioners, VRF installations, and commercial chillers
• Performance verification of thermostatic expansion valves (TXVs) and electronic expansion valves (EEVs) via superheat analysis
• Condenser and evaporator coil fouling assessment using subcooling and superheat deviation trends
• Leak quantification and trending in low-charge systems (e.g., CO₂ transcritical units) where ambient temperature compensation is critical
• Heat pump defrost cycle validation by monitoring saturation temperature differentials across reversing valves
• Field verification of refrigerant charge levels per AHRI 750 and ISO 5149 guidelines

FAQ

Does the testo 549 support custom refrigerant entries beyond the built-in 60?
No—the refrigerant database is fixed at factory and cannot be modified or extended by users. This ensures thermodynamic consistency and regulatory compliance.
Can the device measure absolute pressure or only gauge pressure?
It measures relative (gauge) pressure only, with a vacuum range down to –1 bar. Absolute pressure derivation requires external atmospheric reference input, not supported natively.
Is the calibration certificate included with every unit valid for ISO/IEC 17025 accreditation?
Yes—the certificate states measurement uncertainty, traceability to PTB (Physikalisch-Technische Bundesanstalt), and complies with ISO/IEC 17025:2017 Clause 7.7 requirements for calibration reports.
What is the maximum allowable ambient temperature during operation?
The specified operating range is –20 °C to +50 °C. Prolonged exposure above +50 °C may affect sensor stability and battery performance.
Are replacement pressure hoses and adapters available as spare parts?
Yes—testo offers certified 7/16″–UNF hose kits (e.g., 0554 9210) and brass adapter sets compliant with EN 1494 for R134a and R410A service pressures.
