testo 745 Non-Contact Voltage Tester
| Brand | testo |
|---|---|
| Origin | Germany |
| Model | 0590 7450 |
| AC Voltage Range | 12–1000 V |
| Operating Temperature | −10 to +50 °C |
| Storage Temperature | −15 to +60 °C |
| Relative Humidity | 0–80 % RH (non-condensing) |
| Weight | 63 g |
| Dimensions | 155 × 25 × 23 mm |
| Protection Rating | IP67 |
| Safety Category | CAT IV 600 V / CAT III 1000 V |
| Compliance | EN 61010-1, EN 61326-1 |
| Power Supply | 2 × AAA batteries |
| Integrated LED Illumination | Yes |
| Alarm Type | Visual (dual-color LED) + Audible (buzzer) |
| Sensitivity Modes | 2-level (Phase Detection / Voltage Presence Confirmation) |
| High-Frequency Interference Rejection | Built-in filter circuit |
Overview
The testo 745 Non-Contact Voltage Tester is an engineered diagnostic tool designed for rapid, safe, and reliable detection of alternating current (AC) voltage in insulated conductors without physical contact. Based on capacitive coupling principles, the device senses electric fields emanating from live conductors—enabling technicians to verify energized conditions prior to physical intervention. Its core application lies in preliminary electrical safety verification across industrial maintenance, building services, facility management, and HVAC-R commissioning workflows. Unlike basic proximity testers, the testo 745 integrates a proprietary high-frequency interference rejection circuit that suppresses false triggers from variable-frequency drives (VFDs), switching power supplies, and radio-frequency noise sources—significantly improving measurement confidence in modern electrified environments.
Key Features
- Two-stage sensitivity selection: Mode 1 optimized for phase identification (e.g., distinguishing L/N/PE in multi-conductor cables); Mode 2 calibrated for definitive voltage presence confirmation across the full 12–1000 V AC range.
- Dual-modality alarm system: Simultaneous red/green LED indication with audible tone—red flash + beep confirms live voltage; green steady light indicates safe condition (no detectable field).

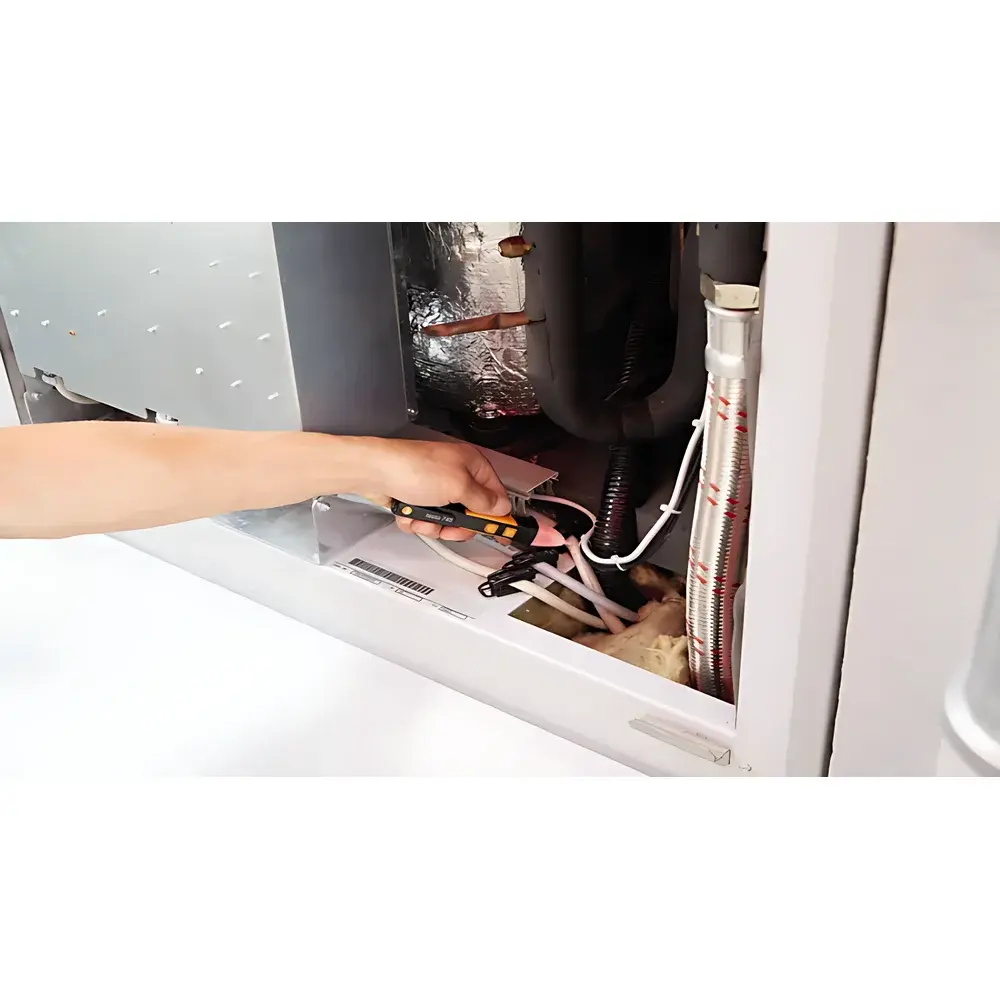

- Integrated white LED illumination: Located at the probe tip to illuminate confined or low-light workspaces such as junction boxes, ceiling cavities, or panel interiors—enhancing situational awareness without requiring auxiliary lighting.
- Ruggedized industrial design: Enclosure rated IP67 per IEC 60529—fully protected against dust ingress and immersion in water up to 1 m for 30 minutes—suitable for outdoor, wet, or dirty environments including utility substations and construction sites.
- Safety-certified architecture: Compliant with EN 61010-1 (electrical safety) and EN 61326-1 (EMC), with overvoltage category ratings CAT IV 600 V and CAT III 1000 V—meeting requirements for use on distribution panels, main service entrances, and final circuits.
Sample Compatibility & Compliance
The testo 745 is intended for non-contact assessment of insulated AC conductors carrying sinusoidal voltages between 12 V and 1000 V at standard power frequencies (50/60 Hz). It does not require direct metallic contact, eliminating risk of arc flash or short-circuit during preliminary checks. The instrument is validated for use on PVC-sheathed cables, conduit-enclosed wiring, and terminal blocks behind protective covers. Its immunity to electromagnetic interference aligns with EN 61326-1 Class B limits for industrial environments. While not a substitute for contact-based multimeters in quantitative measurements, it fulfills critical pre-work verification steps mandated under OSHA 1910.333 and NFPA 70E Article 110.4(A)(3) for establishing an electrically safe work condition.
Software & Data Management
The testo 745 operates as a standalone hardware instrument with no embedded memory, firmware updates, or software interface. All operational logic resides in dedicated analog-digital hybrid circuitry—ensuring deterministic response time (<100 ms), zero boot delay, and immunity to cybersecurity vulnerabilities. Calibration data—including traceable certificate issued by testo’s accredited calibration laboratory—is supplied with each unit and remains valid for 12 months under normal use conditions. No audit trail, user authentication, or electronic recordkeeping is implemented, consistent with its role as a qualitative safety verification device rather than a regulated metrological instrument under ISO/IEC 17025 or FDA 21 CFR Part 11.
Applications
- Pre-energization verification before equipment servicing or lockout/tagout (LOTO) release.
- Rapid identification of open neutrals or broken conductors in branch circuits using comparative field strength mapping.

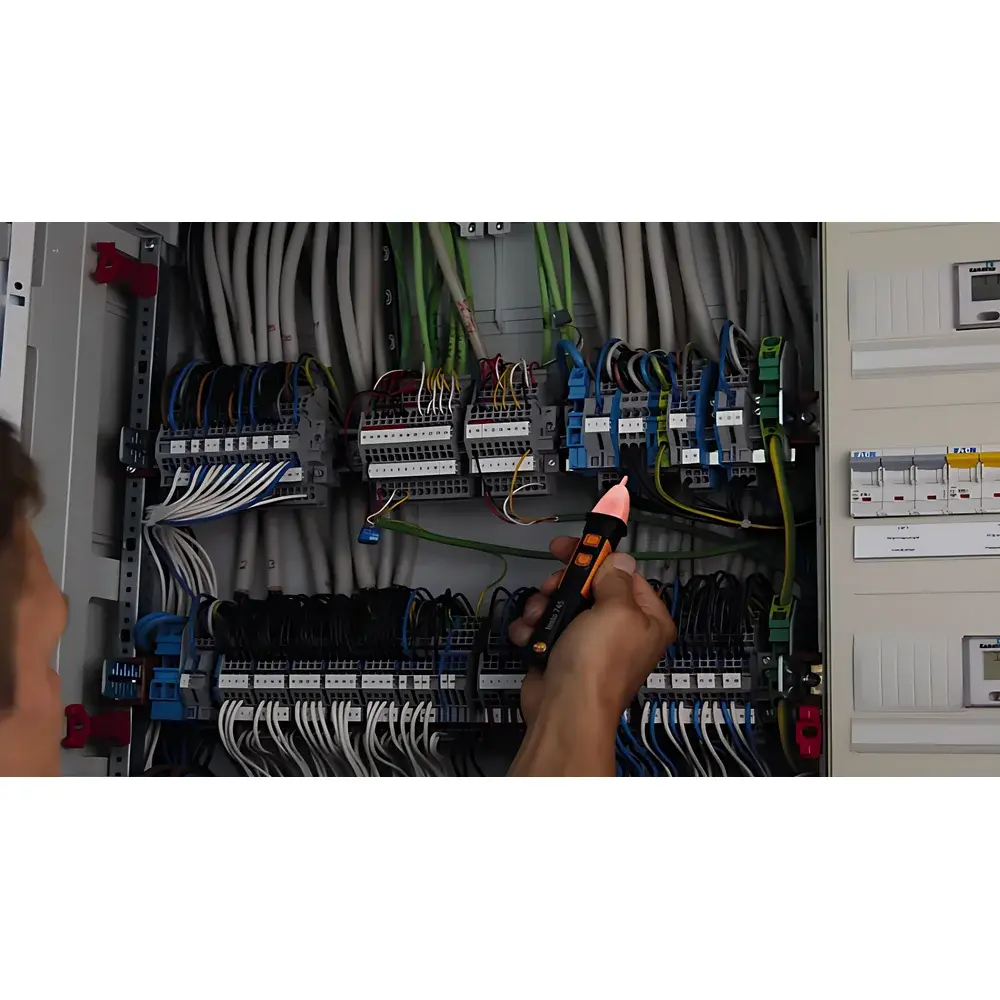

- Locating live phases within bundled cables or concealed conduits during retrofit installations.
- Confirming absence of induced voltage in de-energized systems subject to capacitive coupling from adjacent energized lines.
- Supporting compliance with DIN VDE 0105-100 and IEC 61243-3 for temporary protective earthing procedures.
FAQ
Does the testo 745 detect DC voltage?
No. It is designed exclusively for AC voltage detection via electric field coupling and cannot sense static or rectified DC potentials.
Can it identify voltage through metal conduit or armored cable?
No. Metallic shielding attenuates the electric field beyond reliable detection thresholds; the device requires exposure of the insulated conductor or access to unshielded sections.
Is periodic recalibration required?
Yes. testo recommends annual calibration against traceable reference sources to maintain performance consistency, especially after mechanical shock or exposure to extreme environmental stress.
What battery life can be expected under typical usage?
Approximately 1,500 two-second measurement cycles per set of alkaline AAA batteries, assuming ambient temperature operation and default LED illumination usage.
Does it meet requirements for use in hazardous locations (Class I Div 1)?
No. The testo 745 is not intrinsically safe and is not certified for use in explosive atmospheres per ATEX, IECEx, or NEC 500/505 standards.
