testo 770-1 True RMS AC/DC Clamp Meter

Overview

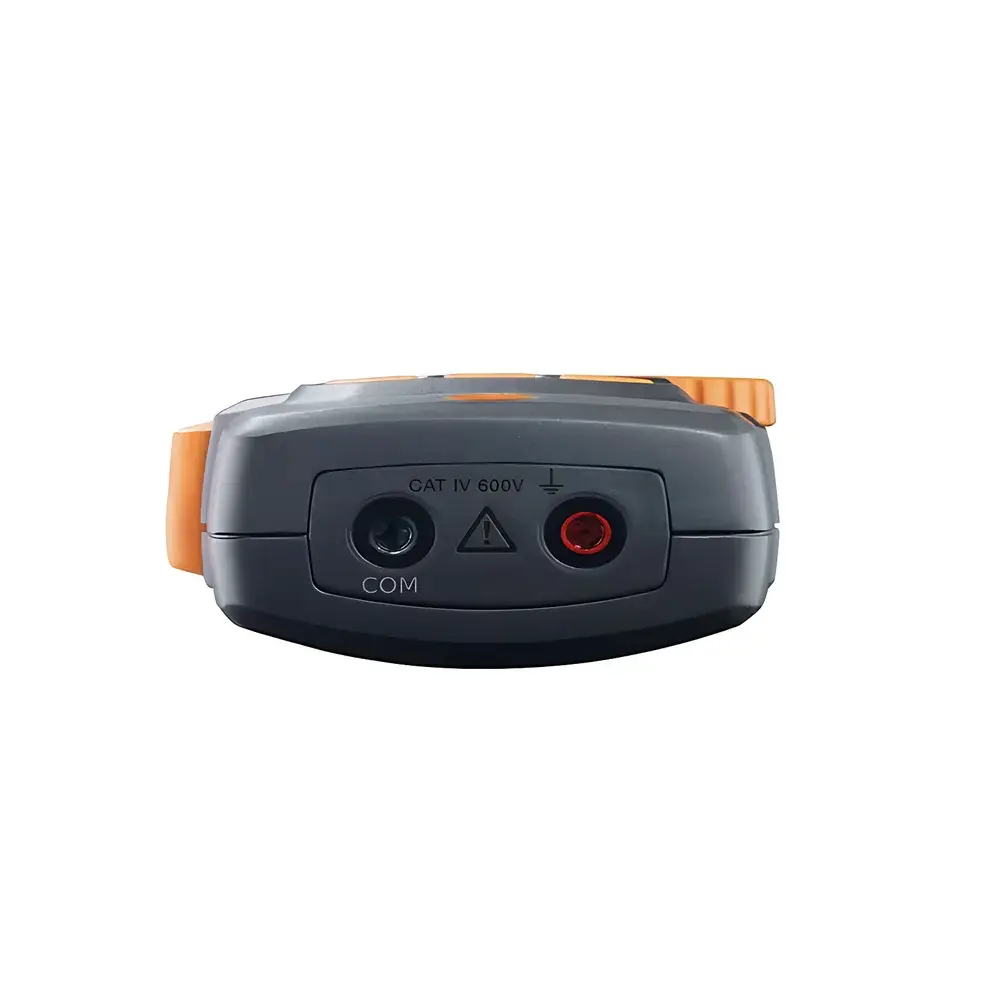

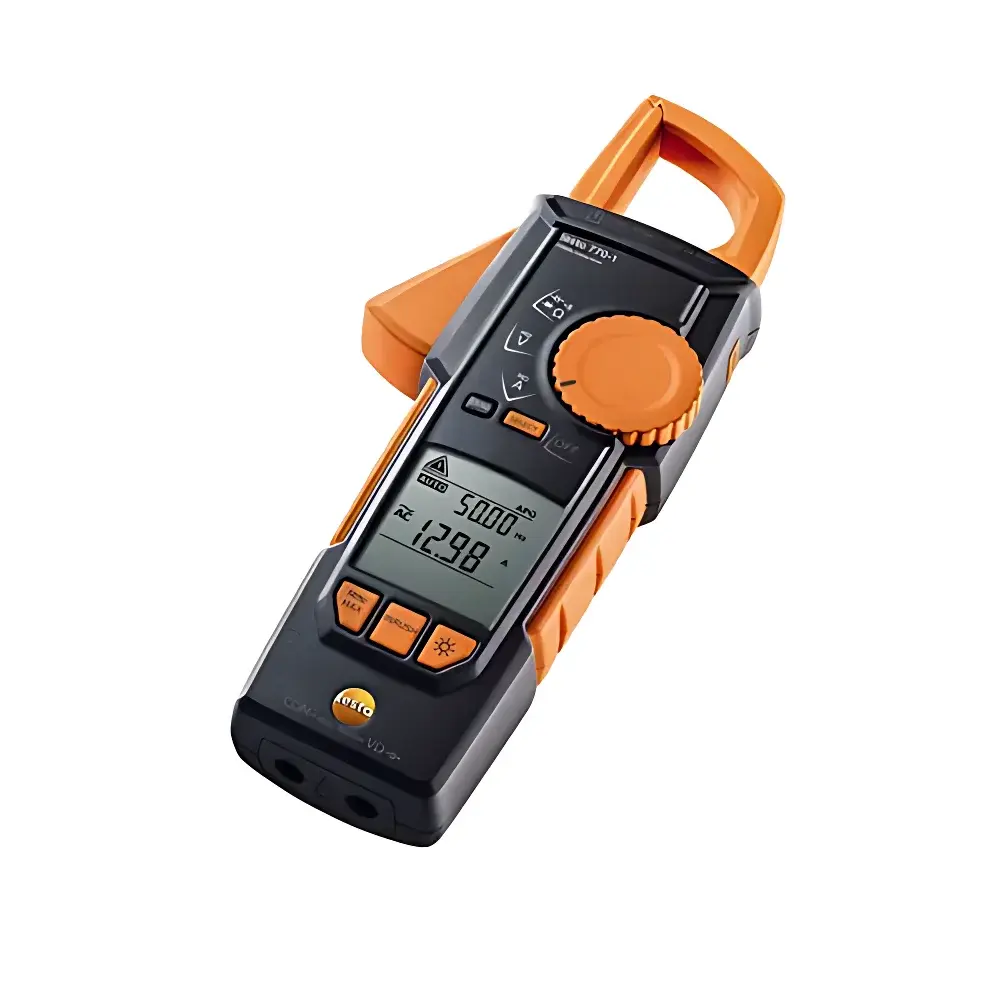

The testo 770-1 True RMS AC/DC Clamp Meter (Model 0590 7701) is a professional-grade handheld multimeter engineered for precision, safety, and field adaptability in electrical maintenance, commissioning, and troubleshooting applications. Designed and manufactured under strict German quality standards, the instrument employs true RMS measurement technology to deliver accurate readings across non-sinusoidal waveforms—critical for modern power electronics, variable frequency drives (VFDs), LED lighting systems, and switch-mode power supplies. Its integrated clamp jaw enables non-intrusive current measurement without circuit interruption, while the compact, ergonomic form factor and narrow-profile jaw geometry allow reliable operation in confined enclosures, crowded distribution panels, and tight cable bundles—common constraints in industrial control cabinets and building service installations.

Key Features

• True RMS measurement for both AC and DC current (0.01 A to 50.00 A) and voltage (0–600 V AC/DC), ensuring fidelity across distorted waveforms per IEC 61010-1 Annex H.
• Integrated 50 mm jaw aperture with optimized magnetic core design for low phase error and high repeatability at sub-ampere levels.
• Auto-ranging functionality with manual override mode for controlled measurement sequences during calibration or comparative diagnostics.
• IP54-rated housing provides protection against dust ingress and water splashing from any direction—suitable for use in damp mechanical rooms, outdoor substations, and HVAC plant environments.
• CAT III 600 V overvoltage category compliance certifies safe operation on distribution-level circuits, including three-phase 400 V mains and downstream branch circuits.
• Bluetooth 5.0 wireless interface enables secure, low-latency pairing with iOS and Android devices running the official testo Smart App (v3.0+).
• Backlit graphical LCD with dual-parameter display (e.g., current + temperature via optional probe) supports rapid cross-verification in low-light switchgear compartments.

Sample Compatibility & Compliance

The testo 770-1 is intended for use on insulated conductors up to 20 mm diameter and is compatible with standard single-core, multi-strand, and armored cables commonly found in industrial and commercial electrical infrastructure. It does not support direct measurement on busbars, bare conductors, or unshielded high-frequency lines above 1 kHz. Regulatory compliance includes full adherence to IEC 61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and IEC 61326-1 (EMC Requirements for Electrical Equipment). The device bears CE marking and fulfills essential requirements of the EU Low Voltage Directive (2014/35/EU) and EMC Directive (2014/30/EU). No intrinsic safety (ATEX/IECEx) rating is assigned; it is not certified for use in explosive atmospheres.

Software & Data Management

Data capture and analysis are supported through the testo Smart App, which provides real-time waveform visualization, timestamped measurement logging (up to 10,000 records), customizable report generation (PDF/CSV export), and cloud synchronization via testo Cloud services. All logged data include metadata such as device serial number, measurement timestamp (UTC), GPS coordinates (optional), and operator ID—enabling traceability required under ISO/IEC 17025 accredited laboratory workflows or internal QA/QC documentation protocols. Audit trails and user-access controls align with GLP principles, though native 21 CFR Part 11 electronic signature capability is not implemented; integration with third-party LIMS platforms is achievable via RESTful API (available upon enterprise licensing).

Applications

• Routine verification of motor winding currents and supply asymmetry in three-phase systems.
• Load profiling of HVAC compressors, pumps, and lighting circuits during energy audits.
• Troubleshooting ground leakage paths and neutral conductor imbalances in TN-S and TT earthing configurations.
• Commissioning validation of residual current devices (RCDs) and circuit breakers under operational load conditions.
• Preventive maintenance of UPS systems, battery banks, and DC traction circuits in rail and data center facilities.
• Field calibration cross-checks against reference standards traceable to national metrology institutes (e.g., PTB, NIST).

FAQ

Does the testo 770-1 support harmonic analysis or THD measurement?
No. The instrument performs fundamental-frequency true RMS measurements only and does not provide harmonic spectrum decomposition or total harmonic distortion (THD) calculation.
Can the clamp meter measure current in bundled or parallel conductors?
No. Accurate measurement requires a single isolated conductor within the jaw. Measuring multiple conductors simultaneously results in vector cancellation and erroneous net-current readings.
Is firmware update capability available, and how is it performed?
Yes. Firmware updates are delivered via the testo Smart App and require Bluetooth connection to a smartphone or tablet with internet access. Updates preserve user calibration offsets and logged history.
What accessories are included by default with the 0590 7701 model?
Standard shipment includes the clamp meter unit, protective holster with belt clip, AAA batteries (2×), quick-start guide, and EU conformity declaration. Test leads and temperature probes are optional accessories (e.g., testo 0554 0010 for K-type thermocouple input).
Is the device suitable for use in high-voltage substations above 1 kV?
No. With a CAT III 600 V rating, it is restricted to low-voltage distribution systems and must not be used on primary-side equipment in medium-voltage substations or transmission infrastructure.
