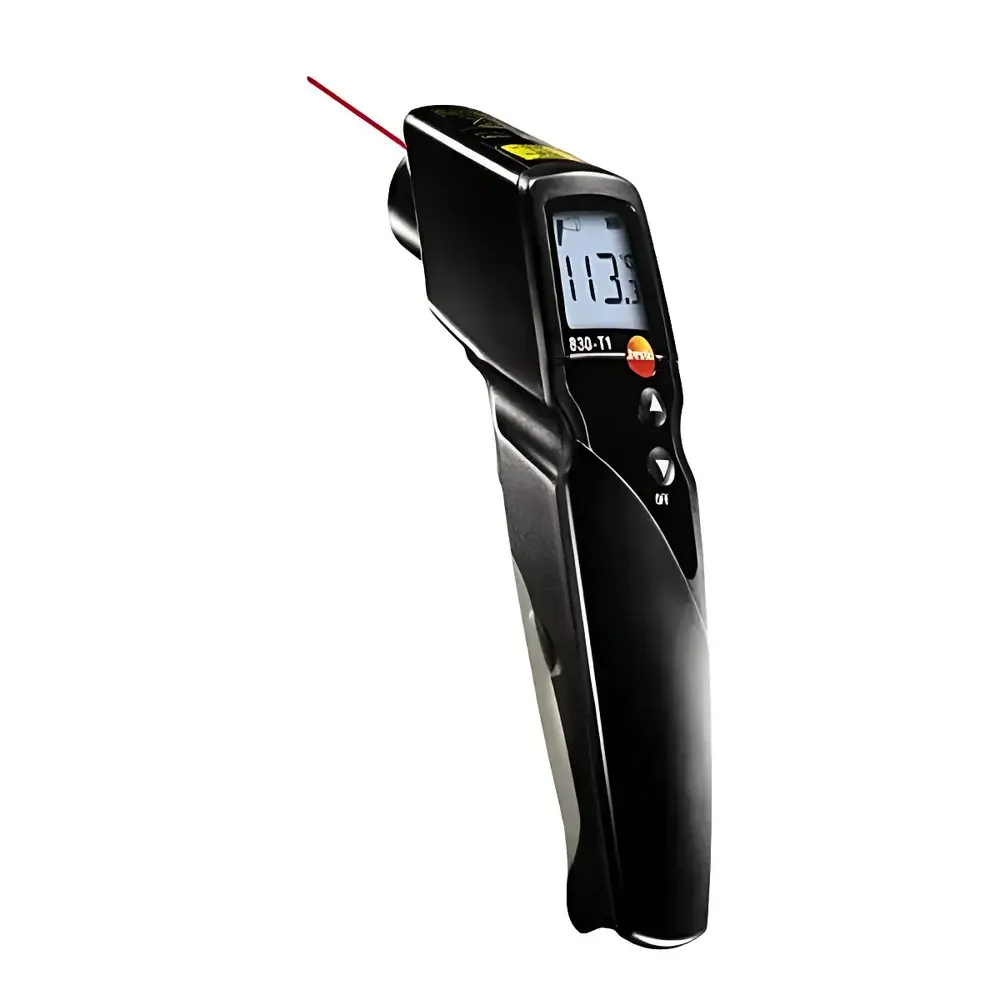

testo 830-T1 Precision Infrared Thermometer

Overview

The testo 830-T1 is a handheld, single-point laser infrared thermometer engineered for reliable non-contact surface temperature measurement in industrial maintenance, HVAC commissioning, food safety verification, and laboratory QA/QC workflows. It operates on the principle of passive infrared radiation detection: the device captures mid-wave infrared energy (typically 8–14 µm spectral band) emitted from a target surface and converts it into a calibrated temperature reading using a thermopile sensor and proprietary signal processing algorithms. Its fixed 10:1 optical resolution ensures consistent spot size definition — at 1 m distance, the measured area has a diameter of approximately 100 mm — enabling repeatable targeting of components such as electrical connections, steam traps, refrigerant lines, or packaging surfaces without physical contact. Designed for field robustness, the unit features an ergonomic polymer housing with IP54-rated ingress protection against dust and water splashes, making it suitable for use in production floors, utility rooms, and outdoor service environments.

Key Features

• Adjustable emissivity (0.20 to 1.00 in 0.01 increments) for accurate readings across diverse material surfaces — including oxidized metals, painted finishes, plastics, and organic substrates.
• Single-point precision laser sighting system aligned to the instrument’s optical axis, providing intuitive visual confirmation of the center of the measurement spot.
• High-contrast backlit LCD display with hold function and automatic backlight timeout for readability under low-light or high-glare conditions.
• Integrated data logging capability (via optional testo Smart Probes app and Bluetooth® 4.0 connectivity) enables timestamped measurement capture and export to CSV or PDF reports.
• Compliant with EN 60584-1 (thermocouple reference tables) and traceable to NIST-traceable calibration standards; factory calibration certificate included.
• Low-power design optimized for extended field operation — typical battery life exceeds 10 hours of continuous use with a standard 9 V alkaline cell.

Sample Compatibility & Compliance

The testo 830-T1 is validated for use on stationary or slow-moving solid and semi-solid surfaces with stable thermal emission characteristics. It is not intended for measuring transparent media (e.g., glass, thin plastic films), highly reflective bare metals without emissivity correction, or rapidly changing thermal transients (<100 ms response time limitation). The device conforms to IEC 61000-4-2 (ESD immunity), IEC 61000-4-3 (radiated RF immunity), and meets CE marking requirements under the EU Electromagnetic Compatibility Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. While not certified for intrinsic safety, its non-invasive operation supports compliance with OSHA 1910.333 (electrical safety) and ISO 9001:2015 clause 7.1.5.2 (monitoring and measuring resource control) when used within defined operational parameters.

Software & Data Management

The testo 830-T1 supports wireless data transfer via Bluetooth® to iOS and Android mobile devices running the free testo Smart Probes app. This interface allows users to annotate measurements with photos, location metadata, and operator ID; generate audit-ready PDF reports compliant with GLP documentation practices; and export raw datasets for integration into LIMS or CMMS platforms. All stored records include embedded calibration status flags and firmware version identifiers. For enterprise deployment, the testo Cloud service (optional subscription) provides centralized device fleet management, over-the-air firmware updates, and automated report distribution to designated stakeholders — fully supporting FDA 21 CFR Part 11 requirements for electronic records and signatures when configured with user authentication and audit trail activation.

Applications

• Preventive maintenance: Detect overheating terminals, motor windings, bearings, and switchgear before failure occurs.
• HVAC system balancing: Verify duct surface temperatures, coil performance, and insulation integrity during commissioning or seasonal audits.
• Food manufacturing: Monitor holding, cooking, and chilling surface temperatures per HACCP critical control point validation protocols.
• Building diagnostics: Identify thermal bridging, moisture-related anomalies, and envelope leakage patterns during energy audits.
• Educational laboratories: Demonstrate Stefan-Boltzmann law principles, emissivity dependence, and radiative heat transfer fundamentals.

FAQ

What is the minimum target size measurable with the testo 830-T1 at 1 meter distance?

At 1 m distance, the 10:1 optical ratio defines a circular measurement spot ~100 mm in diameter. Targets should be ≥150 mm to ensure full coverage and avoid edge-effect errors.
Can the testo 830-T1 measure through glass or plastic covers?

No — standard glass and most polymers are opaque to the 8–14 µm IR band. Measurements must be taken directly on the surface of interest.
Is calibration verification required before each use?

While daily zero-checks are not mandated, users should perform periodic verification using a calibrated blackbody source or reference contact thermometer on a stable, high-emissivity surface — especially prior to critical measurements or after mechanical shock.
Does the device support external probe inputs?

The 830-T1 model does not feature external thermocouple input; that functionality is reserved for the 830-T2 variant (which accepts Type K probes via a dedicated connector).
How is traceability maintained for quality-critical applications?

Each unit ships with a factory calibration certificate referencing NIST-traceable standards. Users may request accredited third-party calibration (e.g., ISO/IEC 17025) with uncertainty budgets and measurement range coverage documentation.
