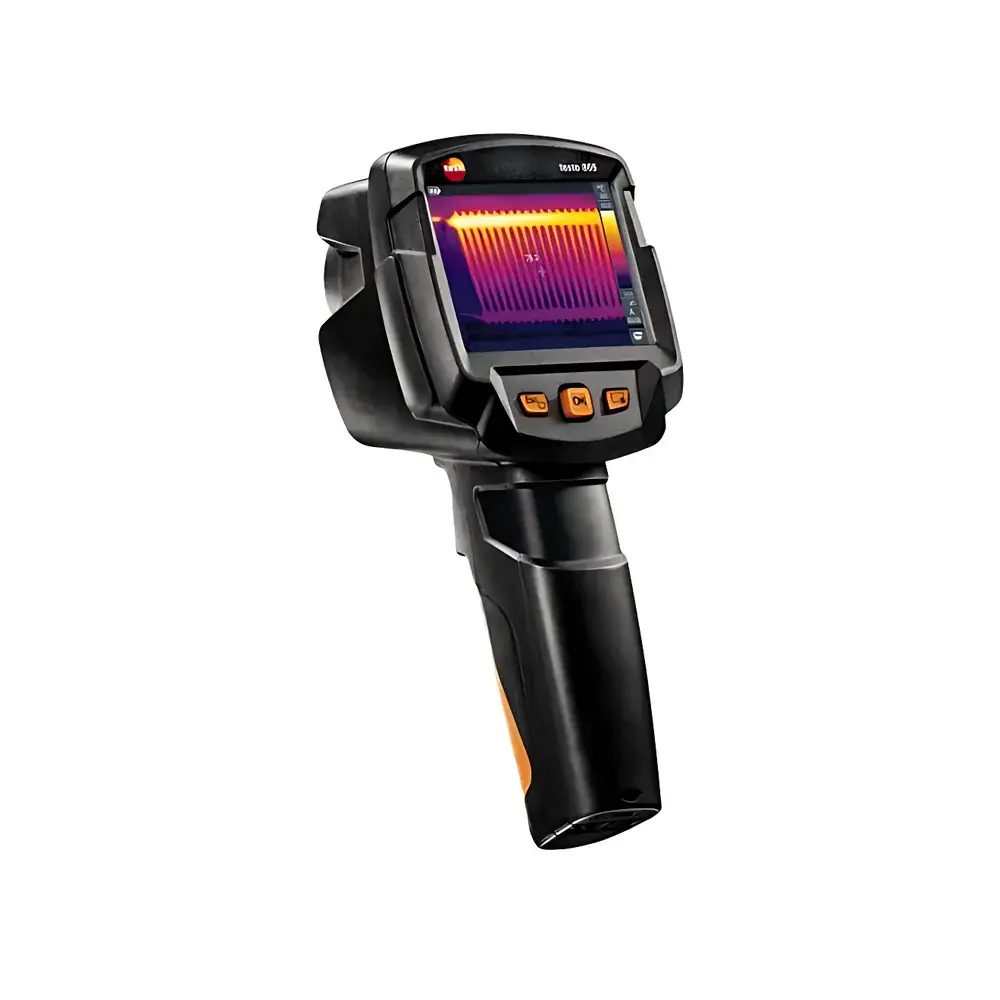

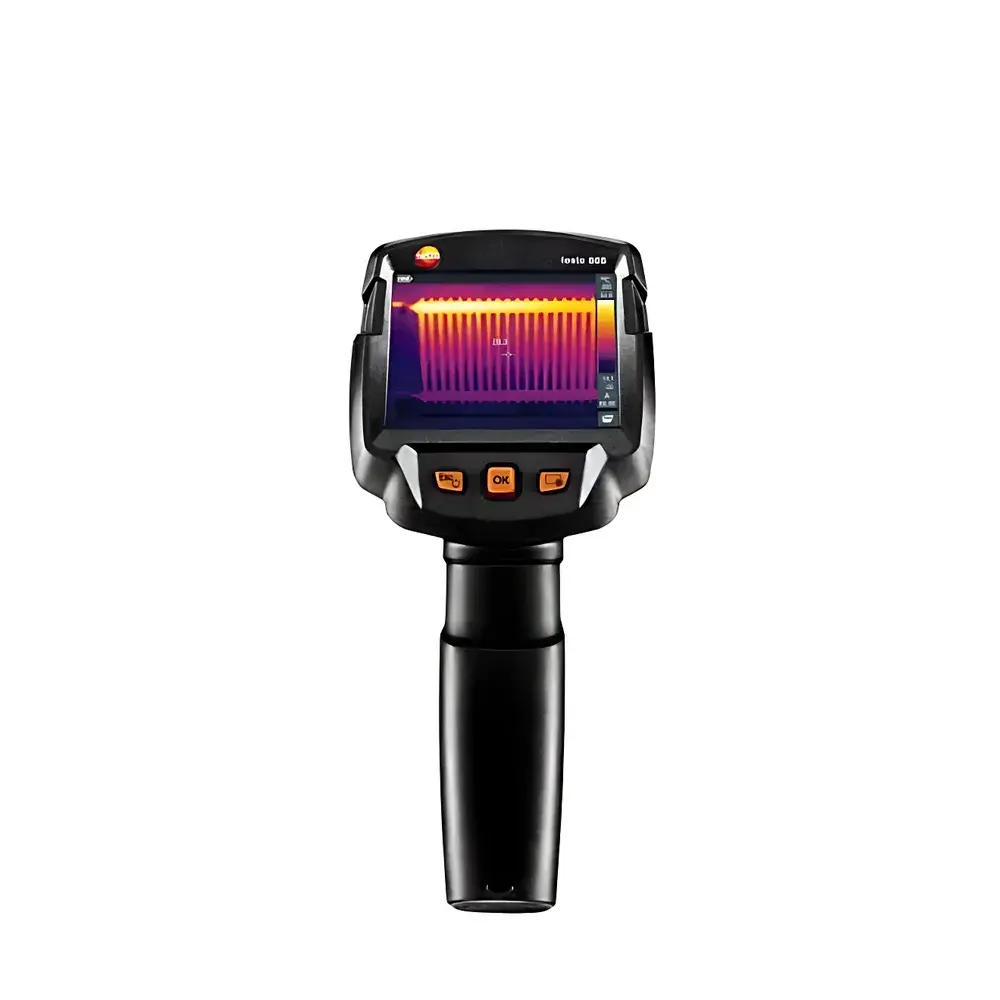

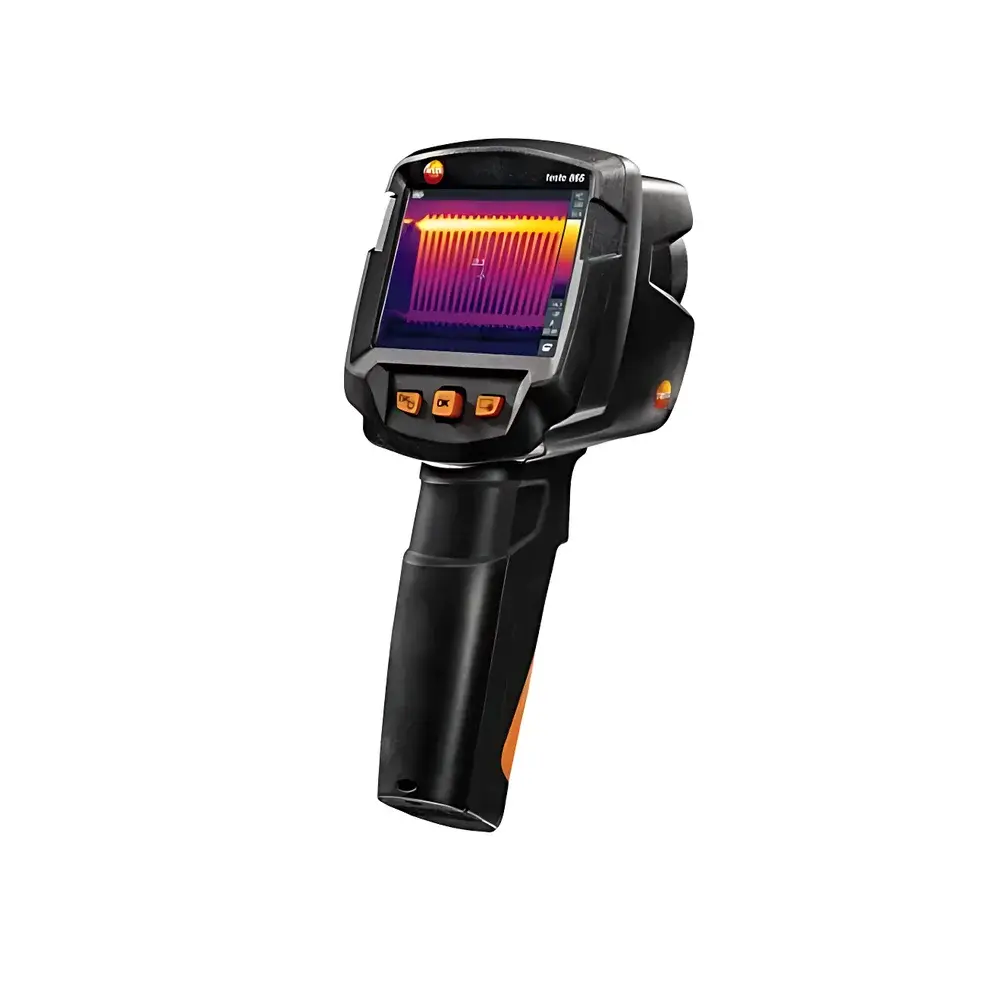

testo 865 Infrared Thermal Imaging Camera (160 × 120 IR Resolution, Uncooled Microbolometer)

Overview

The testo 865 Infrared Thermal Imaging Camera is an entry-level, uncooled microbolometer-based thermal imager engineered for precision, reliability, and field-deployable usability in industrial maintenance, building diagnostics, and HVAC commissioning. Operating within the long-wave infrared (LWIR) spectrum (7.5–14 µm), it detects minute temperature differentials across surfaces without physical contact—leveraging Planck’s radiation law and calibrated radiometric response to convert emitted infrared energy into quantitative thermal data. Its fixed-focus optical system eliminates mechanical complexity while maintaining consistent geometric fidelity at typical working distances (>0.5 m), making it especially suited for rapid visual screening tasks where speed, repeatability, and ergonomic operation are prioritized over laboratory-grade variable focus. The device delivers native 160 × 120 pixel resolution (19,200 independent measurement points per frame), enhanced via testo’s proprietary Ultra-Pixel interpolation algorithm to yield a synthetic 320 × 240 pixel output—improving edge definition and spatial interpretation without compromising thermal accuracy.

Key Features

• Uncooled vanadium oxide (VOx) microbolometer detector with <0.12 °C NETD sensitivity—enabling reliable detection of subtle thermal anomalies in electrical panels, insulation gaps, or moisture ingress.
• Fixed-focus lens (31° × 23° FOV) optimized for common inspection distances (0.5–5 m), reducing operator dependency on manual focusing and minimizing measurement drift during dynamic surveys.
• testo ScaleAssist™ automatic scale optimization—dynamically adjusts thermal palette contrast based on scene emissivity distribution, ensuring optimal grayscale differentiation for building envelope thermography per ISO 6781-3 and ASTM C1060 guidelines.
• IFOV (Instantaneous Field of View) warning overlay—graphically highlights the instrument’s actual measurement spot size on-screen, preventing misinterpretation due to distance-induced spatial averaging errors.
• Auto Hot/Cold Spot detection—identifies local maxima/minima within the current frame and overlays crosshairs with real-time temperature readouts, accelerating root-cause identification during fault-finding routines.
• Rugged IP54-rated housing with impact-resistant PC-ABS casing—certified for use in dusty, humid, and vibration-prone environments (e.g., plant floors, rooftop HVAC units, or exterior façade inspections).

Sample Compatibility & Compliance

The testo 865 is designed for non-contact surface temperature assessment of solid, semi-opaque, and low-reflectivity materials—including concrete, plasterboard, PVC conduit, copper busbars, and painted steel. Emissivity correction (0.01–1.00) supports accurate measurements on varied substrates; reflective surfaces require manual compensation using reflected ambient temperature input. It complies with EU Electromagnetic Compatibility Directive 2014/30/EU and RoHS 2011/65/EU. While not intended for medical or explosive-atmosphere applications, its performance aligns with key industry standards for thermographic surveying: ISO 18436-7 (condition monitoring qualification), ASTM E1934 (infrared inspection of building envelopes), and EN 13187 (thermal performance of buildings). Calibration certificates traceable to national metrology institutes (e.g., PTB) are provided with each unit.

Software & Data Management

All thermal images and radiometric video streams are stored internally (2.8 GB) in native .bmt format—retaining full 14-bit radiometric metadata—and exportable as JPEG, BMP, PNG, CSV, or Excel-compatible files. testo IRSoft v5.x (Windows 10/8/7 compatible) enables advanced post-processing: emissivity mapping, isotherm overlays, delta-T analysis, report generation with customizable templates (PDF/HTML), and compliance-ready documentation including timestamped calibration records. The software supports FDA 21 CFR Part 11-compliant audit trails when deployed in regulated environments (e.g., pharmaceutical facility preventive maintenance logs), though the instrument itself does not include electronic signature capability. USB 2.0 Micro-B interface enables live streaming for remote supervision or integration into third-party SCADA visualization layers.

Applications

The testo 865 serves as a frontline diagnostic tool across multiple technical domains: electrical infrastructure (loose connections, overloaded breakers, unbalanced phases), mechanical systems (bearing overheating, steam trap failure, refractory degradation), building science (thermal bridging, air leakage, missing insulation, moisture accumulation behind cladding), and HVAC commissioning (duct leakage, coil fouling, airflow obstruction). Its portability, four-hour battery life, and intuitive one-handed operation make it ideal for technicians conducting routine walkdowns, subcontractor quality verification, or Tier-1 predictive maintenance programs aligned with ISO 55001 asset management frameworks.

FAQ

Does the testo 865 support radiometric video recording?
Yes—it captures real-time radiometric video streams via USB 2.0 Micro-B to a host PC running testo IRSoft, preserving full temperature data per pixel per frame.
Is the Ultra-Pixel resolution function hardware-accelerated or software-only?
Ultra-Pixel is a firmware-based interpolation algorithm applied during image rendering; it enhances visual clarity but does not increase native detector resolution or NETD performance.
Can the device be used outdoors in direct sunlight?
Yes—the display features adjustable backlight modes (bright/normal/dark), and the housing is rated IP54 for dust and water resistance; however, prolonged exposure to solar loading may affect surface emissivity assumptions and should be mitigated via shading or reflective compensation.
What is the recalibration interval recommended by testo?
testo recommends annual factory recalibration for traceable accuracy; field verification using NIST-traceable blackbody sources (e.g., testo 885-2) is advised before critical measurements.
Does testo IRSoft support multi-camera synchronization?
No—IRSoft is designed for single-camera workflow; synchronized multi-sensor deployments require third-party middleware or custom API integration.
