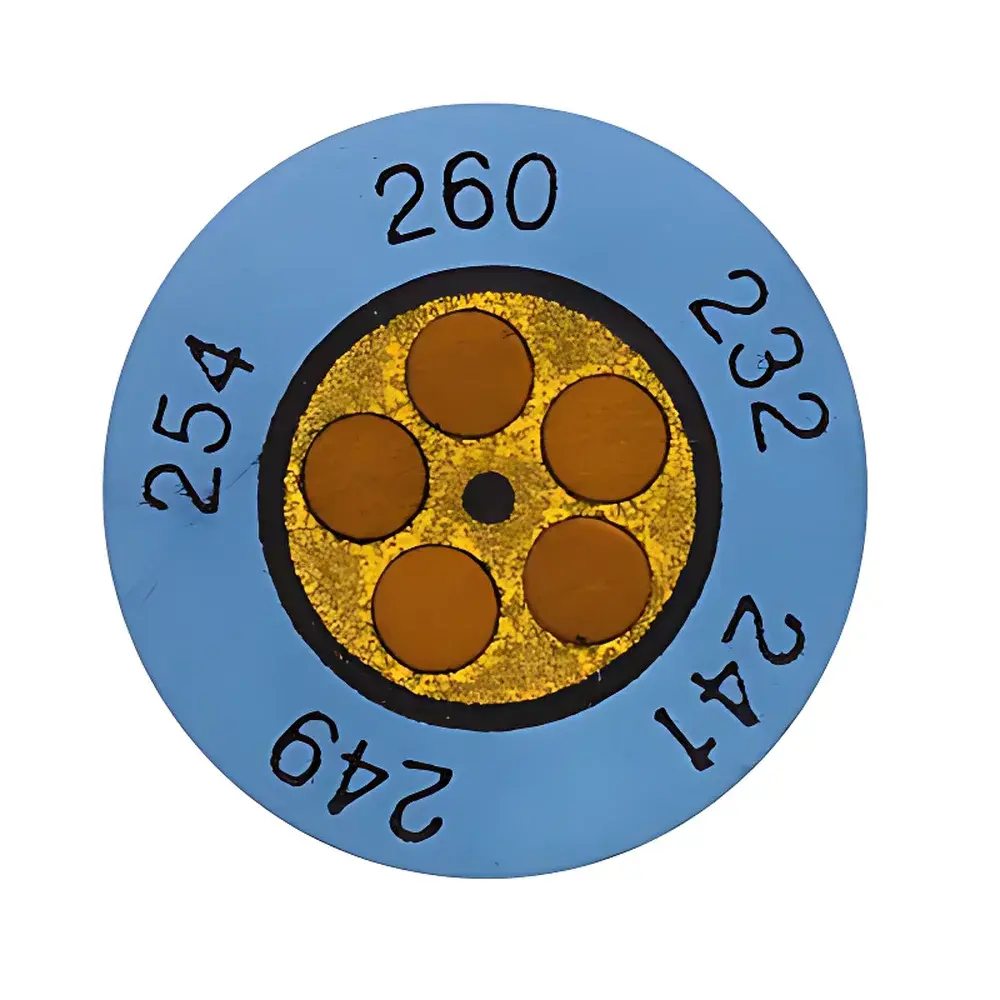

Testo testoterm Mini Bell-Shaped Temperature Indicator Label

Overview

The Testo testoterm Mini Bell-Shaped Temperature Indicator Label (Model 0646 0073) is a single-use, irreversible thermal event indicator engineered for precise, passive temperature threshold monitoring in constrained or transient thermal environments. Unlike electronic sensors requiring power, calibration, or data logging infrastructure, this label operates on a solid-state thermochemical principle: embedded microencapsulated liquid crystal or leuco dye formulations undergo a permanent, visible chromatic transition when exposed to temperatures exceeding predefined setpoints. Its bell-shaped geometry—15 mm in diameter with integrated pressure-sensitive acrylic adhesive—ensures conformal contact on curved, irregular, or small-surface-area objects such as vials, syringes, medical device packaging, or transport containers. Designed specifically for the +116 to +138 °C range, it provides immediate visual confirmation of thermal excursions during sterilization validation, autoclave cycle verification, or high-temperature logistics tracking where real-time telemetry is impractical.

Key Features

• Irreversible color-change response within ≤3 seconds upon crossing any of five discrete activation thresholds (+116, +122, +128, +132, +138 °C), ensuring unambiguous post-event traceability.
• Self-adhesive, low-profile design (15 mm diameter, 1 g mass) optimized for attachment to stainless steel, glass, polymer, and laminated surfaces without residue or mechanical interference.
• No power source, no software, no calibration required—compliant with ISO 11140-1 for chemical indicators used in steam sterilization processes.
• CE-marked and RoHS-compliant; manufactured in Germany under strict DIN EN ISO 13485 quality management systems applicable to medical device accessories.
• Supplied in pads of 10 individually detachable labels—designed for rapid deployment in high-throughput QC labs, manufacturing cleanrooms, or field service operations.

Sample Compatibility & Compliance

This indicator is validated for use across diverse substrates including borosilicate glass vials, polypropylene syringes, Tyvek®-laminated pouches, and stainless-steel instrument trays. It remains stable under standard ambient storage conditions (15–25 °C, <60% RH) for ≥24 months prior to activation. The irreversible indication mechanism satisfies critical regulatory expectations for auditability: once triggered, the color change persists indefinitely—even if temperature reverts below the threshold—enabling retrospective review during FDA 21 CFR Part 11-compliant investigations or ISO 13485 internal audits. While not a substitute for Class 5 integrating indicators per ISO 11140-1, it functions as a supplementary Class 1 process indicator for routine cycle checks and operator-level verification.

Software & Data Management

The testoterm Mini Bell-Shaped Label operates independently of digital infrastructure. However, its visual output integrates seamlessly into existing quality documentation workflows: photographs of activated labels may be archived alongside batch records, autoclave printouts, or LIMS entries. For facilities implementing electronic quality management systems (eQMS), the label’s binary pass/fail output supports structured metadata tagging (e.g., “ThermalExcursionDetected: True”, “ThresholdExceeded: +132°C”) in accordance with Annex 11 and ALCOA+ data integrity principles. No proprietary software, drivers, or cloud connectivity are involved—eliminating cybersecurity risks associated with IoT-enabled monitors.

Applications

• Validation of gravity-displacement and prevacuum steam sterilizers (e.g., monitoring tray temperature uniformity during Bowie-Dick tests).
• Temperature exposure verification for heat-sensitive pharmaceuticals during lyophilization chamber loading/unloading or depyrogenation tunnel exit zones.
• Monitoring of thermal profiles in small-volume industrial ovens used for curing adhesives or coating polymers.
• Field verification of pasteurization hold times in food-grade tubing or microfluidic cartridge assemblies.
• Supplemental temperature surveillance in GMP-compliant cleanroom tooling where wireless sensor placement is prohibited due to EMI concerns.

FAQ

Is this label reusable after color change?
No. The chromatic transition is chemically irreversible; the label must be replaced after activation.
Can multiple thresholds be monitored simultaneously on one label?
Yes. Each label contains five concentric ring segments calibrated to distinct temperatures (+116, +122, +128, +132, +138 °C); only the segment(s) exposed above their respective threshold will activate.
Does humidity affect performance?
No. The indicator is sealed against moisture ingress and rated for operation in environments up to 95% RH at operating temperature.
What is the shelf life under recommended storage?
24 months from date of manufacture when stored at 15–25 °C and relative humidity <60%, protected from direct UV exposure.
Are other temperature ranges available?
Yes. Testo offers parallel variants covering +60 to +82 °C, +143 to +166 °C, +171 to +193 °C, and +199 to +224 °C—each adhering to identical dimensional, adhesive, and compliance specifications.
