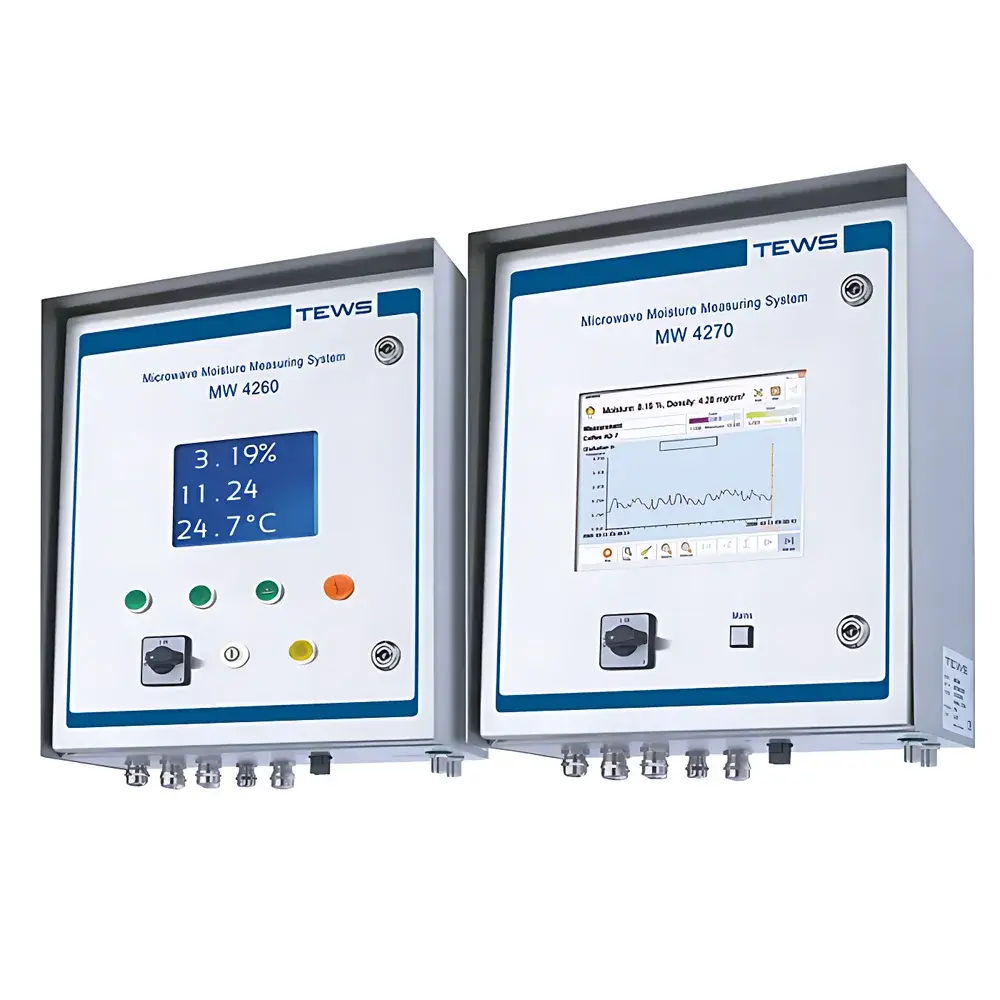

TEWS MW 4260 / MW 4270 / MW 4200 Online Microwave Moisture and Bulk Density Analyzer
| Brand | TEWS |
|---|---|
| Origin | Germany |
| Model | MW 4260 / MW 4270 / MW 4200 |
| Power Supply | 110–230 V AC, 50–60 Hz |
| Power Consumption | 160 VA (MW 4260), 200 VA (MW 4270) |
| Operating Temperature | 0–45 °C |
| Display | 10.4" LED color touchscreen (MW 4270), 5" LCD (MW 4260), single-line LED (MW 4200) |
| Data Interfaces | 1× Ethernet, 1× analog input (0/4–20 mA), 3× analog outputs (0/4–20 mA), 8× passive digital outputs, 8× digital inputs |
| Measurement Rate | up to 3,500 readings per second |
| Internal Data Storage | 60,000 measurements |
| Enclosure Rating | IP55 (industrial duty), ATEX-certified variants available for gas/dust hazardous areas |
| Sensor-to-Display Distance | up to 8 m (MW 4200 optimized for remote mounting) |
Overview
The TEWS MW 4260, MW 4270, and MW 4200 series constitute a family of industrial-grade online microwave moisture and bulk density analyzers engineered for continuous, non-contact process monitoring in demanding manufacturing environments. These instruments operate on the principle of microwave dielectric spectroscopy: high-frequency electromagnetic waves (typically in the 1–3 GHz range) interact with polar molecules—primarily water—in the material stream, producing measurable changes in signal attenuation and phase shift. By correlating these changes against calibrated reference data, the system delivers real-time, absolute moisture content (% w/w) and apparent bulk density (kg/m³) without requiring sample extraction, drying, or chemical reagents. Designed for integration directly into conveyor belts, chutes, hoppers, or pneumatic transfer lines, the MW series enables closed-loop process control, early deviation detection, and statistical process monitoring (SPC) compliance—critical for industries subject to ISO 9001, IATF 16949, or FDA 21 CFR Part 11 requirements.
Key Features
- Real-time measurement capability: up to 3,500 independent moisture and density readings per second, enabling sub-second response to process fluctuations.
- Ruggedized industrial architecture: IP55-rated enclosures standard; optional ATEX Zone 1/21 (gas/dust) and IECEx-certified variants for hazardous area deployment.
- Modular display options: MW 4270 features a 10.4″ capacitive touchscreen with intuitive HMI for local configuration and trend visualization; MW 4260 offers a compact 5″ LCD with three-line alphanumeric display; MW 4200 provides a dedicated remote-display variant with extended sensor-cable support (up to 8 m).
- Comprehensive I/O flexibility: dual-mode analog interfaces (0/4–20 mA input/output), eight isolated digital inputs, eight passive digital outputs, and native Ethernet connectivity supporting Modbus TCP and common fieldbus protocols (PROFIBUS DP, CANopen, EtherNet/IP via optional modules).
- Embedded data integrity: internal flash memory stores 60,000 timestamped measurements with full audit trail; seamless synchronization with external SCADA, MES, or historian systems via OPC UA or FTP/SFTP.
Sample Compatibility & Compliance
The MW 42XX analyzers are validated for homogeneous and heterogeneous solid materials including granules, pellets, powders, flakes, and crushed aggregates—commonly encountered in food processing (e.g., starch, sugar, flour), pharmaceutical granulation, mineral processing (coal, limestone, bentonite), biomass handling, and polymer compounding. Calibration is performed using traceable reference standards (e.g., gravimetric oven-dry methods per ASTM D4442 or ISO 4427) and supports multi-point, matrix-specific curve fitting. All units comply with EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, and RoHS 2011/65/EU. ATEX-certified models meet EN 60079-0, -1, -11, and -31 for Group II (non-mining) explosive atmospheres. Full documentation—including Factory Acceptance Test (FAT) reports, calibration certificates, and IQ/OQ templates—is provided to support GMP/GLP validation workflows.
Software & Data Management
Configuration, diagnostics, and historical analysis are managed via TEWS TMV (Telemetry & Measurement Visualization) software—a Windows-based engineering tool supporting offline calibration modeling, alarm threshold definition, and report generation (PDF/CSV). The embedded web server enables remote access for parameter adjustment and live data streaming via standard browsers. Data export adheres to ASTM E2500-13 guidelines for analytical instrument data integrity, with configurable user roles, electronic signatures, and immutable audit logs meeting FDA 21 CFR Part 11 requirements. Optional cloud integration allows secure TLS-encrypted upload to AWS IoT Core or Azure IoT Hub for predictive maintenance analytics and cross-site performance benchmarking.
Applications
- Continuous moisture control in fluid bed dryers and rotary drum dryers to minimize energy overconsumption and prevent thermal degradation.
- Real-time density verification during powder blending to ensure batch homogeneity prior to tableting or encapsulation.
- In-line monitoring of coal moisture at mine conveyors to optimize combustion efficiency and reduce transport cost penalties.
- Feedstock consistency assurance in extrusion processes for thermoplastics and biopolymers, where moisture-induced hydrolysis compromises melt viscosity.
- Quality gate enforcement in cereal milling operations, triggering automatic diversion when moisture exceeds USP or Codex Alimentarius limits.
FAQ
Can the MW 42XX series measure moisture in conductive or metallic-contaminated materials?
Yes—microwave penetration depth is largely unaffected by electrical conductivity, unlike near-infrared or capacitance-based systems. However, excessive metal particulates (>0.5% w/w) may require empirical correction via dual-sensor fusion or factory calibration with representative contaminated samples.
Is factory recalibration required after installation?
No—each unit ships with NIST-traceable calibration certificates. Field verification using certified reference materials is recommended at commissioning and annually thereafter per ISO/IEC 17025:2017 Clause 7.7.
How does the system handle temperature drift in ambient conditions ranging from 0°C to 45°C?
All models incorporate dual-temperature-compensated microwave oscillators and reference-path stabilization, maintaining measurement stability within ±0.15% absolute moisture across the full operating range.
What cybersecurity protocols are implemented for Ethernet-connected units?
TLS 1.2 encryption, configurable firewall rules, role-based access control (RBAC), and disabled default credentials satisfy IEC 62443-3-3 SL2 requirements for industrial control systems.
Can the MW 4200 be used as a standalone sensor without local display?
Yes—the MW 4200 is designed exclusively for remote operation; its electronics module connects directly to PLCs or DCS via analog or digital I/O, eliminating need for local HMI while retaining full measurement fidelity and diagnostic telemetry.
