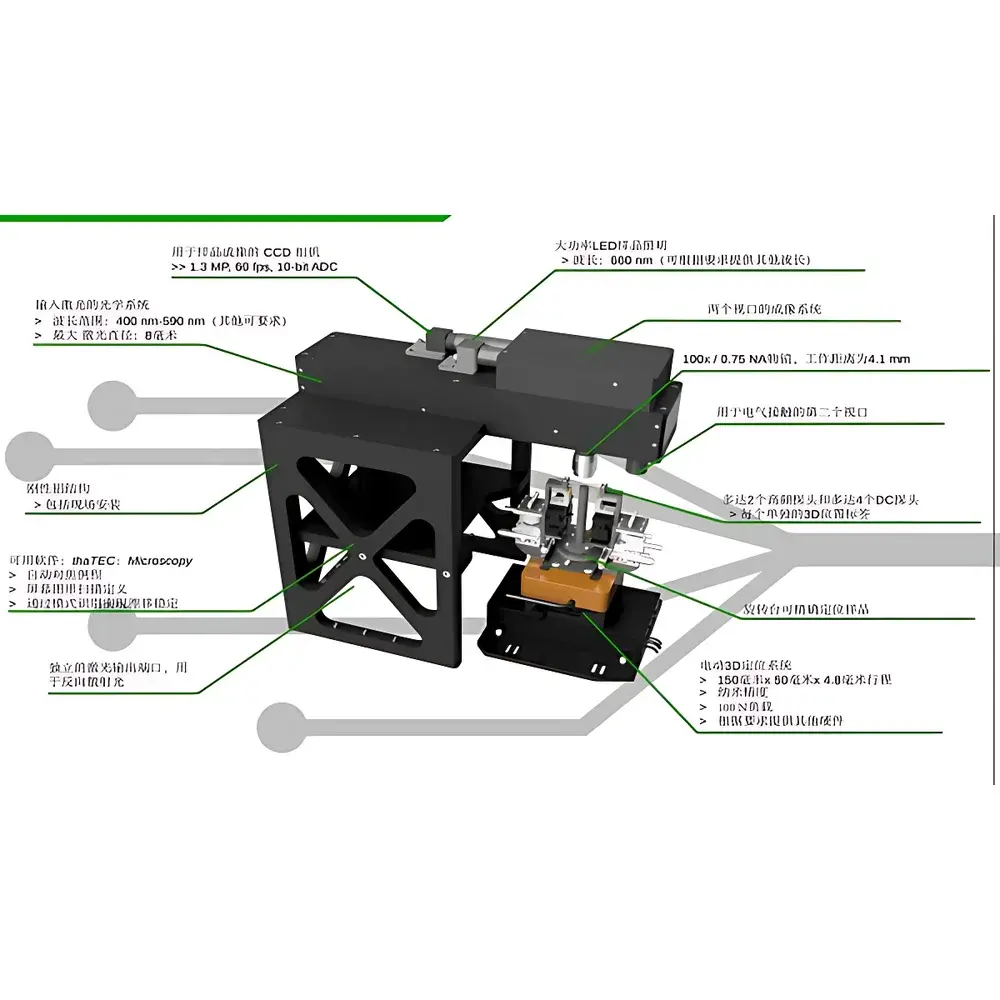

THATec Brillouin Optical Microscope
| Origin | Germany |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Imported |
| Model | Optical Microscope |
| Price Range | USD 92,000 – 132,000 |
Overview
The THATec Brillouin Optical Microscope is a research-grade, confocal optical platform engineered for high-resolution, frequency-domain analysis of thermally excited acoustic phonons and spin waves in condensed matter systems. Based on spontaneous Brillouin light scattering (BLS), the instrument measures minute frequency shifts (typically ±0.1–10 GHz) between incident laser light and inelastically scattered photons arising from dynamic density fluctuations—governed by the material’s elastic stiffness, sound velocity, and viscoelastic relaxation times. Unlike conventional Raman or Rayleigh scattering techniques, BLS provides direct access to GHz-range mechanical dynamics with sub-micron spatial resolution when integrated with diffraction-limited optical microscopy. This system is specifically designed for time-resolved and spectrally resolved investigations of ultrafast spin transport, magnetoelastic coupling, nanoscale viscoelasticity, and coherent phonon propagation in thin-film heterostructures, multiferroics, and soft biomaterials.
Key Features
- Integrated tandem Fabry–Pérot interferometer (TFPI) optimized for high finesse (>100) and sub-GHz spectral resolution
- Automated real-time interferometer stabilization and active calibration via thaTEC:OS software suite

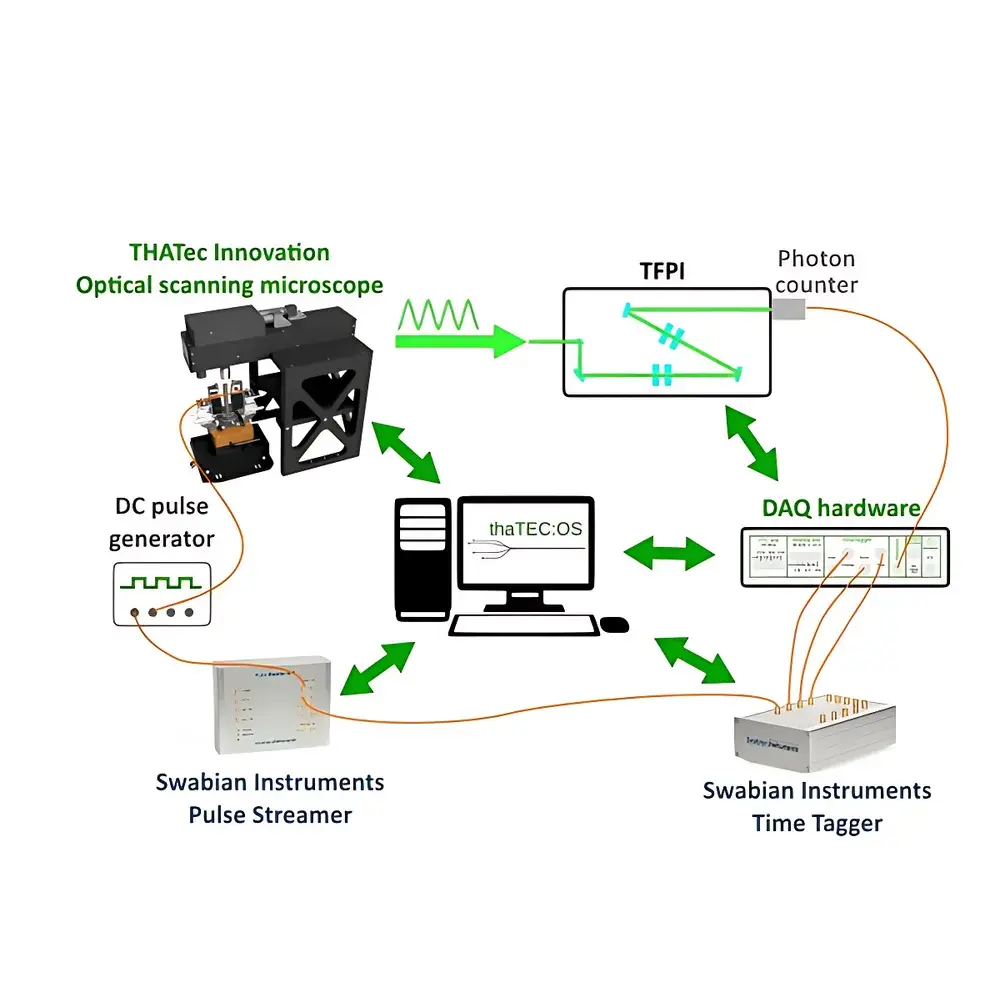

- Time-tagged acquisition architecture supporting ps-level timing precision (Swabian Instruments Time Tagger integration)
- Multi-channel synchronization interface for external stimuli: pulsed current sources, electromagnet drivers, piezoelectric positioning stages, and microscope feedback signals
- Configurable spectral scan protocols—including multi-region frequency sweeps, variable scan velocities, and adaptive dwell time allocation
- Modular hardware expansion support for pump-probe excitation, polarization-resolved detection, and dual-wavelength operation
Sample Compatibility & Compliance
The microscope accommodates solid-state thin films (e.g., Cr/Co₂Mn₀.₄Fe₀.₆Si/Pt stacks), bulk crystals, polymer gels, and hydrated biological tissues mounted on standard 25 mm glass coverslips or TEM grids. Sample environments include ambient air, inert gas chambers, and cryogenic stages (down to 4 K, with optional integration). All optical paths comply with ISO 10110-7 (surface quality) and IEC 61000-6-3 (EMC emission standards). Data acquisition workflows adhere to GLP-compliant metadata logging, including timestamped instrument configuration, environmental sensor readings (temperature, humidity), and hardware calibration history—enabling traceability for peer-reviewed publication and regulatory submissions.
Software & Data Management
thaTEC:OS serves as the unified control and analysis environment, built on a modular, open-API architecture compatible with Python 3.8+ and MATLAB R2021b+. The core TFPDAS5 module implements automated TFPI alignment routines, real-time fringe tracking, and spectral baseline correction using constrained non-negative least squares (NNLS). Time-resolved BLS datasets are stored in HDF5 format with embedded NeXus-compatible metadata schemas. Audit trails record every parameter change, user login session, and hardware state transition—fully compliant with FDA 21 CFR Part 11 requirements for electronic records and signatures. Optional add-ons include machine-learning–assisted peak identification (via trained CNN models), batch processing pipelines for multi-sample comparative analysis, and RESTful API endpoints for LIMS integration.
Applications
- Ultrafast spin-wave dynamics in perpendicular magnetic anisotropy (PMA) multilayers under spin-orbit torque excitation
- Viscoelastic mapping of hydrogel microdomains during swelling/deswelling cycles
- Acoustic phonon lifetime quantification in 2D van der Waals heterostructures (e.g., MoS₂/hBN)
- In situ monitoring of stress-induced phase transitions in shape-memory alloys
- Non-invasive mechanical phenotyping of live cells and extracellular matrix remodeling
FAQ
What is the typical frequency resolution achievable with this system?
Frequency resolution depends on the selected TFPI mirror spacing and finesse; typical configurations yield ≤30 MHz full-width-at-half-maximum (FWHM) resolution in the 1–8 GHz range.
Can the system operate in vacuum or low-temperature environments?
Yes—the optical head is compatible with UHV-compatible flanges and cryostat feedthroughs; custom vacuum-rated versions are available upon request.
Is time-resolved BLS compatible with standard fluorescence microscopy setups?
The platform shares common epi-illumination pathways and can be retrofitted into commercial inverted microscopes (e.g., Nikon Eclipse Ti2, Zeiss Axio Observer) using C-mount adapters and dichroic beam combiners.
Does the software support automated long-duration experiments?
Yes—thaTEC:OS includes watchdog timers, hardware fault recovery protocols, and scheduled restart logic, enabling unattended operation over 72+ hours.
Are calibration certificates and uncertainty budgets provided?
Each delivered system includes NIST-traceable wavelength calibration (using iodine absorption lines) and a documented measurement uncertainty budget per ISO/IEC 17025 guidelines.
