Thermal Shock Test Chamber – Dual- or Tri-Zone Configuration

Overview

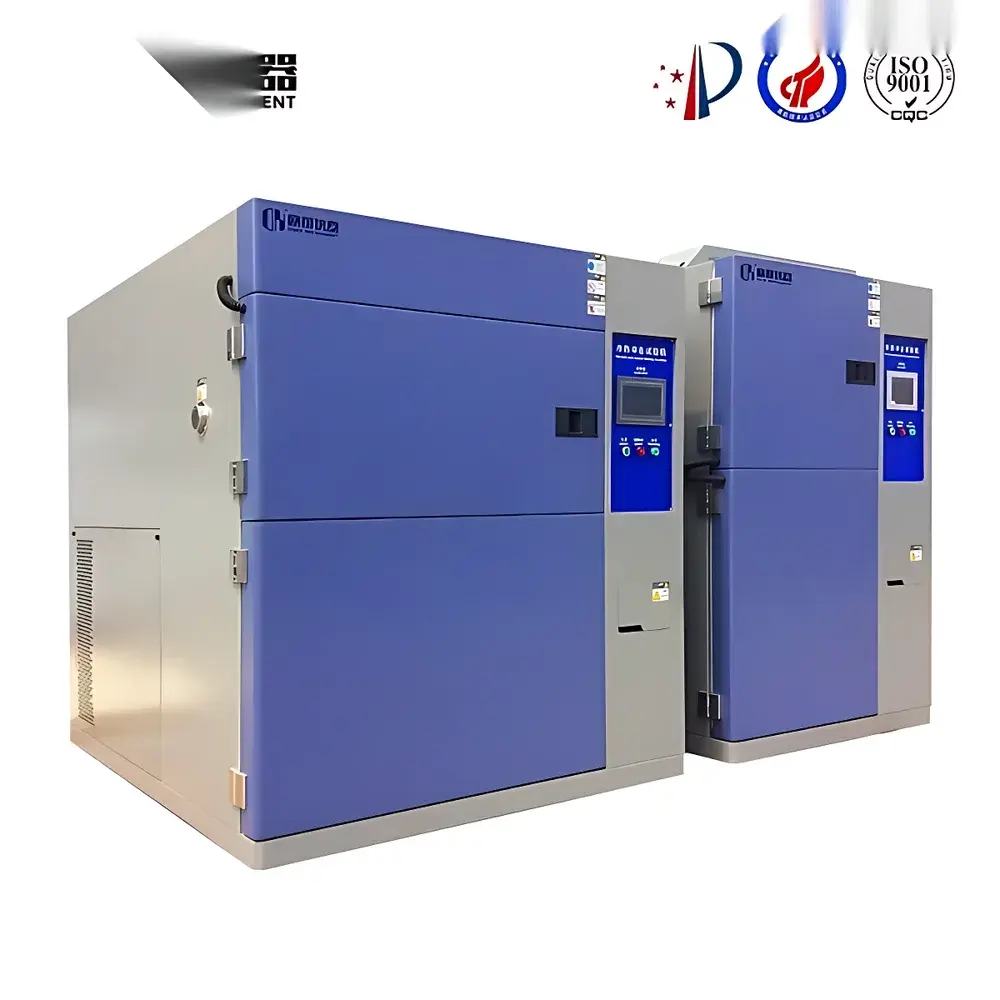

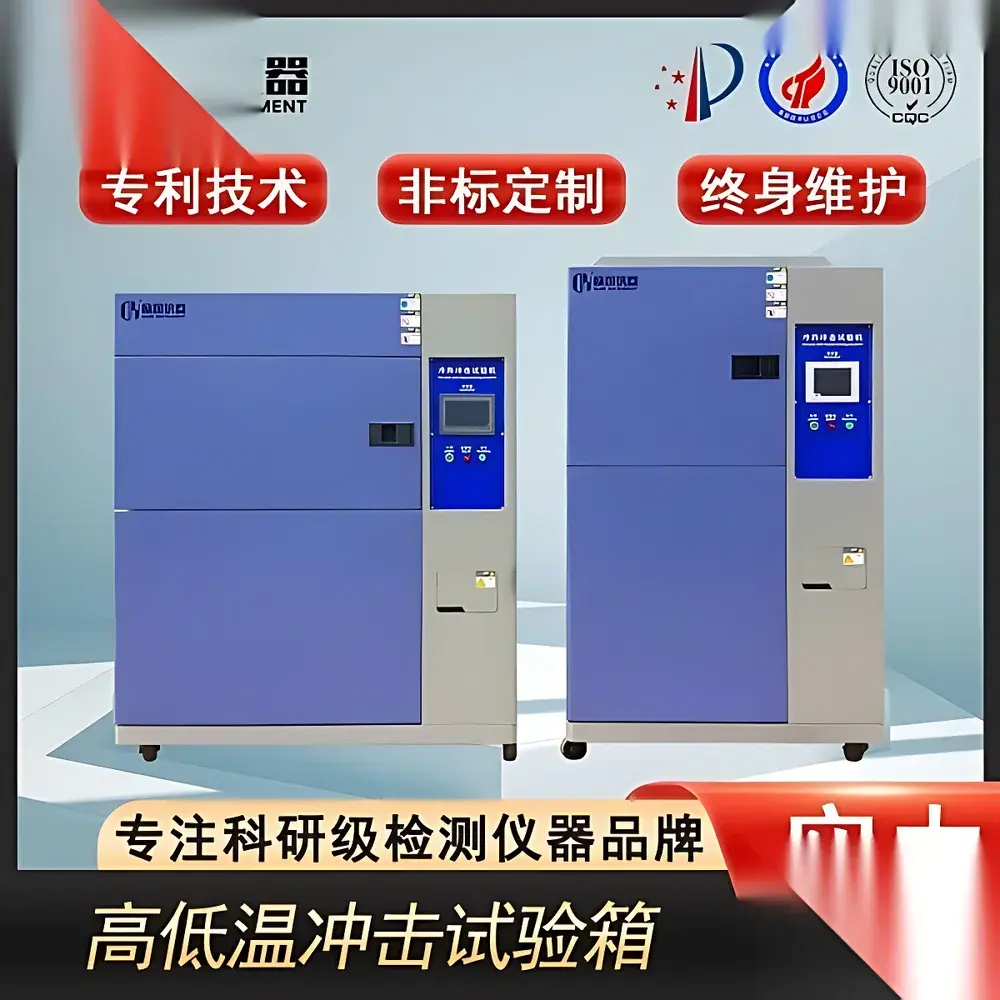

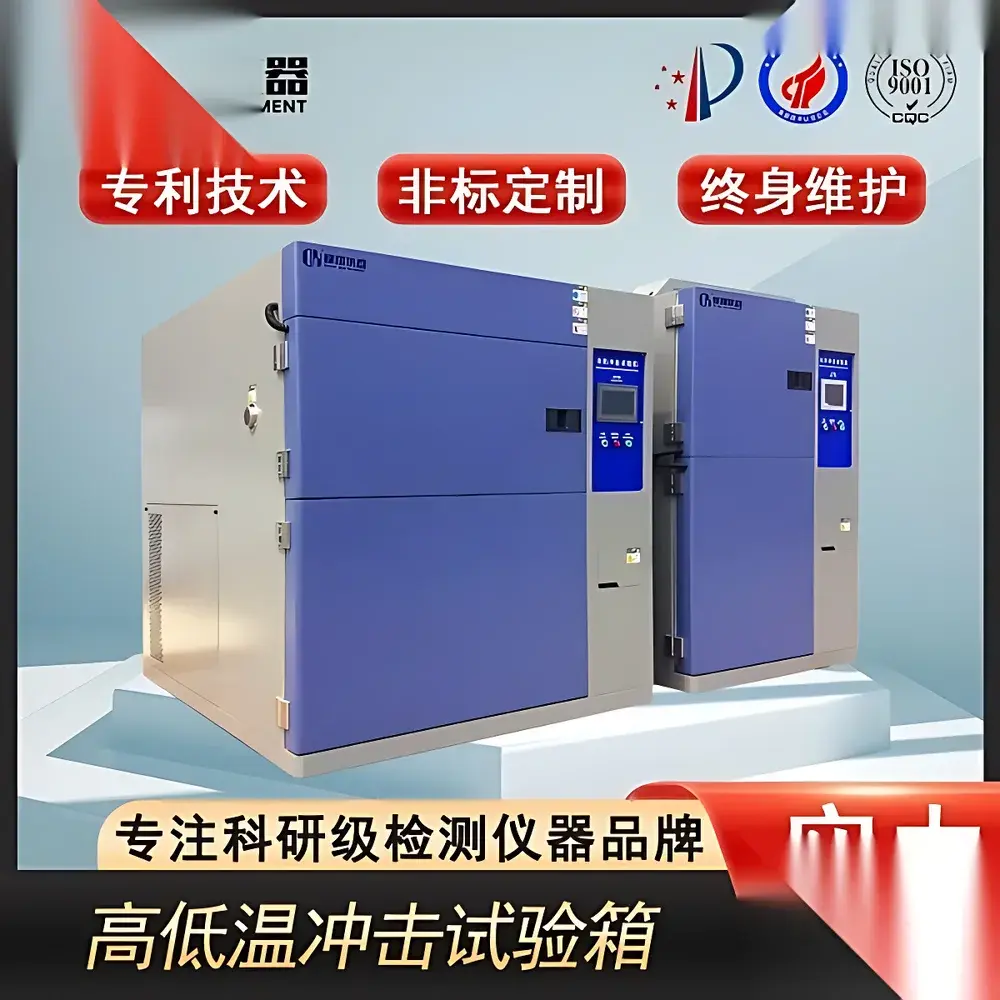

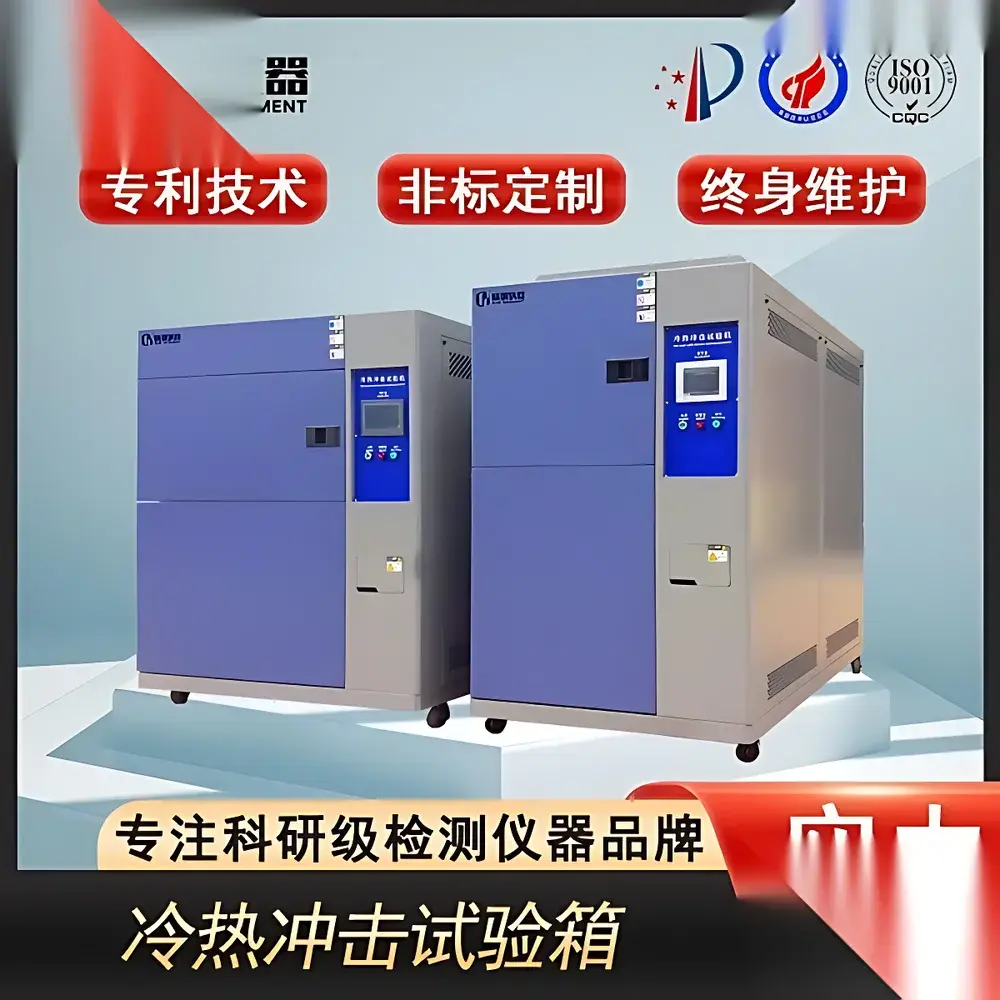

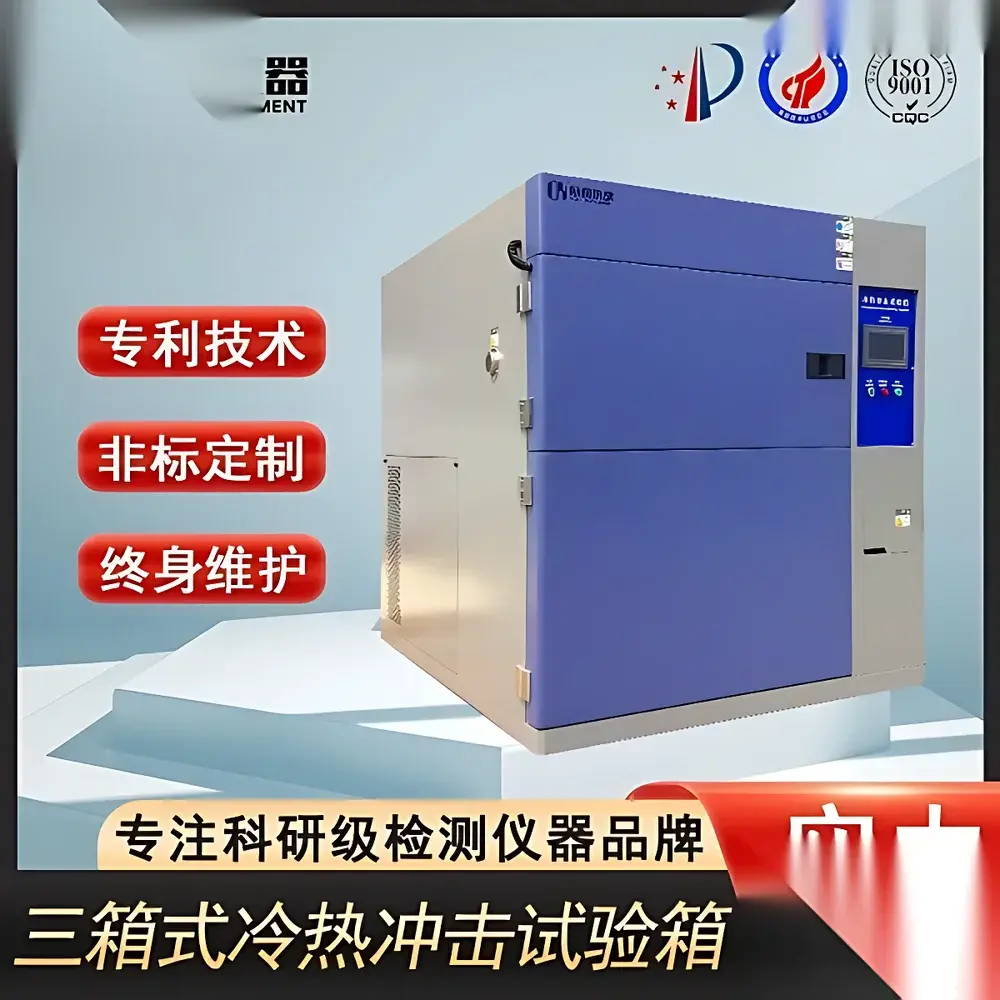

The Thermal Shock Test Chamber is an engineered environmental test system designed to evaluate material and component reliability under rapid, extreme temperature transitions. It operates on the principle of accelerated thermal stress induction—subjecting specimens to abrupt shifts between high- and low-temperature environments to simulate real-world operational extremes encountered in aerospace, automotive electronics, defense systems, and semiconductor packaging. Unlike standard temperature cycling chambers, this unit delivers controlled thermal shock profiles with defined transition times (typically ≤ 15 seconds between zones), enabling precise replication of thermal fatigue mechanisms such as interfacial delamination, solder joint fracture, and coefficient-of-thermal-expansion (CTE) mismatch failure. The chamber supports both dual-zone (hot/cold lift-basket) and tri-zone (hot/cool/test) configurations, allowing users to select architecture based on specimen size, thermal mass, and required dwell time stability per ISO 16750-4 and MIL-STD-202G guidelines.

Key Features

• Dual-stage cascade refrigeration system utilizing imported German semi-hermetic compressors for stable sub–70 °C low-temperature performance and rapid recovery after thermal load ingress
• Evaporative condenser heat exchange architecture enabling efficient energy transfer between high- and low-temperature circuits without cross-contamination
• Independent temperature control of hot zone (up to +200 °C) and cold zone (down to –70 °C), with ±0.5 °C uniformity across active test volume
• Lift-basket mechanism (dual-zone) or insulated transfer shuttle (tri-zone) ensuring repeatable specimen positioning and minimized thermal lag during transitions
• Stainless steel 304 interior construction with non-outgassing insulation, compatible with cleanroom and high-reliability qualification protocols
• Integrated safety interlocks including over-temperature cut-off, refrigerant pressure monitoring, and door-open delay logic to prevent thermal shock exposure during access

Sample Compatibility & Compliance

The chamber accommodates rigid and semi-rigid specimens up to 500 mm × 500 mm × 500 mm (W×D×H) and total mass ≤ 30 kg. Compatible sample types include PCB assemblies, IC packages, battery modules, elastomeric seals, metallic fasteners, and composite laminates. It meets full regulatory alignment with IEC 60068-2-14 (Test N), MIL-STD-810G Method 503.5, GJB 150.5A-2009 (China’s military standard for temperature shock), GB/T 2423.22-2012 (national standard for temperature change testing), and EIA-364-32 for electro-mechanical connector evaluation. All test profiles are traceable to documented calibration records per ISO/IEC 17025 requirements, and chamber validation reports support GLP-compliant test documentation.

Software & Data Management

Equipped with a Windows-based controller running proprietary firmware, the system provides real-time logging of chamber temperatures (hot zone, cold zone, test zone), basket position status, compressor stage activity, and cooling water inlet/outlet temperatures. Data export is supported in CSV and Excel-compatible formats, with optional integration into LabArchives or Oracle Clinical for audit-ready electronic records. The software supports user-defined test sequences—including ramp rates, dwell durations, cycle counts, and pass/fail thresholds—and maintains full audit trail functionality compliant with FDA 21 CFR Part 11 for regulated industries. Calibration history, alarm logs, and operator authentication events are retained for ≥18 months.

Applications

This thermal shock chamber serves critical qualification functions across multiple sectors: verification of solder joint integrity in automotive ADAS ECUs per ISO 16750-4; screening of die-attach reliability in power modules under JEDEC JESD22-A106; validation of hermetic seal performance in MEMS sensors; assessment of polymer degradation kinetics in aerospace gaskets exposed to stratospheric thermal gradients; and pre-qualification testing of Li-ion battery enclosures prior to UN 38.3 thermal shock compliance. It is routinely deployed in Tier-1 supplier labs, national metrology institutes, and university reliability engineering centers conducting failure mode analysis (FMEA) and physics-of-failure (PoF) modeling.

FAQ

What is the difference between dual-zone and tri-zone thermal shock configuration?
Dual-zone systems use a single test chamber partitioned into hot and cold sections with a motorized lift basket to shuttle samples; tri-zone systems maintain separate hot, cold, and neutral test chambers, enabling longer dwell stabilization and reduced thermal cross-talk.
Is external cooling water mandatory?
Yes—the dual-stage cascade refrigeration requires a continuous 10 m³/h flow of chilled water at 20–30 °C, supplied via user-installed cooling tower infrastructure.
Can the chamber be validated for IQ/OQ/PQ protocols?
Yes—full installation, operational, and performance qualification documentation packages are available upon request, aligned with ASTM E2500 and EU Annex 15 standards.
Does the system support automated data archiving to network drives?
Yes—via configurable UNC path mapping and scheduled backup routines integrated into the controller OS.
What maintenance intervals are recommended for the refrigeration system?
Compressor oil analysis and filter dryer replacement every 2,000 operating hours; full refrigerant circuit leak check and pressure calibration annually per ISO 5149.
