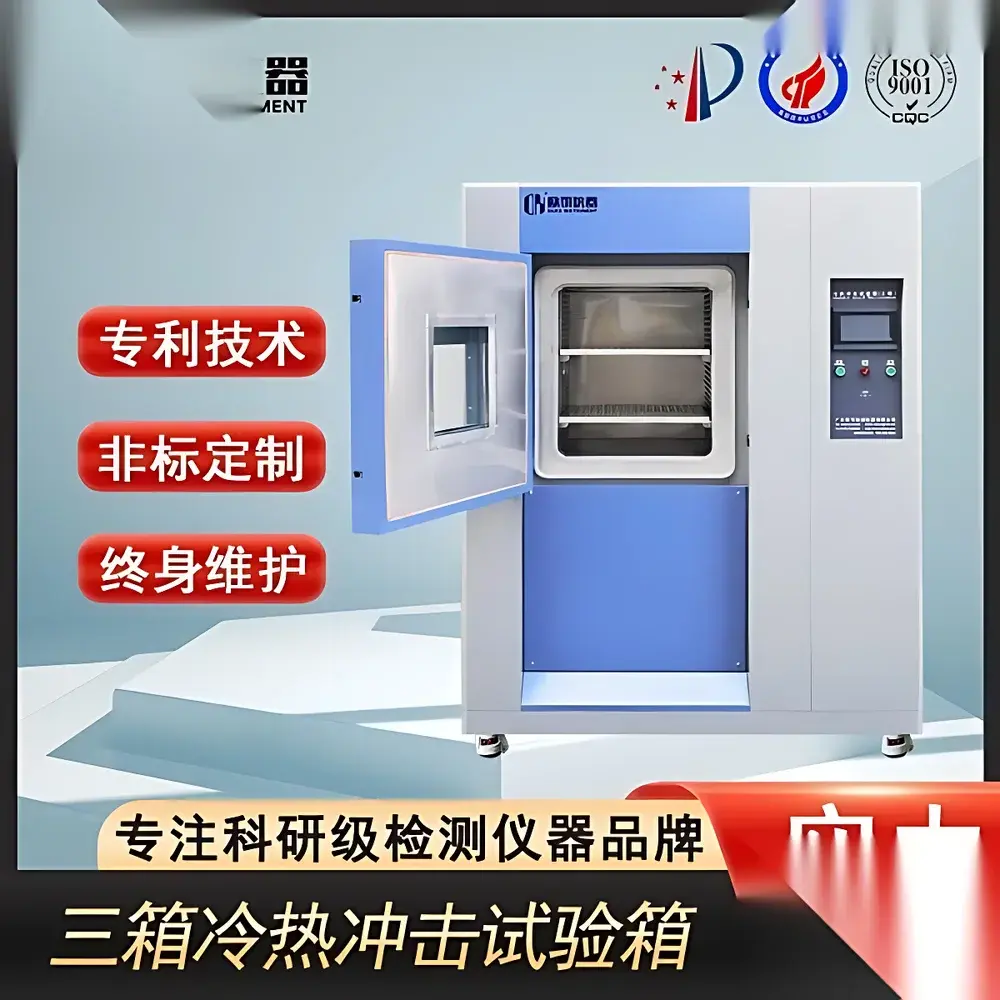

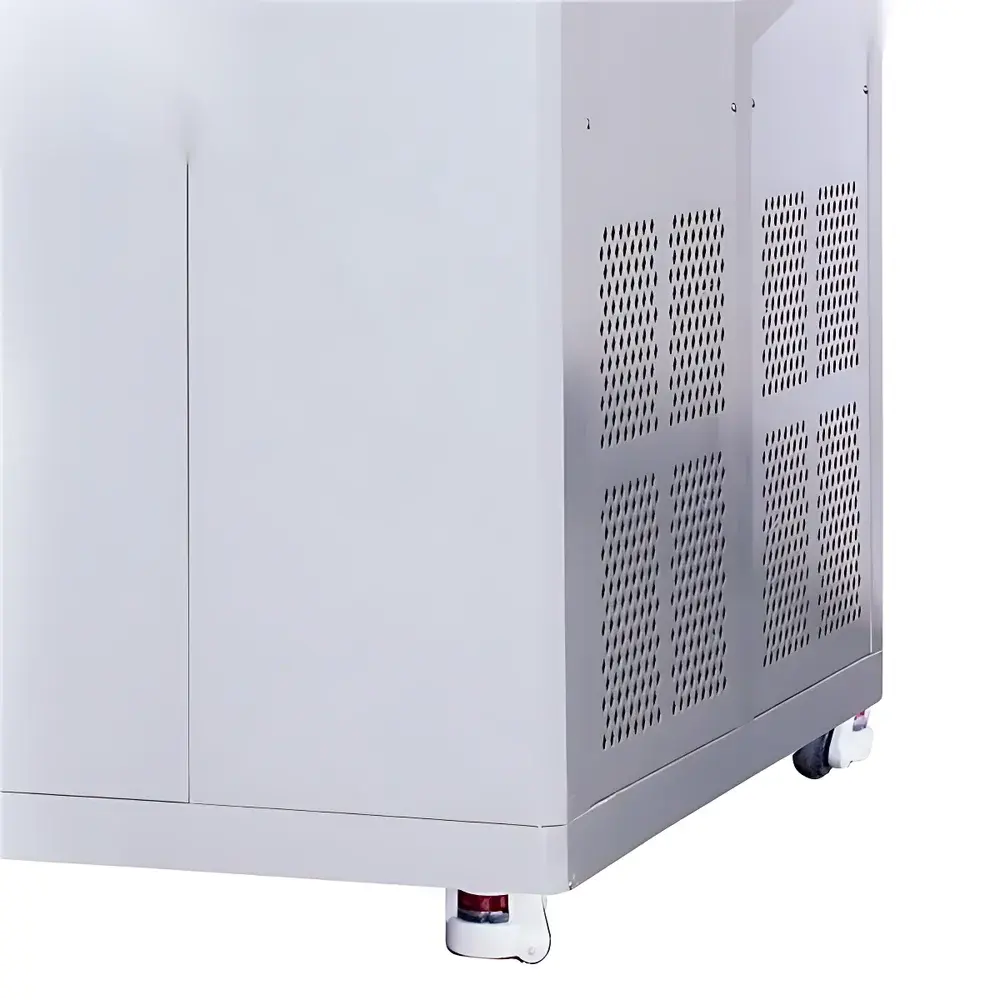

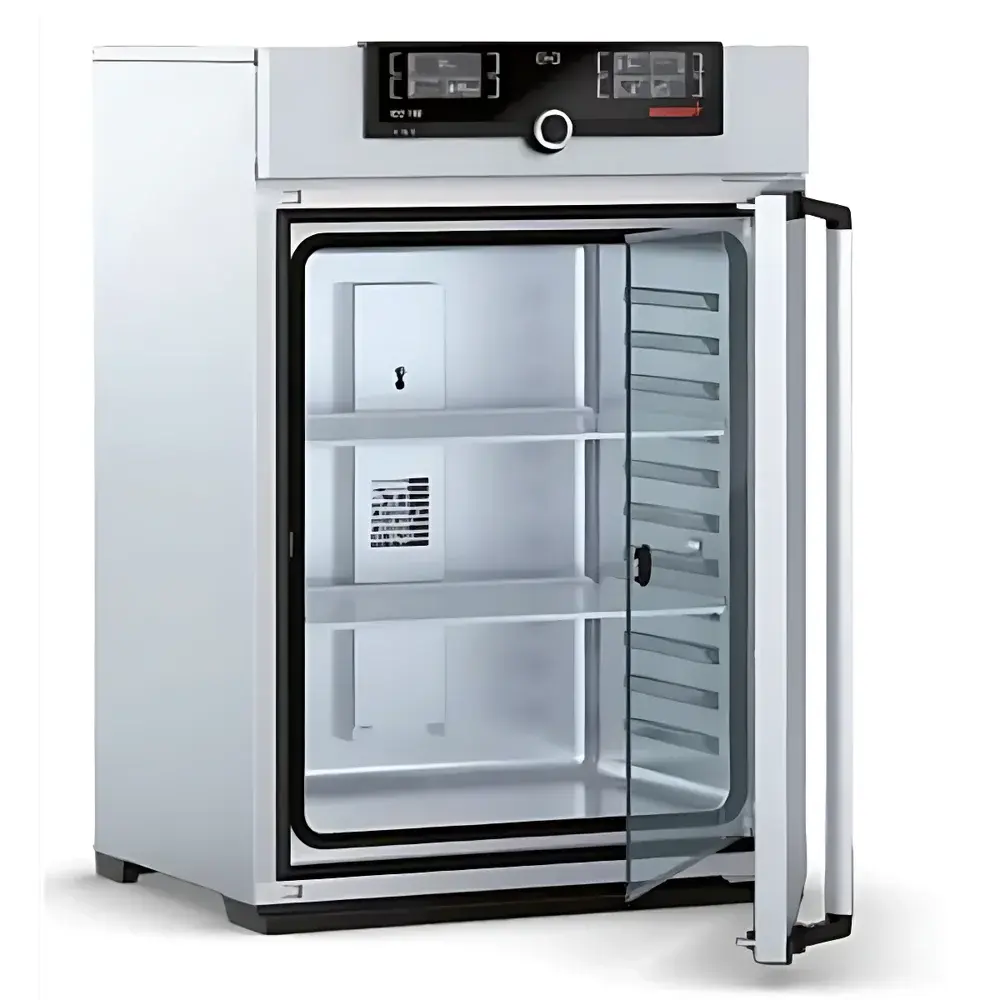

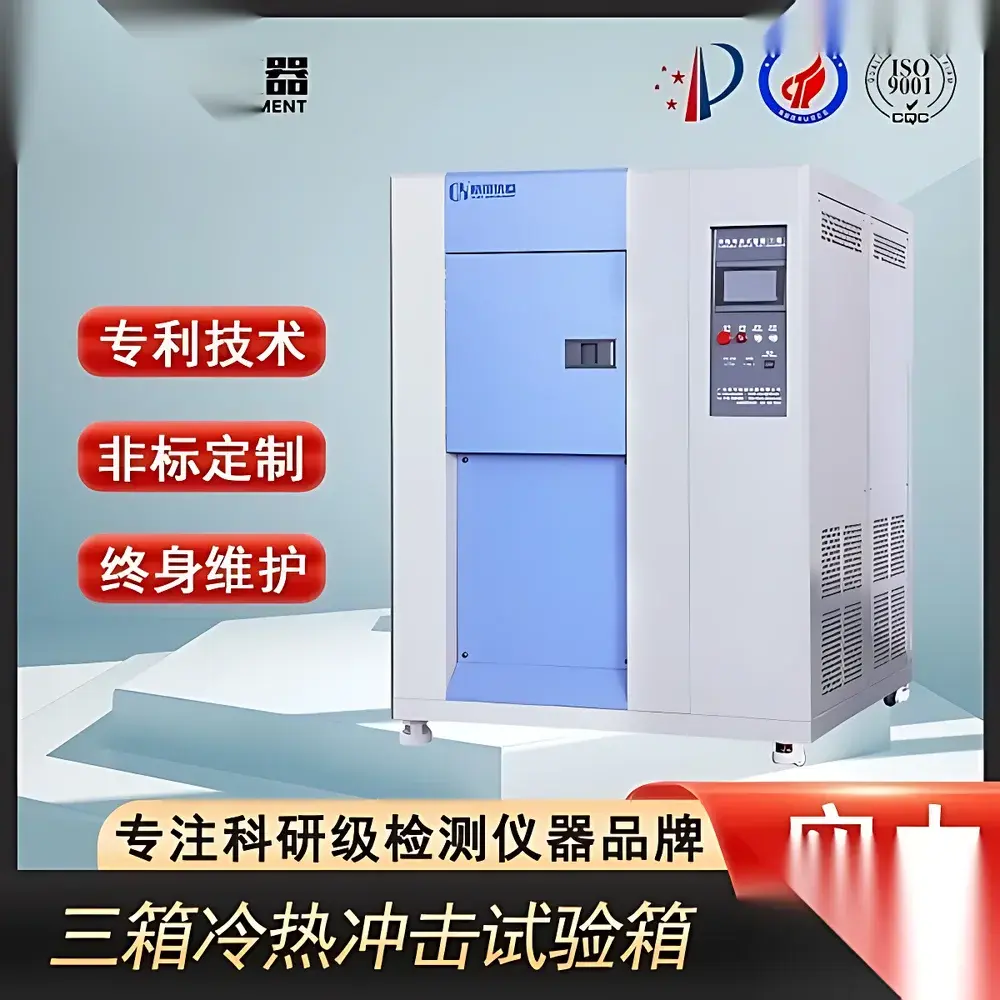

Thermal Shock Test Chamber – Generic Brand Industrial-Grade Environmental Test System

Overview

The Thermal Shock Test Chamber is an industrial-grade environmental stress screening (ESS) system engineered for rapid, repeatable thermal cycling between extreme high- and low-temperature zones. It operates on the two-chamber (hot/cold) air-blast principle—distinct from single-chamber mechanical ramp systems—enabling sub-15-second transfer times and precise dwell control per test phase. This architecture minimizes thermal inertia effects and ensures high reproducibility in accelerated life testing of electronic assemblies, automotive ECUs, aerospace components, PCBs, and polymer-based enclosures. The chamber meets fundamental requirements for temperature shock qualification under IEC 60068-2-14 (Change of Temperature) and supports full traceability workflows aligned with ISO/IEC 17025-accredited laboratories.

Key Features

• Two-zone independent thermal reservoirs: High-temp chamber (up to +180°C) and low-temp chamber (down to −70°C), each equipped with dedicated refrigeration and heating circuits
• Automated pneumatic transfer mechanism with stainless-steel carrier basket; positioning repeatability ±0.5 mm
• Dual-control architecture: TEMI880 color touchscreen PLC (with EN/CN language toggle, real-time trend graphing, USB data export) or TEMI300 membrane keypad controller (ASCII-based logging, RS-232 interface)
• Robust thermal insulation: 150 mm thick mineral wool + vacuum-sealed double-wall construction; external skin: SUS304B brushed stainless steel; internal chamber: fully welded AISI 304 stainless steel with electropolished finish
• Forced-air circulation: Multi-blade centrifugal blower (variable-speed drive) delivering ≥1.8 m/s uniform airflow; optimized upper-outlet/lower-inlet duct layout per IEC 60068-3-5
• Comprehensive safety interlocks: Compressor overheat/overcurrent/overpressure protection; dry-run prevention for humidifier; chamber over-temperature cut-off; door-open thermal lockout; low-water level alarm

Sample Compatibility & Compliance

The chamber accommodates standard test specimens up to 450 mm × 450 mm × 450 mm (W×D×H) with adjustable sample racks (two included, height-adjustable in 25 mm increments). A φ50 mm cable port (left-side mounted, silicone gasket sealed) enables real-time signal monitoring during shock cycles. Dual-pane tempered glass observation window (argon-filled, anti-fog coating) permits visual inspection without compromising thermal integrity. All models conform to electromagnetic compatibility (EMC) per EN 61326-1 and electrical safety per EN 61010-1. Optional calibration certificates (NIST-traceable Pt100 sensors) and IQ/OQ documentation packages are available for GLP/GMP-regulated environments.

Software & Data Management

The TEMI880 controller supports full-cycle programming—including ramp rates (0.5–15°C/min), dwell durations (1 min–999 h), cycle counts (1–9999), and conditional branching (e.g., “if T > 150°C, hold 10 min”). Data logging records temperature at 1-second intervals across up to four independent channels (chamber A, chamber B, payload thermocouple, ambient reference). Export formats include CSV and PDF reports with time-stamped metadata. Optional PC software (Windows 10/11 compatible) enables remote monitoring, alarm email/SMS notification (via Ethernet), and audit trail generation compliant with FDA 21 CFR Part 11 requirements—including user authentication, electronic signatures, and immutable log history.

Applications

• Qualification testing of solder joints, conformal coatings, and underfill materials per IPC-9701A
• Reliability validation of MEMS devices, LED modules, and battery management systems (BMS)
• Material embrittlement assessment of thermoplastics, elastomers, and composite laminates
• Failure mode analysis (FMA) of avionics housings subjected to rapid altitude-induced thermal transients
• Process validation for reflow soldering line changeovers and conformal coating curing profiles
• Pre-compliance screening prior to formal MIL-STD-810H Method 503.5 submission

FAQ

What is the typical thermal transition time between chambers?
Standard configuration achieves ≤15 seconds for specimen transfer between −70°C and +180°C zones, verified per IEC 60068-2-14 Annex B.
Can the chamber operate in humidity-controlled thermal shock mode?
No—this is a dry thermal shock system. Humidity capability requires integration with a separate climatic chamber or selection of a combined thermal/humidity shock model (e.g., THS series).
Is remote diagnostics supported?
Yes—Ethernet connectivity enables real-time parameter monitoring, firmware updates, and diagnostic log retrieval via secure HTTPS interface.
What maintenance intervals are recommended for the refrigeration system?
Compressor oil and filter dryer replacement every 24 months; annual verification of refrigerant charge and heat exchanger cleanliness per manufacturer service manual.
Does the system support automated report generation for quality audits?
Yes—CSV/PDF reports include operator ID, test program name, timestamped raw data, pass/fail flags, and digital signature fields meeting ISO 17025 Clause 7.8.2 requirements.
