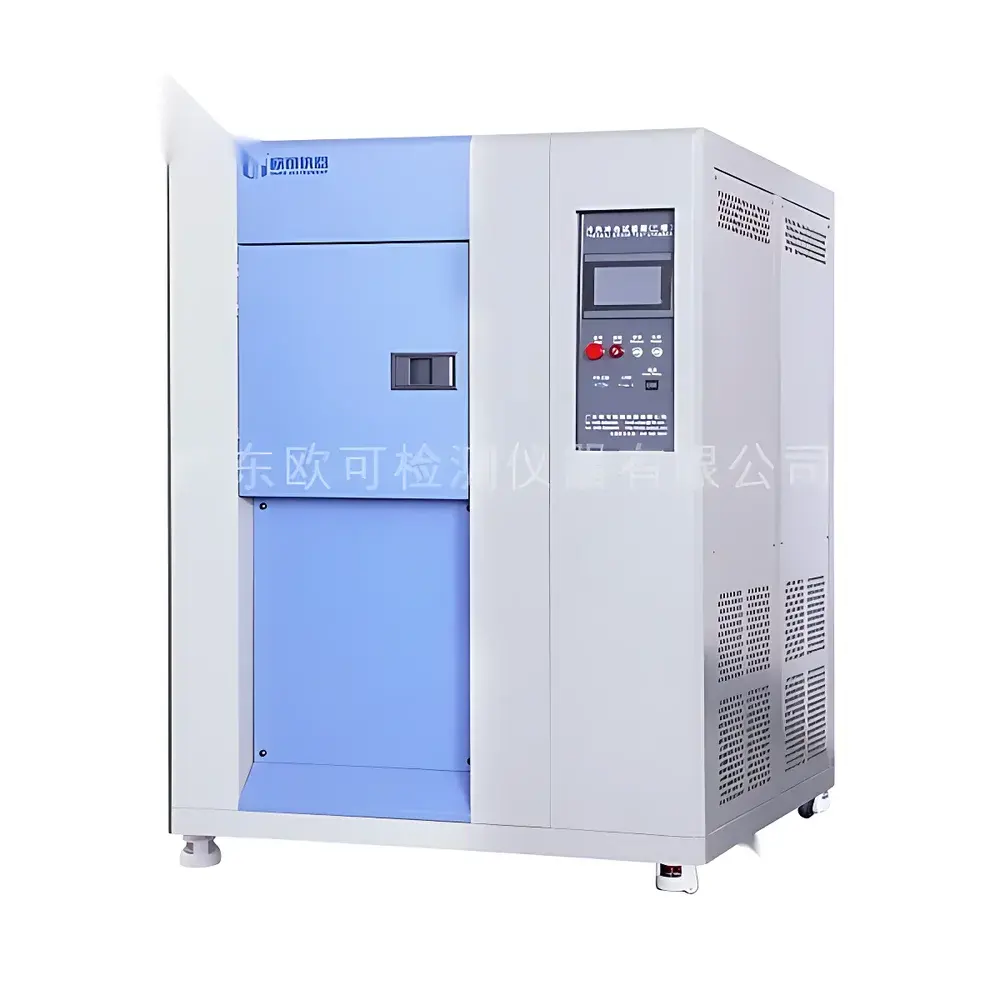

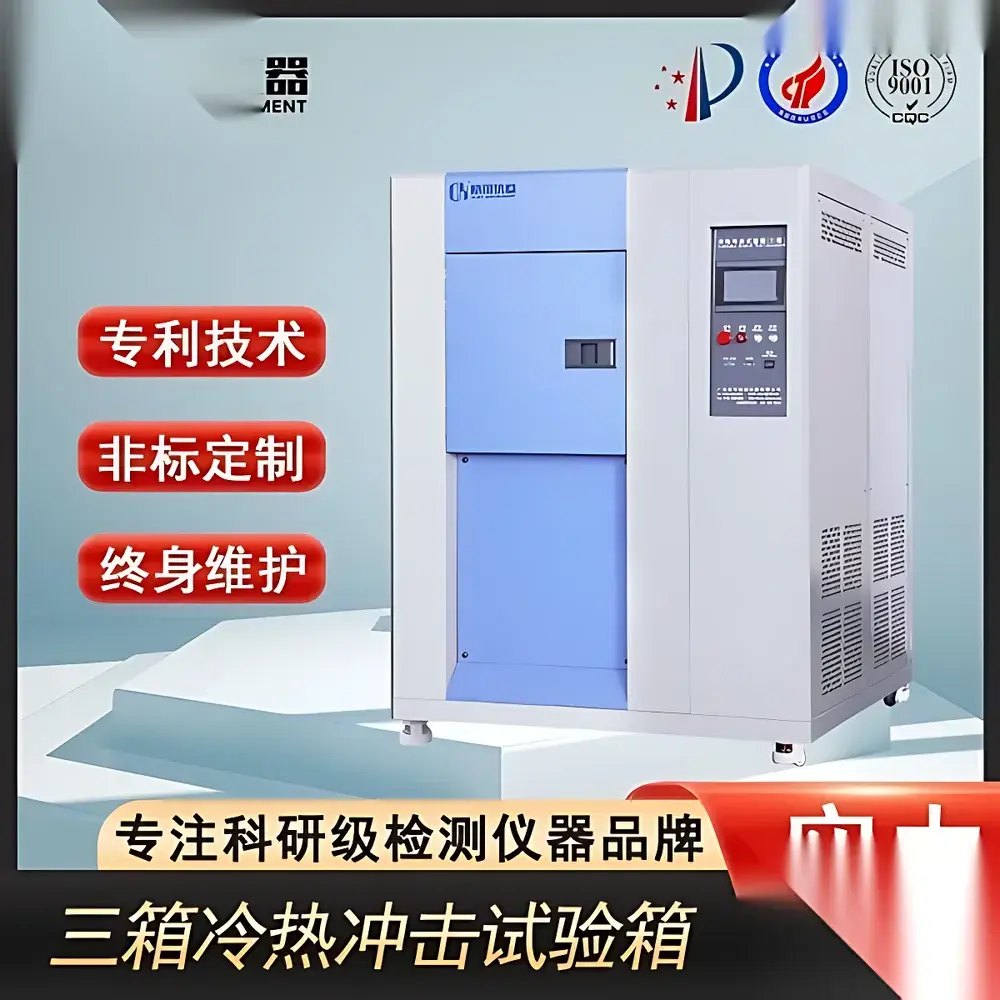

Thermal Shock Test Chamber – Industrial-Grade Dual-Zone Temperature Cycling Chamber

Overview

The Thermal Shock Test Chamber is an industrial-grade environmental stress screening (ESS) system engineered for rapid, repeatable thermal cycling between extreme high- and low-temperature zones. Utilizing a dual-chamber (hot/cold) or single-chamber with lift-type basket transfer architecture, it subjects electronic components, automotive modules, aerospace materials, and polymer assemblies to controlled thermal shock per established reliability standards. The chamber operates on the principle of accelerated aging through abrupt temperature transitions—typically achieving transfer times ≤10 seconds and temperature recovery within 3–5 minutes post-transfer—enabling rigorous qualification testing for solder joint integrity, material delamination, seal failure, and coefficient-of-thermal-expansion (CTE) mismatch analysis. Its robust mechanical design, precision airflow management, and redundant safety architecture ensure stable operation across continuous duty cycles in QC labs, R&D facilities, and production line validation environments.

Key Features

• Dual-circuit refrigeration system with original Tecumseh (France) hermetic compressors—optimized for long-term stability, low vibration, and reduced oil carryover.
• Balanced Temperature & Humidity Control (BTSC) algorithm ensures minimal overshoot and high reproducibility during ramp-and-soak profiles.
• Forced-air circulation via multi-wing centrifugal blower delivers uniform temperature distribution (±0.5 °C at 100 mm from walls) per IEC 60068-3-5 requirements.
• Double-layer tempered glass observation window with anti-fog heating element enables real-time visual monitoring without thermal disturbance.
• Standard 50 mm diameter test port (left-side mounted) with silicone gasket and plug—compatible with external sensor feedthroughs and data acquisition cables.
• Adjustable stainless-steel sample racks (two sets included) support varied fixture configurations; optional load capacity up to 30 kg per rack.
• Comprehensive protection suite: compressor overheat/overcurrent/overpressure cutoff, heater dry-run prevention, chamber over-temperature lockout, and automatic water-level monitoring for humidified variants.

Sample Compatibility & Compliance

The chamber accommodates PCBAs, IC packages (QFN, BGA, CSP), battery cells, optical sensors, and molded plastic housings—up to 600 × 600 × 600 mm (W×D×H) internal volume. All internal surfaces are electropolished SUS304 stainless steel to resist corrosion from condensate and chemical outgassing. Structural insulation combines polyurethane rigid foam (≥30 mm thickness) and ultra-fine glass fiber blanket for thermal resistance ≥R-12 (imperial) / RSI-2.1 (metric). The system complies with electromagnetic compatibility (EMC) per EN 61326-1 and safety standards IEC 61010-1. Optional calibration documentation supports ISO/IEC 17025 traceability when paired with NIST-traceable reference probes.

Software & Data Management

The TEMI880 controller features USB export, RS-485/RS-232 serial interface, and Ethernet connectivity for integration into centralized lab networks. Included PC software enables full remote programming, real-time graphing, alarm logging, and automated report generation (PDF/CSV). Audit trail functionality meets GLP/GMP requirements—including user login tracking, parameter change history, and timestamped event logs—fully compliant with FDA 21 CFR Part 11 when configured with electronic signature modules. Data retention exceeds 100,000 cycles with cyclic backup to external storage.

Applications

This chamber serves critical roles in product development and quality assurance workflows: thermal shock qualification per JEDEC JESD22-A104; cold-to-hot transition testing for EV battery enclosures; moisture sensitivity level (MSL) pre-conditioning prior to reflow; reliability screening of MEMS devices; and validation of conformal coating adhesion under thermal stress. It is routinely deployed in Tier-1 automotive suppliers, semiconductor foundries, medical device manufacturers subject to ISO 13485, and defense contractors adhering to MIL-HDBK-344A.

FAQ

What is the typical temperature transition time between zones?

Standard dual-zone models achieve basket transfer in ≤8 seconds, with temperature stabilization (±2 °C) within 3 minutes after landing.

Can the chamber operate continuously for extended qualification tests?

Yes—designed for unattended 24/7 operation with predictive maintenance alerts and compressor duty-cycle optimization.

Is humidity control available as a factory option?

Yes—integrated surface-evaporation humidification system extends operational range to 20–98% RH at +40 °C to +95 °C.

Does the system support custom test profiles beyond standard MIL-STD or ISO templates?

Absolutely—the controller allows up to 1,000-step programmable sequences with conditional branching, dwell time modulation, and ramp rate adjustment from 1 °C/min to 15 °C/min.

What calibration and validation support is provided?

Factory-installed Class A PT100 sensors; IQ/OQ documentation package available; third-party SAT (System Accuracy Test) and PQ (Performance Qualification) protocols supported upon request.
