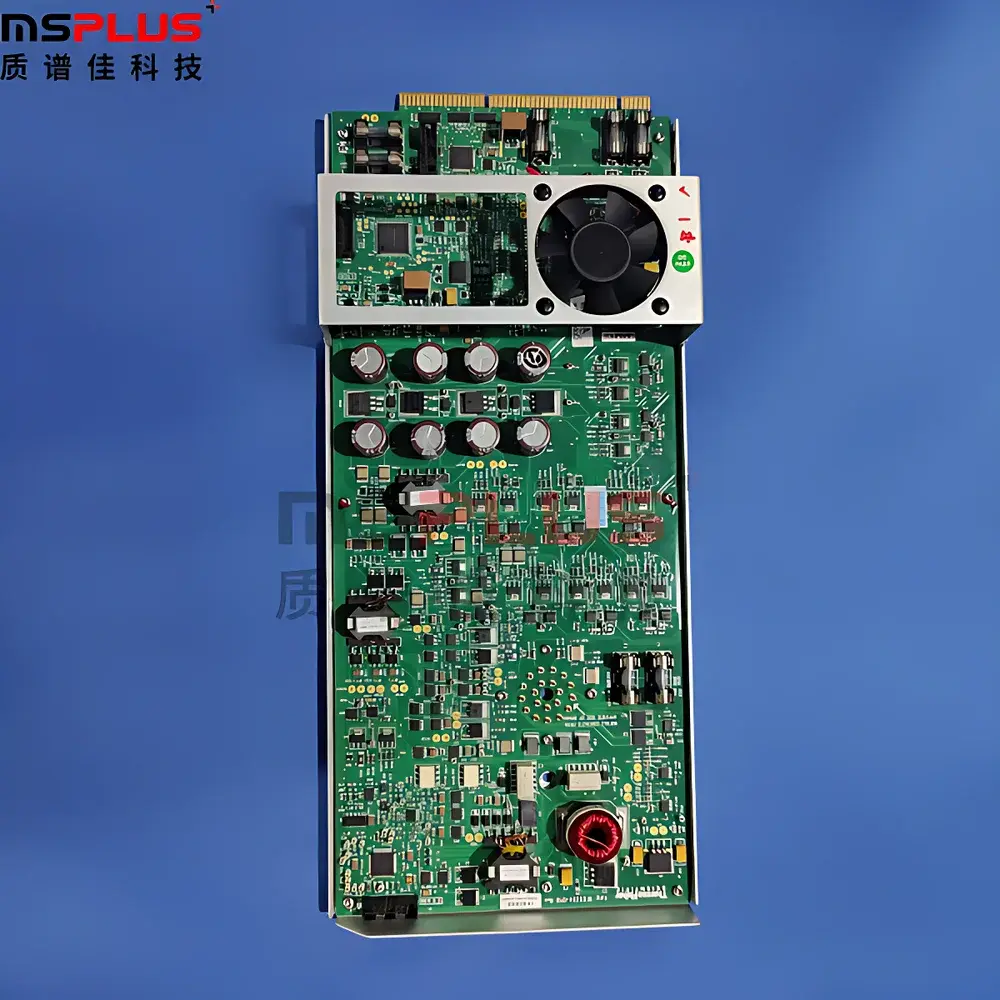

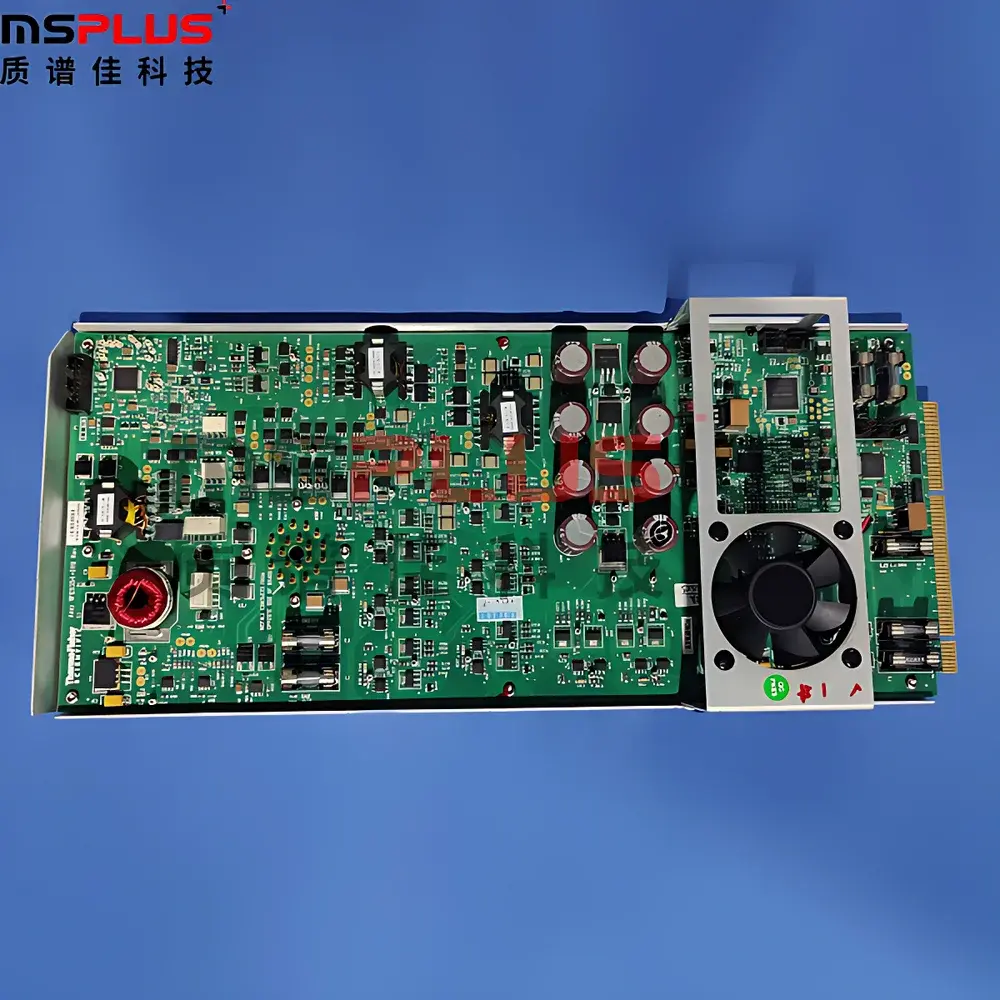

Thermo Fisher 1R 120354-A110 Lens Drive Board – Original OEM Replacement Component for Mass Spectrometry Systems

Overview

The Thermo Fisher 1R 120354-A110 Lens Drive Board is a precision-engineered OEM control module designed exclusively for integration into Thermo Fisher mass spectrometry platforms—particularly high-resolution quadrupole, ion trap, and Orbitrap-based instruments requiring stable, low-noise electrostatic lens voltage regulation. This board functions as the dedicated driver interface between the system’s main controller and the electrostatic lens stack within the ion optics path, delivering programmable, high-stability DC bias voltages (typically ±0–±300 V) with sub-millivolt ripple and long-term drift < ±0.02% over 8 hours. Its operation is grounded in closed-loop feedback architecture, utilizing onboard DACs, precision op-amp buffers, and thermally compensated voltage references to maintain consistent ion transmission efficiency and mass accuracy across extended acquisition cycles. As a critical subsystem-level component, it directly influences signal-to-noise ratio, peak shape fidelity, and quantitative reproducibility—making it essential for regulated environments where instrument performance must comply with ICH Q2(R2), USP <621>, and FDA 21 CFR Part 11 data integrity requirements.

Key Features

• Genuine Thermo Fisher OEM part—fully compatible with factory firmware and diagnostic protocols
• Designed for seamless replacement in service workflows without recalibration or firmware reflash
• Integrated thermal management with aluminum-core PCB substrate and localized heat-sink pads for sustained operation at ambient temperatures up to 40 °C
• ESD-protected input/output interfaces compliant with IEC 61000-4-2 Level 4 (8 kV contact / 15 kV air)
• Traceable manufacturing lot code and RoHS 3 / REACH-compliant material composition
• Pre-tested for functional verification against Thermo Fisher’s internal acceptance criteria (including voltage linearity, load regulation, and transient response under dynamic lens tuning conditions)

Sample Compatibility & Compliance

This lens drive board is validated for use in Thermo Fisher mass spectrometers including, but not limited to: the TSQ Quantum series, LTQ XL, LTQ Orbitrap Velos, Q Exactive family, and Exploris 240/480 platforms. It supports all standard ionization modes (ESI, APCI, HESI) and operates within the full mass range specification of each host instrument. From a regulatory standpoint, the board contributes to overall system compliance when installed as part of a documented maintenance procedure under GLP or GMP frameworks. Its traceable origin (USA-manufactured, Thermo Fisher-part-numbered) satisfies procurement audit requirements for critical spares in pharmaceutical QC labs and contract research organizations (CROs). No additional validation documentation is shipped with the board; however, full OEM technical schematics and failure mode analysis reports are available upon request through authorized Thermo Fisher service channels.

Software & Data Management

The 1R 120354-A110 does not feature embedded firmware or user-accessible software interfaces. It communicates exclusively via proprietary low-voltage differential signaling (LVDS) bus architecture native to Thermo Fisher instrument backplanes. All configuration, diagnostics, and real-time monitoring are handled through the host instrument’s Xcalibur or Tune software suite—accessible only after successful hardware handshake and system-level self-test. Within Xcalibur v3.4+, lens voltage logs, error codes (e.g., “LensDrv_Err_0x1A: Overcurrent Limit Exceeded”), and calibration history are recorded in the instrument’s audit trail database with timestamped, user-ID-tagged entries—fully compliant with FDA 21 CFR Part 11 electronic record and signature requirements. Remote diagnostics via Thermo Fisher Connect are supported only when the board is installed in systems with active service contracts and enabled telemetry modules.

Applications

This component is routinely deployed in laboratories performing regulated small-molecule quantitation (e.g., bioanalysis per FDA Bioanalytical Method Validation Guidance), large-molecule characterization (intact mAb analysis, peptide mapping), environmental contaminant screening (PFAS, pesticides), and forensic toxicology workflows. Its reliability ensures uninterrupted operation during multi-day unattended runs—critical for high-throughput clinical trial sample batches or EPA Method 1694 compliance testing. In academic and government research settings—including NIH-funded proteomics cores and NIST reference material certification programs—the board’s OEM traceability supports metrological confidence in reported mass spectral data.

FAQ

Is this board field-replaceable by end users?
Yes—provided the replacement is performed by personnel trained in Thermo Fisher electrostatic safety procedures and equipped with ESD-safe workstations. Full disassembly instructions are included in the official Service Manual SM-MS-007 Rev. D.

Does installation require system recalibration?
No. The board is pre-calibrated at the factory and retains its calibration profile post-installation; however, a full instrument performance verification (IPV) test per ASTM E2617 is recommended before resuming regulated analyses.

Can this board be used in non-Thermo instruments?
No. Electrical pinout, communication protocol, and firmware handshake logic are proprietary to Thermo Fisher mass spectrometry platforms and incompatible with third-party or competing OEM systems.

What is the expected service life under continuous operation?
Based on Thermo Fisher accelerated life testing (MIL-STD-810G, Method 502.6), the board demonstrates >50,000 hours MTBF when operated within specified ambient and power supply tolerances.

Is technical support available for integration troubleshooting?
Limited remote diagnostics are offered free-of-charge by authorized Thermo Fisher Field Service Engineers; advanced fault isolation requires submission of instrument log files and voltage trace captures via secure Thermo Connect portal.
