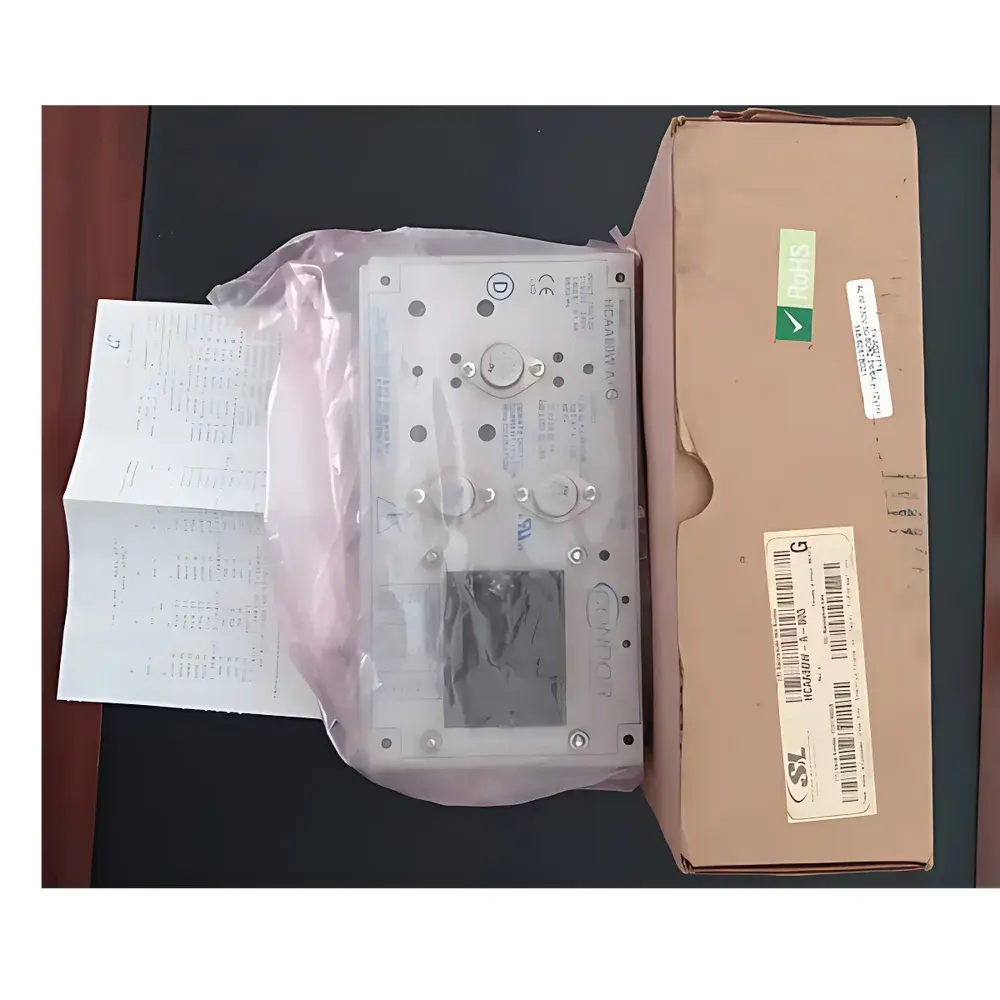

Thermo Fisher A027778 Power Supply Unit
| Brand | Thermo Fisher |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | A027778 |
| Pricing | Upon Request |
Overview
The Thermo Fisher A027778 Power Supply Unit is a precision-engineered, regulated DC power source designed specifically for integration with high-sensitivity analytical instrumentation in spectroscopy and materials characterization systems. It serves as a critical subsystem for instruments requiring stable, low-noise, and ripple-free voltage/current delivery—including Thermo Fisher’s ARL 8860 direct-reading optical emission spectrometers (OES), benchtop X-ray fluorescence (XRF) analyzers, X-ray diffraction (XRD) systems, inductively coupled plasma (ICP) optical emission spectrometers and mass spectrometers, as well as electron microscopy and electron spectroscopy platforms. The unit complies with IEC 61000-3-2 harmonic emission standards and incorporates over-voltage, over-current, and thermal shutdown protection circuits to ensure operational integrity under variable load conditions typical of pulsed excitation sources (e.g., spark sources in OES or filament heating in X-ray tubes). Its design prioritizes electromagnetic compatibility (EMC) to prevent interference with adjacent detectors, photomultiplier tubes, or charge-coupled device (CCD) readout electronics.
Key Features
- Stable, low-ripple DC output optimized for spectroscopic excitation sources and detector biasing circuits
- Integrated safety interlocks compatible with Thermo Fisher ARL-series spectrometer chassis interfaces
- Wide input voltage range (100–240 VAC, 50/60 Hz) with active power factor correction (PFC)
- Convection-cooled architecture—no internal fans—to minimize mechanical vibration and acoustic noise in vibration-sensitive lab environments
- Front-panel status indicators and remote monitoring capability via isolated analog control lines (0–10 V / 4–20 mA)
- UL 61010-1 and CE-marked for laboratory use in accordance with EN 61326-1 (EMC for measurement, control, and laboratory equipment)
Sample Compatibility & Compliance
The A027778 is not a standalone analytical instrument but a certified subsystem supporting Thermo Fisher’s family of spectroscopic platforms. It is validated for use with ARL 8860 OES systems operating under ASTM E1999 (Standard Test Method for Determination of Carbon and Sulfur in Steel and Iron by Combustion Infrared Absorption) and ISO 11573 (Metallic materials — Spark discharge atomic emission spectrometry). When deployed in XRF or XRD configurations, it meets the power stability requirements defined in ISO 21043-1 (X-ray fluorescence spectrometry — General requirements) and ensures consistent tube anode potential regulation per IEC 60522. No sample handling or preparation functionality is associated with this unit; its role is strictly electrical conditioning and supply regulation.
Software & Data Management
The A027778 does not include embedded firmware, user interface, or data logging capabilities. It operates as a transparent, analog-controlled power module within larger instrument ecosystems. Communication with host instruments occurs through hardwired analog signals (e.g., setpoint voltage, enable/disable TTL logic) rather than digital protocols. Therefore, it requires no software installation, driver configuration, or cybersecurity validation. Its operation is fully traceable within instrument audit trails when used in GLP- or GMP-regulated environments—consistent with FDA 21 CFR Part 11 requirements—as all power state transitions are recorded by the parent spectrometer’s control system (e.g., Thermo Fisher’s ARUN or SpectraSuite software suites).
Applications
- Primary excitation power for spark-based optical emission spectrometers (OES) in metallurgical QC labs
- Bias voltage supply for proportional counters and silicon drift detectors (SDDs) in energy-dispersive XRF systems
- Anode and filament regulation in sealed-tube X-ray sources used in benchtop XRD and micro-XRF platforms
- Stabilized current source for hollow cathode lamps and plasma torches in ICP-OES and ICP-MS auxiliary systems
- Support power for electron beam focusing coils and detector preamplifiers in SEM/TEM and AES/XPS instrumentation
FAQ
Is the A027778 compatible with non-Thermo Fisher instruments?
It is engineered to Thermo Fisher’s proprietary interface specifications and mechanical mounting dimensions; third-party integration requires verification of pinout mapping, control signal polarity, and thermal envelope constraints.
Does this unit support redundant power inputs for high-availability systems?
No—it features a single AC input path. Redundancy must be implemented at the facility-level UPS or dual-feed panel.
Can the output voltage or current be adjusted in the field?
Output parameters are factory-set and fixed per application-specific calibration; adjustment requires authorized service technician intervention and recalibration against NIST-traceable references.
What is the expected service life under continuous operation?
Rated for 50,000 hours MTBF (Mean Time Between Failures) at 25°C ambient, per Telcordia SR-332 Issue 3 reliability prediction methodology.
Is technical documentation available in English?
Yes—full schematics, safety compliance reports, and installation manuals are provided upon request to registered end users via Thermo Fisher’s Technical Documentation Portal.
