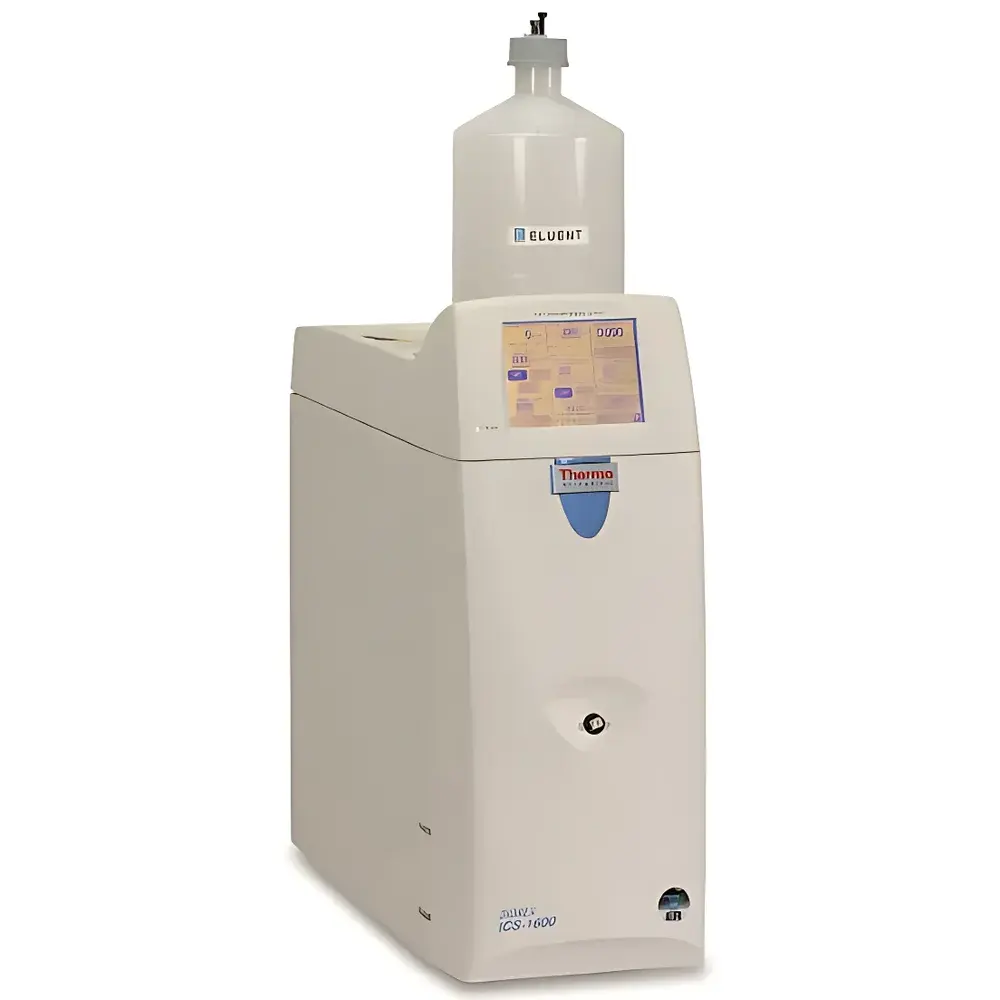

Thermo Fisher Dionex ICS-1600 Ion Chromatography System

Overview

The Thermo Fisher Dionex ICS-1600 Ion Chromatography System is a dedicated isocratic ion chromatograph engineered for high-precision, low-maintenance anion and cation analysis in regulated and research laboratories. Its core architecture leverages suppressed conductivity detection coupled with high-efficiency ion exchange separation—principally based on the Donnan exclusion and ion-exchange equilibrium mechanisms—to resolve inorganic anions (e.g., F⁻, Cl⁻, NO₂⁻, PO₄³⁻, SO₄²⁻), small organic acids (e.g., formate, acetate), and common cations (e.g., Li⁺, Na⁺, NH₄⁺, K⁺, Ca²⁺, Mg²⁺) in environmental, pharmaceutical, food & beverage, and industrial process matrices. Unlike conventional gradient-capable systems requiring multiple high-pressure pumps and manual eluent preparation, the ICS-1600 achieves programmable gradient elution via integration with the RFC-30 Electrolytic Eluent Generator—a key component of Thermo Fisher’s Reagent-Free Ion Chromatography (RFIC™) platform. This eliminates chemical handling, reduces baseline drift, and ensures long-term retention time stability through continuous, on-demand generation of ultra-pure KOH, NaOH, or MSA eluents from deionized water alone.

Key Features

• Isocratic pump system with dual-piston PEEK®-lined high-pressure delivery, delivering flow precision ≤0.1% RSD and pulse-free operation up to 5000 psi;
• Integrated column oven with active temperature control (4–40 °C ±0.2 °C), minimizing thermal-induced retention shifts and enhancing method robustness;
• Onboard electrolytic eluent degassing module with selectable continuous or timed-cycle operation to eliminate dissolved gas artifacts;
• Front-panel capacitive touchscreen interface providing real-time chromatogram visualization, system status monitoring, and configurable alarm thresholds;
• Full-PEEK fluidic path from pump inlet to detector cell—chemically inert across pH 0–14 and compatible with organic modifiers (e.g., methanol, acetonitrile);
• Modular valve positions (6-port and 10-port) pre-installed for seamless integration of online sample pretreatment modules such as electrolytic matrix elimination or dilution;
• AS-DV autosampler with rotating sampling probe, adjustable injection volume (1–100 µL), programmable speed control, and integrated 0.2-µm inline filter caps for particulate removal prior to injection.

Sample Compatibility & Compliance

The ICS-1600 accommodates aqueous samples across wide concentration ranges—from sub-ppb environmental waters to high-salinity industrial effluents—when paired with Thermo Fisher’s high-capacity, hydroxide-selective Dionex IonPac™ columns (e.g., AS23, AS26, CS19). Its RFIC-ER (Eluent Regeneration) option enables uninterrupted 28-day operation without eluent replenishment, meeting stringent ISO/IEC 17025 method validation requirements for unattended analysis. The system complies with ASTM D4327 (anion analysis in drinking water), EPA Methods 300.0/300.1 (drinking water anions), and USP (conductivity testing). All hardware and Chromeleon™ software support full 21 CFR Part 11 compliance—including electronic signatures, role-based access control, and immutable audit trails—making it suitable for FDA-regulated QC/QA workflows under GMP/GLP frameworks.

Software & Data Management

Controlled exclusively by Chromeleon™ Chromatography Data System (CDS) v7.3 or higher, the ICS-1600 provides centralized instrument management, sequence scheduling, peak integration, and report generation. Chromeleon supports method transfer between Thermo Fisher IC platforms (e.g., ICS-5000+, ICS-6000), facilitates multi-instrument network deployment, and embeds embedded diagnostics for predictive maintenance alerts (e.g., pressure anomalies, suppressor efficiency decay). Raw data files (.cdl) are stored in vendor-neutral formats compliant with LIMS integration standards (ASTM E1950, ANSI/NIST IR 6842). Audit trail logs record all user actions—including method edits, calibration events, and result approvals—with timestamped, non-erasable entries required for regulatory submissions.

Applications

• Environmental monitoring: quantification of regulated anions in surface water, wastewater, and soil extracts per EPA protocols;
• Pharmaceutical quality control: assay of counterions (e.g., chloride, sodium) in APIs and excipients; residual acetate/formate in biologics purification streams;
• Food safety: nitrate/nitrite in cured meats, phosphate additives in dairy products, sulfite in wines;
• Power generation: chloride and sulfate monitoring in ultrapure boiler feedwater to prevent corrosion;
• Electronics manufacturing: trace halides (F⁻, Cl⁻, Br⁻) in photoresist solvents and etchant baths;
• Academic research: speciation of low-abundance organic acids in plant metabolomics or amino acid profiling using specialized Dionex CarboPac™ columns.

FAQ

Does the ICS-1600 support gradient elution without external gradient pumps?
Yes—when equipped with the RFC-30 Electrolytic Eluent Generator, the system performs fully automated gradient elution using only deionized water as the input source.
What is the maximum operating pressure for routine use?
The system is rated for continuous operation at up to 5000 psi; the pump housing is validated to 6000 psi for safety margin.
Can the column oven accommodate both anion and cation columns simultaneously?
No—the oven holds a single analytical column; however, column switching valves allow rapid reconfiguration between anion and cation methods without manual intervention.
Is Chromeleon software included with the base system?
Yes—Chromeleon CDS v7.3 or later is supplied with perpetual license and includes full instrument control, data processing, and 21 CFR Part 11 compliance modules.
What maintenance intervals are recommended for the electrolytic suppressor?
Under normal use (≤20 injections/day), the AutoSuppression™ suppressor requires no regeneration solution or manual servicing and typically exceeds 2 years of service life before replacement.
