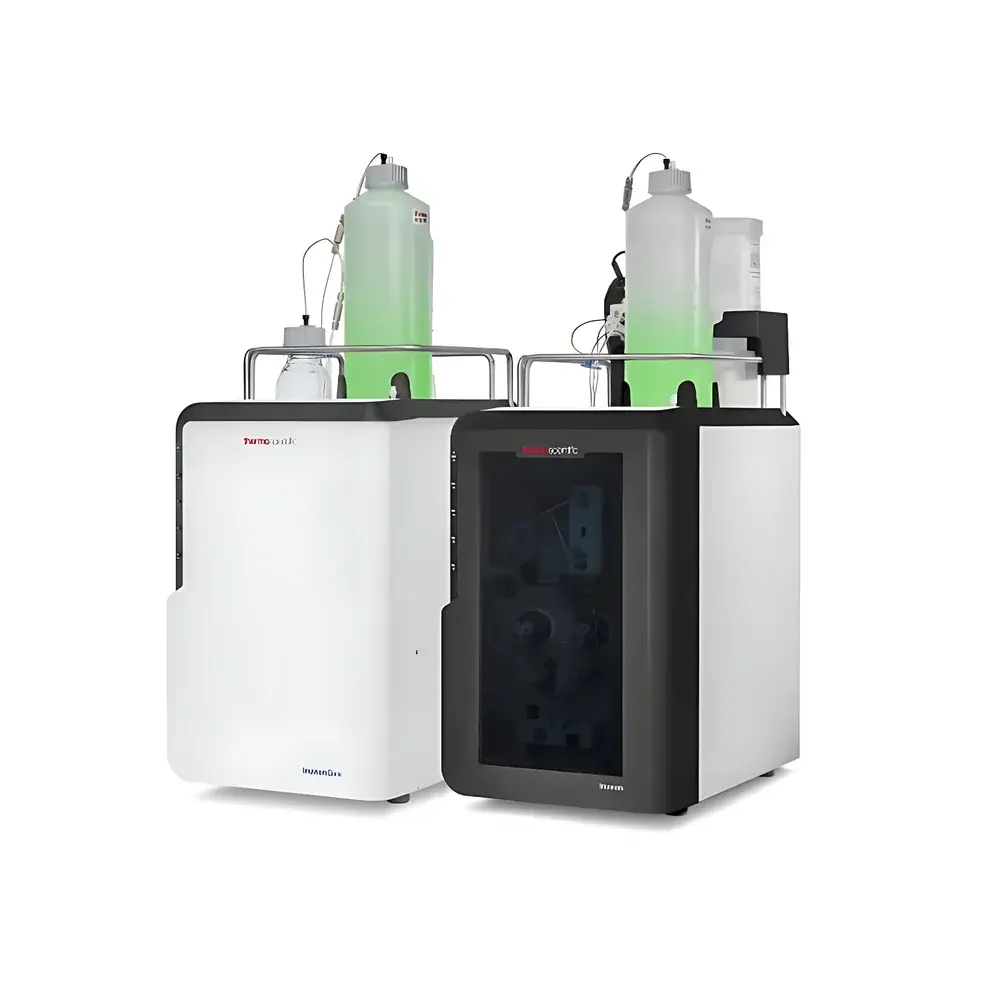

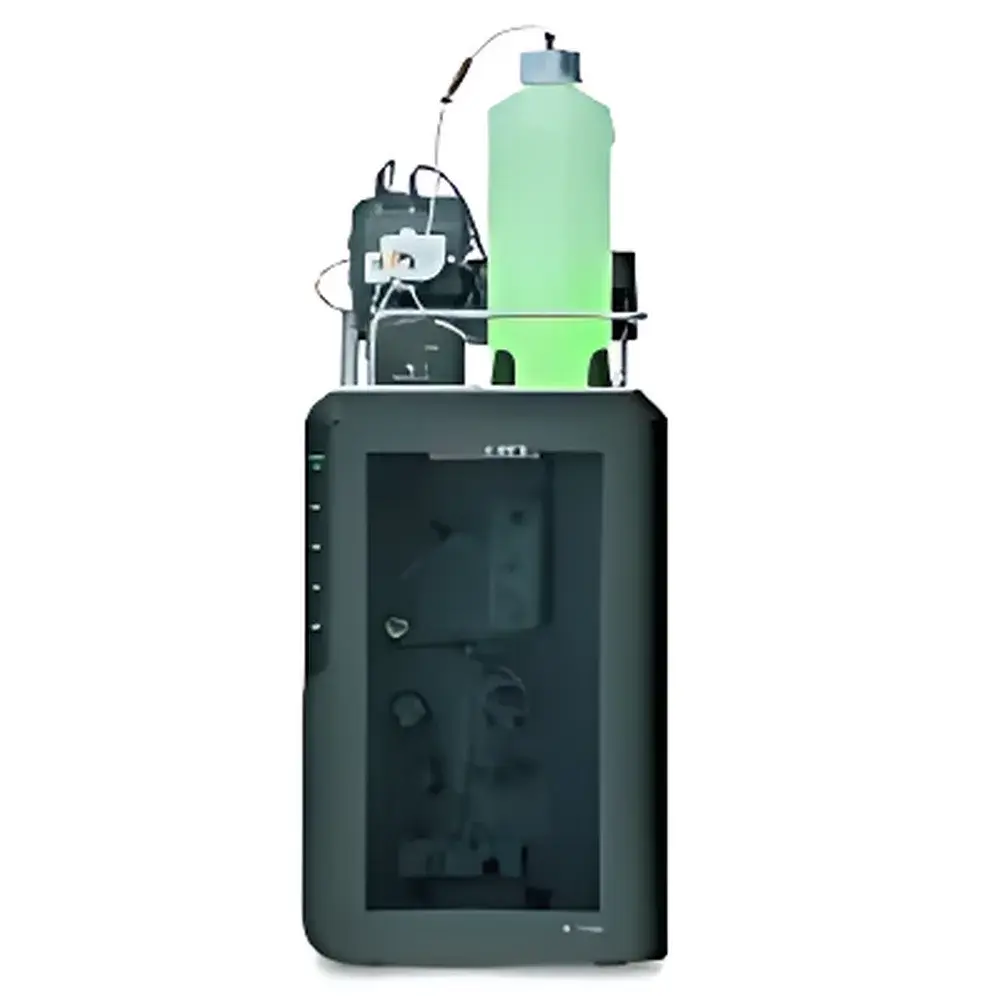

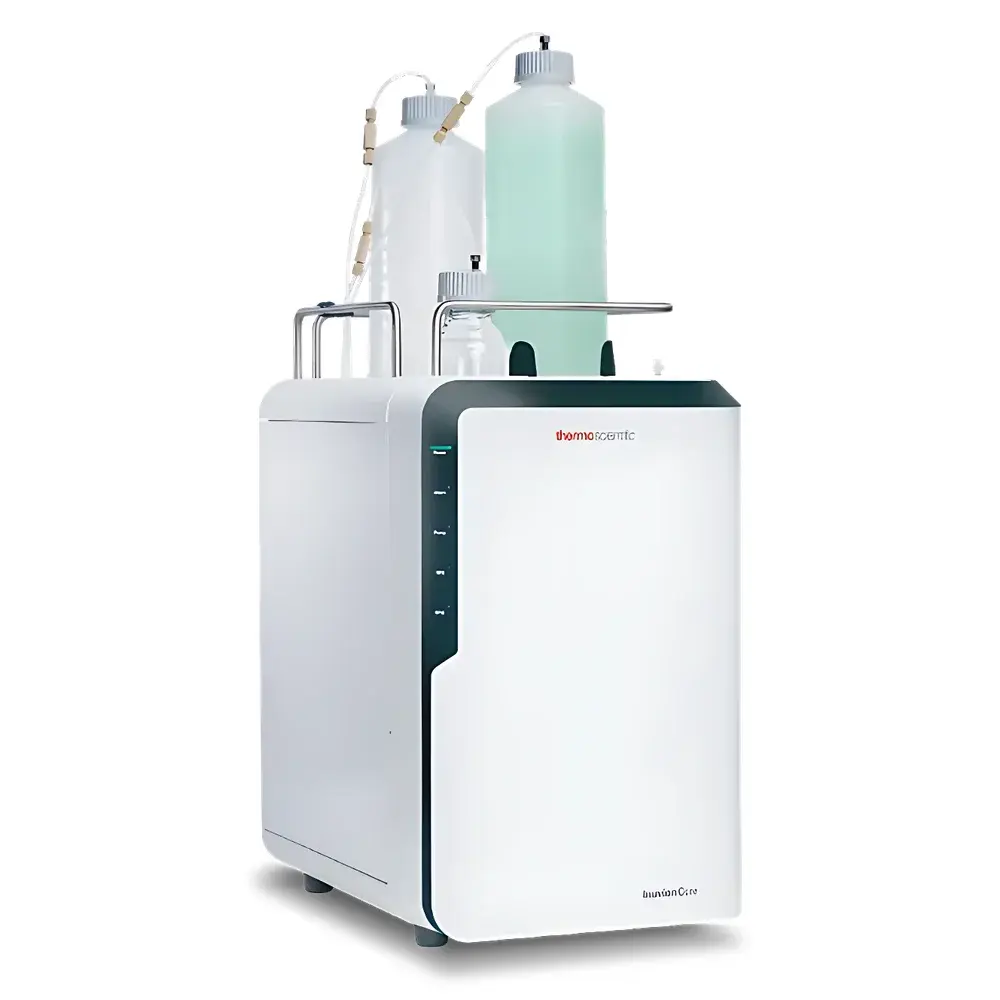

Thermo Fisher Dionex Inuvion Ion Chromatography System
| Brand | Thermo Fisher |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Manufacturer |
| Regional Classification | Domestic |
| Model | Dionex Inuvion |
| Instrument Type | Laboratory |
| Application Scope | General-purpose |
| Pump Pressure Rating | 5000 psi |
| Flow Rate Range | 0–5 mL/min |
| Maximum Operating Pressure | 5000 psi |
| Operating Temperature Range | 10–60 °C (±0.5 °C) |
Overview
The Thermo Fisher Dionex Inuvion Ion Chromatography System is a modular, high-performance ion chromatograph engineered for precision, reproducibility, and operational simplicity in regulated and high-throughput laboratory environments. Built upon suppressed conductivity detection and eluent generation principles, the system employs electrolytic suppression and on-demand eluent generation to deliver stable baseline performance, low background conductivity, and enhanced sensitivity for anions and cations across diverse matrices—including environmental water, pharmaceutical excipients, food extracts, and industrial process streams. Its architecture integrates a low-dispersion dual-piston high-pressure pump, thermostatically controlled column compartment, and intelligent fluidic path design to minimize carryover and ensure retention time stability over extended sequences. Unlike legacy IC platforms requiring manual eluent preparation and frequent suppressor regeneration, the Inuvion system supports fully automated, reagent-free operation via its integrated Electrolytic Eluent Generator (EG) and Electrolytic Suppressor (ES), enabling unattended multi-day runs compliant with GLP and GMP workflows.
Key Features
- Modular platform with three scalable configurations: Inuvion Core (entry-level), Inuvion Standard (full-featured), and Inuvion RFIC (Reagent-Free IC) — all sharing identical hardware architecture and software interface for seamless future upgrades.
- Electrolytic Eluent Generation (EG) producing KOH, MSA, or methanesulfonic acid eluents on-demand with programmable concentration gradients (0.1–100 mM), eliminating manual preparation, storage, and associated variability.
- Electrolytic Suppression technology delivering consistent suppression efficiency across wide flow and concentration ranges, supporting both anion and cation analysis without chemical regenerants.
- High-pressure capability up to 5000 psi enables use of sub-2-µm particle-packed columns and capillary-scale separations for improved resolution and speed.
- Column oven with precise temperature control (10–60 °C ±0.5 °C) ensures retention time reproducibility and method robustness under varying ambient conditions.
- Intuitive front-accessible design: all consumables (columns, suppressors, guard cartridges), tubing paths, and fluidic connections are visible and serviceable without tools—reducing mean time to repair (MTTR) and supporting routine maintenance by non-specialist personnel.
Sample Compatibility & Compliance
The Dionex Inuvion system accommodates aqueous samples across a broad concentration range (ppt–ppm for major ions; sub-ppb for trace anions/cations with preconcentration). It supports direct injection of filtered environmental waters, diluted biological fluids, and clarified food digests without derivatization. Column compatibility includes Thermo Fisher’s full portfolio of Dionex IonPac™ analytical and guard columns (e.g., AS23, CS19, ICE-AS6), as well as third-party columns meeting standard 1/4″-28 UNF fittings and pressure specifications. The system meets requirements for ISO 10304-1:2012 (determination of dissolved anions), ASTM D4327 (anion analysis in water), USP (conductivity of purified water), and EPA Methods 300.0, 300.1, and 317.0. Data integrity features include audit-trail-enabled software, electronic signatures, and 21 CFR Part 11 compliance when paired with Chromeleon™ CDS v7.3 or later.
Software & Data Management
Controlled exclusively via Chromeleon Chromatography Data System (CDS) v7.3+, the Inuvion platform provides unified method development, instrument control, peak integration, and reporting. Chromeleon supports sequence scheduling, real-time monitoring, automatic calibration curve generation, and customizable report templates aligned with LIMS export standards (ASTM E1578, HL7). All raw data, method files, audit logs, and user actions are stored in a secure, encrypted relational database with configurable retention policies. Version-controlled method libraries, role-based access control (RBAC), and electronic signature workflows facilitate compliance with FDA, EMA, and MHRA regulatory expectations. Remote diagnostics and firmware update capabilities are accessible through Thermo Fisher’s SecureConnect portal—subject to customer-configured network security policies.
Applications
- Environmental monitoring: Quantification of fluoride, chloride, nitrate, sulfate, phosphate, and perchlorate in drinking water, wastewater, and groundwater per EPA and EU WFD directives.
- Pharmaceutical quality control: Testing of counterions (Na⁺, K⁺, Cl⁻, acetate) in APIs and injectables; residual catalyst analysis (e.g., Pd²⁺, Pt⁴⁺) in synthesis intermediates.
- Food & beverage safety: Detection of preservatives (sorbate, benzoate), adulterants (melamine), and nutritional electrolytes (Ca²⁺, Mg²⁺, NO₃⁻) in dairy, infant formula, and plant-based beverages.
- Battery electrolyte analysis: Speciation and quantification of Li⁺, PF₆⁻, BF₄⁻, and TFSI⁻ in lithium-ion battery formulations and recycling streams.
- Power generation: Monitoring of chloride and sulfate ingress in steam-cycle condensate to prevent turbine corrosion per ASTM D4582 and IAPWS guidelines.
FAQ
Can the Inuvion system be upgraded from Core to RFIC configuration post-purchase?
Yes—hardware and firmware are identical across all three configurations. Upgrades require only software license activation and optional EG/ES module installation, with no field service visit required.
Is Chromeleon CDS included with the system purchase?
Yes, a perpetual, instrument-bound Chromeleon CDS v7.3+ license is bundled, including one year of maintenance and updates. Extended support contracts are available.
What column dimensions and formats are supported?
Standard 4 mm and 2 mm bore analytical columns (up to 250 mm length), capillary columns (0.4 mm ID), and microbore formats—all compatible with Thermo Fisher’s Dionex IonPac™ line and industry-standard fittings.
Does the system support gradient elution?
Yes—via the Electrolytic Eluent Generator, which enables linear, step, or multi-step concentration gradients for both anion and cation modes, with programmable ramp rates and hold times.
How is data integrity ensured during long unattended runs?
Chromeleon enforces automatic audit trail logging for all acquisition, processing, and reporting events; all changes are timestamped, user-attributed, and non-erasable—fully compliant with ALCOA+ principles.
