Thermo Fisher FH40TG Extendable Radiation Survey Meter

Overview

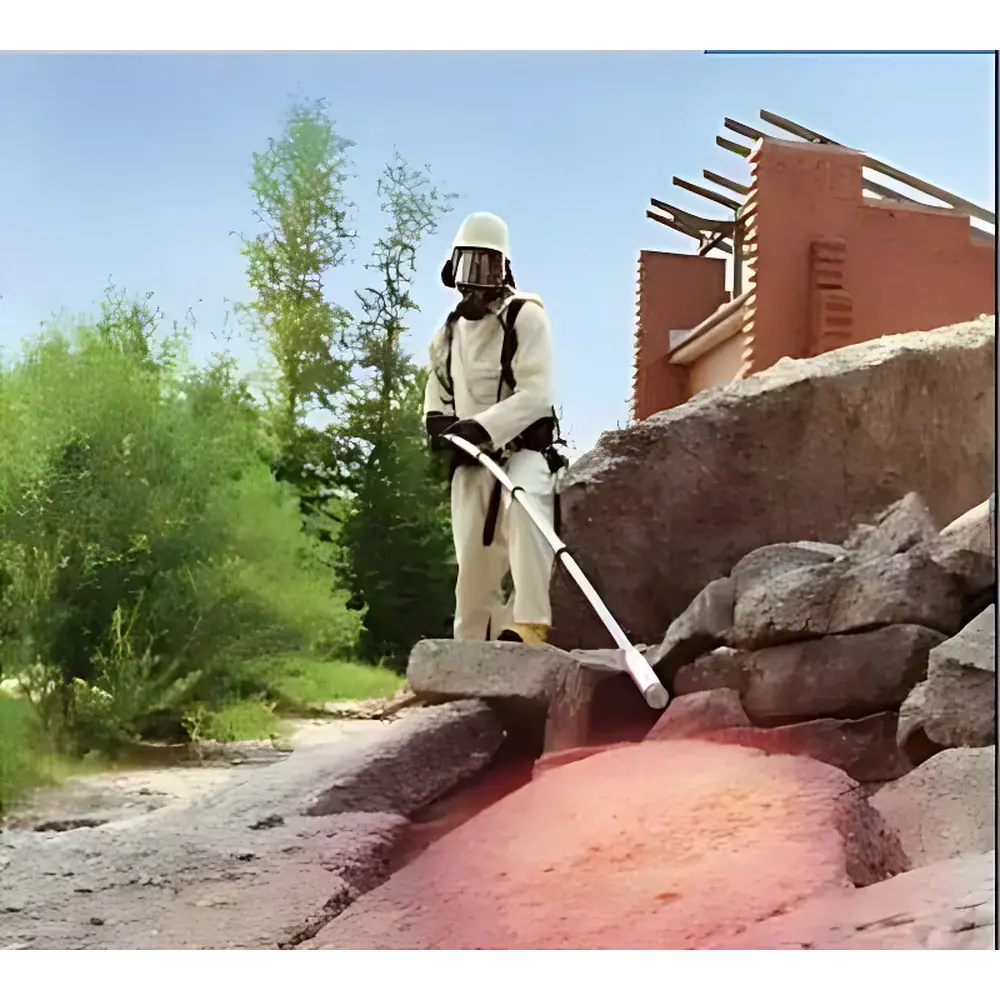

The Thermo Fisher FH40TG Extendable Radiation Survey Meter is a purpose-engineered portable radiation monitoring system designed for operational safety in nuclear facilities, decommissioning sites, medical radiotherapy environments, and emergency response scenarios. Built upon the proven FH40G platform, the FH40TG integrates a rigid, lightweight telescopic pole—constructed from high-strength fiberglass—to enable remote measurement at distances up to 4 meters from the operator. This physical separation significantly reduces occupational exposure during surveys of elevated-dose-rate zones, confined geometries (e.g., gloveboxes, ductwork, or reactor containment penetrations), or contaminated surfaces where direct approach is prohibited or impractical. The instrument operates on the principle of pulse-height analysis (for scintillation detectors) or current/integration mode (for GM and ionization chambers), delivering simultaneous real-time readouts of ambient dose equivalent rate H’(10) (in µSv/h or mSv/h) and accumulated personal dose equivalent H_p(10) (in µSv or mSv). Its dual-channel architecture permits concurrent acquisition from both the remote probe and an optional wrist-worn or belt-mounted secondary dosimeter—ensuring full traceability between area and personnel dose metrics.

Key Features

• Modular telescopic pole system: Four-section fiberglass pole with precision locking collars; extends smoothly from 0.8 m to 4.0 m; total system weight remains ≤2.6 kg including FH40G base unit and standard NaI(Tl) probe
• Dual-parameter real-time display: Simultaneous numeric and graphical representation of dose rate (logarithmic scale) and integrated dose on high-contrast OLED screen with backlight
• Multi-detector interoperability: Fully compatible with Thermo Fisher’s certified detector family—including 2″×2″ NaI(Tl) for gamma spectroscopy and identification, He-3 thermal neutron detectors for mixed-field environments, energy-compensated GM tubes for high-range beta/gamma, and ZnS(Ag)/⁶LiF proportional counters for alpha/beta discrimination
• Independent alarm configuration: User-definable dose rate and cumulative dose thresholds per connected detector; audible (85 dB @ 30 cm), visual (flashing LED), and vibration alerts; alarm events are time-stamped and stored in internal memory
• Ergonomic support accessories: Optional counterbalanced handle and wrist strap reduce operator fatigue during extended survey operations; pole base includes threaded tripod mount (¼″–20 UNC)
• Ruggedized IP67-rated enclosure: Operates continuously from –10 °C to +50 °C; resistant to dust, rain, and accidental immersion up to 1 m for 30 min

Sample Compatibility & Compliance

The FH40TG accommodates heterogeneous radiation fields across energy ranges from 30 keV to 7 MeV (gamma/X-ray) and thermal to 14 MeV (neutrons, depending on detector selection). It meets the performance requirements of IEC 60846-1:2014 (radiation protection instrumentation — dose rate meters) and IEC 61526:2010 (radiation protection instrumentation — portable contamination monitors). All detector configurations undergo individual type testing per ISO/IEC 17025-accredited calibration protocols traceable to national standards (PTB, NPL, or NIST). The system supports GLP/GMP-aligned workflows: audit trails, user access levels, and electronic signature capability are enabled when paired with RadEye Suite v4.2+ under FDA 21 CFR Part 11-compliant configuration.

Software & Data Management

Data acquisition, visualization, and reporting are managed through Thermo Fisher’s RadEye Suite—a Windows-based application supporting USB 2.0 and Bluetooth 4.2 LE communication. The software enables live streaming of dose rate trends, spectral acquisition (with NaI probes), customizable report generation (PDF/CSV), and automatic synchronization with enterprise radiation safety databases (e.g., Mirion DoseNet, Landauer Dosimetry Portal). Internal flash memory retains ≥10,000 timestamped measurement records with GPS metadata (when external GNSS module is attached). Firmware updates are delivered via signed .hex packages with cryptographic verification to ensure integrity and regulatory compliance.

Applications

• Decommissioning and decontamination (D&D) of legacy nuclear facilities
• In-service inspection of spent fuel pool walls and reactor cavity structures
• Post-incident radiological mapping following transportation accidents or facility breaches
• Quality assurance in industrial radiography and non-destructive testing (NDT) zones
• Regulatory compliance audits per IAEA RS-G-1.8 and national radiation protection ordinances
• Training simulations for first responders operating in radiological dispersal device (RDD) scenarios

FAQ

What detector options are certified for use with the FH40TG?
Thermo Fisher certifies the following detectors: FH40GL-10 (NaI(Tl), 2″×2″), FH40G-LN (He-3 neutron), FH40G-LM (energy-compensated GM), and FH40G-LP (ZnS/6LiF alpha/beta). Each carries individual type approval documentation.
Can the FH40TG be used in intrinsically safe environments?
No—the FH40TG is not ATEX or IECEx certified. For Zone 0/1 hazardous locations, consult Thermo Fisher’s intrinsically safe RadEye B20-EX variant.
Is firmware update capability available in the field?
Yes—updates are performed via USB or Bluetooth using RadEye Suite; no disassembly or service center visit is required.
How is calibration traceability maintained over the instrument’s service life?
Each detector is supplied with a PTB/NPL-traceable calibration certificate; annual recalibration is recommended and supported by Thermo Fisher’s global service network.
Does the FH40TG support wireless data transmission to central monitoring systems?
Yes—via optional RadEye Cloud Gateway, enabling secure TLS 1.2 transmission of real-time dose metrics to SCADA or EHS platforms.
