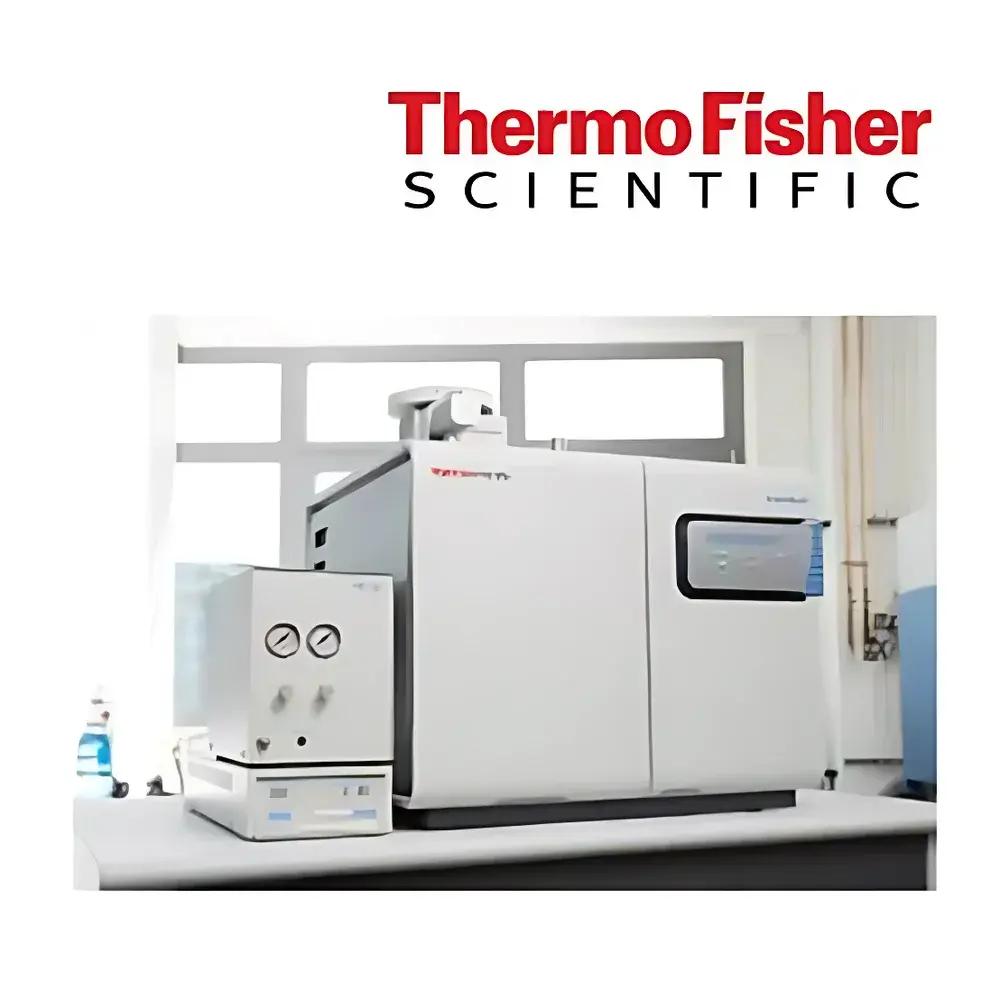

Thermo Fisher FlashSmart N/Protein Dumas Combustion Nitrogen Analyzer

Overview

The Thermo Fisher FlashSmart N/Protein is a high-throughput, fully automated Dumas combustion elemental analyzer engineered for precise, reliable quantification of total nitrogen—and by extension, protein content—in solid and liquid samples across food, feed, agricultural, environmental, and pharmaceutical laboratories. Unlike Kjeldahl-based methods, which rely on acid digestion and distillation over hours, the FlashSmart employs high-temperature (up to 1150 °C) catalytic combustion in an oxygen-rich atmosphere, converting all organic and inorganic nitrogen compounds quantitatively into molecular nitrogen (N₂). The evolved N₂ gas is then separated via chromatographic column and detected with high-sensitivity thermal conductivity detection (TCD), delivering trace-level accuracy without matrix-specific interferences. This principle ensures compliance with internationally recognized standards including ISO 13878 (for soil and plant materials), AOAC Official Method 992.15 (for food and feed), ASTM D515 (for water), and EN ISO 13878 (for fertilizers), making it suitable for regulatory reporting and quality control under GLP or GMP frameworks.

Key Features

• Fully automated operation with integrated sample weighing, combustion, gas separation, detection, and data calculation—requiring only single-button initiation.
• Electronic Flow Control (EFC) system dynamically regulates carrier and oxygen gas flows in real time, ensuring method robustness and minimizing drift across extended sequences.
• Modular hardware architecture supporting configurable analysis modes: N-only, N/Protein, CHNS, NCS, NC, and oxygen (O) determination—enabling laboratory scalability without instrument replacement.
• Expandable sample handling: standard 32-position carousel; optionally upgraded to four independent carousels (125 total positions), enabling unattended 24/7 operation for high-volume routine labs.
• Intelligent method selection via EagerSmart™ software: automatically selects optimized temperature ramps, oxygen pulses, and combustion durations based on sample mass and preloaded method profiles from the OEACookBook library (1,000+ validated protocols).
• Self-diagnostic routines including automatic leak detection, temperature calibration verification, and gas purity monitoring—reducing downtime and operator dependency.

Sample Compatibility & Compliance

The FlashSmart N/Protein accepts heterogeneous sample types without derivatization or pretreatment: cereals, meat, dairy powders, pet food, soil, compost, wastewater sludge, polymers, and pharmaceutical excipients. Solid samples require ≥1 g mass for optimal precision; liquids are analyzed using sealed tin capsules with internal oxidant. All measurements fall within the linear dynamic range of 0.001–500 mg N, with demonstrated recovery of 99.5–100% across certified reference materials (CRMs) such as BCR-386 (wheat flour), IAEA-326 (soil), and NIST SRM 1577c (bovine liver). The system meets FDA 21 CFR Part 11 requirements for electronic records and signatures when deployed with EagerSmart’s audit-trail-enabled configuration, and supports full traceability for ISO/IEC 17025-accredited testing laboratories.

Software & Data Management

EagerSmart™ is a Windows-based, CE- and FDA-compliant control and analysis platform featuring role-based user access, customizable report templates (PDF/CSV/XLSX), and embedded statistical tools (RSD, confidence intervals, trend analysis). It maintains full audit trails—including user actions, parameter changes, calibration events, and raw detector signals—with timestamped, non-erasable logs. Methods are stored in encrypted format and can be exported/imported for cross-instrument harmonization. Integration with LIMS is supported via ASTM E1384-compliant interface protocols, and raw chromatograms are archived in vendor-neutral .cdf format for third-party reprocessing.

Applications

• Food & Feed: Protein quantification in grains, soy products, infant formula, and aquafeed per AOAC 992.15 and ISO 13878.
• Agriculture: Total nitrogen in soils, manures, and biofertilizers for nutrient balance modeling.
• Environmental: TN analysis in wastewater, sediments, and biogas digestates per EPA and ISO guidelines.
• Pharmaceuticals: Residual nitrogen in excipients and active pharmaceutical ingredients (APIs) per USP .
• Research: High-precision stoichiometric studies in polymer chemistry, catalyst characterization, and metabolic profiling.

FAQ

What is the difference between Dumas combustion and Kjeldahl nitrogen analysis?
Dumas combustion uses high-temperature oxidation and gas-phase detection, offering faster turnaround (3–4 min/sample), no hazardous chemicals, and broader analyte coverage (including nitrate, nitrite, and heterocyclic nitrogen). Kjeldahl relies on sulfuric acid digestion and steam distillation, requiring >60 minutes/sample and failing to recover certain nitrogen forms.
Can the FlashSmart analyze volatile or thermally labile samples?
Yes—samples are encapsulated in inert tin capsules prior to combustion, preventing loss of volatile nitrogen species and ensuring quantitative recovery even for low-molecular-weight amines or ammonium salts.
Is method validation support available?
Thermo Fisher provides application notes, CRM test reports, and IQ/OQ/PQ documentation packages aligned with ISO/IEC 17025 and GxP requirements.
How is protein content calculated from nitrogen results?
EagerSmart applies user-defined conversion factors (e.g., 6.25 for general food, 5.70 for wheat, 6.38 for dairy) directly during post-run calculation, with full audit logging of each factor applied per sample.
Does the system require external cooling water or compressed air?
No—FlashSmart operates with ambient air cooling and built-in oxygen generation or bottled O₂ supply; no auxiliary utilities are needed beyond standard 230 V / 1400 W electrical service.
