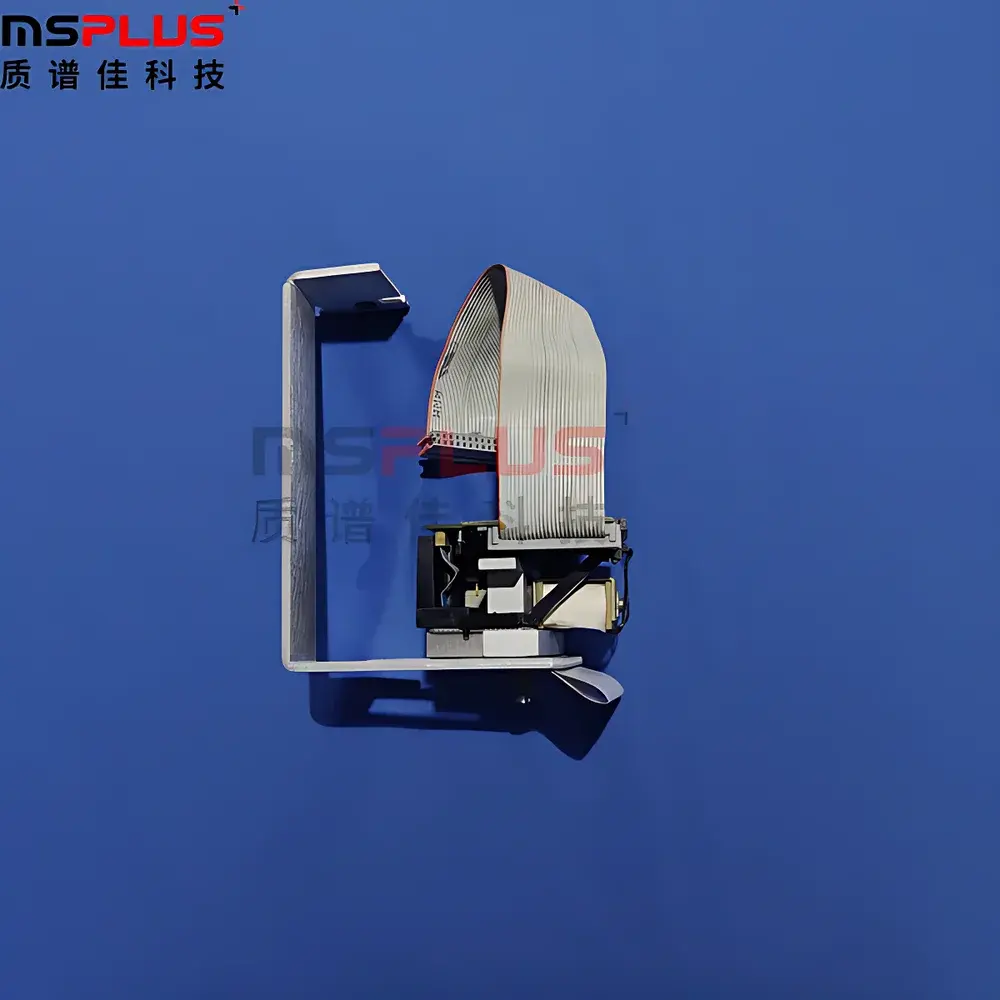

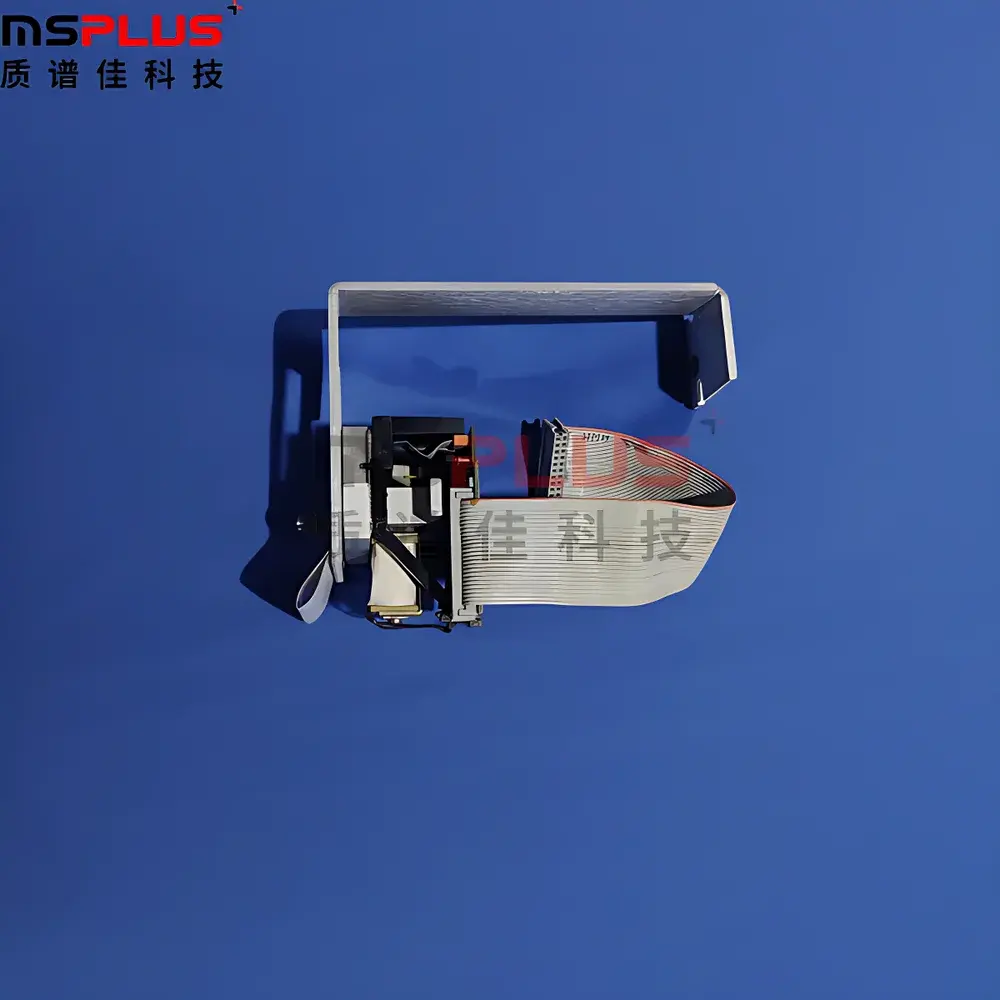

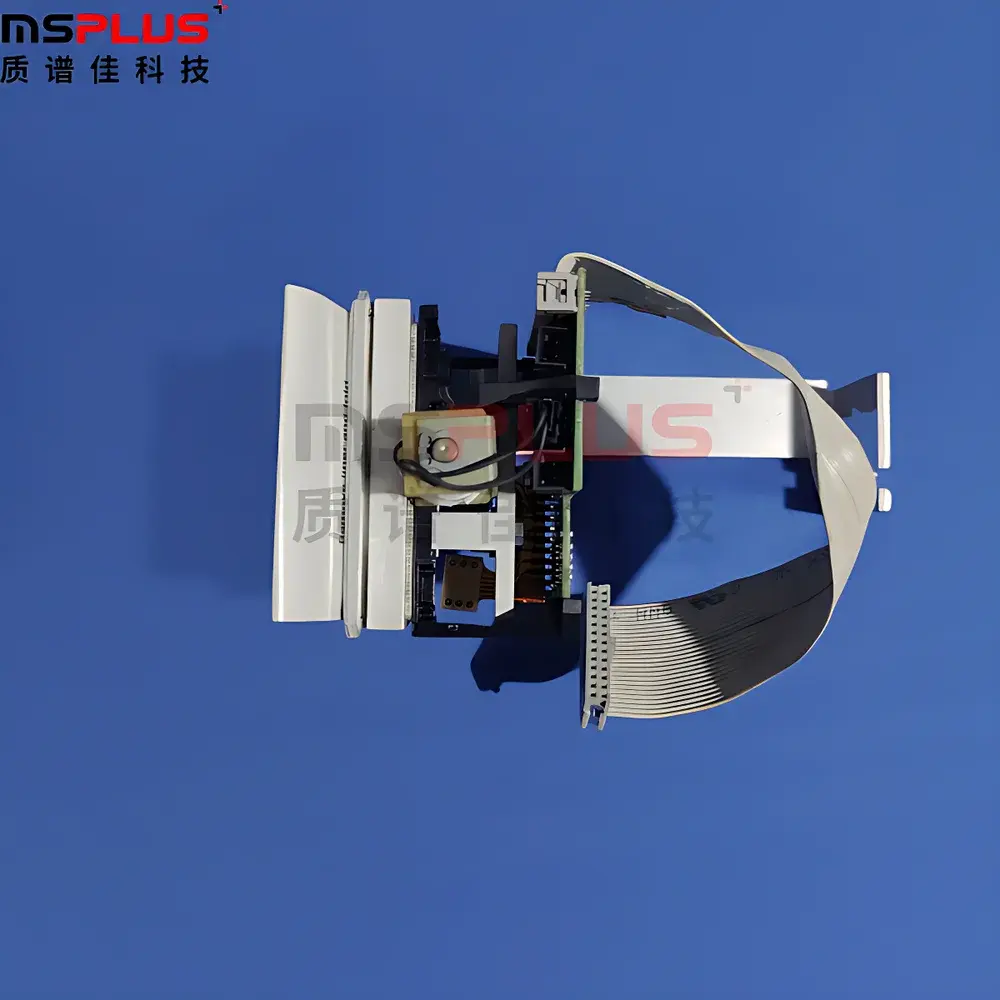

Thermo Fisher G2397-60720 Universal Electron Capture Detector (UECD)

Overview

The Thermo Fisher G2397-60720 Universal Electron Capture Detector (UECD) is an original-equipment manufacturer (OEM) detector module engineered for high-sensitivity, selective quantification of electronegative analytes in gas chromatography (GC) applications. Based on the fundamental principle of electron capture detection—where analytes with high electron affinity (e.g., halogenated compounds, nitroaromatics, organophosphates) temporarily scavenge thermal electrons from a radioactive ⁶³Ni source—the UECD delivers exceptional detection limits (sub-femtogram levels for PCBs and chlorinated pesticides) and excellent signal-to-noise ratio under optimized carrier gas flow and temperature conditions. This detector is fully compatible with Thermo Scientific TRACE GC, TRACE 1300/1310 series, and ISQ LT/EC single-quadrupole GC-MS systems. Its modular design enables seamless integration into existing GC or GC-MS configurations without hardware modification, preserving system calibration integrity and regulatory compliance.

Key Features

• OEM-grade replacement part—identical to factory-installed units in materials, geometry, and electrical interface specifications
• Integrated ⁶³Ni foil source with certified activity and documented decay profile per IAEA safety guidelines
• Temperature-stabilized detector cell (operable from 50 °C to 400 °C) with active cooling for rapid thermal equilibration
• Optimized electrode geometry and collector bias circuitry to minimize baseline drift and enhance long-term signal stability
• Gas flow path engineered for helium or nitrogen carrier compatibility; supports make-up gas inlet for improved peak shape and sensitivity
• RoHS-compliant construction and CE-marked electromagnetic compatibility (EMC) per EN 61326-1:2013

Sample Compatibility & Compliance

The G2397-60720 UECD is validated for routine analysis of trace-level halogenated contaminants in environmental, food safety, and pharmaceutical matrices—including drinking water (EPA Method 8081B), soil extracts (EPA Method 8082A), pesticide residues in crops (AOAC 2007.01), and residual solvents in APIs (ICH Q3C). It meets performance criteria outlined in ASTM D5845–22 (Standard Test Method for Determination of Chlorinated Pesticides in Water by GC-ECD) and ISO 10302:2021 (Water quality — Determination of organochlorine pesticides — Gas chromatographic method with electron-capture detection). All units are supplied with full traceability documentation, including Certificate of Conformance (CoC), radioactive source serial number, and leak-test verification report compliant with NRC 10 CFR Part 34 and EU Directive 2013/59/Euratom.

Software & Data Management

The detector operates natively within Thermo Scientific Chromeleon™ CDS v7.3 or later and supports full audit trail functionality per FDA 21 CFR Part 11 requirements when deployed in regulated environments. Raw ECD voltage signals are digitized at 100 Hz with 24-bit resolution and synchronized with GC oven temperature, valve events, and MS acquisition triggers. Peak integration parameters—including baseline correction algorithm (adaptive rolling polynomial), noise thresholding, and electronic filter time constant (0.1–10 s)—are configurable via instrument method editor. Data export formats include .CDF (NetCDF), .CSV, and .XML for LIMS interoperability. Remote diagnostics and firmware updates are supported through Chromeleon’s embedded device manager.

Applications

• Environmental monitoring: Quantification of PCB congeners, dioxins/furans (as surrogates), and chlorinated herbicides in sediment, wastewater, and air particulate filters
• Food safety: Screening of hexachlorocyclohexane (HCH), DDT metabolites, and brominated flame retardants (PBDEs) in dairy, meat, and vegetable samples
• Pharmaceutical QC: Residual solvent testing (e.g., chloroform, carbon tetrachloride) in drug substances per USP <467>
• Forensic toxicology: Detection of nitroglycerin, ethylene oxide, and other explosive precursors in post-blast residue analysis
• Regulatory compliance: Supporting GLP studies for EPA, EFSA, and PMDA submissions requiring validated ECD-based methods

FAQ

Is the G2397-60720 compatible with non-Thermo GC systems?
No—it is mechanically and electrically designed exclusively for Thermo Scientific GC and GC-MS platforms. Interfacing with third-party instruments requires custom cabling, signal conditioning, and firmware adaptation not supported by Thermo or this component.
Does this detector require recalibration after installation?
Yes—detector response must be verified using certified standard mixtures (e.g., IUPAC PCB-103/153/180) and adjusted via Chromeleon’s ECD gain/tuning utility prior to sample analysis.
What is the expected lifetime of the ⁶³Ni source?
The half-life of ⁶³Ni is 102 years; however, practical detector sensitivity declines gradually due to source contamination and electrode passivation—typically requiring source replacement every 5–7 years under continuous operation.
Can the UECD be used simultaneously with a mass spectrometer in a GC-MS/MS configuration?
No—electron capture detection is a standalone, destructive detection mode. It cannot operate concurrently with MS detection; users must select either ECD or MS acquisition per run.
Is radiation safety training required for handling this detector?
Yes—per national regulatory frameworks (e.g., NRC, HSE, BfS), personnel must complete radiation safety orientation and maintain dosimetry records. The unit ships with lead-lined packaging and transport documentation compliant with IATA Dangerous Goods Regulations (Class 7).
