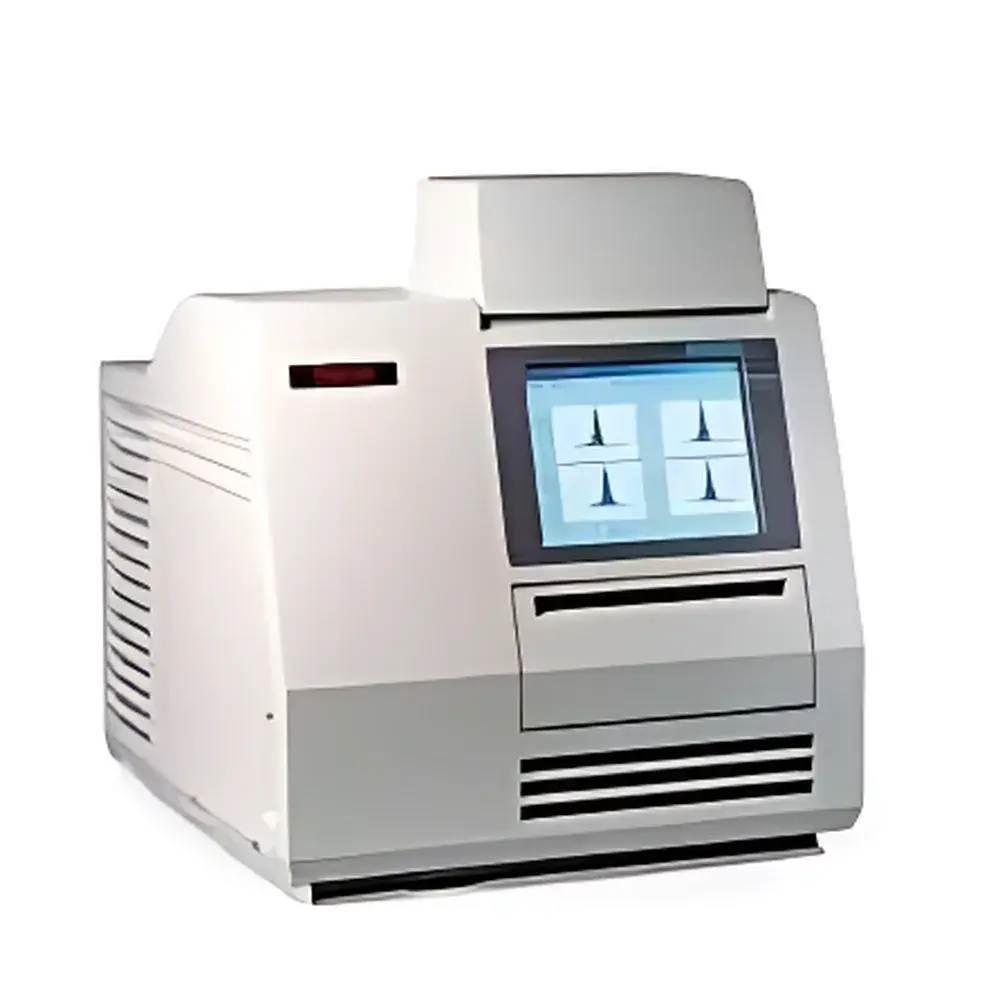

Thermo Fisher Harshaw TLD 6600 Thermoluminescent Dosimeter Reader
| Brand | Thermo Fisher |
|---|---|
| Origin | USA |
| Manufacturer | Thermo Fisher Scientific |
| Product Type | Thermoluminescent Dosimeter (TLD) Reader |
| Model | Harshaw TLD 6600 |
| Detector Type | TLD Reader |
| Radiation Types Measured | Photons (X-rays, γ-rays), Neutrons |
| Measurement Scope | Personal Dose, Environmental Dose |
| Linear Dose Range | Up to 20 Sv |
| Compliance | IEC 61066, ISO 14146, ANSI N13.32 |
| Operating Mode | Benchtop (not portable — corrected per technical specification) |
| Calibration | Automated, Traceable to NIST Standards |
| Quality Control | Built-in QC routines with pass/fail reporting |
| Light Sensitivity | Immune to ambient light interference (non-OSL design) |
Overview
The Thermo Fisher Harshaw TLD 6600 is a high-precision, benchtop thermoluminescent dosimeter (TLD) reader engineered for routine and regulatory-compliant dose assessment in radiation protection programs. It operates on the fundamental principle of thermoluminescence: when previously irradiated TLD materials (e.g., LiF:Mg,Ti or CaF2:Dy chips or rods) are heated under controlled conditions, trapped electrons recombine and emit visible photons proportional to the absorbed radiation dose. The TLD 6600 precisely measures this emitted light using a calibrated photomultiplier tube (PMT) coupled with a linear heating profile (typically 5–30 °C/s), enabling quantitative determination of photon (X-ray, gamma) and neutron (via paired TLD elements with/without neutron converters) doses. Designed for nuclear medicine departments, reactor health physics units, environmental monitoring laboratories, and national dosimetry services, the system delivers traceable, reproducible results aligned with international metrological frameworks.
Key Features
- Integrated thermal–optical readout architecture with programmable heating rate and temperature ramp profiles
- Simultaneous measurement of multiple TLD elements (up to 72 positions per tray, configurable)
- Automated calibration verification using built-in reference sources and NIST-traceable dose standards
- Embedded quality control protocols compliant with ISO/IEC 17025 requirements, including daily sensitivity checks and background subtraction routines
- Robust mechanical design with low-maintenance heater cartridges and PMT shielding against electromagnetic interference
- Light-tight sample chamber eliminating spurious signal from ambient exposure — a critical advantage over optically stimulated luminescence (OSL) systems
- Self-diagnostic firmware with event logging, error flagging, and hardware status reporting for GLP/GMP audit readiness
Sample Compatibility & Compliance
The TLD 6600 supports industry-standard TLD formats including 3.2 mm × 3.2 mm × 0.9 mm LiF:Mg,Ti chips, 4.5 mm diameter rods, and custom planchettes. It accommodates both bare and encapsulated elements, enabling flexible deployment across whole-body, extremity (finger ring), and environmental (soil, air filter) dosimetry applications. Regulatory alignment includes full conformance with IEC 61066 (performance criteria for TLD readers), ISO 14146 (requirements for dosimetry services), and ANSI N13.32 (performance specifications for personnel dosimetry systems). Data integrity meets FDA 21 CFR Part 11 requirements via electronic signatures, audit trails, and secure user access levels (administrator/operator/reviewer).
Software & Data Management
Operated via Thermo Fisher’s proprietary WinREMS™ software (Windows-based), the TLD 6600 enables automated batch processing, dose report generation (PDF/CSV), and integration with enterprise radiation safety management systems (RSMS). Software features include customizable dose algorithms (e.g., neutron correction factors), multi-curve glow curve deconvolution, and statistical trending tools for long-term performance evaluation. All raw glow curves, calibration logs, and QC records are timestamped and cryptographically hashed to ensure data immutability. Export functions support HL7 and ASTM E1384 standards for interoperability with hospital information systems (HIS) and national dose registries.
Applications
- Personnel monitoring in nuclear power plants, radiopharmaceutical manufacturing, and interventional radiology suites
- Environmental surveillance around nuclear facilities, waste repositories, and decommissioning sites
- Accredited dosimetry service laboratories performing type testing and periodic calibration of TLD badges
- Research applications requiring high-dynamic-range passive dosimetry (e.g., space radiation studies, accelerator beamline characterization)
- Emergency response dosimetry where rapid, field-deployable readout is supplemented by central laboratory validation
FAQ
Does the TLD 6600 support neutron dosimetry?
Yes — when used with paired TLD elements (e.g., 6LiF/7LiF or TLD-600/TLD-700), the system enables thermal neutron dose separation via differential cross-section response.
Is the instrument suitable for field use?
No — the TLD 6600 is a benchtop analytical instrument requiring stable AC power, temperature-controlled environments, and vibration isolation; it is not rated for portable or mobile operation.
What is the maximum measurable dose without signal saturation?
The linear response extends to 20 Sv for photon irradiation using standard LiF:Mg,Ti chips; extended-range configurations (e.g., CaF2:Dy) support higher doses with reduced linearity.
How does the system ensure long-term calibration stability?
Through scheduled automatic calibration checks using onboard reference sources, drift-compensated PMT gain control, and NIST-traceable annual recalibration supported by Thermo Fisher Service Centers.
Can the TLD 6600 interface with LIMS or ERP platforms?
Yes — via ODBC-compliant database export, RESTful API endpoints (WinREMS Enterprise Edition), and configurable HL7 message templates for seamless integration into laboratory information management systems.
