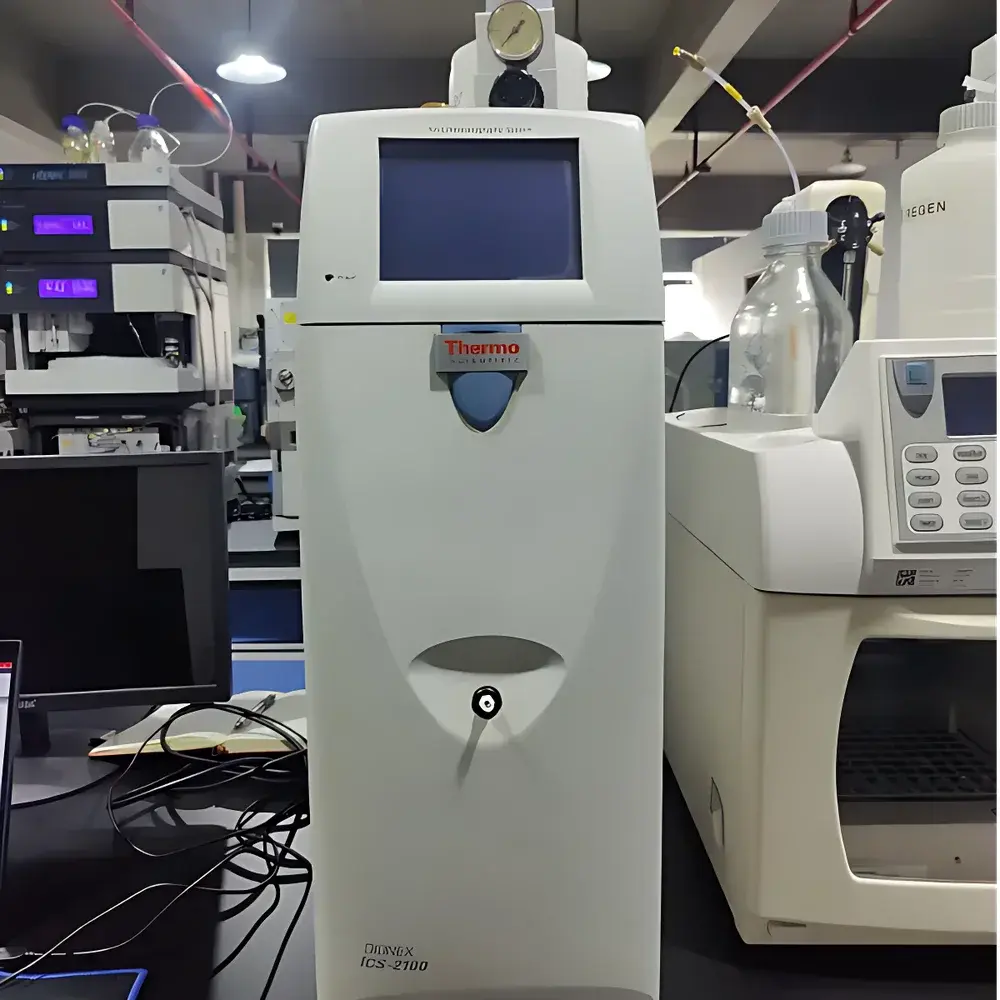

Thermo Fisher ICS-2100 Ion Chromatography System (Refurbished, Available for Monthly Rental)

Overview

The Thermo Fisher ICS-2100 is a benchtop ion chromatography (IC) system engineered for high-resolution, trace-level anion and cation analysis in environmental, pharmaceutical, food & beverage, and industrial quality control laboratories. Built on Thermo Fisher’s proprietary RFIC™ (Reagent-Free Ion Chromatography) technology, the ICS-2100 eliminates the need for manually prepared eluents by generating high-purity potassium hydroxide (for anions) or methanesulfonic acid (for cations) electrolytically—ensuring consistent baseline stability, reduced carryover, and enhanced reproducibility across extended run sequences. Its integrated dual-piston isocratic or gradient pump, electrochemical conductivity detector with digital signal processing, and thermostatically controlled column compartment (ambient to 60 °C) support robust method transfer and regulatory compliance. This refurbished unit undergoes full functional validation—including leak testing, pressure calibration, baseline noise assessment (<0.5 nS), and retention time precision verification (RSD <0.2% over 10 injections)—prior to rental deployment.

Key Features

• RFIC™ technology with EGC™ (Eluent Generation Cartridge) for automated, high-purity eluent production
• Isocratic or low-pressure gradient capability (0–100% B in ≤30 min) using dual-piston pump (flow range: 0.01–5.00 mL/min, precision ±0.1%)
• Thermostatically controlled column compartment (setpoint accuracy ±0.2 °C) for improved retention time stability
• Digital conductivity detector with adjustable gain (0.001–100 µS/cm full scale) and temperature compensation
• Integrated auto-sampler with 48-position vial capacity and programmable injection volumes (1–100 µL)
• Compact footprint (W × D × H: 54 × 51 × 47 cm) suitable for space-constrained QC labs
• Full system diagnostics via Chromeleon™ CDS software interface (v7.2 or later)

Sample Compatibility & Compliance

The ICS-2100 supports aqueous sample matrices including drinking water, wastewater, soil extracts, pharmaceutical excipients, battery electrolytes, and food leachates. It accommodates standard IC columns (e.g., Thermo Dionex IonPac AS18, CS12A, or ICE-AS1) and is validated for use in methods compliant with EPA Methods 300.0, 300.1, and 314.0; ISO 10304-1:2012; and ASTM D4327. All refurbished units include documented IQ/OQ protocols aligned with GLP and GMP environments. Data integrity features—including user access controls, electronic signatures, and audit trail logging—are enabled when operated with Chromeleon CDS under 21 CFR Part 11-compliant configuration.

Software & Data Management

Operation and data acquisition are managed through Thermo Fisher Chromeleon Chromatography Data System (CDS) v7.2 or higher. The system supports method development tools, peak integration with customizable baselines, automated calibration curve generation (linear, quadratic, or weighted), and report templates exportable to PDF, CSV, or XML. Audit trails record all user actions—including method edits, sequence changes, and result modifications—with timestamps and operator IDs. Raw data files (.cdf) are stored in a structured folder hierarchy with immutable metadata, facilitating internal audits and external inspections per ISO/IEC 17025 requirements.

Applications

• Environmental monitoring: Quantification of F⁻, Cl⁻, NO₂⁻, Br⁻, NO₃⁻, PO₄³⁻, SO₄²⁻, and AsO₄³⁻ in surface water and groundwater per EPA guidelines
• Pharmaceutical QA/QC: Testing of counterions (Na⁺, K⁺, Ca²⁺, Mg²⁺) in APIs and excipients; residual acetate or chloride in biologics formulations
• Food safety: Detection of preservatives (benzoate, sorbate), nitrate/nitrite in cured meats, and sulfite in wines
• Battery R&D: Analysis of Li⁺, Na⁺, K⁺, and PF₆⁻ degradation products in lithium-ion electrolyte formulations
• Industrial process control: Monitoring of sulfate and chloride ingress in cooling tower water or steam condensate

FAQ

Is this a factory-refurbished unit or third-party refurbished?
This ICS-2100 has been comprehensively refurbished by certified Thermo Fisher-trained technicians following OEM service bulletins. All wear-prone components—including pump seals, check valves, detector flow cells, and injector rotors—have been replaced with genuine Thermo parts.
What documentation accompanies the rental unit?
Each system ships with a Certificate of Functional Verification, completed IQ/OQ checklist, RFIC cartridge lot traceability records, and a signed statement of conformance to ISO 9001:2015 maintenance practices.
Can the system be configured for cation analysis?
Yes—the ICS-2100 supports both anion and cation modes via interchangeable suppressors and eluent cartridges (e.g., EGC III MS for cations). Configuration is performed during pre-shipment validation.
Is remote diagnostic support included during the rental term?
Yes. Complimentary remote assistance—including real-time instrument status review, method troubleshooting, and basic Chromeleon configuration guidance—is available Monday–Friday, 08:00–18:00 CET via secure TeamViewer session or encrypted screen share.
What happens if a hardware fault occurs during the rental period?
All rentals include on-site technical support within 48 business hours in mainland China. Critical failures (e.g., pump failure, detector drift >5% FS) trigger priority dispatch with loaner-unit provisioning where operationally feasible.
