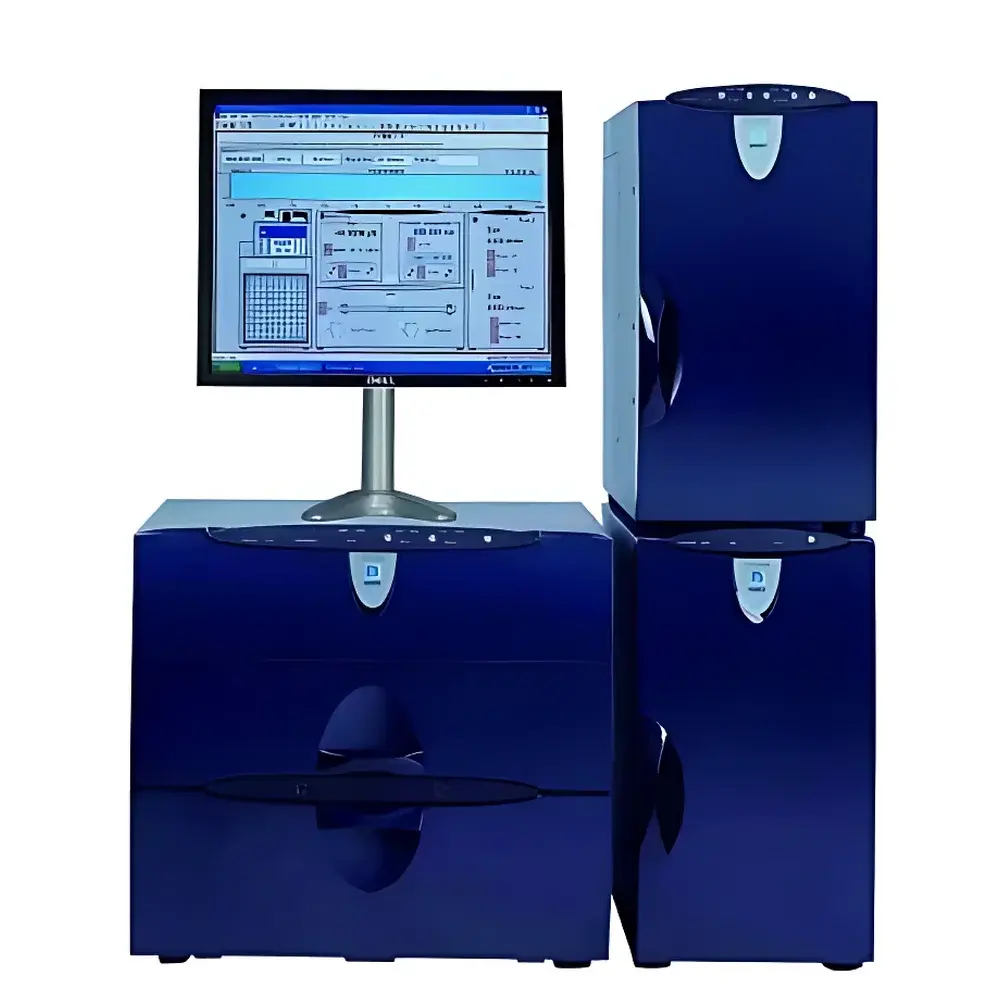

Thermo Fisher ICS-5000+ Multi-Application Ion Chromatography System

Overview

The Thermo Fisher ICS-5000+ is a high-performance, modular ion chromatography (IC) platform engineered for research-grade precision, method flexibility, and long-term operational robustness in regulated and non-regulated laboratories. As the world’s first capillary-scale IC system—originally developed by Dionex prior to Thermo Fisher’s acquisition—the ICS-5000+ integrates capillary (0.4 mm), microbore (2 mm), and standard-bore (4 mm) chromatographic formats within a single, unified architecture. Its core measurement principle relies on suppressed conductivity detection following anion- or cation-exchange separation, with optional electrochemical (pulsed amperometric), UV/Vis (VWD), or charged aerosol detection (CAD) for orthogonal analyte characterization. Designed for multi-application workflows—including inorganic anion/cation analysis, organic acid profiling, amino acid quantification, carbohydrate mapping, and biopharmaceutical impurity testing—the system supports both isocratic and gradient elution across pH 0–14 mobile phases, leveraging electrolytic eluent generation (EG) and regeneration (ER) technologies to minimize manual intervention and chemical waste.

Key Features

• Modular dual-format capability: seamless switching between capillary (0.02 µL detector cell volume), microbore, and standard-bore IC configurations without hardware reconfiguration
• Dual-gradient architecture: supports both quaternary low-pressure mixing (for complex multi-analyte methods) and binary high-pressure gradient delivery (for rapid, reproducible separations)
• Electrolytic eluent generation (EG): on-demand production of KOH, MSA, or carbonate/bicarbonate eluents with ±0.5% gradient accuracy and programmable nonlinear profiles (linear, concave, convex, step)
• RFIC-ER (Reagent-Free IC Eluent Regeneration): extends 4 L eluent reservoir operation to ≥2,000 injections or 28 days at 1 mL/min; reduces annual ultrapure water consumption to ≤5.25 L
• Integrated DC module with dual-zone temperature control (upper zone: 10–40°C; lower zone: 10–70°C) for precise column and detector thermal management (stability ≤0.2°C)
• PEEK-fluidic path throughout pump, injector, and detector modules—chemically inert from pH 0 to 14 and compatible with organic modifiers (e.g., acetonitrile, methanol)
• Maximum operating pressure: 35 MPa (5,000 psi) for analytical flow paths; 41 MPa (6,000 psi) for capillary flow paths

Sample Compatibility & Compliance

The ICS-5000+ accommodates diverse sample matrices—including environmental waters (drinking, wastewater, seawater), pharmaceutical excipients, biological fluids (serum, urine, cell culture supernatants), food extracts, and semiconductor process chemicals—without requiring derivatization or extensive pretreatment. It meets stringent regulatory requirements for method validation and data integrity: full compliance with FDA 21 CFR Part 11 (via Chromeleon 7.3 CDS audit trail, electronic signatures, and role-based access control), GLP/GMP documentation standards, and international method references including ASTM D4327 (anions in water), ISO 14911 (cation analysis), USP (conductivity testing), and EPA Methods 300.0, 300.1, 310.0, and 321.8. All detectors—including the high-sensitivity conductivity detector (0.00238 nS/cm resolution, <0.1 nS noise), pulsed amperometric detector (IPAD mode noise <50 pC), and variable-wavelength detector (190–900 nm, 1 nm step)—are calibrated traceably to NIST standards and support IQ/OQ/PQ protocols.

Software & Data Management

Chromeleon 7.3 Chromatography Data System (CDS) serves as the centralized control and reporting engine. It provides automated sequence setup, real-time instrument monitoring, predictive maintenance alerts (e.g., EG cartridge depletion, ER column saturation), and integrated report generation with customizable templates compliant with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). The software supports secure network deployment, multi-user environments with hierarchical permissions, and direct export to LIMS or ELN platforms via ASTM E1384-compliant interfaces. All raw data files are stored in vendor-neutral .cdf format, and audit trails are immutable, time-stamped, and encrypted per FIPS 140-2 specifications.

Applications

The ICS-5000+ delivers validated performance across academic, industrial, and regulatory laboratories. Key use cases include: quantitative determination of nitrate, sulfate, fluoride, and perchlorate in drinking water per EPA Method 300.1; speciation of iodide, bromide, and thiocyanate in pharmaceutical formulations under ICH Q5C guidelines; simultaneous analysis of glucose, fructose, and sucrose in fruit juices using borate-complexing eluents; release testing of chloride and acetate counterions in monoclonal antibody drug substances; and high-resolution mapping of sialic acids and neutral monosaccharides in glycoprotein therapeutics. Its compatibility with mass spectrometry (via ESI interface) further enables structural confirmation of unknown ionic metabolites in untargeted profiling studies.

FAQ

Is the ICS-5000+ compatible with existing Dionex consumables and columns?
Yes—fully backward-compatible with all legacy Dionex analytical and guard columns, suppressors, EG cartridges, and ER cartridges.
Can the system be configured for both anion and cation analysis without hardware modification?
Yes—switching between anion-exchange (e.g., AS23, AS26) and cation-exchange (e.g., CS12A, CS19) columns requires only method parameter changes and optional detector module swaps.
Does Chromeleon 7.3 support 21 CFR Part 11 compliance out-of-the-box?
Yes—when deployed in validated configuration with enabled electronic signatures, audit trail logging, and user access controls, it satisfies all technical and procedural requirements for regulated environments.
What is the typical maintenance interval for the EG and ER modules?
EG cartridges last ~2,000 injections (or ~6 months at 10 injections/day); ER cartridges operate for ≥28 days under continuous use at 1 mL/min with 4 L reservoirs.
Is remote diagnostics and firmware updates supported?
Yes—via Thermo Fisher Connect cloud platform with secure TLS 1.2 encrypted communication and optional proactive health monitoring subscription.
