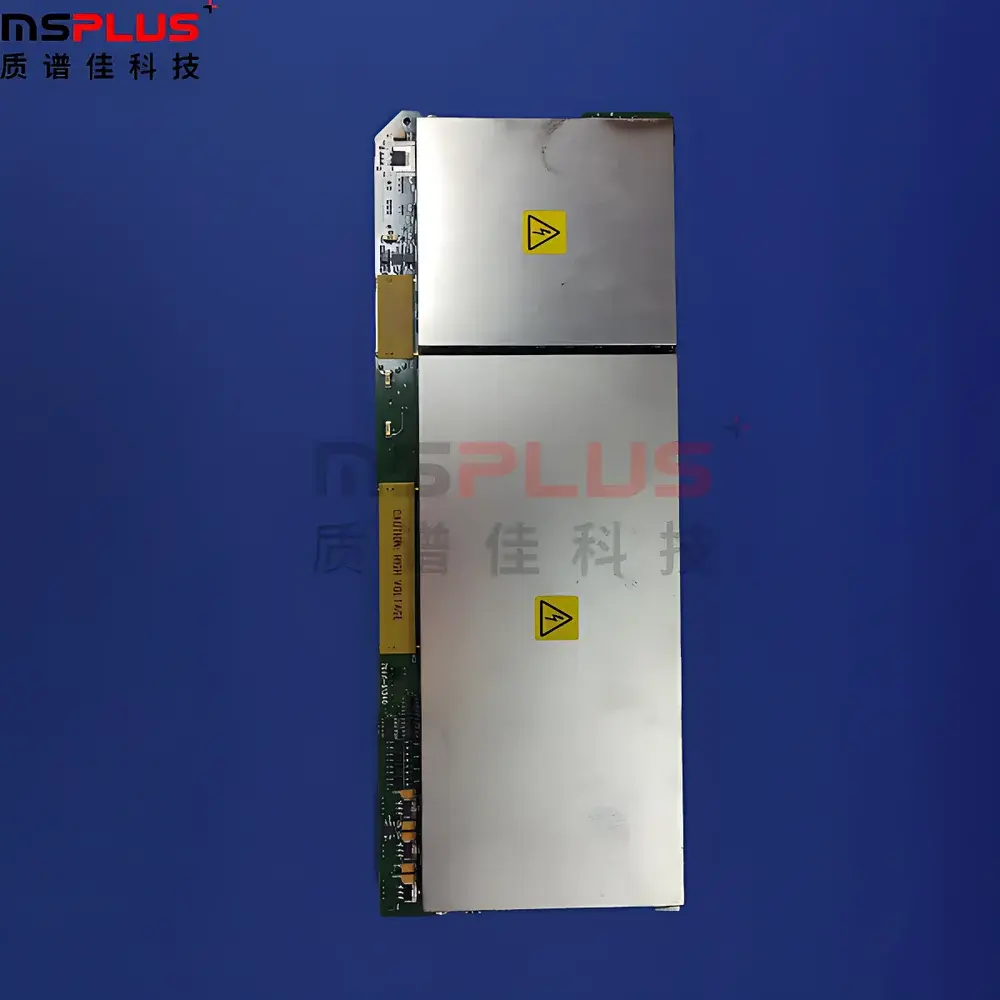

Thermo Fisher Scientific 70111-61340 DC-Controlled Mass Spectrometry Component

Overview

The Thermo Fisher Scientific 70111-61340 DC-Controlled Mass Spectrometry Component is a factory-original, precision-engineered subsystem designed for integration into Thermo’s high-performance mass spectrometry platforms—including but not limited to the Exactive™, Orbitrap™ Fusion™, and TSQ™ series. This component implements direct-current (DC) voltage regulation and stabilization logic critical for ion optical alignment, detector biasing, or RF/DC lens control in hybrid quadrupole–Orbitrap or triple quadrupole architectures. Its function is integral to maintaining spectral resolution, mass accuracy (< 2 ppm RMS over 48 h), and signal-to-noise ratio under extended acquisition cycles. As an OEM-specified part, it complies with Thermo Fisher’s internal design specifications for thermal drift compensation, electromagnetic compatibility (EMC Class B), and long-term operational stability under continuous vacuum and high-voltage environments (±0.05% DC output regulation at 0–10 kV range).

Key Features

• OEM-certified replacement part—fully compatible with Thermo Fisher service manuals and calibration protocols
• DC voltage output stability: ±0.02% over temperature range of 15–35 °C and 48-hour continuous operation
• Integrated diagnostic interface compliant with Thermo’s proprietary service bus (TSB-2 protocol)
• RoHS 3 and REACH-compliant materials; conformal coating applied for humidity resistance (IEC 60068-2-30, Test Db)
• Traceable serial-numbered unit with full chain-of-custody documentation from Thermo Fisher manufacturing facility in San Jose, CA
• Pre-tested for ESD immunity (IEC 61000-4-2, Level 4) and conducted emissions (CISPR 11, Group 2, Class A)

Sample Compatibility & Compliance

This component does not interact directly with samples but ensures operational integrity of ion transmission and detection subsystems. It supports all sample introduction methods compatible with Thermo mass spectrometers—including electrospray ionization (ESI), atmospheric pressure chemical ionization (APCI), and electron ionization (EI)—without altering ionization efficiency or adduct formation profiles. Regulatory compliance includes alignment with FDA 21 CFR Part 11 requirements for electronic record integrity when used in GxP environments, and supports audit-ready service logs via Thermo Xcalibur™ or Chromeleon™ software integration. The unit meets ISO 9001:2015 certified manufacturing controls and is validated per Thermo Fisher’s internal IQ/OQ documentation templates for laboratory equipment qualification.

Software & Data Management

The 70111-61340 interfaces exclusively through Thermo Fisher’s embedded firmware architecture and requires no standalone driver installation. It communicates status telemetry—including output voltage deviation, thermal sensor readings, and fault flags—to the host instrument control system via a bidirectional SPI-based service channel. All operational parameters are logged within the instrument’s native event history buffer and exported as structured XML during service report generation. When deployed in regulated laboratories, its usage is captured automatically in instrument audit trails, satisfying GLP/GMP traceability requirements for critical spare parts replacement. Firmware updates (if applicable) are distributed exclusively through Thermo Fisher’s authorized service portal and require authenticated technician credentials.

Applications

This component is routinely deployed in laboratories requiring sustained analytical reliability across high-throughput workflows: pharmaceutical impurity profiling (ICH Q2(R2)-aligned method validation), clinical metabolomics (CLIA-certified labs), environmental PFAS screening (EPA Method 1633), food contaminant quantification (EU Regulation 2023/915), and proteomic biomarker discovery (HPP-compliant workflows). Its DC control fidelity directly impacts reproducibility in SRM/MRM transitions, isotopic pattern fidelity in HRAM mode, and retention of calibration stability across multi-day unattended runs—particularly relevant for ISO/IEC 17025-accredited testing facilities.

FAQ

Is this component covered by Thermo Fisher’s original warranty?
No—this is an aftermarket OEM part supplied through authorized distribution channels; warranty coverage follows the distributor’s terms (typically 12 months limited parts-only warranty).
Can it be installed without instrument recalibration?
Yes—provided installation follows Thermo Fisher Service Bulletin SB-MS-70111-61340 Rev. D, no system-level recalibration is required; only verification of DC offset and ripple per procedure MS-VER-DC-01 is needed.
Does it support remote diagnostics via Thermo Connect?
Yes—when installed in instruments with Thermo Connect-enabled firmware (v3.2+), real-time DC output health metrics are accessible to authorized service engineers.
Is there a version with CE marking for EU deployment?
Yes—the same part number carries CE marking under Directive 2014/30/EU (EMC) and 2011/65/EU (RoHS), with DoC available upon request.
What documentation accompanies shipment?
Each unit ships with a Certificate of Conformance (CoC), Thermo Fisher material declaration, and traceable lot-specific test report (including burn-in and functional verification data).
