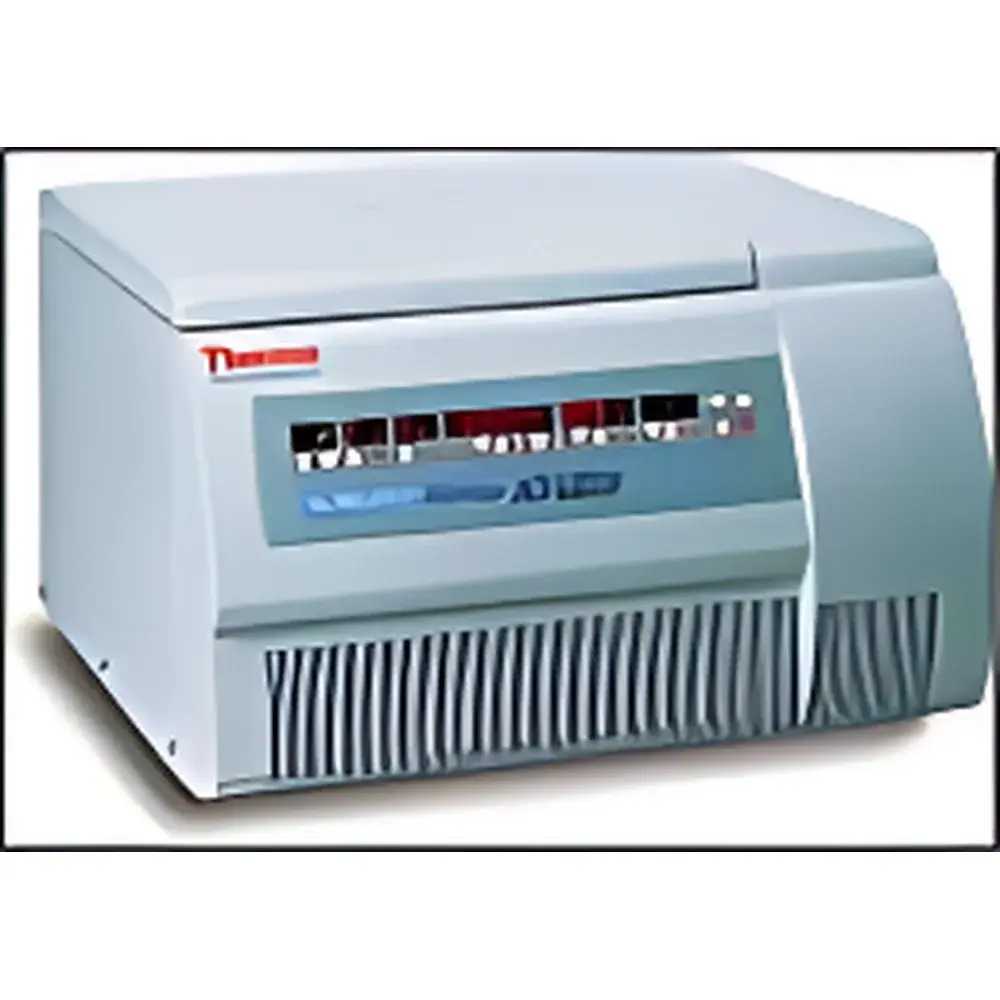

Thermo Fisher Scientific Biofuge Stratos High-Speed Refrigerated Centrifuge

Overview

The Thermo Fisher Scientific Biofuge Stratos is a high-performance benchtop refrigerated centrifuge engineered for demanding applications in molecular biology, cell biology, and biopharmaceutical research. It employs a robust spindle-driven brushless motor architecture—typically found in floor-standing ultracentrifuges—adapted for compact benchtop operation. This design delivers exceptional mechanical stability, reduced vibration, and extended service life under sustained high-speed operation. The instrument operates on the principle of sedimentation force generation via rotational acceleration, enabling efficient separation of subcellular organelles, nucleic acids, proteins, viruses, and other macromolecular complexes based on density, size, and shape. Its certified temperature control (−9 °C to +40 °C) ensures thermal integrity during prolonged runs, critical for preserving labile biomolecules and maintaining reproducible separation outcomes.

Key Features

• Spindle shaft drive system: Enhances rotational precision, minimizes runout, and reduces mechanical wear—contributing to >20,000-hour mean time between failures (MTBF) under routine use.
• Real-time electronic imbalance monitoring: Continuously assesses load distribution during acceleration, deceleration, and steady-state rotation; triggers immediate deceleration if threshold imbalance is detected—preserving sample integrity and rotor safety.
• Automatic rotor recognition: Embedded RFID or optical identification verifies rotor model, maximum speed rating, and safety parameters before initiation—preventing operational errors and enforcing ISO 22870-compliant workflow controls.
• EASYcontrol™ II microprocessor interface: Supports RCF- or rpm-based protocol definition, rapid spin (short-duration, high-g pulses), pre-cool activation, and password-protected parameter locking—facilitating GLP-aligned documentation practices.
• Dual interlocked safety door: Mechanically and electronically coupled latching prevents accidental opening during operation and enforces zero-rotation verification prior to lid release—meeting IEC 61010-2-020 requirements for centrifuge safety.
• Acoustically optimized cavity: Stainless steel chamber with vibration-damping mounts and aerodynamic rotor shielding achieves <60 dB(A) acoustic emission at 1 m distance—suitable for shared laboratory environments without dedicated acoustic enclosures.

Sample Compatibility & Compliance

The Biofuge Stratos accommodates a broad spectrum of sample formats through interchangeable rotor systems—including fixed-angle rotors (e.g., TH-6×50, TH-12×15), swing-bucket rotors (e.g., S-4-104), microplate carriers (96-well and 384-well), and biocontainment-certified angular rotors compliant with WHO BSL-2 and CDC/NIH biosafety guidelines. With adapter support down to 0.2 mL tubes, it handles volumes ranging from microliter-scale PCR products to 180 mL clinical or process-scale preparations. All rotors are CE-marked and validated per ISO 15195:2018 (calibration of centrifuges) and ASTM F2663-22 (performance testing of refrigerated centrifuges). The unit supports audit-trail-enabled operation when integrated with Thermo Fisher’s SampleManager LIMS or third-party 21 CFR Part 11–compliant data acquisition platforms.

Software & Data Management

EASYcontrol™ II firmware provides non-volatile storage for nine user-defined protocols plus one dedicated pre-cool sequence. Each protocol retains RCF/rpm setpoints, time duration, temperature setpoint, acceleration/deceleration profiles, and rotor ID—enabling full traceability across shifts and operators. Optional connectivity modules (RS-232 or USB-to-serial) allow export of run logs—including timestamped start/stop times, actual vs. target RCF, cavity temperature history, and imbalance event flags—to external databases or electronic lab notebooks (ELNs). Firmware updates follow IEC 62304 Class B medical device software lifecycle standards, with version-controlled release notes and validation documentation available upon request.

Applications

• Isolation of mitochondria, lysosomes, and plasma membranes via differential centrifugation (0–23,300 rpm range supports sequential pelleting from low- to high-density fractions).
• Purification of plasmid DNA, genomic DNA, and RNA using high-RCF pelleting in CsCl or iodixanol gradients.
• Clarification of mammalian cell culture harvests prior to downstream chromatography or filtration steps.
• Preparation of exosome-enriched supernatants via sequential ultracentrifugation (compatible with TH-6×50 rotor at 23,300 rpm for 100,000 × g equivalents).
• Routine quality control of vaccine formulations, including antigen particle sizing and aggregation assessment via post-centrifugation supernatant analysis.
• High-throughput processing of clinical specimens (e.g., serum, plasma, CSF) in diagnostic laboratories operating under CLIA and CAP accreditation frameworks.

FAQ

What refrigeration technology does the Biofuge Stratos employ?
It utilizes a closed-cycle, chlorofluorocarbon-free (CFC-free) vapor-compression system with PID-controlled evaporator coils and independent condenser cooling—ensuring stable cavity temperatures within ±1 °C across the full operating range.
Is rotor calibration traceable to NIST standards?
Yes—each rotor is supplied with a factory-issued calibration certificate referencing NIST-traceable tachometer and temperature probe standards, valid for two years under normal usage conditions.
Can the centrifuge be operated in continuous mode?
Yes, runtime can be set from 1 minute to 9 hours 59 minutes, or configured for indefinite continuous operation until manually halted or interrupted by safety event.
Does the system support remote monitoring or network integration?
While standalone operation is standard, optional RS-232 or USB interfaces enable integration with building management systems (BMS) or centralized lab equipment dashboards via ASCII command protocol.
What maintenance intervals are recommended?
Brushless motor requires no scheduled commutator servicing; however, annual inspection of refrigerant pressure, door latch integrity, and rotor seating surfaces is advised per Thermo Fisher Technical Bulletin TB-STRATOS-MNT-2023.
