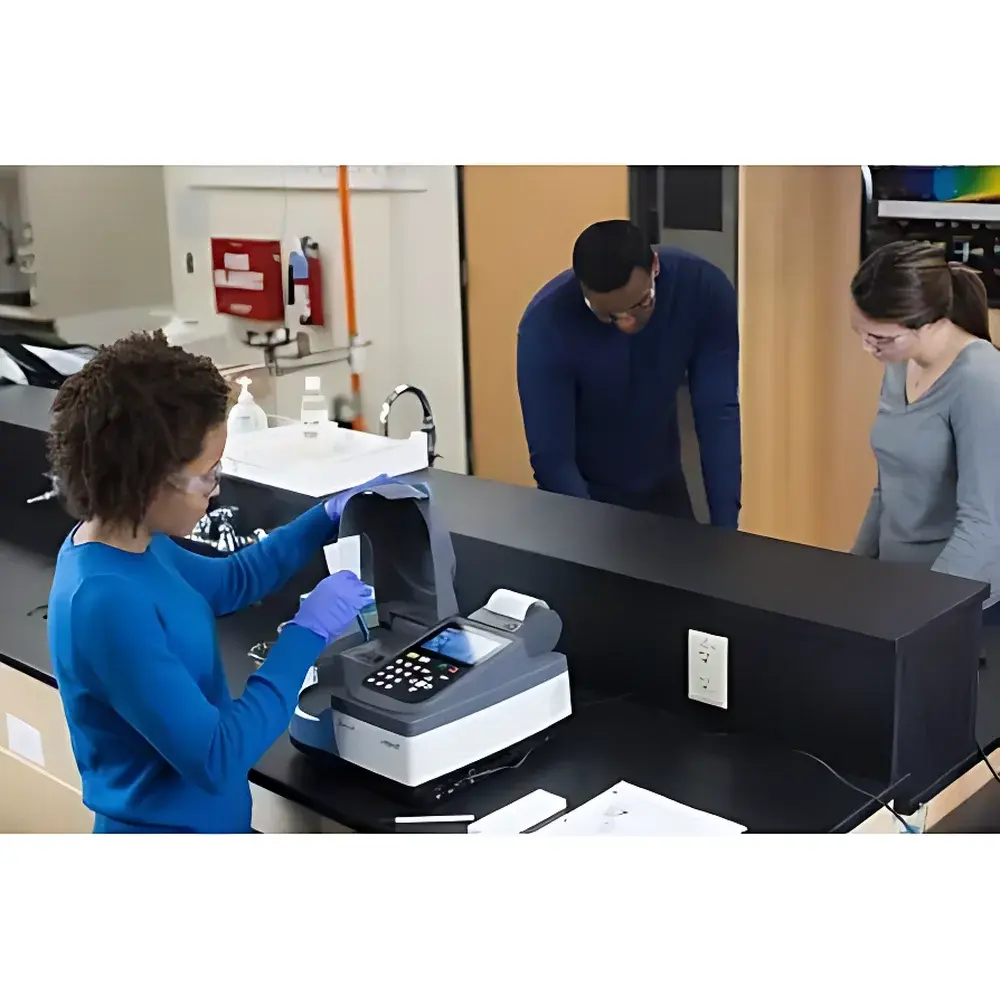

Thermo Fisher Scientific Genesys 30 UV-Visible Spectrophotometer

Overview

The Thermo Fisher Scientific Genesys 30 UV-Visible Spectrophotometer is a robust, entry-level single-beam spectrophotometer engineered for routine quantitative and qualitative analysis in teaching laboratories, quality control environments, and research support settings. It operates on the principle of Beer–Lambert law-based absorbance measurement, where sample-specific attenuation of incident light—generated by a stable tungsten halogen lamp—is quantified across the visible and near-UV spectral region (325–1100 nm). Its fixed 5 nm spectral bandwidth ensures reproducible resolution suitable for standard colorimetric assays, concentration determinations, and spectral scanning of dyes, enzymes, nucleic acids, and pharmaceutical intermediates. Designed with pedagogical clarity and operational reliability in mind, the Genesys 30 delivers traceable photometric performance without requiring complex optical alignment or frequent recalibration.

Key Features

• Single-beam optical architecture with integrated tungsten halogen light source for stable intensity output over extended operational cycles
• 5-inch high-resolution full-color TFT LCD touchscreen interface with tactile rubber-button keypad for glove-compatible operation
• Photodiode array detector enabling rapid spectral acquisition and real-time baseline correction

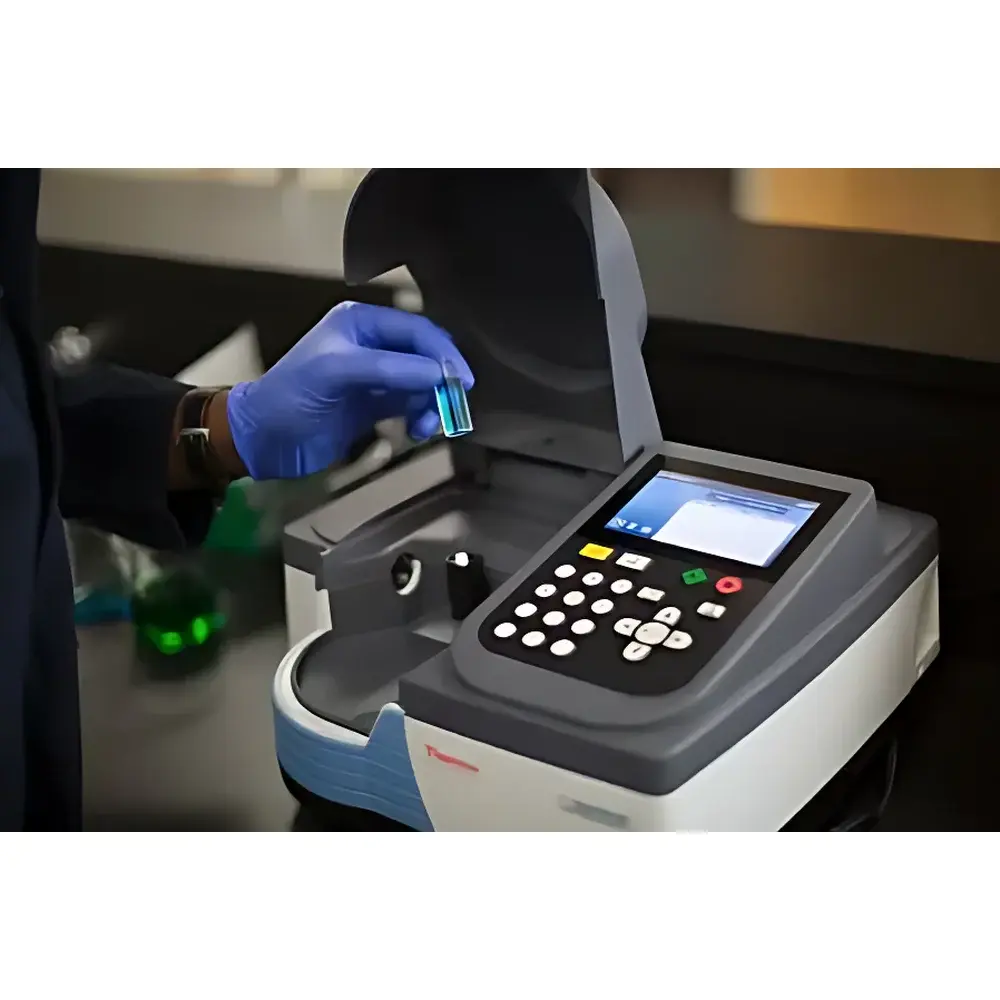

• Removable, autoclavable sample compartment liner and universal cuvette holder accommodating standard 10 mm pathlength cells—including round, square, and semi-micro formats
• Onboard VISIONlite user interface supporting single-wavelength measurement, full-spectrum scanning (325–1100 nm), kinetics, and multi-point calibration routines
• Integrated thermal printer with snap-fit mechanism for immediate hardcopy reporting of absorbance values, spectra, and calibration logs
• USB mass-storage mode for direct export of measurement data in plain-text (.txt) format—compatible with Excel, MATLAB, and LIMS ingestion workflows

Sample Compatibility & Compliance

The Genesys 30 accommodates aqueous, organic, and buffered solutions in standard quartz, glass, or plastic cuvettes (10 mm pathlength). Its optical design meets fundamental requirements for educational and industrial applications aligned with ASTM E275 (Standard Practices for Describing and Measuring Performance of UV-Visible Spectrophotometers) and ISO/IEC 17025:2017 clause 7.2.2 (method validation for spectrophotometric procedures). While not certified for regulated GMP environments, its onboard audit trail functionality—including timestamped method recall, operator ID input, and print-log synchronization—supports GLP-compliant documentation practices. The instrument’s wavelength accuracy (±1.0 nm) and stray light specification (<0.05% at 340 nm and 700 nm) conform to USP recommendations for routine absorbance verification in pharmaceutical QC labs.

Software & Data Management

The Genesys 30 ships with embedded VISIONlite firmware that enables intuitive method creation, storage, and recall—up to 100 user-defined protocols. Optional Thermo Scientific™ VISIONlite PC Software extends analytical capability with advanced curve-fitting, multi-component analysis, and customizable report templates compliant with internal SOPs. All data exports retain native metadata (wavelength, date/time stamp, operator ID, method name), facilitating traceability under FDA 21 CFR Part 11 when deployed with validated IT infrastructure and electronic signature controls. No proprietary drivers are required: USB connectivity functions as a standard mass-storage device, eliminating installation dependencies.

Applications

• Academic instruction: Teaching Beer’s Law, enzyme kinetics (e.g., LDH assay), and dye concentration determination in undergraduate chemistry and biology curricula
• Quality assurance: Rapid verification of reagent concentrations, cleaning validation swab extracts, and raw material identity testing
• Environmental screening: Nitrate/nitrite analysis via diazotization, phosphate detection using molybdenum blue method
• Food & beverage: Color index (AOAC 996.05), chlorophyll quantification, and preservative (e.g., sulfite) titration support
• Pharmaceutical pre-formulation: Excipient compatibility studies and dissolution profile monitoring at discrete wavelengths

FAQ

Is the Genesys 30 compliant with FDA 21 CFR Part 11?
The instrument supports foundational elements—including electronic records, audit trails, and user authentication—but full Part 11 compliance requires implementation of enterprise-level IT controls, such as secure network configuration, validated software deployment, and documented procedural SOPs.
Can I perform kinetic measurements with this instrument?
Yes—the onboard VISIONlite interface supports time-based absorbance monitoring at fixed wavelengths, with adjustable interval timing (1–600 seconds) and up to 1,000 data points per run.
What is the recommended calibration frequency?
A daily photometric zero (using air or solvent blank) is advised; wavelength verification with holmium oxide or didymium filters should be performed weekly or after transport/maintenance.
Does the Genesys 30 support fiber-optic probes or flow cells?
No—it is configured exclusively for static cuvette-based measurements. Accessory options are limited to standard sample holders and printer modules.
Is the 3-year warranty transferable between institutions?
Warranty coverage remains with the original purchaser and is non-transferable unless explicitly renegotiated through Thermo Fisher Scientific Service Contracts.
