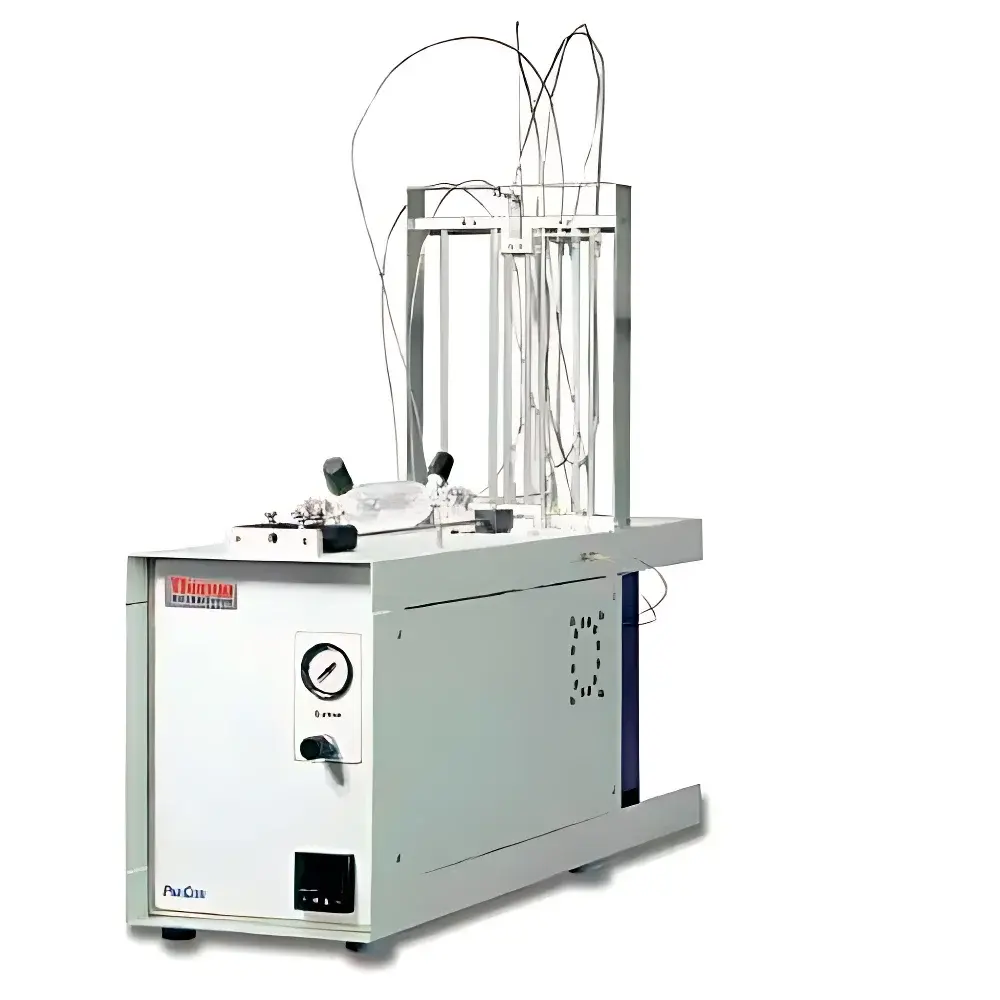

Thermo Fisher Scientific PreCon Trace Gas Pre-Concentrator

Overview

The Thermo Fisher Scientific PreCon Trace Gas Pre-Concentrator is an engineered front-end sample preparation system designed exclusively for high-sensitivity stable isotope ratio analysis of trace atmospheric gases—primarily nitrous oxide (N₂O) and methane (CH₄)—by isotope ratio mass spectrometry (IRMS). It operates on the principle of cryogenic trapping and thermal desorption, enabling quantitative enrichment of target analytes from large-volume gas matrices (e.g., ambient air) into micro-liter-scale, IRMS-compatible pulses. By concentrating analytes while removing bulk matrix interferences (e.g., N₂, O₂, Ar), the PreCon eliminates the need for labor-intensive, large-volume manual sampling—reducing required sample volume by three orders of magnitude (e.g., from 70 L to <70 mL for CH₄ δ¹³C analysis) and increasing analytical throughput by at least one order of magnitude. This capability directly supports rigorous source–sink attribution studies in climate science, biogeochemical cycling research, and regulatory greenhouse gas monitoring programs.

Key Features

• Cryogenic pre-concentration architecture with dual-stage trapping (liquid N₂-cooled traps) for selective capture of N₂O and CH₄ across variable humidity and concentration ranges
• Automated, programmable sample introduction sequence: conditioning → adsorption → purge → desorption → transfer to IRMS interface
• Integrated electronic flow control and pressure regulation ensuring reproducible trapping efficiency and quantitative recovery (>95% for CH₄ and N₂O under validated protocols)
• Modular design compatible with Thermo Scientific Delta V, 253 Plus, and other IRMS platforms via standard 1/8″ stainless-steel transfer lines and vacuum-tight couplings
• Robust construction with all-wetted parts made of electropolished stainless steel and fused silica to minimize isotopic memory effects and surface-catalyzed fractionation
• Compliance-ready firmware supporting audit trails, user access levels, and method versioning per GLP/GMP and ISO/IEC 17025 requirements

Sample Compatibility & Compliance

The PreCon is validated for direct interfacing with ambient air, flask-collected air samples, headspace gases from soil/water incubations, and stack emissions—provided sample moisture content is controlled (<1000 ppmv H₂O) via optional Nafion™ dryer integration. It meets critical performance criteria defined in ASTM D6348–22 (Standard Test Method for Determination of Gaseous Compounds by GC/IRMS) and supports compliance with EPA Method TO-15 and ISO 14855–2 for isotopic characterization of greenhouse gases. All operational parameters—including trap temperature profiles, desorption ramp rates, and carrier gas purity—are traceable to NIST-traceable calibration standards. The system architecture inherently supports 21 CFR Part 11–compliant data integrity when paired with Thermo Scientific Chromeleon CDS software configured for IRMS workflows.

Software & Data Management

Control and method execution are managed through Thermo Scientific EVOQ™ Control Software or legacy ISODAT™ v3.x, both offering fully scriptable acquisition sequences, real-time diagnostic monitoring (trap temperature, pressure transients, valve actuation status), and automated QC flagging. Raw chromatographic and ion-current data are stored in vendor-neutral .CDF format, enabling post-acquisition reprocessing using Isodat’s peak integration engine or third-party tools such as MATLAB-based IsoSource or R packages (e.g., isoreader). Audit logs record every method change, calibration event, and user action with timestamp, IP address (if networked), and digital signature—satisfying GLP audit requirements for environmental isotope laboratories.

Applications

• High-precision δ¹⁵N and δ¹⁸O analysis of atmospheric N₂O to distinguish microbial nitrification vs. denitrification sources
• δ¹³C and δ²H characterization of CH₄ emissions from wetlands, ruminants, landfills, and fossil fuel infrastructure
• Time-series monitoring of isotopic signatures in long-term atmospheric observatories (e.g., NOAA GML, ICOS networks)
• Soil–plant–atmosphere interaction studies requiring sub-ppb-level isotopic quantification in dynamic headspace experiments
• Method development for emerging isotopic tracers (e.g., clumped isotopes of CH₄, ¹⁷O-excess in N₂O) where signal-to-noise ratio is limiting

FAQ

What gases does the PreCon support for isotopic analysis?
The PreCon is optimized for N₂O and CH₄; it can be adapted for CO, SF₆, and C₂H₆ with method-specific trap optimization and validation.
Is the PreCon compatible with non-Thermo IRMS systems?
Yes—via custom interface kits and vacuum-compatible transfer line adapters; full compatibility requires verification of inlet pressure tolerance, pumping speed, and electron ionization source geometry.
Does the system require liquid nitrogen during operation?
Yes—cryogenic trapping relies on liquid nitrogen cooling; optional LN₂ auto-refill systems are available for unattended multi-day runs.
How is isotopic memory minimized between samples?
Through bake-out cycles (up to 120 °C), high-purity He purge, and trap regeneration protocols embedded in each method; residual fractionation is monitored via bracketing reference gas injections.
Can the PreCon be integrated into a continuous monitoring setup?
It is designed for discrete, high-precision batch analysis—not real-time streaming—but can be coupled with autosamplers (e.g., Thermo GC AutoSampler) for unattended 24/7 operation over 72+ hours.
