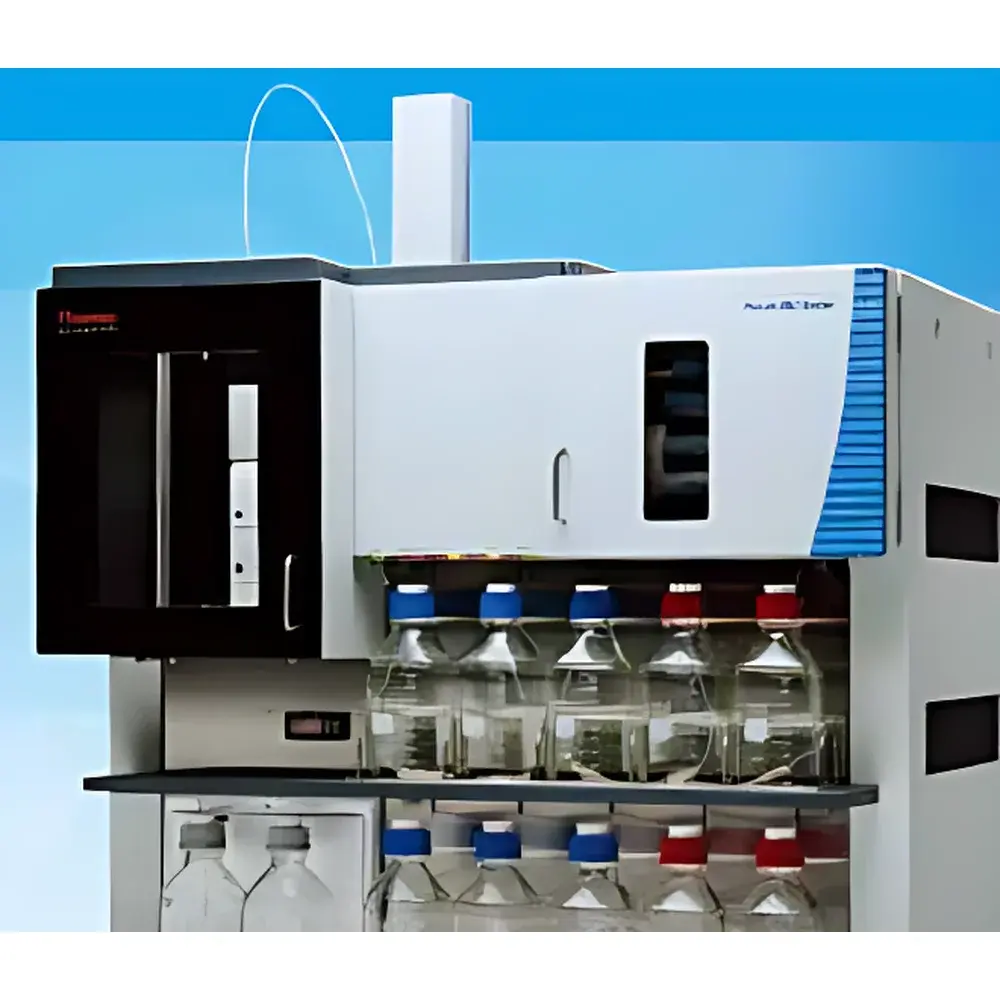

Thermo Fisher Scientific Prelude SPLC Automated Sample Preparation and LC System

Overview

The Thermo Fisher Scientific Prelude SPLC Automated Sample Preparation and Liquid Chromatography System is an integrated, walk-away platform engineered to streamline sample preparation and chromatographic separation prior to mass spectrometry (MS) analysis. Unlike standalone HPLC instruments, the Prelude SPLC operates as a pre-analytical workflow engine—combining solid-phase extraction (SPE), derivatization, dilution, and column switching with high-pressure liquid chromatography in a single, programmable architecture. Its core design principle follows the principle of “front-end automation for back-end MS efficiency”: by eliminating manual sample handling steps and enabling parallel or sequential processing of multiple samples across independent LC channels, the system significantly increases instrument utilization and analytical throughput without requiring additional MS hardware. The system employs dual-gradient HPLC pumps, low-dead-volume switching valves, and temperature-controlled autosampler compartments to ensure reproducible retention times, minimal carryover (<0.005%), and robust method transfer across laboratories.

Key Features

• Integrated SPE-LC architecture with up to four independently controllable solvent channels and six-position valve manifolds for multi-step sample cleanup and fractionation
• Modular column-switching capability supporting heart-cutting, trap-elute, and comprehensive 2D-LC configurations compatible with triple quadrupole and high-resolution MS platforms
• Programmable autosampler with 120-position vial capacity, 4°C–40°C temperature control, and pressure-sensing syringe drive for precise injection volumes (1–100 µL, ±0.5% RSD)
• Embedded method editor supporting ICH Q2(R2)-aligned validation parameters including linearity, precision, LOD/LOQ, and system suitability criteria
• Robust fluidic design with chemically resistant PEEK and titanium components rated for pH 1–12 and pressures up to 600 bar
• Onboard diagnostics with real-time pressure monitoring, leak detection, and predictive maintenance alerts via embedded firmware

Sample Compatibility & Compliance

The Prelude SPLC accommodates a broad spectrum of biological and environmental matrices—including plasma, urine, tissue homogenates, wastewater, and food extracts—without modification to core hardware. Sample introduction supports both direct injection and offline/online SPE cartridges (1 mL, 3 mL, and 6 mL formats), as well as micro-SPE tips for low-volume applications. All fluidic pathways comply with USP material safety requirements, and system software conforms to FDA 21 CFR Part 11 for electronic records and signatures. Audit trails, user access controls, and electronic signature workflows are enabled by default. Method files and raw data adhere to ASTM E2524-21 (Standard Practice for Data Exchange in Analytical Chemistry) and support GLP/GMP-compliant laboratory environments through validated IQ/OQ/PQ documentation packages.

Software & Data Management

Control and data acquisition are managed through Thermo Fisher’s Chromeleon Chromatography Data System (CDS) 7.3 or later, configured in client-server mode for centralized instrument management. The software provides synchronized method development across sample prep and LC modules, real-time chromatogram preview during SPE elution, and automated peak integration using adaptive baseline algorithms. All raw data are stored in vendor-neutral .CDF format compliant with ISO/IEC 11179 metadata standards. Integration with LIMS platforms (e.g., LabWare, STARLIMS) is supported via ODBC and RESTful API interfaces. Electronic signatures, role-based permissions, and full audit trail logging—including method changes, sequence edits, and reprocessing events—are fully traceable and exportable for regulatory submissions.

Applications

The Prelude SPLC is routinely deployed in regulated bioanalytical laboratories for quantitative LC-MS/MS analysis of small-molecule therapeutics, metabolites, and biomarkers in clinical pharmacokinetic (PK) and toxicokinetic (TK) studies. It is also applied in environmental testing labs for EPA Method 1694 (pharmaceuticals and personal care products in water) and in food safety labs for EU Commission Regulation (EU) No 2021/808 residue screening. Additional use cases include forensic toxicology (opioids, stimulants), doping control (WADA-accredited labs), and biopharmaceutical impurity profiling where orthogonal sample cleanup enhances specificity prior to high-resolution MS detection.

FAQ

Can the Prelude SPLC be used with non-Thermo mass spectrometers?
Yes—the system outputs standard LC effluent compatible with any commercial MS interface (e.g., electrospray, APCI). No proprietary coupling hardware is required.
Is method validation support included out-of-the-box?
Chromeleon CDS includes built-in templates for system suitability testing, precision assessment, and calibration curve evaluation aligned with ICH Q2(R2) and USP .
What is the maximum number of LC channels that can be operated simultaneously?
The system supports up to three independent LC channels in parallel operation, each with dedicated gradient programming and detection timing.
Does the Prelude SPLC meet GMP requirements for pharmaceutical QC labs?
When deployed with validated Chromeleon CDS and documented IQ/OQ/PQ protocols, it satisfies Annex 11 and ALCOA+ data integrity principles for GMP-regulated environments.
Is remote monitoring and troubleshooting available?
Yes—via Thermo Fisher’s Connect Remote Services, which enables secure, encrypted remote access for diagnostics, firmware updates, and technical support escalation.
