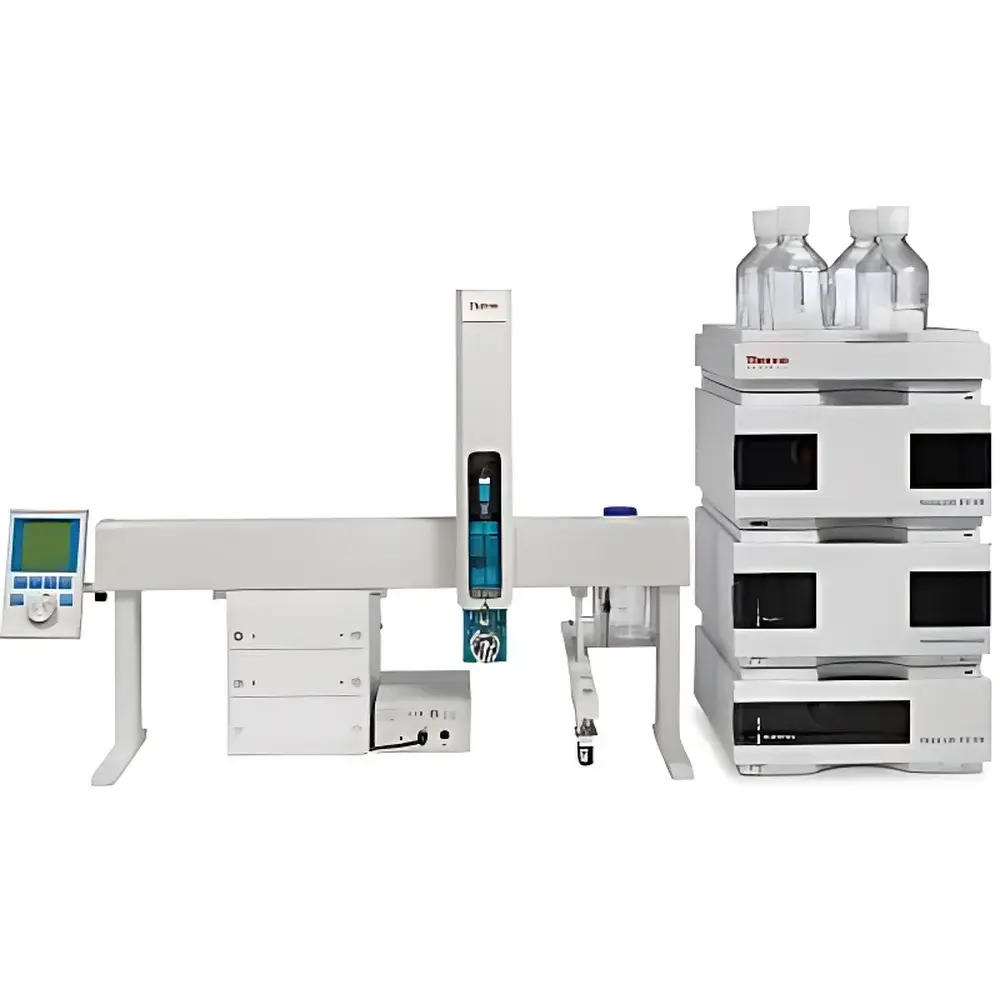

Thermo Fisher Scientific Transcend™ UHPLC System

Overview

The Thermo Fisher Scientific Transcend™ UHPLC System is an engineered platform for high-throughput, multi-dimensional liquid chromatography–mass spectrometry (LC-MS/MS) analysis. Unlike conventional single-channel HPLC or UHPLC systems, the Transcend platform implements a true parallel, multi-channel architecture—enabling up to four independent LC streams to interface with a single mass spectrometer. Its core innovation lies in the integration of two proprietary technologies: TurboFlow™ online sample preparation and Aria™ multi-channel switching. The system operates on the principle of two-dimensional chromatography (2D-LC), where the first dimension performs rapid, selective analyte enrichment and matrix removal via TurboFlow™ solid-phase extraction (SPE) columns, while the second dimension delivers high-resolution separation on analytical UHPLC columns prior to MS detection. This architecture eliminates offline sample prep steps such as protein precipitation, liquid–liquid extraction (LLE), or manual solid-phase extraction (SPE), thereby reducing method variability, minimizing carryover, and preserving analyte integrity—particularly critical for quantitative bioanalysis, food safety testing, and environmental residue monitoring.

Key Features

• TurboFlow™ Technology: Patented online SPE methodology leveraging size-exclusion, diffusion, and chemical selectivity to isolate target analytes from complex biological and food matrices (e.g., plasma, urine, milk, honey, fish tissue) without centrifugation or evaporation.
• True Parallel Multi-Channel Architecture: Four physically independent LC channels operate simultaneously, each with dedicated pumps, autosamplers, and column ovens—coordinated via Aria™ software to maximize MS duty cycle.
• MS Utilization Optimization: Reduces mass spectrometer idle time to <4% by ensuring continuous ion injection; achieves up to 4× higher sample throughput compared to sequential single-channel LC-MS workflows.
• Method Flexibility: Supports concurrent execution of dissimilar assays (e.g., small-molecule PK quantitation + pesticide screening) across separate channels using distinct mobile phases, gradients, and column chemistries.
• Robust Hardware Integration: Designed for seamless coupling with Thermo Scientific TSQ™ series triple quadrupole and Orbitrap™ high-resolution mass spectrometers—including hardware-level synchronization of valve switching, gradient timing, and MS acquisition triggers.

Sample Compatibility & Compliance

The Transcend system is validated for direct injection of undiluted or minimally processed samples including human and animal plasma, serum, urine, whole blood lysates, milk, wine, honey, seafood homogenates, and liver tissue extracts. Its TurboFlow™ columns are available in multiple chemistries (C18, C8, polymeric reversed-phase, mixed-mode ion exchange) to accommodate diverse polarity and ionization characteristics. From a regulatory standpoint, the system supports GLP- and GMP-compliant environments through audit-trail-enabled Aria™ software (21 CFR Part 11 compliant with electronic signatures, user access controls, and immutable data logging). It meets ASTM D7622–19 for pesticide residue analysis in food commodities and aligns with ISO/IEC 17025 requirements for method validation in accredited laboratories.

Software & Data Management

Aria™ Software serves as the unified control and method development environment for the Transcend platform. It provides graphical workflow builders for automated 2D-LC method design—including column selection, trap/elution timing, gradient programming, and valve sequencing—with real-time simulation of peak transfer efficiency. All instrument parameters, sequence files, raw data (.raw), and processing results are stored in a centralized, timestamped database with version-controlled method templates. Data export complies with ASAM OASIS and mzML standards, enabling interoperability with third-party quantitation tools (e.g., TraceFinder™, Compound Discoverer™, or open-source platforms like OpenMS). Audit trails record every user action—including parameter changes, sequence edits, and reprocessing events—with hash-verified integrity logs required for FDA inspection readiness.

Applications

• Pharmaceutical Bioanalysis: High-volume PK/PD studies requiring sub-ng/mL sensitivity for small-molecule drugs and metabolites in plasma/serum—without derivatization or offline cleanup.
• Food Safety Testing: Simultaneous quantification of >200 pesticides, mycotoxins, and veterinary drug residues in complex food matrices per run, meeting EU MRL and USDA FSIS regulatory thresholds.
• Clinical Toxicology: Rapid confirmation of illicit drugs, opioids, and novel psychoactive substances (NPS) in emergency department urine specimens with minimal hands-on time.
• Environmental Monitoring: Analysis of endocrine-disrupting compounds (EDCs) and pharmaceuticals in wastewater influent/effluent at ng/L levels using isotopically labeled internal standards.
• Omics Support: Pre-fractionation of peptide digests prior to nanoLC-MS/MS for targeted proteomics or phosphoproteomics workflows requiring reproducible enrichment.

FAQ

What distinguishes TurboFlow™ from conventional online SPE?
TurboFlow™ employs turbulent flow chromatography principles—using high-flow-rate, large-pore packing materials that retain macromolecules (e.g., proteins) while allowing small molecules to diffuse into binding sites. This enables direct injection of crude samples without clogging or pressure spikes.
Can Transcend be retrofitted to existing LC-MS systems?
Yes—the system is modular and compatible with most Thermo Scientific mass spectrometers manufactured after 2012, provided the MS vendor supplies API interface documentation for trigger synchronization.
Is method transfer between Transcend and standard UHPLC feasible?
Method parameters (e.g., gradient slope, column temperature) are transferable, but TurboFlow™ trapping/elution kinetics require re-optimization due to differences in flow dynamics and column geometry.
How does Transcend handle carryover in high-concentration samples?
Each channel includes dedicated wash solvents, post-injection needle rinsing, and programmable column flushing routines; carryover is typically <0.01% for therapeutic drugs at 1000 ng/mL.
Does Aria™ support IQ/OQ/PQ documentation packages?
Yes—validated installation qualification (IQ), operational qualification (OQ), and performance qualification (PQ) protocols are supplied with the system, aligned with ASTM E2500 and ISPE GAMP 5 guidelines.
