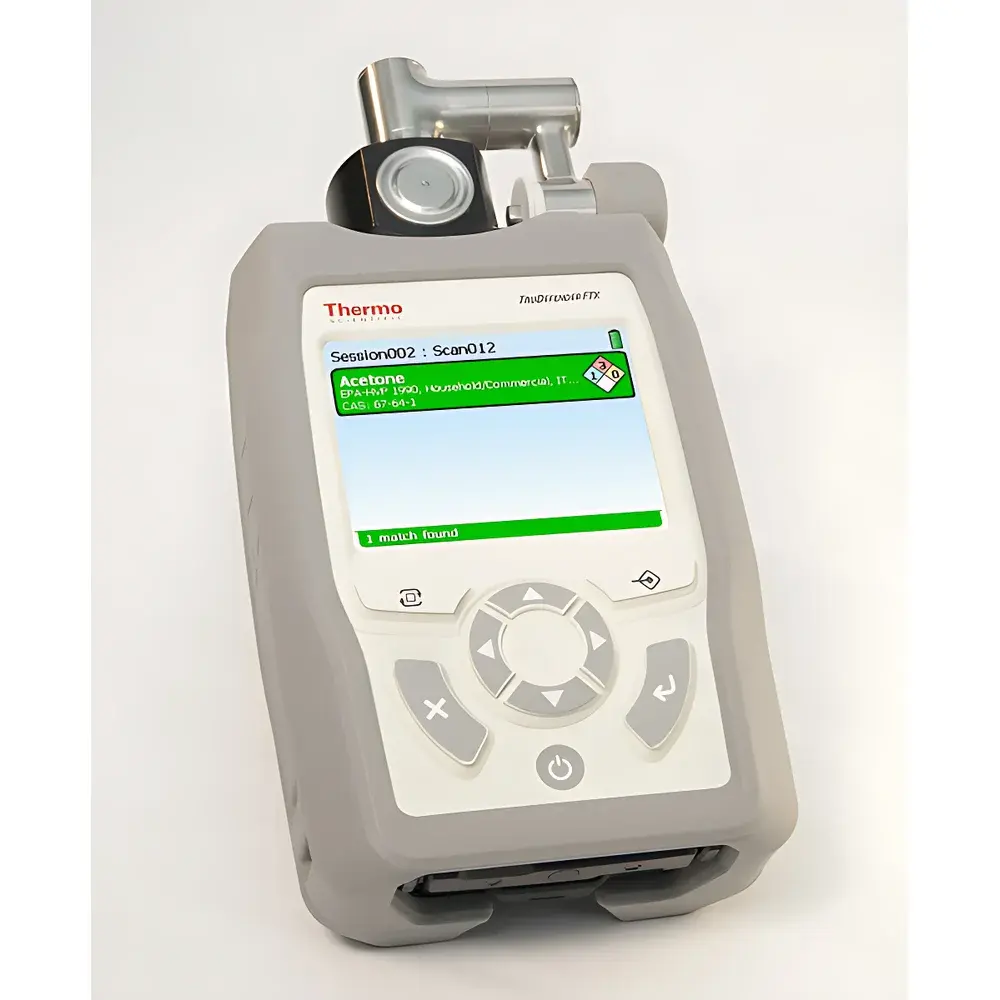

Thermo Fisher TruDefender FT Handheld Fourier Transform Infrared (FTIR) Spectrometer

Overview

The Thermo Fisher TruDefender FT is a ruggedized, handheld Fourier Transform Infrared (FTIR) spectrometer engineered for rapid, on-site identification of unknown solid, liquid, and paste-like chemical substances. Unlike dispersive or filter-based IR analyzers, the TruDefender FT employs interferometric signal acquisition with a permanently aligned Michelson interferometer and a high-stability solid-state laser reference—ensuring consistent spectral fidelity across field conditions without recalibration. Its core application domain includes hazardous material (HAZMAT) response, law enforcement forensic screening, industrial safety verification, and emergency preparedness operations. The instrument delivers laboratory-grade spectral data directly at the point of need, eliminating delays associated with sample transport and off-site analysis. Designed from inception for first responders, it integrates a diamond attenuated total reflectance (ATR) sampling interface that enables direct contact measurement with minimal sample preparation—critical when handling potentially reactive, toxic, or explosive materials.

Key Features

• Ruggedized mechanical architecture certified to MIL-STD-810F for shock, vibration, and thermal cycling, and rated IP67 for dust and water immersion resistance.
• Diamond ATR crystal sampling interface providing robust, contamination-resistant surface contact with no consumables, alignment tools, or optical path purging required.
• Real-time spectral acquisition at 2 scans per second, enabling full spectrum collection and library matching within ≤15 seconds under typical operational conditions.
• Embedded chemical identification engine with preloaded, curated spectral libraries—including explosives (e.g., RDX, PETN, TNT), toxic industrial chemicals (TICs), chemical warfare agent (CWA) precursors, narcotics, and pharmaceutical intermediates—each annotated with safety handling guidance per GHS and NFPA standards.
• Intuitive touchscreen interface with context-sensitive prompts and guided workflow logic; requires <2 hours of operator training for competent use.
• No warm-up time, zero routine calibration, and no optical maintenance—designed for immediate deployment from standby mode.

Sample Compatibility & Compliance

The TruDefender FT accepts heterogeneous samples—including powders, gels, viscous liquids, tablets, and coated surfaces—without dilution, solvent extraction, or pelletization. Its diamond ATR geometry accommodates variable refractive indices and minimizes specular reflection artifacts. The system complies with ASTM E2534-22 (“Standard Practice for Field Screening of Unknown Solids, Liquids, and Gases Using Portable Fourier Transform Infrared Spectrometers”) and supports traceable spectral data acquisition under GLP and GMP frameworks. Firmware includes configurable audit trail logging (user ID, timestamp, spectral metadata, match confidence score) meeting FDA 21 CFR Part 11 requirements for electronic records and signatures when used in regulated environments.

Software & Data Management

Instrument control, spectral acquisition, and library matching are managed via embedded ARM-based firmware with a responsive Linux-derived OS. Spectral data export supports industry-standard formats: SPC (for compatibility with GRAMS/AI, OMNIC, and KnowItAll), plain-text CSV/TXT (for custom parsing or LIMS integration), and JPEG-formatted reports with embedded spectral plots, match results, hazard icons, and response recommendations. Optional Thermo Fisher Connect cloud platform enables secure remote firmware updates, library version synchronization, and aggregated incident reporting across multi-unit deployments. All spectral acquisitions are digitally signed and timestamped to ensure data integrity and chain-of-custody documentation.

Applications

• Hazardous Materials Response Teams: Immediate identification of unknown white powders, suspicious liquids, or residue-laden surfaces during CBRNE incidents.
• Law Enforcement & Forensic Labs: On-scene screening of suspected illicit drugs, clandestine lab precursors, or counterfeit pharmaceuticals without chain-of-custody compromise.
• Industrial Hygiene & EHS Departments: Verification of incoming raw materials, confirmation of cleaning agent residues, or detection of process contaminants in manufacturing facilities.
• Military CBRN Units: Tactical chemical reconnaissance in austere environments where laboratory access is unavailable or operationally impractical.
• Custom Library Expansion: Users may import validated reference spectra (in SPC format) and assign custom metadata fields for proprietary compounds or region-specific threat profiles.

FAQ

Does the TruDefender FT require periodic calibration or performance verification?
No. The instrument uses a permanently aligned interferometer with laser wavelength stabilization and does not require user-performed calibration. An optional annual factory verification service is available for ISO/IEC 17025 traceability.
Can the device identify mixtures without prior separation?
Yes. Its built-in mixture analysis algorithm performs sequential spectral subtraction and iterative library matching to resolve up to three major components in heterogeneous samples—without chromatographic or physical separation.
Is spectral data export compatible with third-party cheminformatics platforms?
Yes. Native SPC output ensures seamless import into commercial spectroscopic software suites (e.g., Bio-Rad KnowItAll, Thermo OMNIC, GRAMS/AI) and enterprise LIMS systems supporting ASTM E1384 or ASTM E2534 data exchange protocols.
What battery options are supported for extended field operation?
The unit operates on either a rechargeable lithium-ion battery (≥4 h continuous use) or two standard CR123A primary cells—enabling hot-swap capability and logistical flexibility in remote or power-constrained settings.
How is spectral match confidence quantified and reported?
Each identification result includes a numerical Hit Quality Index (HQI) ranging from 0 to 100, calculated using Pearson correlation against reference spectra after baseline correction and normalization—aligned with ASTM E2534 statistical validation thresholds.
