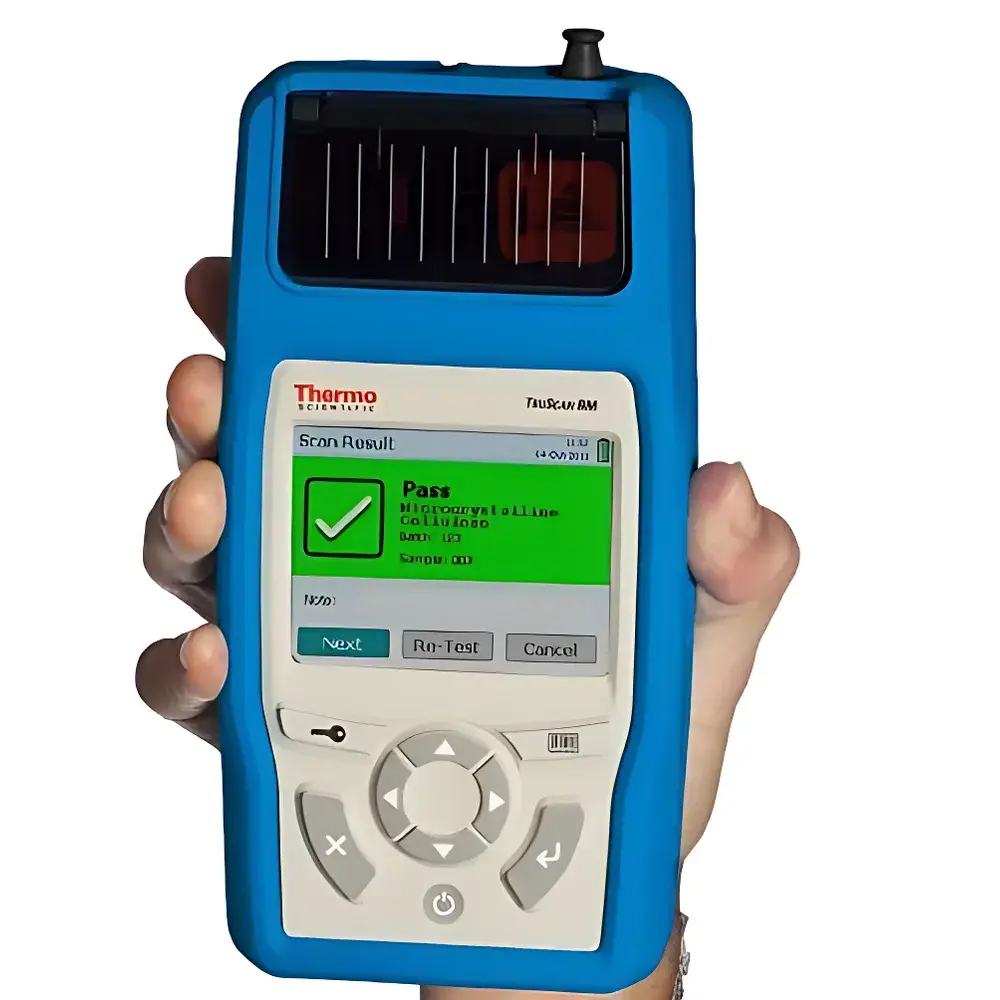

Thermo Fisher TruScan RM Handheld Raman Spectrometer
| Brand | Thermo Fisher |
|---|---|
| Origin | USA |
| Manufacturer | Thermo Fisher Scientific |
| Product Type | Imported |
| Model | TruScan RM |
| Instrument Category | Portable/Handheld Raman Spectrometer |
| Spectral Range | 250–2875 cm⁻¹ |
| Spectral Resolution | 8–10.5 cm⁻¹ (FWHM, full spectral range) |
| Spatial Resolution | Not applicable (single-point probe |
| Minimum Wavenumber | 250 cm⁻¹ |
| Spectral Reproducibility | ≤ ±0.5 cm⁻¹ shift across three consecutive scans on homogeneous sample |
| Excitation Wavelength | 785 nm ± 0.5 nm |
| Laser Linewidth | 2 cm⁻¹ |
| Laser Power Stability | < 0.1 cm⁻¹ drift over 8 hours |
| Output Power | 250 mW ± 25 mW |
| Numerical Aperture | NA = 0.33 |
| Working Distance | 18 mm |
| Exposure Time | Auto mode (minimum 12 ms) |
| Battery | Rechargeable Li-ion, >4 h continuous operation |
| Dimensions | 20.8 × 10.7 × 4.3 cm |
| Weight | < 0.9 kg |
| Operating Temperature | –20 °C to +40 °C (continuous) |
| Barcode Support | Standard 1D/2D symbologies |
| Biometric Authentication | Fingerprint login |
| Compliance | FDA 21 CFR Part 11, ISO/IEC 17025 (when used per validated SOP), CE Marked |
| Accessories | Vial adapter, universal tablet holder |
Overview
The Thermo Fisher TruScan RM Handheld Raman Spectrometer is an engineered solution for rapid, non-invasive identification of raw materials, excipients, active pharmaceutical ingredients (APIs), and finished dosage forms directly at the point of use—within warehouses, manufacturing suites, quarantine areas, or supply chain checkpoints. Based on confocal dispersive Raman spectroscopy with 785 nm laser excitation, the TruScan RM delivers high-fidelity spectral data across a broad wavenumber range (250–2875 cm⁻¹), enabling robust molecular fingerprinting without sample preparation or physical contact. Its optical architecture minimizes fluorescence interference while maintaining sufficient signal-to-noise ratio for low-concentration or highly fluorescent compounds. Designed for GxP environments, the instrument supports regulated workflows through hardware-integrated biometric authentication, audit-trail-enabled software, and secure electronic records compliant with FDA 21 CFR Part 11 and EU Annex 11 requirements.
Key Features
- Regulatory-Ready Design: Built-in fingerprint biometric login, password policy enforcement (complexity, expiration), electronic signatures, and immutable audit trails ensure alignment with FDA 21 CFR Part 11, EU GMP Annex 11, and ISO/IEC 17025 documentation standards.
- Field-Optimized Optics: High-throughput optical path (NA = 0.33) and stable 785 nm diode laser (±0.5 nm wavelength tolerance, <0.1 cm⁻¹ spectral drift) enable consistent performance under variable ambient conditions.
- Non-Destructive Through-Package Analysis: Capable of acquiring high-quality spectra through transparent glass, plastic, or blister packaging—eliminating unpacking, reducing cross-contamination risk, and preserving sterility integrity.
- Intelligent Onboard Processing: Embedded chemometric algorithms support real-time spectral matching against user-defined libraries; includes automated reference spectrum acquisition guidance and device verification alerts to prevent procedural errors.
- Ergonomic & Rugged Form Factor: Weighing less than 0.9 kg with IP54-rated enclosure, the unit meets MIL-STD-810G shock and vibration specifications and operates continuously from –20 °C to +40 °C.
- Seamless Data Integration: Supports direct synchronization with LIMS, ERP, and MES platforms via secure HTTPS API; exports ASTM E1342-compliant spectral files (.spc, .jdx) and PDF batch reports with embedded metadata.
Sample Compatibility & Compliance
The TruScan RM is validated for qualitative identification of solid-phase pharmaceutical materials—including crystalline APIs, polymorphs, hydrates, amorphous formulations, and common excipients such as lactose, microcrystalline cellulose, and magnesium stearate. It also accommodates liquids, gels, and semi-solids when used with optional accessories (e.g., vial adapter). All measurement protocols adhere to ICH Q5E principles for analytical method comparability and USP guidelines for Raman spectroscopy in pharmaceutical applications. The system supports formal qualification (IQ/OQ/PQ) documentation packages and integrates with Thermo Fisher’s Traceable™ validation services for GMP-regulated facilities.
Software & Data Management
Powered by Thermo Fisher’s proprietary TruTools™ software suite, the TruScan RM provides a validated, 21 CFR Part 11-compliant environment for method creation, library management, result review, and electronic record retention. Key capabilities include role-based access control (RBAC), time-stamped audit logs tracking every user action (e.g., spectrum acquisition, library edit, report generation), and automatic backup to network drives or cloud storage (AWS S3 or Azure Blob compatible). Software updates are digitally signed and delivered via secure firmware update protocol. All spectral data retain embedded acquisition metadata (laser power, exposure time, instrument ID, operator ID, timestamp) required for GLP/GMP traceability.
Applications
- Rapid identity testing of incoming raw materials per USP and Ph. Eur. 2.2.48
- In-process verification of blend uniformity and content homogeneity
- Finished product release testing for tablet/capsule identity and coating integrity
- Counterfeit detection and supply chain authentication
- Stability-indicating monitoring of polymorphic transitions or degradation products
- Support for Quality by Design (QbD) initiatives through PAT-compliant real-time data capture
FAQ
Is the TruScan RM suitable for quantitative analysis?
No—the TruScan RM is designed and validated exclusively for qualitative identification and presence/absence confirmation. Quantitative applications require laboratory-grade benchtop Raman systems with calibrated intensity response and rigorous method validation per ICH Q2(R2).
Can it be used in explosive or hazardous environments?
The TruScan RM is not ATEX or IECEx certified. It must not be operated in classified hazardous locations unless housed within an approved explosion-proof enclosure meeting local regulatory requirements.
What regulatory documentation is provided with the instrument?
Each unit ships with a Certificate of Conformance, Factory Calibration Report, 21 CFR Part 11 Configuration Specification, and IQ/OQ test protocols aligned with ASTM E2500 and ISPE GAMP 5 standards.
How often does the system require recalibration?
The TruScan RM employs a self-referencing internal calibration standard. No routine user recalibration is required; annual performance verification using NIST-traceable polystyrene reference is recommended for GxP compliance.
Does it support custom spectral libraries?
Yes—users may build, validate, and deploy proprietary libraries using TruTools™ Library Manager. All library modifications are logged with full audit trail, including version history and approver signature.
