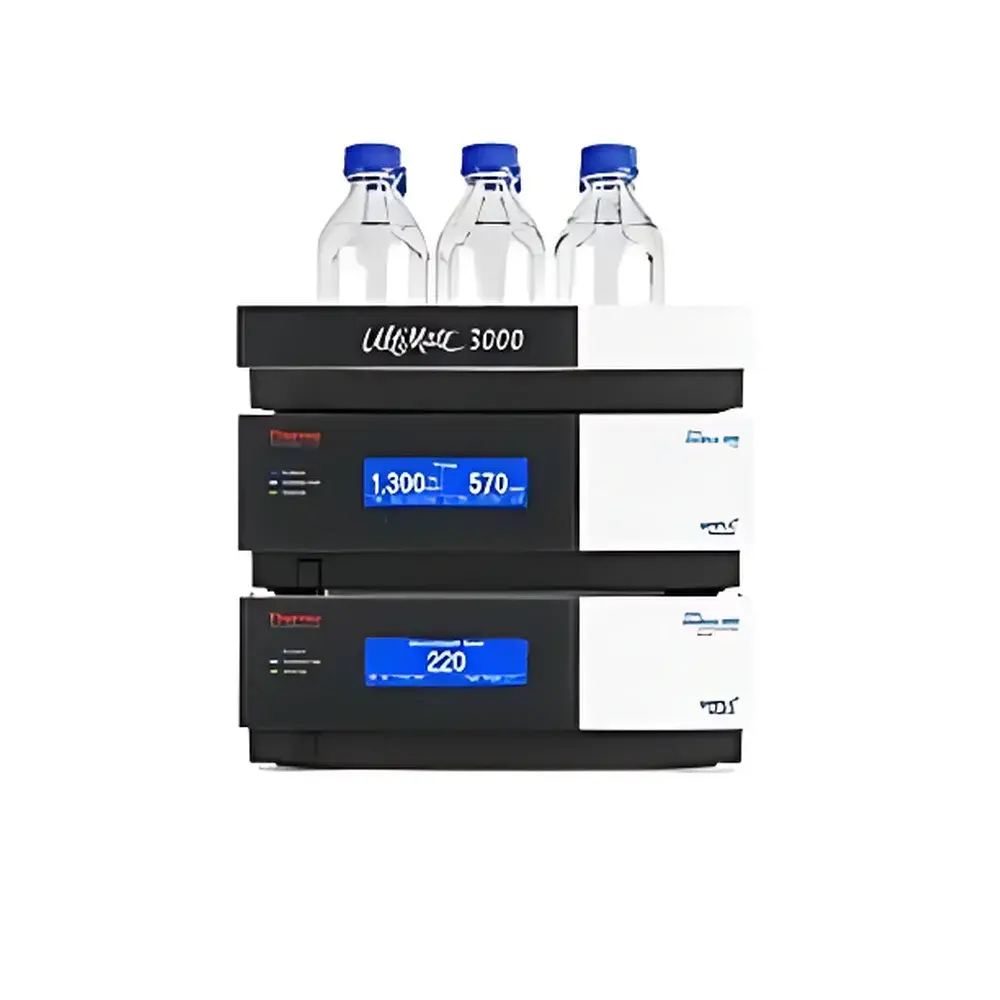

Thermo Fisher UltiMate 3000 Basic Manual HPLC System

Overview

The Thermo Fisher UltiMate 3000 Basic Manual HPLC System is a robust, entry-level high-performance liquid chromatography platform engineered for laboratories initiating their chromatographic workflows—particularly academic teaching labs and quality control environments with moderate sample throughput. Designed around classical HPLC principles and compatible with both conventional 3–5 µm particle-packed columns and sub-2 µm UHPLC columns, the system delivers reproducible separations under isocratic or gradient elution conditions. Its architecture adheres to core chromatographic fundamentals: precise mobile phase delivery via dual-piston reciprocating pumps, thermally stabilized column compartment control, low-dead-volume fluidic pathways, and detector-synchronized data acquisition. The system operates within the standard pressure envelope of conventional HPLC (up to 62 MPa), enabling method transfer from legacy instruments while maintaining compatibility with modern high-efficiency stationary phases. It serves as a foundational platform for method development, routine analysis, and pedagogical instruction in separation science.

Key Features

• Four-channel quaternary pump (LPG-3400SD) with integrated vacuum degassing—eliminates external degasser requirements and ensures baseline stability during extended gradient runs.
• Dionex SmartFlow technology provides real-time flow feedback control, delivering flow accuracy better than ±0.1% RSD and enabling highly reproducible retention times across repeated injections.
• Viper fingertight fitting system minimizes extra-column band broadening through near-zero dead volume connections—critical for maintaining peak symmetry and resolution, especially with narrow-bore or capillary columns.
• Manually actuated or motorized injection valve with contact-closure interface—enables seamless synchronization with Chromeleon CDS for automated run initiation and data capture.
• Thermostatically controlled column compartment (TCC-3000SD) supports temperature setpoints from ambient +5 °C to 80 °C, with optional field-installable column switching valves for method flexibility.
• Modular detector compatibility—including VWD, MWD, DAD, fluorescence, CAD, RID, and LC-MS interfaces—allows configuration alignment with current and future analytical needs.

Sample Compatibility & Compliance

The UltiMate 3000 Basic Manual System accommodates a broad range of sample matrices common in pharmaceutical QC, environmental testing, food safety, and academic research—including small-molecule APIs, natural product extracts, polymer additives, and peptide digests. Its pressure and flow specifications align with ASTM E2632 (Standard Practice for Calibration of HPLC Systems) and ISO 17025-accredited validation protocols. When operated with Chromeleon CDS v7.2, the system supports full 21 CFR Part 11 compliance—including electronic signatures, audit trail logging, user access controls, and instrument qualification documentation templates. It meets GLP/GMP data integrity requirements when deployed in regulated environments, with configurable electronic records retention and secure archiving options.

Software & Data Management

Chromeleon Chromatography Data System (CDS) v6.x and v7.x serves as the unified software environment—supporting instrument control, sequence management, peak integration, reporting, and system suitability assessment. Version 7.2 introduces eWorkflow capabilities for guided method execution, reducing operator-dependent variability. The software includes built-in system suitability testing (SST) tools compliant with USP and EP 2.2.46, automatic calibration curve generation, and customizable report templates exportable to PDF, Excel, or XML. Audit trails are immutable and timestamped, recording all user actions, parameter changes, and data modifications—ensuring traceability required for regulatory submissions. Networked deployment enables centralized administration across multiple instruments and remote monitoring via secure web interface.

Applications

This system is routinely deployed in undergraduate and graduate teaching laboratories for hands-on instruction in chromatographic theory, method optimization, and detector response characterization. In industrial QC settings, it performs assay quantitation of active ingredients, impurity profiling per ICH Q2(R2), residual solvent analysis (ICH Q3C), and excipient identification. Its gradient flexibility supports reversed-phase, ion-exchange, and hydrophilic interaction liquid chromatography (HILIC) methods. With appropriate detector selection, it supports stability-indicating assays, dissolution testing, and forced degradation studies. The modular design permits future expansion—for example, upgrading to an RS pump for higher-pressure UHPLC operation or adding an AFC-3000 fraction collector for offline compound isolation.

FAQ

Is this system suitable for UHPLC methods?
Yes—when configured with sub-2 µm columns and operated within its 62 MPa pressure limit, it supports many UHPLC applications; however, for sustained >62 MPa operation, the UltiMate 3000 RS series is recommended.
Can Chromeleon CDS control third-party instruments?
Yes—Chromeleon v7.x supports vendor-neutral control of select GC, IC, and mass spectrometry systems via standardized communication protocols (e.g., LAN-based ASCII commands, OPC UA).
What validation documentation is provided?
Thermo Fisher supplies IQ/OQ documentation packages, including test protocols, acceptance criteria, and completed execution records—fully aligned with GAMP5 and FDA guidance for computerized system validation.
Is method transfer from legacy HPLC systems feasible?
Yes—the system’s flow and pressure ranges, dwell volume (~650 µL for LPG-3400SD), and gradient delay characteristics are designed to facilitate straightforward method translation from Agilent 1100/1200 or Waters 2695 platforms.
How is maintenance access managed?
All major modules—including pump heads, purge valves, and detector flow cells—are front-accessible with tool-free panel removal; consumables (seals, frits, lamps) are labeled with part numbers and lifetime tracking in Chromeleon.
