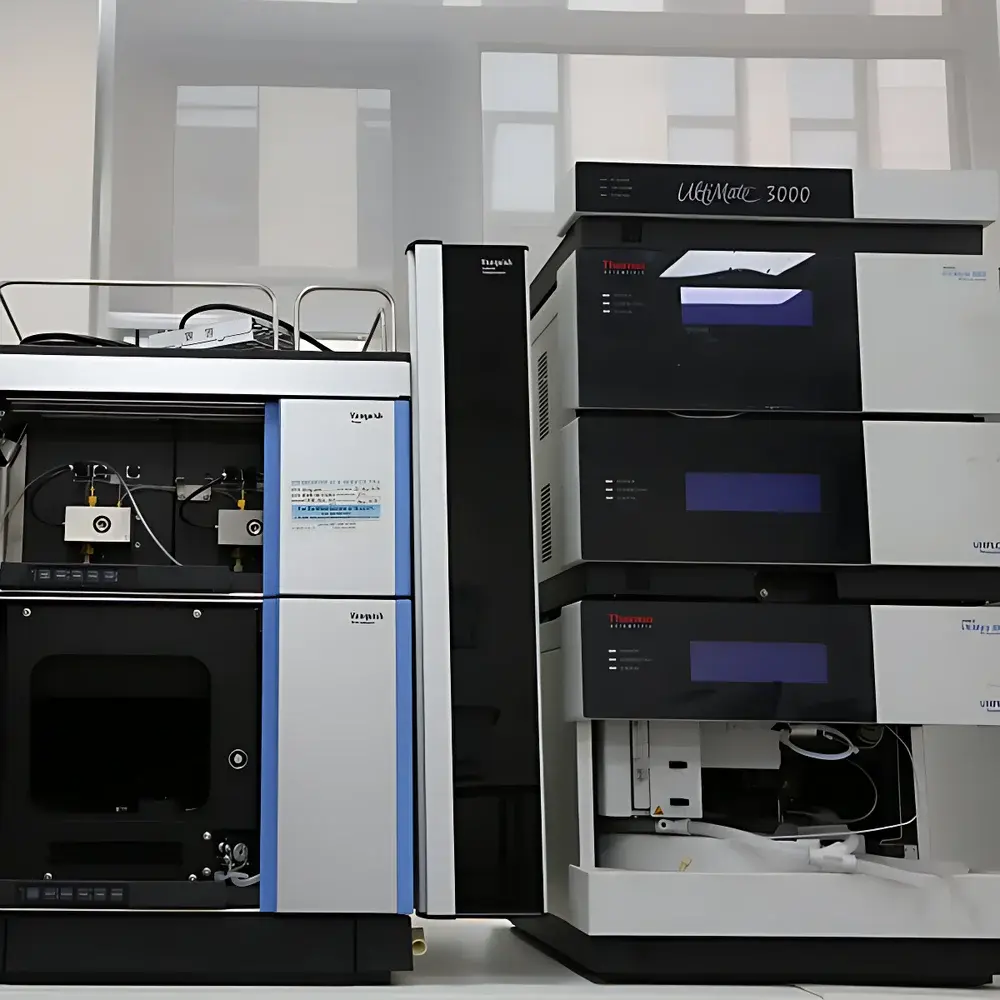

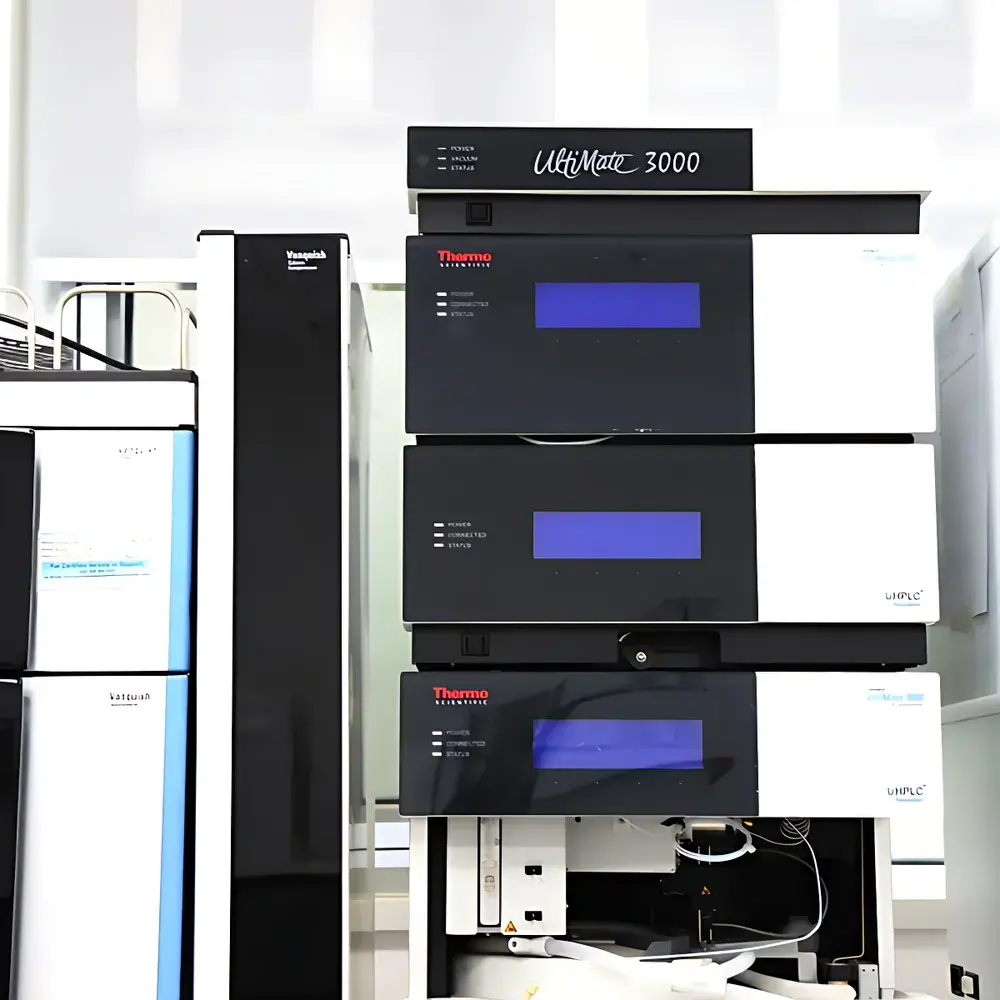

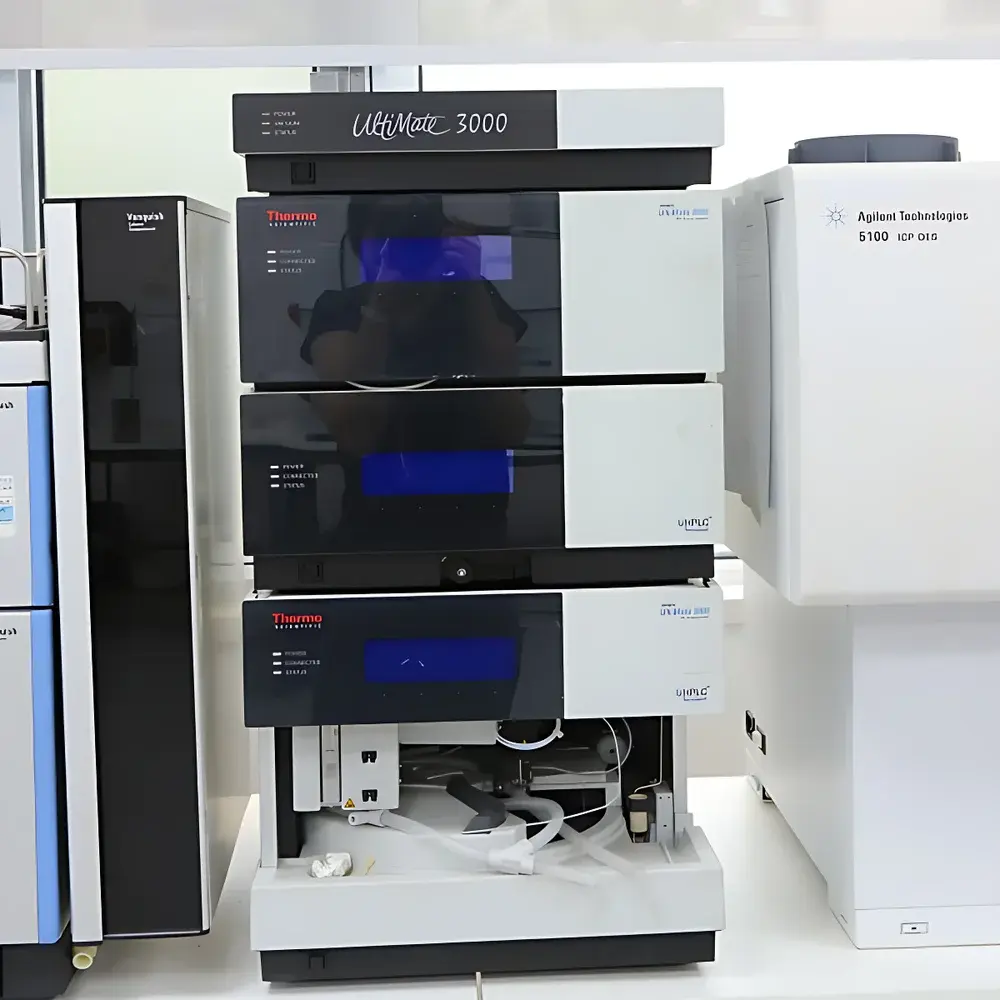

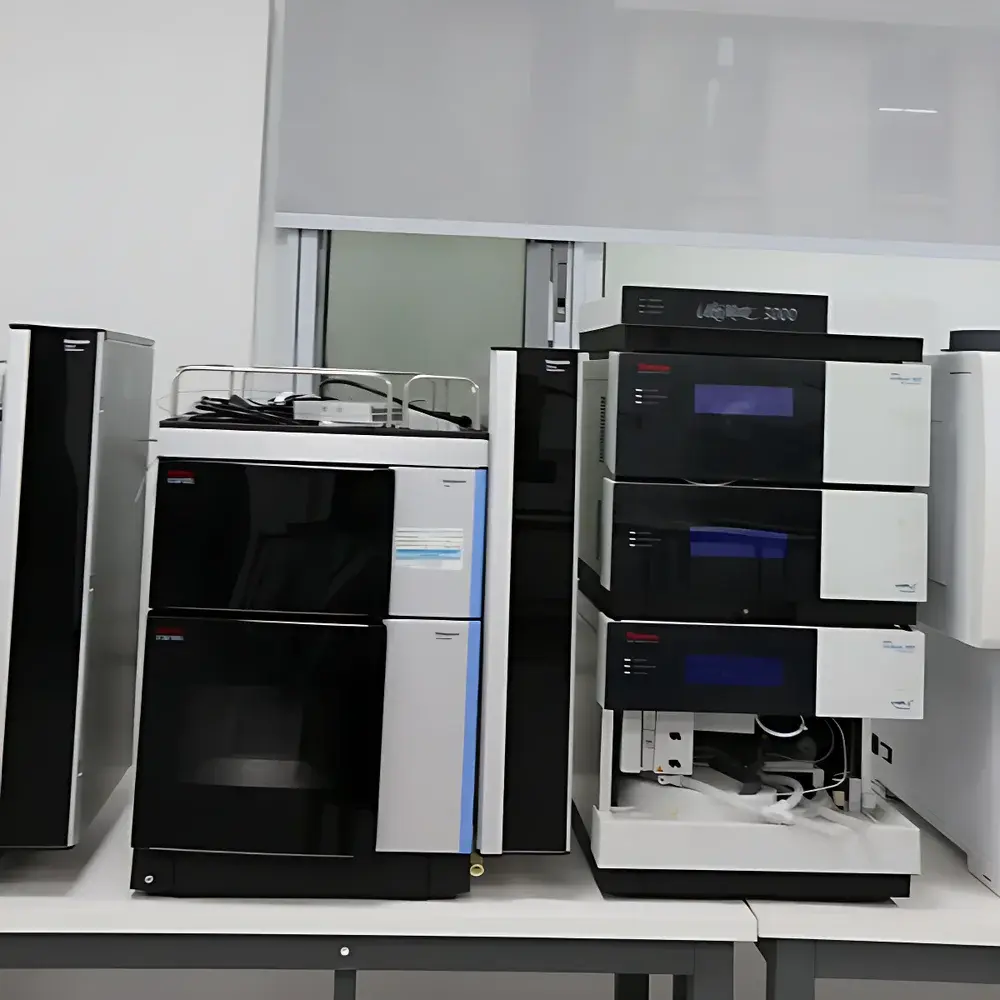

Thermo Fisher UltiMate 3000 Used UHPLC System

Overview

The Thermo Fisher UltiMate 3000 is a high-performance, modular ultra-high-performance liquid chromatography (UHPLC) system engineered for precision, robustness, and method scalability across analytical, microbore, and nanoflow applications. Designed around the UHPLC+ architecture, it supports pressure operation up to 620 bar—enabling use of sub-2-µm particle columns for enhanced resolution, peak capacity, and analysis speed without compromising system integrity. Its dual triple-quaternary gradient architecture allows independent control of two parallel solvent delivery paths, supporting complex multi-dimensional separations, online solid-phase extraction (SPE), and method development workflows requiring simultaneous gradient programming. The system integrates seamlessly with Thermo Fisher’s Chromeleon Chromatography Data System (CDS), providing full audit-trail compliance, electronic signature support, and 21 CFR Part 11–ready configuration for regulated environments.

Key Features

• Modular dual-gradient architecture: Two independent triple-quaternary pumps enable flexible configuration for standard HPLC, UHPLC, LC–MS coupling, and multidimensional LC applications.
• Bio-compatible titanium fluidic path options available for acidic, basic, or sensitive biomolecule analyses—reducing metal-catalyzed degradation and adsorption.
• Viper™ and oViper™ fingertight fitting system: Tool-free, zero-dead-volume connections rated for >1000 bar; compatible with rapid method transfer and column switching protocols.
• Low-noise UV-Vis detector featuring dual-lamp source (deuterium + tungsten), 190–900 nm spectral range, and photometric stability < ±2.5 µAU (RMS) at 254 nm.
• High-sensitivity fluorescence detector with independent front-panel controls, excitation/emission scanning from 200–900 nm, and wavelength accuracy of ±2 nm.
• Refrigerated autosampler with rotary tray design, <0.005% carryover, 15-second injection cycle, and external needle wash capability for low cross-contamination in trace-level quantitation.
• Column compartment with Peltier-based temperature control (5–85 °C), stability < ±0.1 °C, and real-time thermal monitoring for retention time reproducibility.

Sample Compatibility & Compliance

The UltiMate 3000 accommodates a broad range of sample matrices—including pharmaceutical actives, peptides, oligonucleotides, small-molecule metabolites, and environmental contaminants—across reversed-phase, HILIC, ion-exchange, and size-exclusion modes. Its titanium pump heads and inert flow paths meet USP <661>, ISO 10993–1, and ASTM E2655 requirements for biocompatibility testing. The system supports GLP/GMP-compliant operation when configured with Chromeleon CDS v7.3 or higher, including full audit trail logging, user access control, electronic signatures, and instrument qualification documentation templates aligned with IQ/OQ/PQ protocols.

Software & Data Management

Chromeleon CDS serves as the unified platform for instrument control, sequence management, data acquisition, and reporting. It natively supports dual-gradient method generation, online SPE workflow automation, and concurrent execution of two independent methods on shared autosampler and column oven resources. Database-driven method storage ensures version-controlled method reuse, while customizable report templates comply with internal SOPs and external regulatory submissions (e.g., FDA eCTD, EMA CTD). Raw data files are stored in vendor-neutral .cdf format; metadata embedding enables traceability of acquisition parameters, calibration history, and maintenance logs.

Applications

• Pharmaceutical QC/QA: Assay, related substances, residual solvents, and extractables/leachables per ICH Q2(R2), USP <621>, and EP 2.2.46.
• Biopharmaceutical characterization: Intact mass analysis, peptide mapping, glycan profiling, and charge variant separation using micro/nano-LC configurations.
• Clinical research: Therapeutic drug monitoring (TDM), steroid profiling, and vitamin D metabolite quantification in serum/plasma.
• Environmental analysis: PFAS, pesticides, and endocrine disruptors per EPA Method 1694 and ISO 21675.
• Academic proteomics: High-throughput bottom-up workflows coupled to Orbitrap or Q-TOF mass spectrometers.

FAQ

Is this unit fully refurbished and qualified prior to resale?
Yes. All used UltiMate 3000 systems undergo comprehensive functional verification, pressure leak testing, baseline noise/drift validation, and gradient accuracy assessment against Thermo Fisher factory specifications.
What documentation is included with the instrument?
Each system ships with a Certificate of Inspection, completed PQ checklist, Chromeleon license certificate, and electronic copy of the original operation manual and safety guide.
Can this system be integrated into an existing Chromeleon network environment?
Yes. The UltiMate 3000 is backward-compatible with Chromeleon CDS v7.1 and forward-compatible with v8.x deployments, supporting centralized instrument management and remote diagnostics.
Does the one-year warranty cover parts, labor, and on-site service?
The standard warranty includes all components, labor, and priority remote technical support; optional on-site service contracts are available upon request.
Are consumables and spare parts still supported by Thermo Fisher?
Yes. All major modules—including pumps, detectors, autosamplers, and column ovens—remain under active parts support with ≥5 years of guaranteed availability per Thermo Fisher’s End-of-Life policy.
