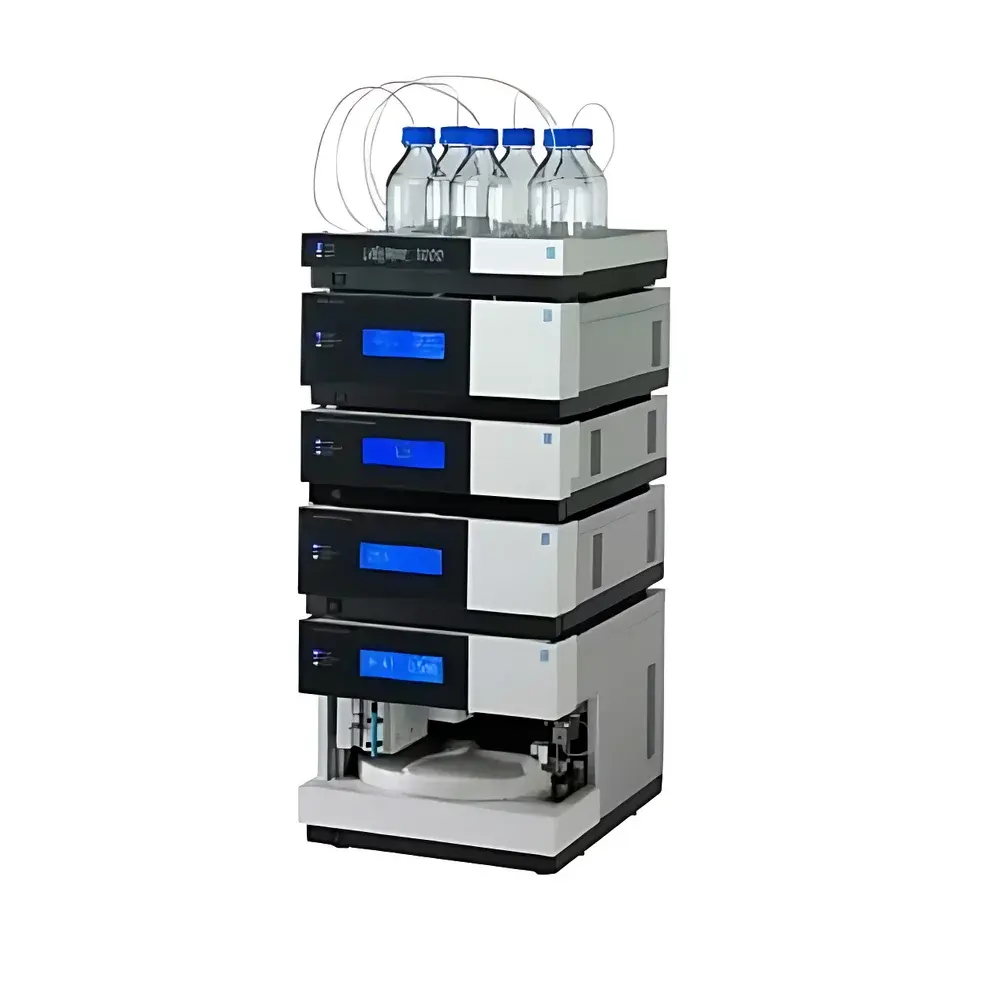

Thermo Fisher UltiMate3000-Ti Titanium-Based High-Performance Liquid Chromatography System

Overview

The Thermo Fisher UltiMate3000-Ti Titanium-Based High-Performance Liquid Chromatography (HPLC) System is an engineered solution for biotherapeutic and biomolecular analysis where metal-induced degradation must be rigorously avoided. Unlike conventional stainless-steel HPLC systems, the UltiMate3000-Ti employs a fully inert fluidic path constructed from titanium alloy pump heads, ceramic check valves, sapphire plungers, and high-purity PEEK tubing—eliminating leaching of Fe, Ni, Cr, and other transition metals that catalyze oxidation, deamidation, disulfide scrambling, and aggregation in sensitive biologics. This design directly addresses critical challenges in the analysis of monoclonal antibodies (mAbs), recombinant proteins, peptides, oligonucleotides, and post-translationally modified species under aggressive mobile phase conditions—including high-salt buffers (e.g., 1 M NaCl), pH extremes (pH 1–13), and chaotropic agents. The system operates on standard reversed-phase, ion-exchange (e.g., ProPac, DNAPac), and mixed-mode chromatography principles, with precise gradient formation, low dwell volume (< 100 µL), and pressure stability up to 600 bar—enabling both ultra-fast separations and long-term method robustness in regulated environments.

Key Features

• Titanium pump heads with ceramic ball valves and sapphire-coated plungers ensure zero metal ion leaching and exceptional corrosion resistance across acidic, basic, and high-ionic-strength eluents.
• PEEK-based fluidic architecture throughout the entire flow path—from autosampler needle and injection valve to detector flow cell—guarantees biological inertness and compatibility with native-state protein analysis.
• Configurable dual-gradient or single-gradient pumping modules support applications ranging from nanoflow and capillary LC to semi-preparative scale, with flow rate precision ±0.1% RSD over 0.001–10 mL/min.
• Active piston seal wash system minimizes seal wear and extends maintenance intervals; non-metallic degasser eliminates metallic contamination during solvent outgassing.
• Column compartment features automated column recognition via RFID or barcode scanning, temperature control from 5–90 °C ±0.1 °C, and integrated multi-position switching valves for 2D-LC, heart-cutting, and comprehensive multidimensional separations.
• UV-Vis and diode array detectors (DAD) offer wavelength range 190–900 nm, noise < ±0.25 × 10⁻⁵ AU, and sampling rates up to 100 Hz—optimized for UHPLC-speed data acquisition and spectral deconvolution of co-eluting peaks.

Sample Compatibility & Compliance

The UltiMate3000-Ti is validated for use with Thermo Fisher’s ProSwift™ RP, ProPac™ WCX/WAX, and DNAPac™ PA series columns—designed specifically for intact mAb characterization, charge variant profiling, glycan mapping, and oligonucleotide purity assessment. Its inert construction meets ICH Q5E requirements for comparability studies and supports GLP/GMP-compliant workflows per FDA 21 CFR Part 11 when paired with Chromeleon™ CDS. System suitability testing, audit trail logging, electronic signatures, and method version control are natively supported. All wetted materials comply with USP , ISO 10993-1 (biocompatibility), and ASTM F2459 (metal ion extraction limits).

Software & Data Management

Chromeleon Chromatography Data System (CDS) v7.3+ provides full instrument control, sequence management, peak integration, spectral library matching, and reporting templates aligned with regulatory submission standards (e.g., FDA eCTD, EMA CTD). Built-in method wizards accelerate development of orthogonal assays for CQA monitoring. Real-time system diagnostics—pressure tracing, leak detection, gradient accuracy verification—enable predictive maintenance. Raw data files (.cdf, .d) are stored in vendor-neutral formats with embedded metadata (column lot, mobile phase composition, calibration history), ensuring traceability across analytical batches and cross-functional review.

Applications

• Intact mass analysis and subunit mapping of monoclonal antibodies under native and denaturing conditions
• Charge heterogeneity profiling using cation-exchange chromatography (CEX) without peak tailing or artifact formation
• Reduced and non-reduced disulfide bond mapping with preserved cysteine redox state integrity
• Oligonucleotide purity and impurity profiling (n-1, n+1, depurination products) in antisense and siRNA therapeutics
• Stability-indicating methods for accelerated degradation studies (oxidative, acidic, alkaline stress)
• Multi-dimensional LC–MS coupling for top-down proteomics and phosphoproteome enrichment

FAQ

Is the UltiMate3000-Ti compatible with mass spectrometry interfaces?
Yes—the system supports standard electrospray ionization (ESI) and nano-ESI sources via low-dead-volume PEEK unions and zero-metal fittings; no stainless-steel adapters are required.
Can it operate at sub-ambient column temperatures?
The column oven supports cooling down to 5 °C but does not include active refrigeration; for sub-zero applications, external chillers or cryo-cooled compartments are recommended.
What validation documentation is provided?
Factory-installed IQ/OQ protocols compliant with ASTM E2500 and EU Annex 11 are included; PQ execution templates and risk-based test scripts are available upon request.
Does the system support method transfer from legacy stainless-steel platforms?
Yes—retention time shifts are minimized due to identical dwell volumes and gradient delay compensation algorithms; column backpressure profiles remain consistent across material platforms.
Are replacement parts such as pump seals and injector rotors available as bio-inert alternatives?
All consumables—including rotor seals, needle seats, and capillary frits—are supplied in PEEK, ceramic, or titanium variants; no stainless-steel options are offered for Ti-system configurations.
