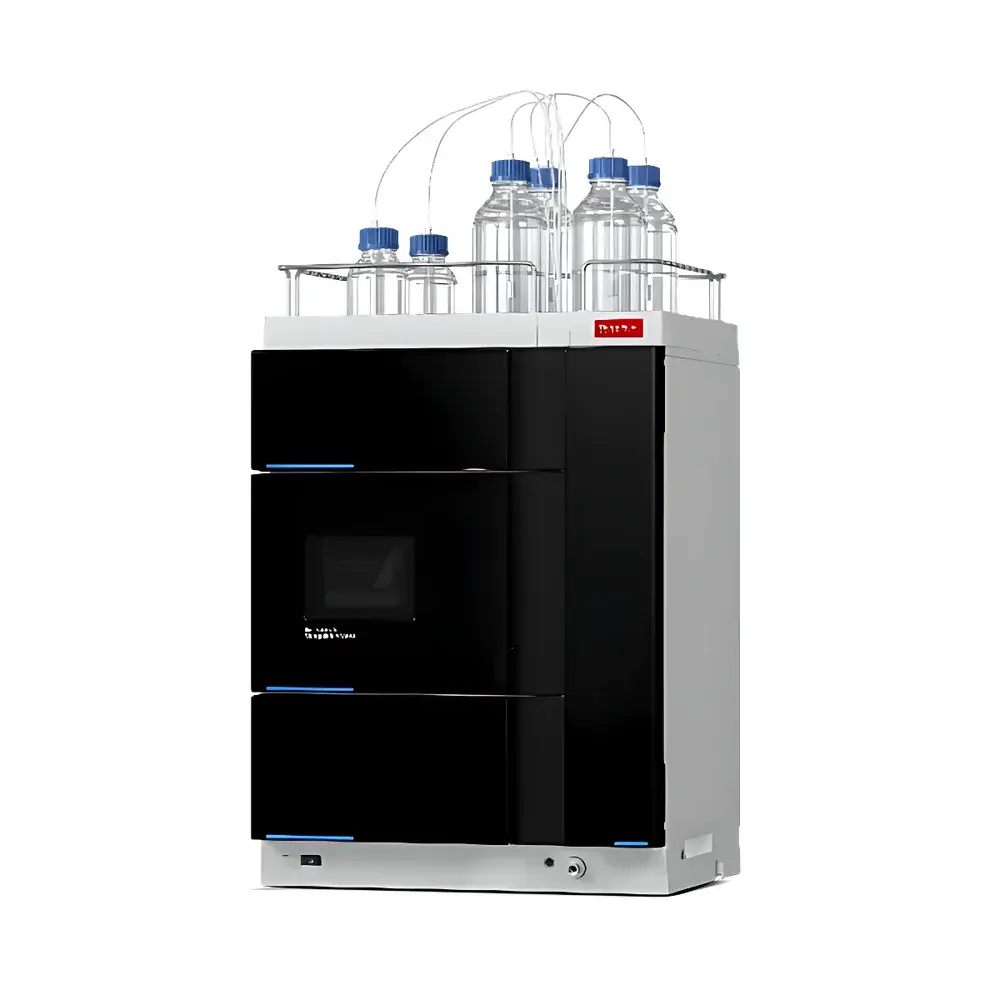

Thermo Fisher Vanquish Access HPLC System

Overview

The Thermo Fisher Vanquish Access HPLC System is a purpose-engineered, domestically manufactured high-performance liquid chromatograph designed for laboratories requiring robust, reproducible, and cost-efficient routine analysis. Built on Thermo Fisher’s proven Vanquish platform architecture, this system delivers the core performance attributes of premium UHPLC instrumentation—namely precise flow delivery, stable gradient formation, and reliable injection repeatability—within a configuration optimized for standard analytical workflows. It operates on classical reversed-phase, normal-phase, and ion-exchange chromatographic principles, utilizing high-pressure solvent delivery (up to 500 bar), precision metering pumps, and low-dead-volume fluidic pathways to ensure minimal band broadening and maximal peak resolution. Its design prioritizes operational stability over extended duty cycles, making it especially suitable for QC labs, contract testing facilities, and academic core facilities where method transfer fidelity and day-to-day consistency are critical success metrics.

Key Features

• SmartFlow™ pump technology ensures exceptional flow rate accuracy (±0.1% RSD) and gradient composition reproducibility (<0.15% RSD), even under variable backpressure conditions.
• Wide injection volume range: standard 0.01–100 µL loop-based autosampling, expandable to 0.01–1000 µL via optional large-volume injection kit—enabling both trace-level quantitation and preparative-scale method development.
• Modular, service-friendly architecture with field-replaceable components—including pump heads, injection valves, and column ovens—reducing mean time to repair (MTTR) and extending system uptime.
• eWorkflow™ software framework embedded in Chromeleon CDS enables guided method setup, automated sequence generation, and built-in validation checkpoints that minimize manual entry errors and accelerate analyst training.
• Integrated network connectivity supporting LDAP authentication, role-based access control, and remote monitoring via secure HTTP/HTTPS protocols—aligned with enterprise IT infrastructure requirements.

Sample Compatibility & Compliance

The Vanquish Access HPLC System accommodates a broad spectrum of sample matrices—including pharmaceutical actives, environmental extracts, food additives, and biological fluids—when coupled with standard 2.1–4.6 mm i.d. analytical columns and common stationary phases (C18, phenyl-hexyl, HILIC, etc.). Its pressure rating of 500 bar supports use of sub-3 µm particle packings and superficially porous particles (SPPs), delivering enhanced efficiency without demanding ultra-high-pressure hardware. The system meets essential regulatory expectations for analytical instrumentation used in GLP and GMP environments: it supports full 21 CFR Part 11 compliance when deployed with validated Chromeleon CDS v7.3 or later, including electronic signature capture, user activity audit trails, data integrity safeguards (e.g., write-protection of raw data files), and change control logging. All firmware and driver components are version-controlled and documented per ICH Q9/Q10 principles.

Software & Data Management

Chromeleon Chromatography Data System (CDS) serves as the primary control and data handling interface. The Vanquish Access integrates natively with Chromeleon via USB or Ethernet, enabling real-time instrument monitoring, method deployment, and raw data acquisition. Data files conform to ASTM E1985-compliant .D format, ensuring long-term readability and third-party software interoperability. Automated reporting templates support customizable PDF/Excel export, while batch processing tools allow parallel evaluation of retention time shifts, peak area precision, and system suitability parameters across hundreds of injections. Audit trail review functionality permits chronological reconstruction of all user actions—including method edits, sequence modifications, and result approvals—meeting ALCOA+ data governance criteria.

Applications

• Pharmaceutical quality control: assay, related substances, dissolution testing, and stability-indicating methods per USP , EP 2.2.46, and JP 6.03.
• Food and beverage safety: pesticide residue screening, mycotoxin quantification, vitamin profiling, and preservative detection.
• Environmental analysis: PAHs, PCBs, phenolic compounds, and emerging contaminants in water and soil extracts.
• Academic and industrial research: method scouting, column comparison studies, and robustness testing under ICH Q5A–Q5E guidelines.
• Biopharmaceutical characterization: peptide mapping, monoclonal antibody purity assessment, and glycan release analysis using HILIC or SEC modes.

FAQ

Is the Vanquish Access HPLC System compatible with third-party CDS platforms?
Yes—it supports industry-standard communication protocols (e.g., ANSI/AIA MC-1, ASTM E1985) and can be interfaced with select non-Thermo CDS solutions via OLE for Process Control (OPC) or vendor-specific drivers, though full 21 CFR Part 11 compliance requires Thermo-validated configurations.
Can it be upgraded to UHPLC performance levels?
No—the system is engineered for conventional HPLC operation up to 500 bar; it does not support sub-2 µm particles at >600 bar nor includes low-dispersion detector flow cells required for true UHPLC resolution.
What maintenance intervals are recommended for routine operation?
Pump seal replacement every 6 months (or 1,500 hours), injector rotor seal replacement every 12 months, and column oven calibration verification annually—per Thermo Fisher’s Preventive Maintenance Guide PN 082928.
Does it support gradient delay volume compensation?
Yes—Chromeleon CDS provides automatic dwell volume measurement and gradient delay correction during method development, improving inter-system method transfer accuracy.
Is remote diagnostics supported out-of-the-box?
Yes—the system includes embedded Telemetry Agent software that enables secure, encrypted remote health monitoring and error log retrieval by authorized Thermo Fisher Field Service Engineers.
