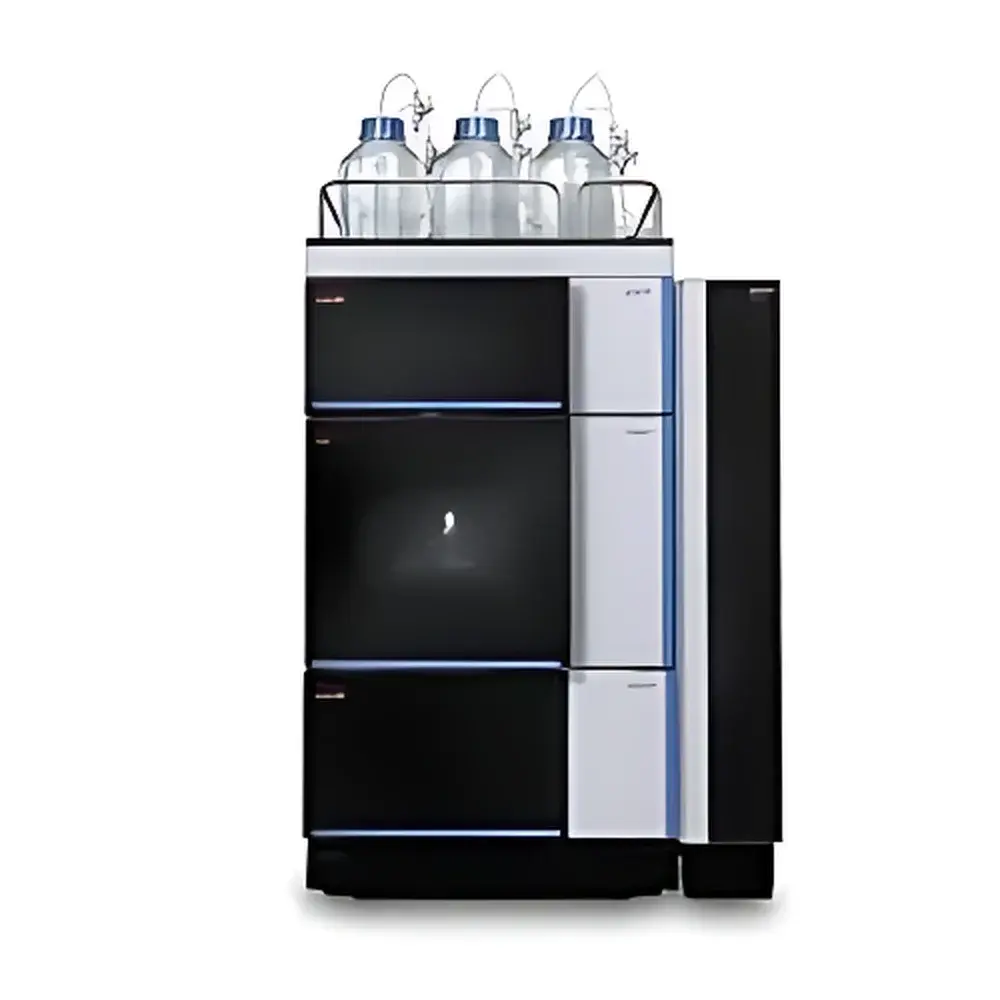

Thermo Fisher Vanquish Duo Ultra-High-Performance Liquid Chromatography System

Overview

The Thermo Fisher Vanquish Duo Ultra-High-Performance Liquid Chromatography (UHPLC) System is an engineered dual-gradient platform designed for laboratories requiring maximum analytical throughput, method flexibility, and regulatory compliance without compromising chromatographic resolution or retention time stability. Built on Thermo Fisher’s proven Vanquish architecture—manufactured in Germany to stringent ISO 9001-certified production standards—the system integrates two fully independent, high-pressure gradient LC channels within a single chassis. Each channel supports pressure capabilities up to 1500 bar, sub-2 µm particle column operation, and flow rates from 0.001 to 3.0 mL/min with <0.1% RSD precision. Its core design leverages parallel fluidic pathways governed by dual high-precision quaternary pumps, enabling true concurrent operation—not time-multiplexed switching—thereby eliminating carryover, cross-contamination, and sequential delay between analyses. This architecture supports three distinct operational modes: (1) dual parallel UHPLC for doubled sample throughput; (2) tandem LC (e.g., online column regeneration while the second channel analyzes), optimizing detector or mass spectrometer uptime; and (3) back-flush gradient LC with integrated charged aerosol detection (CAD), enabling universal quantitation of non-volatile and semi-volatile analytes without reference standards.

Key Features

• Dual independent UHPLC channels—each with full gradient capability, active solvent selection, and real-time pressure monitoring
• Integrated column oven with temperature range 5–100 °C and ±0.1 °C stability, supporting both standard and high-temperature LC applications
• Autosampler with 216-position tray capacity, 0.1–100 µL injection volume range, and <0.25% RSD precision at 5 µL
• Low-dead-volume fluidic design minimizing extra-column dispersion (<1.5 µL total system dispersion)
• Modular detector interface supporting seamless integration with UV-Vis, fluorescence, CAD, and high-resolution mass spectrometers (e.g., Orbitrap, Q Exactive series)
• Robust mechanical architecture with vibration-dampened optical bench and thermal mass stabilization for long-term baseline integrity

Sample Compatibility & Compliance

The Vanquish Duo accommodates diverse sample matrices—including pharmaceutical formulations, biologics digests, environmental extracts, food contaminants, and polymer additives—across reversed-phase, HILIC, ion-pairing, and size-exclusion chromatographic modes. Its dual-channel configuration enables simultaneous method development and validation runs, or orthogonal separation strategies (e.g., C18 vs. phenyl-hexyl) for enhanced peak identification confidence. From a regulatory standpoint, the system meets requirements for GLP, GMP, and FDA 21 CFR Part 11 environments when deployed with Chromeleon CDS. Audit trail logging, electronic signatures, role-based access control, and instrument calibration history tracking are natively embedded. All hardware components comply with IEC 61000-4 electromagnetic compatibility standards and CE/UL safety directives. Method transfer compatibility is ensured via Thermo Fisher’s standardized method translation tools aligned with USP , ISO 17025, and ASTM E2687 protocols.

Software & Data Management

Control, acquisition, and processing are unified under Thermo Scientific Chromeleon Chromatography Data System (CDS) v7.3 or later. The software provides dedicated workflow wizards for dual-channel method setup—including synchronized or asynchronous gradient programming, shared autosampler scheduling, and inter-channel event triggering (e.g., start regeneration upon completion of analysis on Channel A). Raw data files adhere to open-standard formats (e.g., .cdf, .raw), ensuring interoperability with third-party chemometric platforms such as Simca or MATLAB. Batch processing, peak integration templates, and automated report generation support LIMS integration via ODBC or RESTful API. All user actions—including method edits, sequence modifications, and reprocessing—are timestamped and cryptographically signed within the audit trail, satisfying ALCOA+ principles for data integrity.

Applications

• Pharmaceutical QC/QA: Concurrent assay and impurity profiling using identical or orthogonal columns to accelerate release testing
• Biopharmaceutical characterization: Online desalting and buffer exchange coupled with intact mAb analysis on Channel A while Channel B performs peptide mapping
• Environmental screening: Parallel analysis of PAHs and organochlorine pesticides across different mobile phase chemistries to improve confidence in low-level detection
• Food safety: Simultaneous quantitation of mycotoxins (via CAD) and vitamins (via UV) in complex cereal matrices
• Academic research: Method scouting with variable pH, temperature, and stationary phases across both channels to rapidly identify optimal separation conditions

FAQ

Can the Vanquish Duo operate two different column chemistries simultaneously?
Yes—each channel supports independent column ovens, detectors, and gradient profiles, enabling concurrent use of reversed-phase, HILIC, or ion-exchange columns.
Is method transfer between single-channel Vanquish systems and the Vanquish Duo supported?
Yes—Chromeleon CDS includes automated method scaling tools that preserve retention time predictability and peak shape fidelity during migration.
Does the system support unattended overnight operation with dual-channel sequences?
Yes—integrated power-fail recovery, leak detection with automatic shutdown, and sequence queue management enable fully autonomous 24/7 operation.
How is data integrity maintained when both channels acquire data simultaneously?
Each channel writes to discrete, time-stamped raw data files with embedded metadata; Chromeleon enforces strict file locking and checksum validation during acquisition and reprocessing.
What maintenance intervals are recommended for dual-pump operation?
Pump seals and check valves require inspection every 3,000 injections per channel; full preventive maintenance is scheduled annually per ISO/IEC 17025 laboratory accreditation guidelines.
