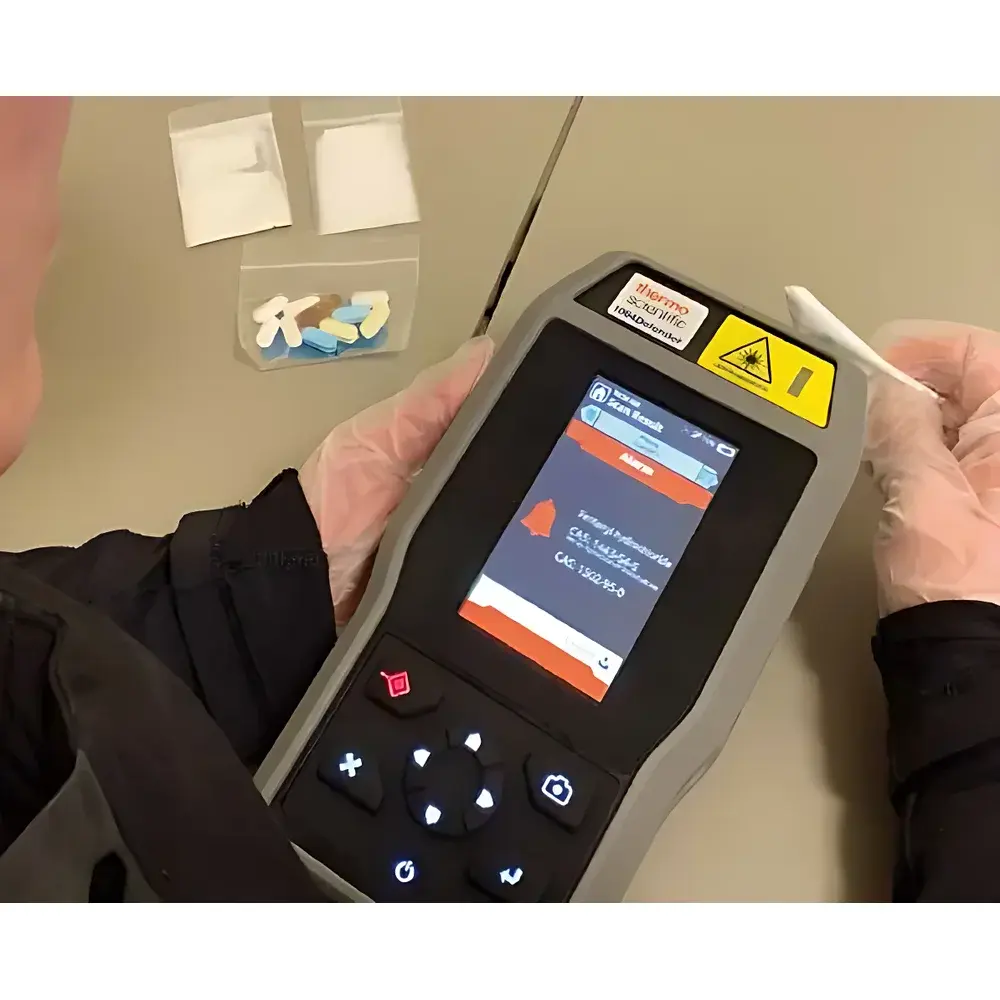

Thermo Scientific 1064Defender Handheld Raman Spectrometer

Overview

The Thermo Scientific™ 1064Defender™ Handheld Raman Spectrometer is a field-deployable, 1064 nm near-infrared (NIR) Raman analyzer engineered for unambiguous identification of hazardous and regulated chemicals—including narcotics, explosives precursors, pharmaceuticals, and toxic industrial compounds—without physical contact or sample preparation. Operating on the principle of inelastic light scattering, the instrument excites molecular vibrations using a 1064 nm diode laser, minimizing fluorescence interference that commonly obscures spectral features in visible-wavelength Raman systems. This enables high-fidelity spectral acquisition from highly fluorescent substances such as heroin, cocaine base, fentanyl analogues, and dyed illicit powders—materials notoriously challenging for 785 nm or 532 nm handheld platforms. Designed for frontline operational environments—from law enforcement checkpoints and customs inspection zones to hazmat response units and forensic mobile labs—the 1064Defender delivers laboratory-grade spectral fidelity in a ruggedized, ergonomic form factor compliant with MIL-STD-810H environmental stress testing and rated IP68 for dust and immersion resistance.

Key Features

• 1064 nm excitation wavelength optimized to suppress fluorescence and enhance signal-to-noise ratio for dark, colored, or highly fluorescent samples
• Dual operational modes: Identification Mode for expert-level spectral matching and library-driven compound confirmation; and Screening Mode for rapid binary decision output (e.g., “Alert”, “Warning”, “No Hazard”) aligned with threat-response protocols
• On-device customizable scanning profiles and user-defined spectral libraries—including configurable thresholds for cut-off concentrations, mixture detection limits, and confidence scoring
• Three-tiered access control architecture: Administrator, Operator, and Supervisor roles with role-specific permissions for database editing, result export, and system configuration
• Integrated GPS geotagging and 5 MP digital camera for auditable chain-of-custody documentation—time-stamped, location-tagged, and user-logged spectral acquisitions
• Removable, hot-swappable lithium-ion battery supporting >8 hours of continuous operation; USB-C and Wi-Fi 5 (802.11ac) connectivity for real-time data synchronization and remote firmware updates
• Web-based user interface (WebUI) accessible via any standards-compliant browser—enabling centralized management of users, spectral databases, instrument settings, and raw data archives without local software installation

Sample Compatibility & Compliance

The 1064Defender supports non-contact, through-barrier analysis of solids, powders, gels, and liquids sealed in plastic, glass, or polyethylene containers. Its 1064 nm laser enables reliable detection of target analytes even in presence of common interferents such as talc, mannitol, caffeine, and dyes used in counterfeit pharmaceuticals. Instrument design adheres to international safety standards including IEC 60825-1:2014 (Class 1M laser product) and complies with U.S. FDA guidance for portable analytical instruments used in regulatory screening contexts. Data integrity meets GLP/GMP-aligned requirements: full audit trail logging (user ID, timestamp, GPS coordinates, scan parameters, spectral metadata), password-protected accounts, and encrypted local storage. Optional integration with Thermo Fisher’s cloud-based ChemID™ platform supports 21 CFR Part 11-compliant electronic records and signatures where required.

Software & Data Management

All spectral acquisition, processing, and reporting occur natively on-device using Thermo’s proprietary ChemID™ software engine. The system employs multivariate correlation algorithms—including modified cosine similarity, Euclidean distance mapping, and hierarchical cluster analysis—against reference libraries traceable to NIST SRM-certified standards. Users may import third-party spectra in JCAMP-DX format and build custom libraries containing controlled substances, cutting agents, precursors, and degradation products. WebUI facilitates over-the-air database updates validated against DEA, UNODC, and EMA watchlists. Raw spectra (.spc, .csv) and processed reports (.pdf) are exportable via Wi-Fi or USB mass storage—retaining full metadata including instrument serial number, calibration status, and operator credentials. No proprietary desktop client is required for data review or archival.

Applications

• Law enforcement: Rapid identification of illicit drugs and synthetic opioids at traffic stops, border crossings, and clandestine lab raids
• Customs & border protection: Non-invasive screening of parcels, luggage, and cargo for concealed narcotics or explosives precursors
• Hazmat response: In-situ characterization of unknown chemical releases without direct exposure risk
• Pharmaceutical quality control: Verification of active pharmaceutical ingredients (APIs) and excipients in finished dosage forms
• Forensic laboratories: Triage tool for bulk evidence sorting prior to confirmatory GC-MS or FTIR analysis
• Environmental monitoring: Detection of persistent organic pollutants (POPs) and pesticide residues in field-collected samples

FAQ

What is the primary advantage of 1064 nm excitation over 785 nm in handheld Raman?
The 1064 nm wavelength significantly reduces fluorescence background from organic matrices, enabling clean spectral acquisition from highly fluorescent substances—including heroin hydrochloride, methamphetamine base, and many fentanyl derivatives—that often yield saturated or unusable spectra at shorter wavelengths.
Does the 1064Defender require routine recalibration?
No. The instrument employs a solid-state, thermally stabilized optical bench with factory-traceable wavenumber calibration verified against polystyrene and silicon reference standards; field recalibration is not necessary under normal operating conditions.
Can spectral libraries be updated in the field?
Yes. Library updates are delivered via secure HTTPS push through the WebUI or USB import, with version-controlled change logs and cryptographic signature validation to ensure integrity and traceability.
Is the device compatible with enterprise IT security policies?
Yes. It supports WPA2/WPA3 enterprise Wi-Fi authentication, TLS 1.2+ encrypted data transmission, and role-based access controls aligned with NIST SP 800-53 Rev. 5 requirements for mobile forensic tools.
What regulatory frameworks does its data management support?
The audit trail, electronic signature capability (via optional ChemID Cloud), and immutable logging architecture are designed to support compliance with 21 CFR Part 11, ISO/IEC 17025, and EU Annex 11 for regulated analytical workflows.
