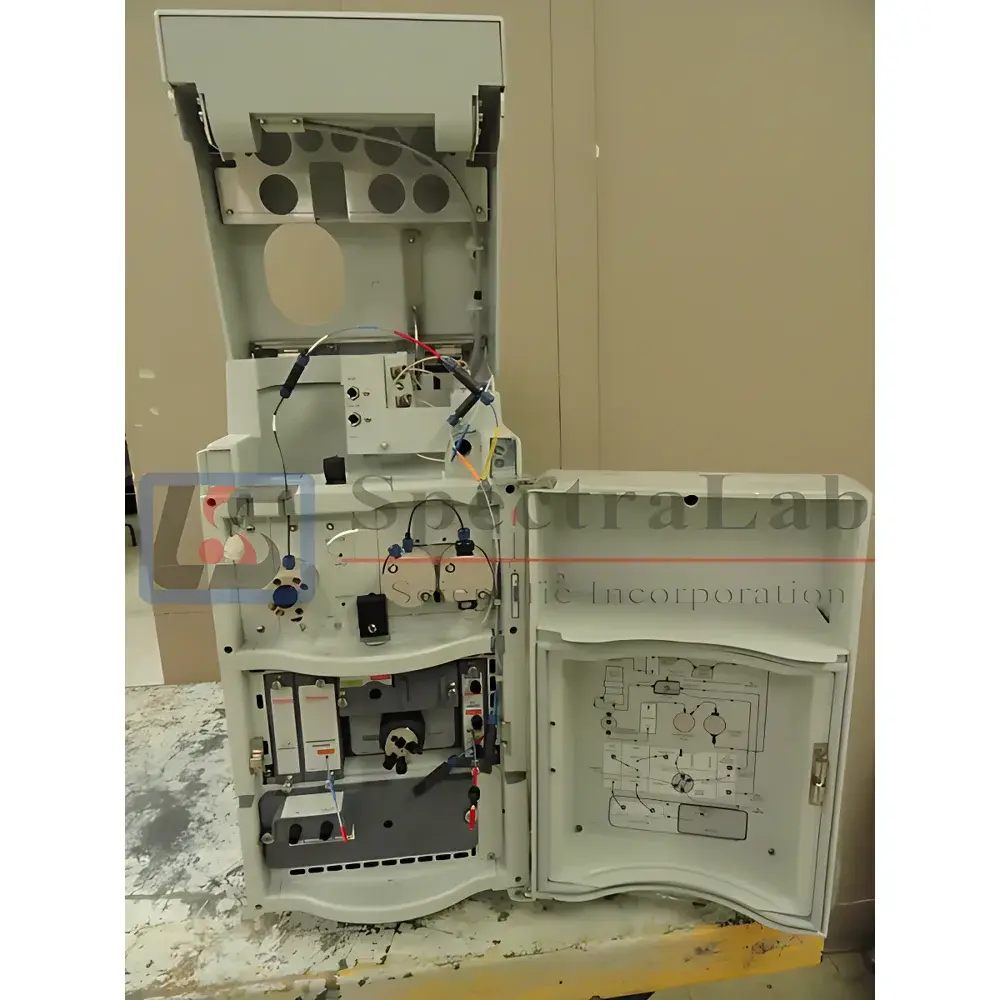

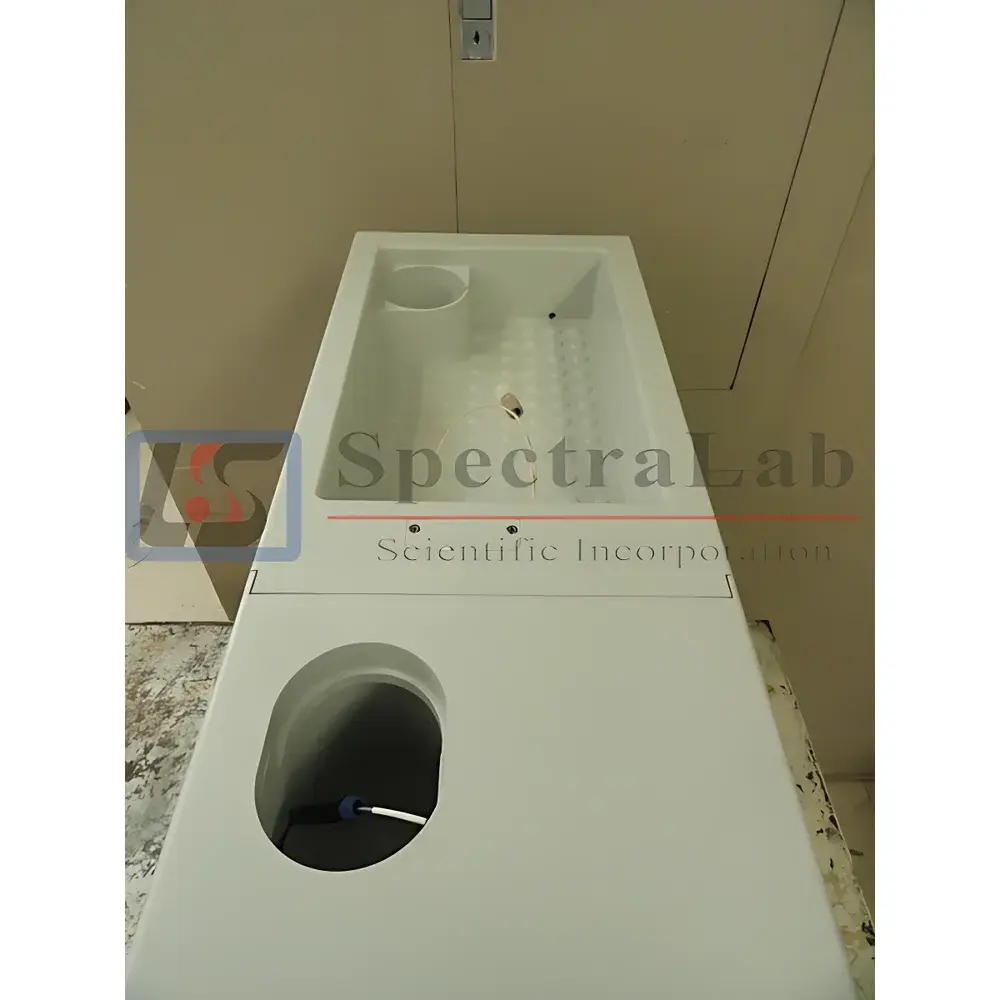

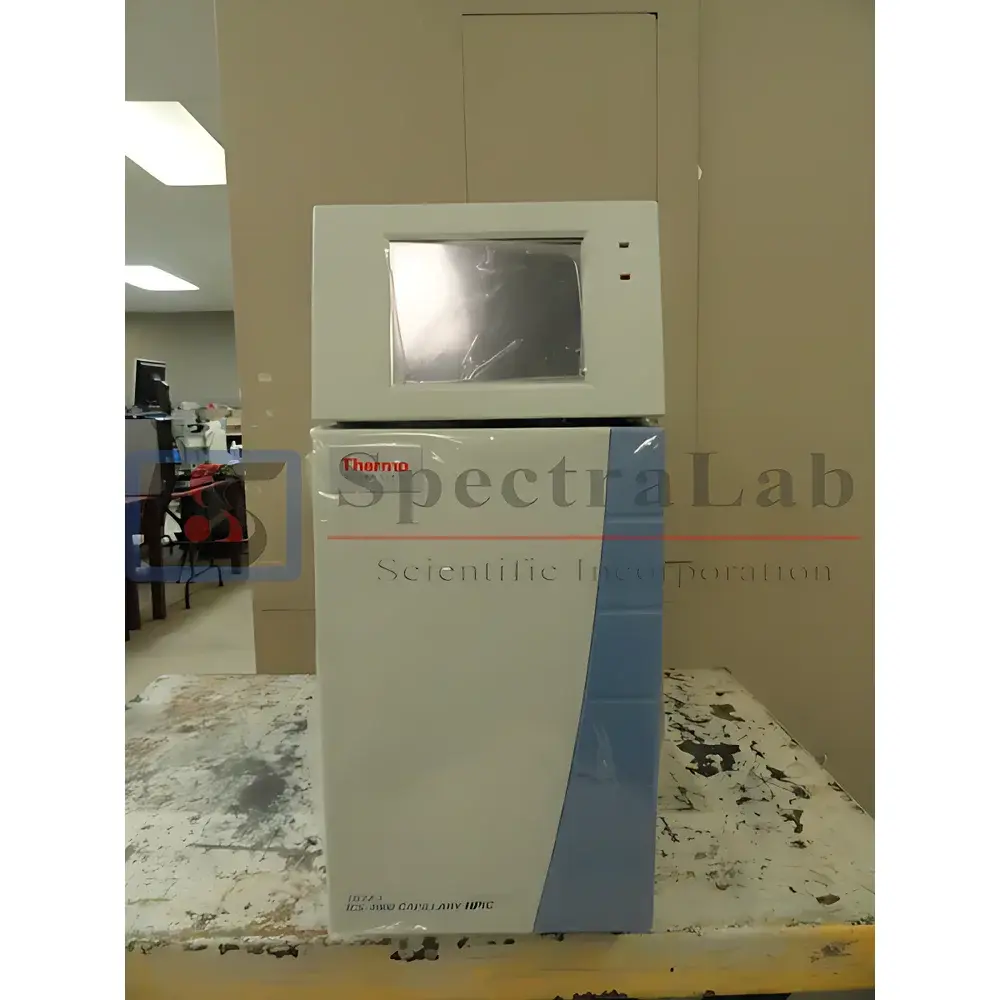

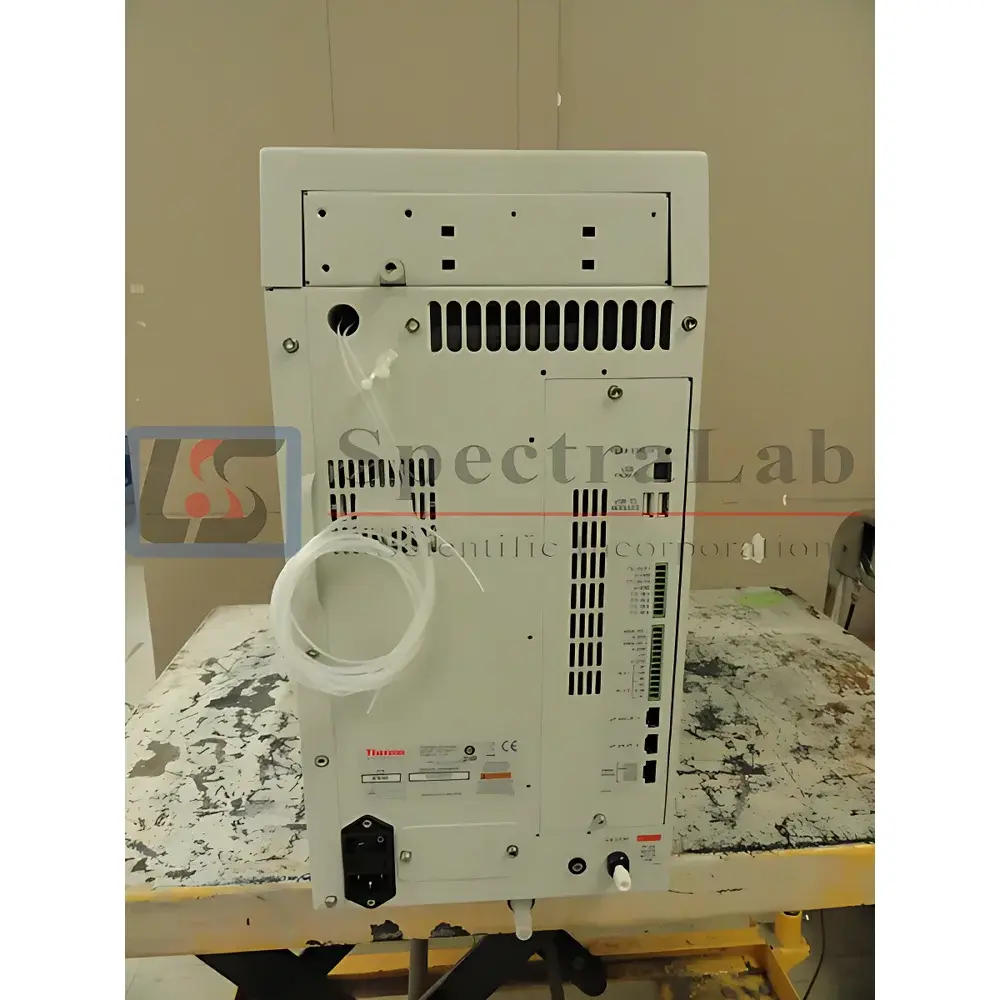

Thermo Scientific Dionex ICS-4000 Integrated Capillary HPIC System

Overview

The Thermo Scientific Dionex ICS-4000 Integrated Capillary HPIC System is a fully automated, high-resolution ion chromatography platform engineered for precision, reproducibility, and operational efficiency in regulated and research laboratories. Based on capillary-scale separation technology, the system employs electrolytically generated eluents—eliminating manual preparation—and operates at elevated pressures (up to 5000 psi) to deliver fast, high-efficiency separations with minimal sample and eluent consumption. Its core architecture integrates pump, autosampler, column oven, detector modules, and eluent generation into a single compact chassis, minimizing dead volume and thermal mass while maximizing baseline stability and peak shape fidelity. The system is fundamentally designed for applications requiring trace-level quantitation of inorganic anions, cations, organic acids, amines, and carbohydrates across environmental, pharmaceutical, food & beverage, and semiconductor manufacturing workflows.

Key Features

• Electrolytic eluent generation (EG) enabling stable, high-purity isocratic and gradient elution (0–200 mM) without chemical handling or daily calibration
• Capillary flow path (0.4 mm ID columns) reducing solvent consumption by >90% versus conventional bore systems and enabling sub-microliter injection volumes
• Integrated thermostatted zones for column, detector, and eluent reservoirs—ensuring ±0.1 °C temperature control to minimize retention time drift and baseline noise
• Modular detector compatibility: Conductivity Detector (CD) with digital signal processing and suppressed/non-suppressed modes; Charge Detector (QD) for orthogonal detection of weakly dissociated species; Electrochemical Detector (ED) with waveform-controlled amperometry for selective analysis of sugars, cyanide, azide, and biogenic amines
• Dionex IC Cube™ cartridge-based consumables—pre-packed, pre-equilibrated, and factory-validated—for rapid column exchange and method transfer with documented lot-specific performance data
• Full-system integration with Thermo Scientific Chromeleon™ Chromatography Data System (CDS) v7.3 or later, supporting audit trails, electronic signatures, and 21 CFR Part 11 compliance packages

Sample Compatibility & Compliance

The ICS-4000 supports direct injection of complex matrices—including untreated drinking water, digested biological tissues, semiconductor rinse waters, and formulated pharmaceutical buffers—without derivatization or extensive pretreatment. All fluidic pathways are constructed from PEEK, titanium, and inert ceramic materials to prevent metal leaching, oxidation, or adsorption artifacts. The system meets ISO/IEC 17025 requirements for testing laboratories and is routinely deployed in facilities operating under USP , ASTM D4327, EPA Methods 300.0/300.1/317.0, and ISO 10304-1 for ion analysis. Its hardware and firmware architecture support full GxP validation documentation packages, including IQ/OQ/PQ protocols and risk-based qualification frameworks aligned with Annex 11 and ALCOA+ data integrity principles.

Software & Data Management

Chromeleon CDS provides end-to-end method development, acquisition, processing, reporting, and archiving capabilities. Raw data files (.cdl) are stored in a secure, timestamped relational database with immutable audit trails tracking all user actions—including method edits, integration parameter changes, and reprocessing events. The software supports automated calibration curve generation with forced zero-point constraints, peak purity assessment via QD-CD co-detection overlays, and customizable report templates compliant with LIMS export standards (ASTM E1467, HL7). For laboratories maintaining electronic records, optional 21 CFR Part 11 modules provide role-based access control, electronic signature enforcement, and periodic backup verification logs.

Applications

• Environmental monitoring: Quantitation of F⁻, Cl⁻, NO₂⁻, Br⁻, NO₃⁻, PO₄³⁻, SO₄²⁻, and AsO₄³⁻ in surface water per EPA Method 300.1
• Pharmaceutical quality control: Counterion profiling of APIs, residual acetate/formate in biologics, and chloride/sulfate impurities in excipients per ICH Q2(R2)
• Food safety: Nitrate/nitrite in cured meats, phosphate additives in dairy, and organic acid profiles in fermented beverages
• Electronics grade water analysis: ppt-level Cl⁻, SO₄²⁻, and Na⁺ in UPW streams per SEMI F63
• Clinical research: Quantitative analysis of urinary organic acids and plasma catecholamines using ED detection

FAQ

Is this unit fully refurbished and tested prior to shipment?
Yes. Each ICS-4000 undergoes comprehensive functional verification—including pressure testing, baseline noise assessment, conductivity cell calibration, and multi-point retention time reproducibility checks—per Thermo Fisher’s OEM service specifications.
What documentation accompanies the system?
A complete as-delivered package includes original operation manuals, validated test reports, calibration certificates for CD/ED modules, and a traceable service history log covering all maintenance performed during its operational life.
Can the system be validated for GMP use?
Absolutely. We supply IQ/OQ protocol templates, vendor-supported PQ execution support, and optional third-party validation services through ISO 17025-accredited partners.
Are spare parts and consumables readily available?
All Dionex-branded capillary columns, IC Cube cartridges, EG cartridges, and suppressor modules remain in active production and are stocked globally via Thermo Fisher distribution channels.
Does the warranty cover detector modules and electronics?
Yes. The 6-month limited warranty covers all subsystems—including pump assemblies, detector cells, autosampler valves, and mainboard electronics—against defects in materials and workmanship under normal laboratory use conditions.
