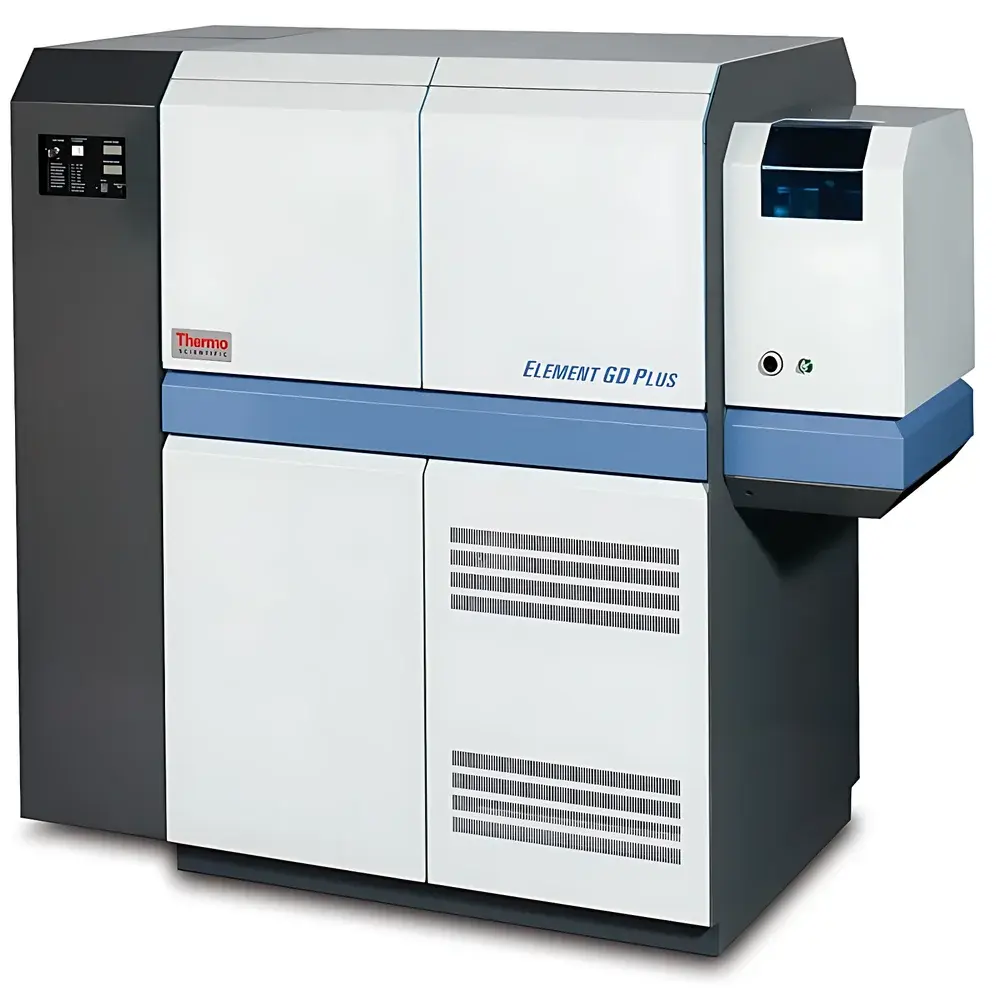

Thermo Scientific ELEMENT GD Plus Glow Discharge Mass Spectrometer

Overview

The Thermo Scientific ELEMENT GD Plus is a high-performance glow discharge mass spectrometer (GD-MS) engineered for ultra-trace elemental analysis of solid conductive and semi-conductive materials. It integrates a robust radiofrequency (RF) or direct-current (DC) glow discharge ion source with a double-focusing magnetic sector mass analyzer, delivering high mass resolution, exceptional sensitivity, and isotopic fidelity. Unlike solution-based techniques requiring dissolution and matrix separation, the ELEMENT GD Plus enables direct solid sampling—eliminating contamination risks, digestion losses, and time-intensive sample preparation. Its design targets applications demanding sub-ppt (parts-per-quadrillion) detection limits for impurities in high-purity metals (e.g., Cu, Ni, Al, Si), semiconductor wafers, sputtering targets, and thin-film coatings. The instrument operates under ultra-high vacuum (UHV) conditions (<1×10⁻⁹ mbar), ensuring minimal background interference and long-term stability during extended multi-hour analyses.

Key Features

• Double-focusing magnetic sector mass analyzer with continuously variable mass resolution (R = 400–10,000), enabling selective removal of isobaric interferences (e.g., ⁴⁰Ar¹⁶O⁺ vs. ⁵⁶Fe⁺) through high-resolution peak separation.
• Dual-mode glow discharge source: configurable for RF operation on non-conductive samples (e.g., oxides, nitrides, borides) and DC mode for metals and alloys—ensuring broad material coverage without sputter coating.
• 12-decade linear dynamic range detector system, supporting simultaneous quantification of major constituents (up to 100%) and trace impurities (sub-ppt) in a single acquisition—critical for certified reference material (CRM) validation and purity certification.
• Automated sample changer accommodating up to 60 positions, coupled with rapid-source conditioning protocols that reduce inter-sample memory effects and enable <5-minute turnaround between heterogeneous samples.
• High-stability Faraday cup and secondary electron multiplier (SEM) detectors, both calibrated against NIST-traceable standards, supporting ISO/IEC 17025-compliant uncertainty budgets.

Sample Compatibility & Compliance

The ELEMENT GD Plus analyzes flat, polished solids ≥10 mm in diameter and 1–5 mm thick—including single crystals, polycrystalline ingots, electroplated layers, PVD/CVD films, and powder pellets pressed with high-purity binders. Non-conductive samples (e.g., SiO₂, Al₂O₃, YSZ) are routinely analyzed via RF-GD mode without carbon or metal coating. The system complies with key regulatory frameworks governing materials characterization: ASTM E2893–22 (standard guide for GD-MS analysis of metals), ISO 11885 (water quality—determination of elements by ICP-MS, with GD-MS referenced as an alternative solid-sampling method), and supports audit-ready data integrity per FDA 21 CFR Part 11 and EU Annex 11 requirements when operated with Thermo Scientific Qtegra ISDS software in secure user-role environments.

Software & Data Management

Controlled by Thermo Scientific Qtegra Intelligent Scientific Data Solution (ISDS) v3.5+, the ELEMENT GD Plus provides full lifecycle data governance—from method setup and real-time plasma monitoring to automated isotope ratio calculation and CRM-matched quantification. The software embeds built-in uncertainty propagation algorithms compliant with GUM (Guide to the Expression of Uncertainty in Measurement), generates electronic lab notebook (ELN)-compatible reports with full audit trails, and exports structured data (XML, CSV) for LIMS integration. All raw spectra, tuning logs, and calibration records are time-stamped, digitally signed, and stored in encrypted project folders—meeting GLP and GMP documentation standards for pharmaceutical excipient qualification and nuclear-grade material release testing.

Applications

• Ultra-high-purity metal certification (e.g., 6N–7N Cu, Ti, Nb) for semiconductor fabrication and superconductor R&D.
• Depth profiling of functional coatings (e.g., TiN, CrN, DLC) with sub-nanometer depth resolution using controlled sputter rate calibration.
• Impurity fingerprinting of photovoltaic silicon feedstock to identify B, P, Fe, and transition metal contaminants affecting minority carrier lifetime.
• Reference material characterization for national metrology institutes (NMIs), including certification of SRMs and IRMM CRMs.
• Forensic metallurgy and failure analysis—detecting trace-level embrittling elements (e.g., Sb, Sn, As) at grain boundaries in turbine alloys.

FAQ

What sample preparation is required for GD-MS analysis on the ELEMENT GD Plus?

Flat, mechanically polished surfaces with roughness <0.1 µm Ra are recommended; no acid cleaning or ultrasonic treatment is needed—only solvent wipe to remove organic residues.
Can the ELEMENT GD Plus analyze insulating ceramics like SiC or BN?

Yes—using RF glow discharge mode, which sustains stable plasma on dielectric materials without conductive coating.
How does the instrument handle polyatomic interferences from residual gases?

UHV chamber design (<1×10⁻⁹ mbar base pressure), cryo-trapped turbomolecular pumping, and high-mass-resolution scanning minimize contributions from ArO⁺, NO⁺, and OH⁺ species.
Is isotopic ratio measurement supported for geochemical or nuclear applications?

Yes—the magnetic sector analyzer delivers mass-resolving power sufficient for δ⁵⁶Fe, δ⁷Li, and ²³⁵U/²³⁸U ratio determination with external precision <0.05‰ (2SD).
Does Thermo Fisher provide application-specific method packages?

Yes—pre-validated methods for high-purity aluminum, solar-grade silicon, and nuclear fuel cladding alloys are included, with full SOP documentation and uncertainty assessment templates.
