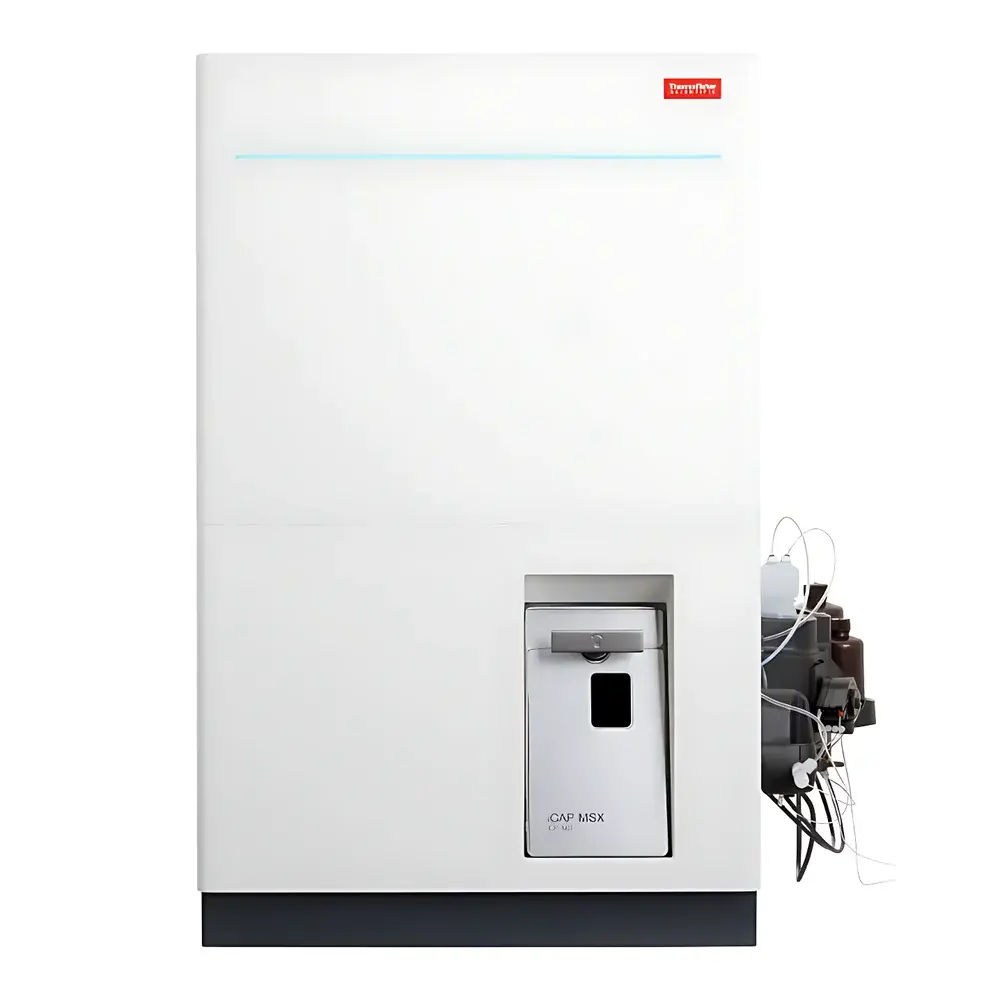

Thermo Scientific iCAP MSX Inductively Coupled Plasma Mass Spectrometer

Overview

The Thermo Scientific iCAP MSX is a high-performance inductively coupled plasma mass spectrometer (ICP-MS) engineered for precision elemental analysis across demanding environmental, clinical, geochemical, and materials science laboratories. It operates on the fundamental principle of ionizing sample aerosols in a high-temperature argon plasma (~7,000–10,000 K), followed by mass separation via a double-focusing magnetic sector or quadrupole mass analyzer—depending on configuration—and detection using high-gain electron multipliers. The iCAP MSX integrates a robust RF generator, optimized interface optics, and a collision/reaction cell capable of operating in both helium kinetic energy discrimination (He KED) and reactive gas modes, enabling effective polyatomic interference removal while preserving sensitivity for key isotopes.

Key Features

• Optimized sample introduction system featuring a high-efficiency nebulizer and quartz cyclonic spray chamber, delivering improved transport efficiency and reduced memory effects.
• Enhanced matrix tolerance achieved through advanced plasma stabilization algorithms and dynamic bandpass tuning, allowing reliable analysis of complex samples such as seawater, biological digests, and high-salt geological matrices without extensive dilution.
• Modular hardware architecture with field-upgradable components—including interchangeable cones, reaction cell gases, and detector configurations—supporting method flexibility across routine QA/QC, ultra-trace research, and regulated compliance workflows.
• Intuitive maintenance design: tool-free torch alignment, quick-release interface plates, and automated vacuum pump diagnostics reduce instrument downtime and minimize technician dependency.
• End-to-end workflow automation—from auto-tune and mass calibration to internal standard correction and report generation—integrated via Thermo Scientific Qtegra Intelligent Scientific Data Solution™ software.

Sample Compatibility & Compliance

The iCAP MSX accommodates liquid samples introduced via peristaltic pumping or autosampler integration, with compatibility extended to laser ablation (LA-ICP-MS) and hydride generation (HG-ICP-MS) interfaces for solid and volatile element analysis. It meets essential regulatory requirements for trace metal quantification in accordance with EPA Method 6020B, ISO/IEC 17025:2017, and ASTM D5673. When operated with Qtegra ISDS under audit-trail-enabled configurations, the system supports 21 CFR Part 11 compliance for electronic records and signatures, making it suitable for GLP and GMP environments where data integrity and instrument qualification (IQ/OQ/PQ) are mandatory.

Software & Data Management

Qtegra ISDS provides a unified platform for method development, real-time spectral monitoring, isotope ratio calculation, and statistical reporting. Its built-in calibration curve fitting engine supports linear, quadratic, and weighted regression models with automatic outlier rejection. Raw data files (.raw) are stored in vendor-neutral formats compatible with third-party data reprocessing tools. Audit trails record all user actions—including parameter changes, calibration events, and result exports—with timestamps and operator IDs. Data export options include CSV, PDF, and XML for LIMS integration, and raw signal traces can be archived for retrospective interference evaluation.

Applications

• Environmental monitoring: quantification of ultra-trace metals (e.g., Pb, Cd, As, U) in drinking water, wastewater, and soil leachates at sub-pg·g⁻¹ levels.
• Clinical and pharmaceutical analysis: measurement of elemental impurities in active pharmaceutical ingredients (APIs) per ICH Q3D guidelines.
• Geochemical fingerprinting: high-precision isotope ratio analysis (e.g., Sr, Nd, Hf) for provenance studies and radiometric dating.
• Materials characterization: detection of dopants and contaminants in semiconductor-grade silicon, battery cathode materials, and catalyst formulations.
• Nuclear safeguards: isotopic composition analysis of uranium and plutonium bearing materials in non-proliferation laboratories.

FAQ

What types of sample introduction systems are supported?
The iCAP MSX is compatible with standard pneumatic nebulizers (e.g., MicroMist, PFA-ST), desolvating systems (e.g., Aridus III), laser ablation systems (e.g., NWR213), and hydride generation modules—all controlled directly through Qtegra ISDS.
Does the instrument support isotope ratio measurements?
Yes; the iCAP MSX delivers high mass stability and low background noise, enabling precise isotope ratio determination for applications such as geochronology and tracer studies when configured with appropriate tuning and calibration protocols.
How is data integrity ensured during long-term operation?
Instrument parameters are logged automatically at defined intervals; all method files and results are digitally signed and timestamped. System suitability checks—including sensitivity drift monitoring and oxide formation rate tracking—are embedded into every analytical sequence.
Can the iCAP MSX be integrated into a laboratory information management system (LIMS)?
Yes; Qtegra ISDS supports ASTM E1384-compliant data exchange via ODBC and direct API integration, facilitating seamless transfer of validated results, metadata, and QC flags to enterprise LIMS platforms.
What service and support options are available globally?
Thermo Fisher offers factory-certified installation, preventive maintenance contracts, remote diagnostics, and application-specific training delivered by field application scientists—available through regional service centers across North America, EMEA, and APAC.
