Thermo Scientific Instant Connect Thermal Conductivity Detector (TCD) for Gas Chromatography

Overview

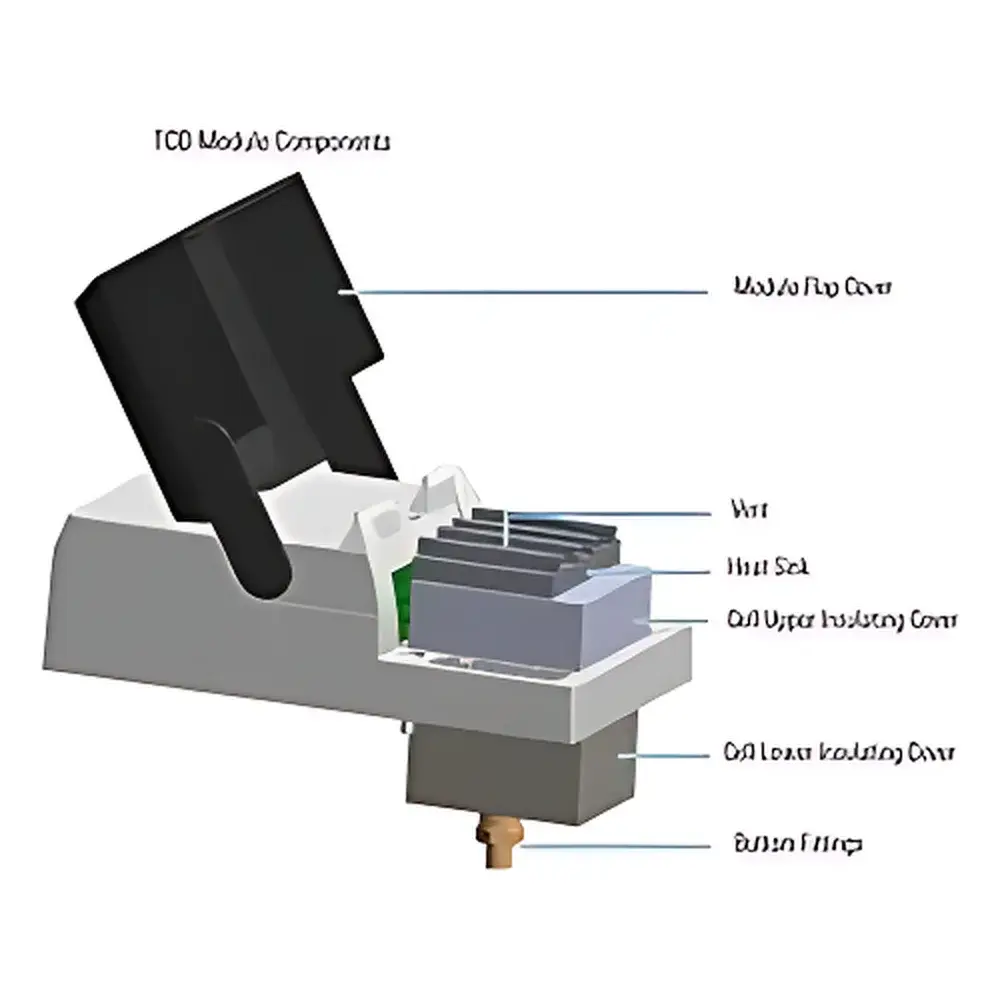

The Thermo Scientific Instant Connect Thermal Conductivity Detector (TCD) is a high-stability, low-noise, modular detection system engineered for integration into Thermo Scientific TRACE™ GC and ISQ™ GC-MS platforms. Based on the fundamental principle of thermal conductivity differential measurement—where changes in thermal dissipation across a Wheatstone bridge configuration reflect analyte concentration—the detector delivers quantitative, non-destructive analysis of permanent gases, light hydrocarbons, and small organic molecules. Unlike electron capture or flame ionization detectors, the TCD operates without consumables, ionizing radiation, or hydrogen combustion, making it intrinsically safe, universally compatible with inert carrier gases (He, H₂, N₂), and ideal for regulated environments requiring method robustness and long-term baseline stability. Its core architecture features dual filament arrays housed in thermally isolated micro-machined cells, enabling precise temperature control up to 400 °C with 0.1 °C resolution—critical for reproducible retention time alignment and peak shape fidelity across extended run sequences.

Key Features

• Instant Connect Modularity: Tool-free, two-minute hot-swap capability enables rapid replacement or reconfiguration of the TCD module without GC oven cooldown, column disconnection, or system venting—minimizing instrument downtime and eliminating calibration drift associated with thermal cycling.
• Universal Column Compatibility: Designed to interface seamlessly with both 1/8″ and 1/16″ packed columns while delivering optimal performance with fused-silica capillary columns (0.1–0.53 mm ID), supporting applications from refinery gas analysis to residual solvent testing.
• High Sensitivity & Wide Linear Range: Achieves sub-400 pg/mL detection limits for tridecane using helium carrier gas and maintains linearity over five orders of magnitude (10⁵), ensuring accurate quantitation across trace-level impurities and major component peaks within a single chromatogram.
• Temperature-Resilient Design: Active temperature control (up to 400 °C, ±0.1 °C) compensates for ambient fluctuations and ensures consistent thermal equilibrium during gradient elution or multi-method sequences.
• Low Maintenance Architecture: No consumables, no radioactive sources, no flame gases—reducing operational cost of ownership and simplifying compliance documentation under ISO/IEC 17025 and GLP audit requirements.

Sample Compatibility & Compliance

The Instant Connect TCD is validated for use with gaseous and volatile liquid samples across pharmaceutical, petrochemical, environmental, and food safety laboratories. It supports ASTM D1945 (analysis of natural gas), ASTM D1946 (analysis of refinery gases), USP <467> (residual solvents), and ISO 8573-5 (compressed air purity). Its non-destructive detection mode preserves sample integrity for downstream collection or re-injection. All firmware and hardware configurations comply with IEC 61000-4 electromagnetic compatibility standards and meet CE marking requirements for laboratory instrumentation. Data acquisition and reporting workflows are compatible with 21 CFR Part 11–compliant software environments when paired with Thermo Scientific Chromeleon™ CDS.

Software & Data Management

Native integration with Chromeleon Chromatography Data System (CDS) v7.3+ enables full method parameter synchronization, real-time baseline correction, and automated TCD response factor calculation. The detector’s digital signal output supports audit-trail-enabled acquisition—including user login, parameter change logs, and electronic signature capture—as required by FDA and EMA regulatory submissions. Raw analog outputs (0–1 V or 0–5 V) are available for legacy DAQ systems, while Ethernet-based communication ensures secure, time-stamped data streaming with networked instrument monitoring capabilities. Calibration curves can be stored per method, and detector diagnostics—including filament resistance trending and thermal error alerts—are logged automatically for preventive maintenance scheduling.

Applications

• Quantitative analysis of permanent gases (O₂, N₂, CO, CO₂, CH₄, H₂) in industrial process streams
• Residual solvent profiling in API manufacturing per ICH Q3C guidelines
• Head-space analysis of packaging leachables and extractables
• Environmental monitoring of landfill and biogas composition
• Quality control of synthetic gas mixtures and calibration standards
• Teaching and method development labs requiring stable, intuitive, and safe detection technology

FAQ

Is the Instant Connect TCD compatible with non-Thermo GC systems?
No—mechanical, electrical, and firmware interfaces are proprietary to Thermo Scientific TRACE GC and ISQ GC-MS platforms. Retrofitting to third-party instruments is not supported.
Does the TCD require filament conditioning before first use?
Yes—filaments must undergo a controlled 2-hour bake-out at 350 °C under carrier gas flow prior to analytical use, as specified in the operator manual.
Can the detector operate with nitrogen as the carrier gas?
Yes—though sensitivity is reduced relative to helium or hydrogen; method validation is required for each application when switching carrier gases.
What is the expected filament lifetime under routine operation?
Typical filament service life exceeds 18 months under continuous operation at ≤350 °C with clean, dry carrier gas and proper inlet maintenance.
Is remote diagnostic support available via Chromeleon CDS?
Yes—Chromeleon’s Instrument Diagnostics module provides real-time health monitoring, including thermal error codes, filament resistance deviation alerts, and historical performance trend charts accessible via web browser or mobile client.
